Product Overview

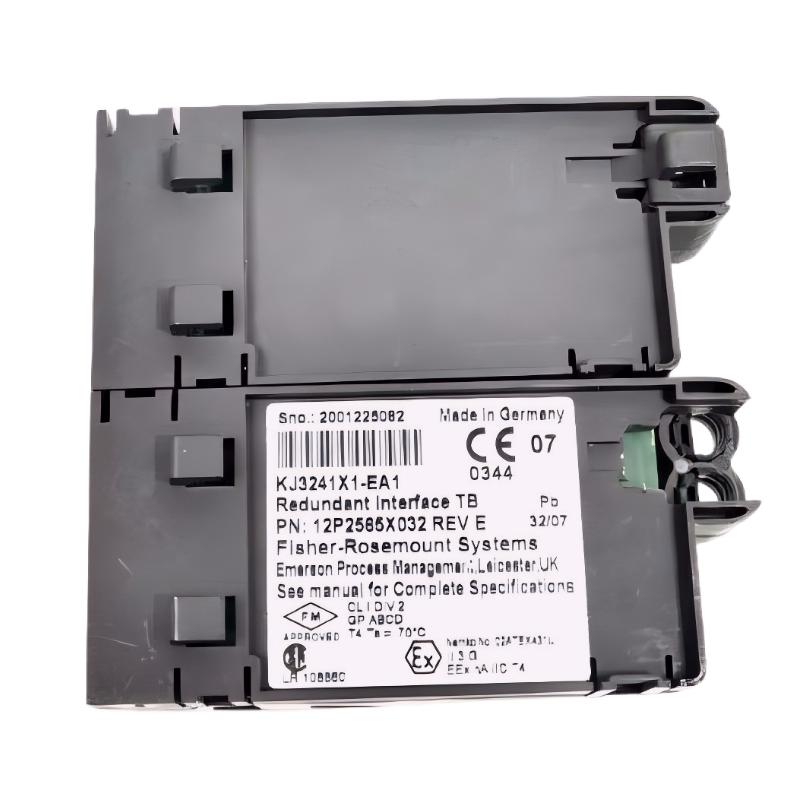

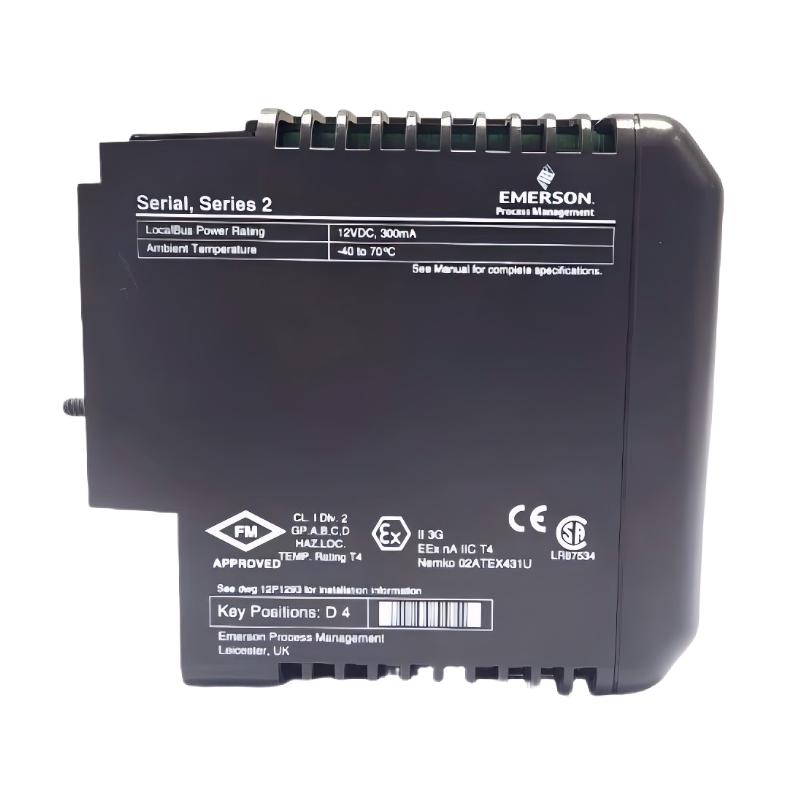

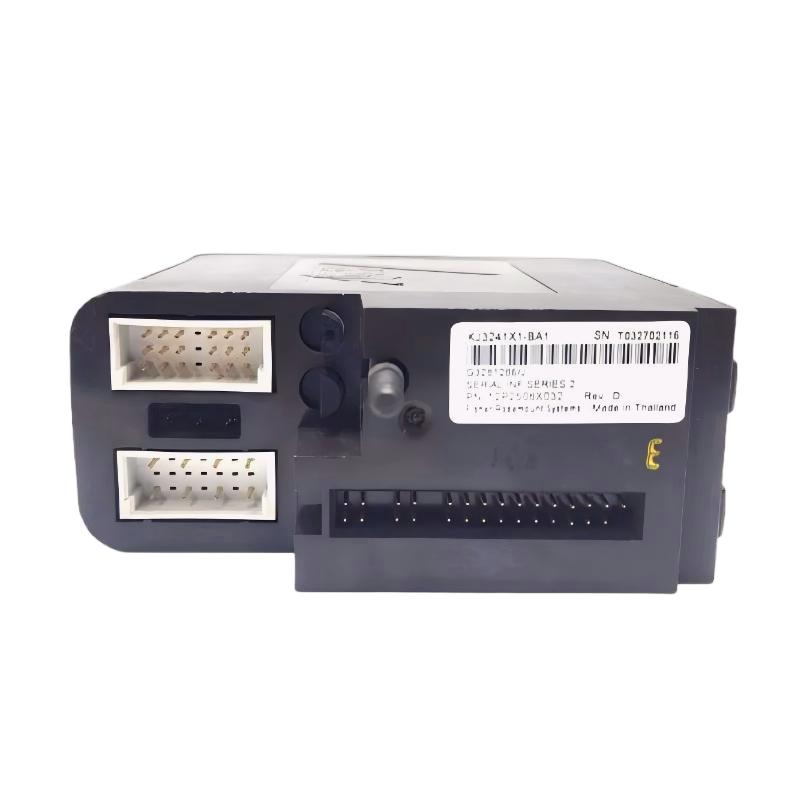

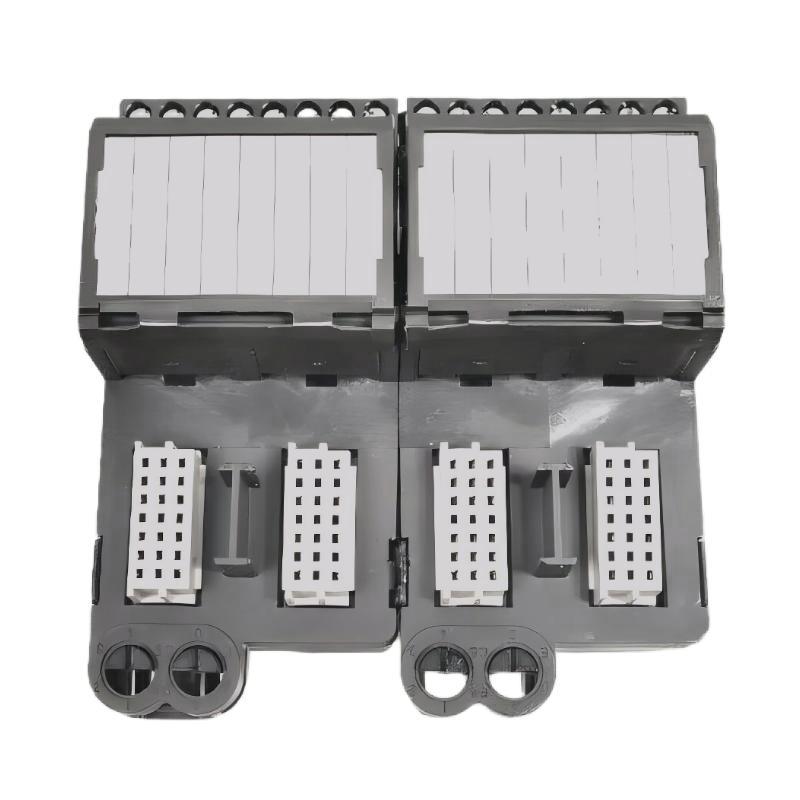

The Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Serial Interface Card is a redundant serial communication interface designed for compatible Emerson DeltaV process automation systems. It provides a communication path between serial field devices and the control system, allowing intelligent instruments, meters, controllers, analyzers, and other serial devices to exchange structured data with the process automation environment.
Serial communication is widely used in industrial automation because many devices provide more information than can be transferred through conventional analog or discrete wiring. A serial connection can carry process measurements, device status, alarms, diagnostic information, and other operational data through a communication interface.
The VE4036P2 is associated with the KJ3241X1-BA1 + KJ3241X1-EA1 redundant M-series serial interface arrangement. The two associated components form part of the redundant communication architecture and are designed to provide reliable connectivity for compatible serial devices.
The module supports multiple serial communication interface types, including RS-232, RS-422/485 half duplex, and RS-422/485 full duplex, depending on the system configuration and connected equipment. The interface provides two serial ports and supports up to 32 data sets, with 16 data sets per port.
The listed physical dimensions are 107 × 41 × 105 mm, with a listed weight of 0.45 kg. This compact form factor makes the VE4036P2 suitable for integration into industrial control cabinets containing other Emerson I/O and communication components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4036P2 |
| Part Number | KJ3241X1-BA1 + KJ3241X1-EA1 |
| Product Type | Redundant Serial Interface Card |
| System | Emerson DeltaV |
| Communication Type | Serial Communication |
| Number of Serial Ports | 2 |
| Data Sets | 32 total, 16 per port |
| Supported Port Types | RS-232, RS-422/485 Half Duplex, RS-422/485 Full Duplex |
| Port Isolation | Individual port isolation |
| LocalBus Power | 12 VDC at 300 mA |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.45 kg |
| Typical Application | Industrial Process Automation |
| System Role | Serial Device Communication Interface |
The exact communication configuration should be matched to the connected device and the engineering configuration of the host Emerson system.
What Is the Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1?
The Emerson VE4036P2 is a redundant serial interface card used to connect serial devices with a compatible Emerson DeltaV control architecture.
The associated hardware identification is:
- VE4036P2
- KJ3241X1-BA1
- KJ3241X1-EA1
The card provides two serial communication ports and supports several serial electrical interface configurations. This allows different types of intelligent industrial equipment to exchange information with the control system.
A simplified communication architecture is:
Serial Field Device → Serial Cable → VE4036P2 → DeltaV Control System → Controller / HMI
The connected device could be an intelligent instrument, analyzer, meter, controller, packaged system, or other equipment with a compatible serial communication interface.
Unlike an analog input card, the VE4036P2 does not simply acquire one continuously varying electrical signal. Instead, it transfers structured digital information between devices.
Serial Communication Function
Serial communication allows industrial devices to exchange information in an organized digital format.
A connected instrument may transmit:
- Process measurements
- Device status
- Alarm conditions
- Diagnostic information
- Device identification
- Operating parameters
- Maintenance information
The control system can also transmit information back to the connected device when supported by the configured protocol.
This two-way communication capability can provide more information than a basic hardwired signal.
For example:
Intelligent Pressure Instrument
→ Pressure Value
→ Device Status
→ Diagnostic Information
→ Alarm Status
All of these data points can potentially be exchanged through the serial communication architecture when supported by the device and configured protocol.
Dual Serial Port Architecture
The VE4036P2 provides two serial ports, allowing the communication interface to support multiple serial connections within the system architecture.
The specified configuration supports up to 32 data sets, with 16 data sets per serial port.
This architecture can be useful when several intelligent devices or communication channels must be integrated into a process automation system.
The available interface types include:
- RS-232
- RS-422/485 Half Duplex
- RS-422/485 Full Duplex
The appropriate interface depends on the connected equipment and the system communication design.
Redundant Serial Interface Architecture
The VE4036P2 is designed as a redundant serial interface arrangement using the KJ3241X1-BA1 + KJ3241X1-EA1 combination.
Redundancy is particularly relevant in continuous process industries where communication with important field equipment should remain available.
A simplified architecture is:
Serial Device
↓
Redundant Serial Interface
↓
Emerson DeltaV Architecture
↓
Controller
↓
Operator / Engineering System
The exact redundancy behavior depends on the overall DeltaV system configuration.
A redundant architecture can help reduce the impact of an individual interface or hardware-path fault and can provide additional availability for important communication functions.
Communication Interface Types
RS-232
RS-232 is commonly used for point-to-point serial communication.
It can be suitable for connecting compatible serial equipment over relatively short communication paths.
RS-422/485 Half Duplex
RS-422/485 half-duplex communication can support multi-device or industrial communication arrangements depending on the selected protocol and system configuration.
This type of interface is widely used in industrial environments because it can support longer communication distances and improved noise resistance compared with basic single-ended serial connections.
RS-422/485 Full Duplex
Full-duplex communication allows simultaneous transmission and reception through the appropriate communication arrangement.
The actual operating mode depends on the connected equipment and configured communication protocol.
Function and Working Principle
Device Communication
The process begins when an external intelligent device generates information that must be transferred to the control system.
The device may provide measurement, status, diagnostic, or configuration information.
Serial Data Transmission
The device transmits structured data through its configured serial interface.
The VE4036P2 receives the communication data through the appropriate serial port.
Interface Processing
The serial interface provides the communication path required to transfer the data into the Emerson control architecture.
The interface configuration must correspond to the connected equipment.
Control-System Integration
Once communication has been established, the control system can use the received information for:
- Process monitoring
- Alarm management
- Equipment diagnostics
- Historical trending
- Process calculations
- Operator displays
- Control strategies
Data Transmission Back to Devices
Where supported, the control system can also send commands or parameters back to the connected serial equipment.
This can provide two-way communication between the process automation system and intelligent field devices.
Role in Emerson DeltaV Systems
The VE4036P2 provides a communication layer within a DeltaV process automation architecture.
A typical system can include:
- Intelligent field devices
- Serial communication cables
- VE4036P2 serial interface
- Emerson I/O architecture
- DeltaV controllers
- Operator workstations
- Engineering workstations
- Historian or process data systems
The serial interface therefore helps connect equipment that communicates through serial protocols with the higher-level automation system.
This is particularly useful when a plant contains intelligent devices that provide considerably more information than can be represented through simple analog or discrete signals.
Industrial Applications
Process Instrumentation
Intelligent transmitters and instruments can provide measurement and diagnostic information through serial communication.
Applications may include:
- Pressure measurement
- Flow measurement
- Temperature monitoring
- Level measurement
- Process analysis
Power Generation
Power plants contain numerous intelligent devices, meters, controllers, and auxiliary systems.
A serial interface can help integrate compatible equipment into a centralized control environment.
Oil and Gas
Oil and gas facilities often use intelligent instrumentation and packaged equipment with communication capabilities.
Serial communication can provide process information and equipment diagnostics to the central control system.
Chemical Processing
Chemical plants require extensive instrumentation and equipment monitoring.
A serial interface can help connect intelligent devices to process-control systems.
Water Treatment
Water and wastewater plants can contain analyzers, meters, pump controllers, and packaged equipment with serial communication capabilities.
The VE4036P2 can form part of the communication architecture for compatible equipment.
Manufacturing
Industrial manufacturing systems may contain legacy and intelligent equipment using serial communication.
A suitable serial interface can help integrate such equipment into a centralized automation system.
System Integration
The VE4036P2 should be installed as part of a compatible Emerson DeltaV architecture.
A typical communication structure may be:
Intelligent Device
→ Serial Cable
→ KJ3241X1-BA1 / KJ3241X1-EA1
→ VE4036P2
→ DeltaV System
→ Controller
→ HMI / Engineering Workstation
The exact arrangement depends on the plant design, connected equipment, communication protocol, and system configuration.
Before commissioning, the physical interface and software configuration should be checked together.
Communication Configuration
Correct communication configuration is essential for reliable serial data exchange.
Depending on the communication protocol, parameters may include:
- Baud rate
- Parity
- Data bits
- Stop bits
- Device address
- Retry count
- Message timeout
- Transmit delay
The supported communication baud rates include:
300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200
Parity can be configured as:
- Even
- Odd
- None
Data length can use:
- 7 bits
- 8 bits
Stop-bit configuration can use:
- 1 stop bit
- 2 stop bits
The correct values must match the connected device and communication protocol.
Installation Guidelines
Verify Product Identification
Before installation, confirm:
Emerson VE4036P2
KJ3241X1-BA1 + KJ3241X1-EA1
The complete hardware identification should be compared with the existing system documentation.
Inspect the Control Cabinet
Check:
- Mounting location
- Cabinet cleanliness
- Temperature
- Humidity
- Vibration
- Cable routing
- Grounding
- Adjacent equipment
Check Serial Cables
Communication cables should be inspected for:
- Physical damage
- Loose connections
- Incorrect termination
- Poor shielding
- Incorrect routing
- Grounding problems
Confirm Port Configuration
Verify which serial port is connected to each device and ensure the physical connection corresponds to the engineering configuration.
Verify Communication Settings
The serial interface and connected equipment must use compatible communication parameters.
Commissioning Procedure
Step 1: Verify Hardware
Confirm the VE4036P2 and associated KJ3241X1-BA1 + KJ3241X1-EA1 identification.
Step 2: Check Communication Wiring
Verify every serial connection and terminal.
Step 3: Verify Device Power
Confirm that each connected serial device has the required operating power.
Step 4: Configure Communication Parameters
Check baud rate, parity, data bits, stop bits, addressing, and other protocol-specific settings.
Step 5: Establish Communication
Confirm that the DeltaV system can communicate with the connected device.
Step 6: Verify Data
Compare received values with the expected device values.
Step 7: Check Diagnostics
Review communication status and diagnostic information.
Step 8: Test Redundant Operation
Where applicable, perform the approved redundancy test to confirm the expected system response.
Troubleshooting the VE4036P2
No Communication
If a connected device cannot communicate with the control system, inspect:
- Device power
- Communication cable
- Serial port
- Termination
- Device address
- Baud rate
- Parity
- Data bits
- Stop bits
- Protocol configuration
- Controller configuration
A communication failure does not automatically indicate a failed interface card.
Intermittent Communication
Intermittent communication may be caused by:
- Loose wiring
- Damaged cables
- Electrical interference
- Grounding problems
- Incorrect shielding
- Incorrect communication parameters
- Device instability
- Network configuration problems
The physical communication path should be inspected before replacing hardware.
Incorrect Data
If communication is established but the data displayed in the control system is incorrect, check:
- Data mapping
- Device configuration
- Register or data address
- Scaling
- Protocol configuration
- Controller logic
- Engineering-unit conversion
The communication interface can be functioning correctly even when application-level data mapping is incorrect.
Communication Timeout
Repeated timeouts may indicate:
- Incorrect device address
- Incorrect baud rate
- Wrong serial interface mode
- Cable problems
- Device failure
- Protocol mismatch
- Excessive communication delay
Communication diagnostics can help determine the source of the problem.
Preventive Maintenance
Inspect Serial Wiring
Regularly inspect communication cables and terminals for damage, looseness, moisture, or corrosion.
Review Communication Diagnostics
Repeated communication errors should be investigated rather than continuously reset.
Maintain Proper Grounding
Proper grounding and shielding can help reduce electrical interference.
Maintain Cabinet Conditions
The VE4036P2 has a listed operating temperature range of -40°C to +70°C and a relative humidity range of 5–95% non-condensing.
Maintaining suitable cabinet conditions helps protect the communication hardware.
Maintain Configuration Records
Document the connected devices, port assignments, communication parameters, and system configuration.
This information is valuable when replacing equipment or troubleshooting communication faults.
Environmental Characteristics
The VE4036P2 is designed for industrial operating environments.
Key listed environmental characteristics include:
- Operating Temperature: -40°C to +70°C
- Relative Humidity: 5–95%, non-condensing
- Protection Rating: IP20
- Airborne Contaminants: ISA-S71.04-1985 Class G3
- LocalBus Power: 12 VDC at 300 mA
The equipment should be installed according to the environmental and hazardous-area requirements applicable to the specific Emerson system.
Physical Dimensions and Weight
The listed physical specifications for the Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Serial Interface Card are:
- Dimensions: 107 × 41 × 105 mm
- Weight: 0.45 kg
These specifications are useful for:
- Control cabinet planning
- Spare-parts management
- Replacement preparation
- Equipment inventory
- Maintenance logistics
The actual mounting arrangement should be verified against the target Emerson I/O assembly.
Replacement Considerations
When replacing a VE4036P2, the complete identification should be checked:
- VE4036P2
- KJ3241X1-BA1
- KJ3241X1-EA1
- Hardware revision
- Serial port configuration
- Connected devices
- Communication protocol
- Controller configuration
- Redundant architecture
A visually similar serial interface should not automatically be considered an equivalent replacement.
After installation, communication should be tested with the connected equipment before returning the system to normal operation.
Related Emerson Components
| Component Type | General Function |
|---|---|
| VE4036P2 | Redundant serial communication interface |
| KJ3241X1-BA1 | Serial interface component |
| KJ3241X1-EA1 | Associated redundant serial interface component |
| Analog Input Module | Continuous process signal acquisition |
| Analog Output Module | Analog control signal output |
| Discrete Input Module | Digital field-status acquisition |
| Discrete Output Module | Digital device control |
| I/O Termination Block | Field wiring interface |
| Fieldbus Interface | Industrial communication |
| DeltaV Controller | Process control execution |
| Operator Workstation | Process monitoring |
The exact compatible components depend on the installed Emerson DeltaV architecture.
Engineering Best Practices
Document Every Serial Device
Each connected device should have a documented address, communication configuration, physical location, and control-system tag.
Maintain Communication Parameter Records
Record baud rate, parity, data bits, stop bits, addressing, and protocol information.
Use Appropriate Communication Cabling
Cable type, shielding, grounding, and routing should follow the requirements of the selected communication interface.
Separate Communication Cables from High-Power Wiring
Appropriate cable separation can help reduce electrical interference.
Monitor Communication Health
Repeated communication errors should be investigated promptly.
Back Up Configuration
Communication configuration should be documented and backed up before hardware replacement or major system changes.
Key Advantages
- Redundant serial communication architecture
- Two serial communication ports
- Supports RS-232
- Supports RS-422/485 half duplex
- Supports RS-422/485 full duplex
- Up to 32 data sets
- 16 data sets per port
- Individual port isolation
- Wide operating temperature range
- Compact 107 × 41 × 105 mm construction
- 0.45 kg listed weight
- Suitable for Emerson DeltaV process automation
- Supports integration of intelligent serial devices
- Suitable for industrial process-control applications
Technical FAQs
What is the Emerson VE4036P2?
The Emerson VE4036P2 is a Redundant Serial Interface Card designed for compatible Emerson DeltaV process automation systems.
What are the associated part numbers?
The specified hardware combination is KJ3241X1-BA1 + KJ3241X1-EA1.
How many serial ports does the VE4036P2 provide?
The specified interface provides two serial ports.
What serial interfaces are supported?
The card supports RS-232, RS-422/485 half duplex, and RS-422/485 full duplex, depending on the configured application.
How many data sets are supported?
The specified architecture supports 32 data sets in total, with 16 data sets per serial port.
What are the dimensions of the VE4036P2?
The listed dimensions are 107 × 41 × 105 mm.
How much does the VE4036P2 weigh?
The listed weight is 0.45 kg.
What is the operating temperature range?
The listed operating temperature range is -40°C to +70°C.
What can cause serial communication failure?
Common causes include incorrect wiring, incompatible baud rate, parity or data settings, incorrect device addressing, protocol mismatch, grounding problems, electrical interference, device failure, or control-system configuration errors.
Is the VE4036P2 a PLC?
No. It is a serial communication interface card used to connect compatible serial devices with the Emerson control architecture.
Conclusion
The Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Serial Interface Card is a specialized communication component for integrating serial field equipment into compatible Emerson DeltaV process automation systems. Its redundant architecture provides a structured communication path for intelligent devices while supporting multiple serial interface types.
With two serial ports, support for RS-232, RS-422/485 half duplex, and RS-422/485 full duplex, and up to 32 data sets, the VE4036P2 can provide a flexible interface for industrial serial communication applications.
The card has listed dimensions of 107 × 41 × 105 mm and a listed weight of 0.45 kg, making it suitable for compact industrial control cabinet installations.
For installation, replacement, and troubleshooting, the complete VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 identification should be verified together with the host Emerson system, connected serial devices, communication protocol, wiring, and configuration parameters. Correct communication settings, proper cable installation, grounding, and systematic commissioning are essential for stable and reliable serial data exchange in industrial process automation.
