Product Overview

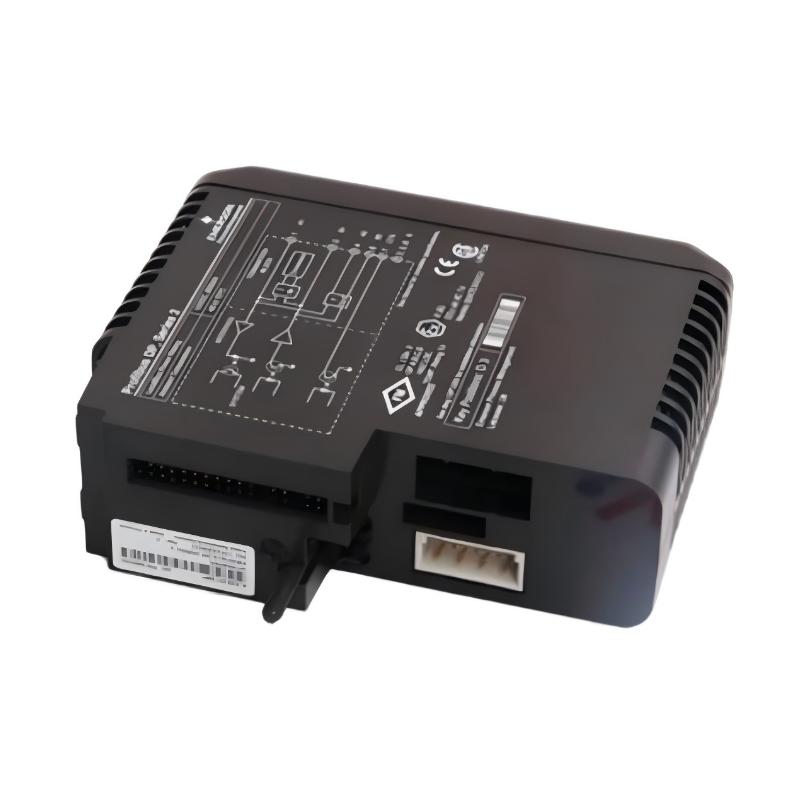

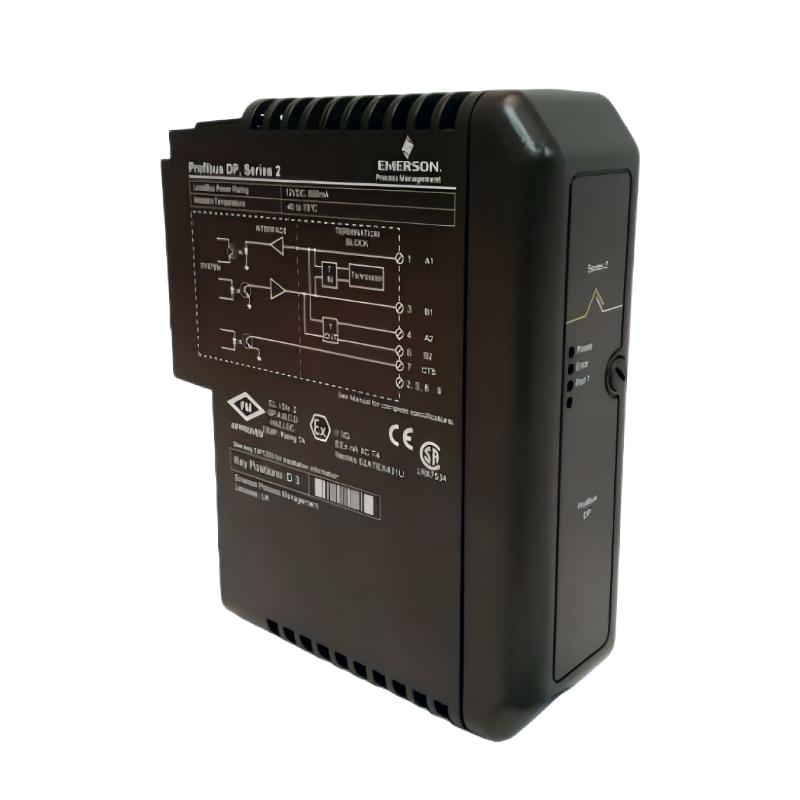

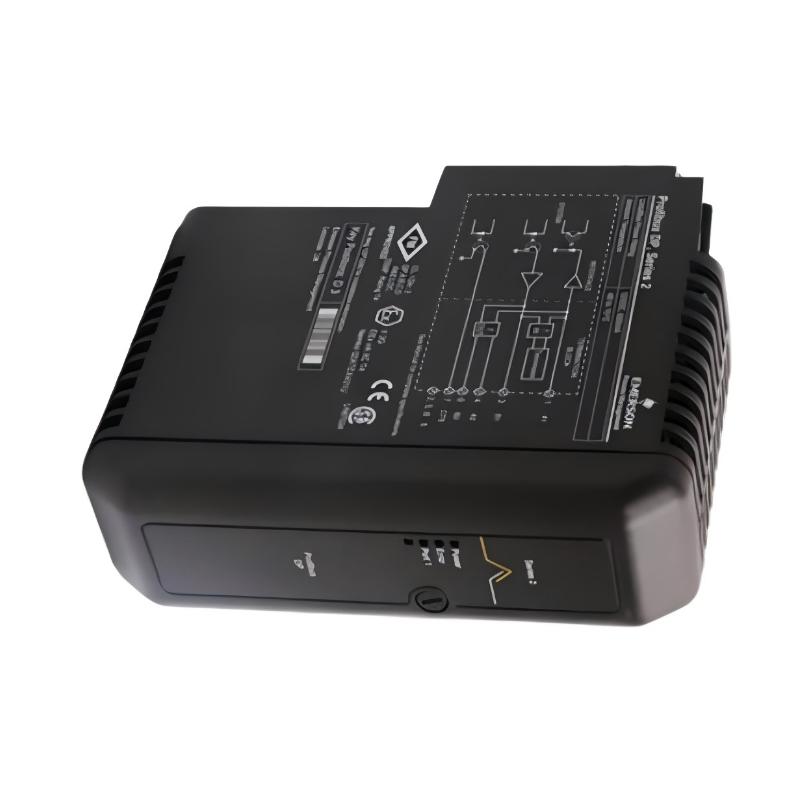

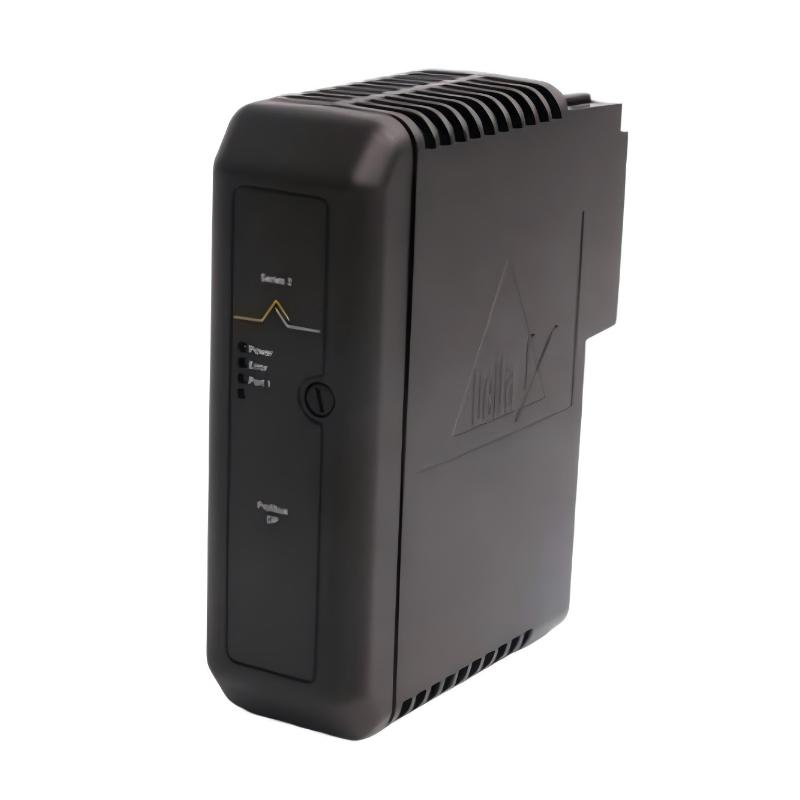

The Emerson VE4014 KJ3243X1-BA1 12P2830X022 PROFIBUS DP Series 2 Interface Module is an industrial communication and interface component designed for integration into compatible Emerson process automation and distributed control system architectures. The module provides an interface between the control system and a PROFIBUS DP network, allowing compatible automation equipment to exchange process and diagnostic information across an industrial communication infrastructure.
As part of the Emerson VE Series, the VE4014 KJ3243X1-BA1 is intended for applications where reliable fieldbus communication is required between control-system equipment and PROFIBUS DP devices. PROFIBUS DP is widely used in industrial automation for connecting controllers, remote I/O, drives, instruments, and other field devices through a structured digital communication network.
The product is identified by several important designations, including VE4014, KJ3243X1-BA1, and 12P2830X022. These identifiers are useful when selecting replacement hardware or verifying compatibility with an existing installation.
The Emerson VE4014 KJ3243X1-BA1 has listed dimensions of 107 × 41 × 105 mm and a weight of approximately 0.24 kg. Its compact construction makes it suitable for installation within industrial control cabinets containing other Emerson control, I/O, communication, and interface hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4014 |
| Part Number | KJ3243X1-BA1 |
| Additional Part Number | 12P2830X022 |
| Product Type | PROFIBUS DP Series 2 Interface Module |
| Product Family | Emerson VE Series |
| Communication Interface | PROFIBUS DP |
| Primary Function | PROFIBUS DP network interface |
| Application | Process Automation and Distributed Control |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.24 kg |
| Installation | Compatible Emerson control-system equipment |
| Typical Application | Industrial fieldbus communication and process control |
Exact electrical ratings, supported device configurations, network limits, connector assignments, and other detailed communication characteristics should be verified against the applicable system documentation and hardware revision before commissioning.
What Is the Emerson VE4014 KJ3243X1-BA1?
The Emerson VE4014 KJ3243X1-BA1 12P2830X022 is a PROFIBUS DP Series 2 Interface Module used to connect compatible Emerson automation equipment with a PROFIBUS DP communication network.
Unlike a conventional analog or digital I/O module that primarily handles individual electrical field signals, a PROFIBUS interface module participates in a digital communication architecture. Information can be exchanged between the control system and connected PROFIBUS devices through a defined fieldbus network.
A simplified architecture can be represented as:
Control System → VE4014 Interface Module → PROFIBUS DP Network → Remote Devices
The connected devices may include compatible remote I/O stations, instruments, motor-control equipment, drives, and other automation components, depending on the system configuration.
The exact role of the VE4014 within an installed Emerson system should always be determined from the system design and applicable configuration documentation.
Understanding PROFIBUS DP Communication
PROFIBUS DP, or Process Field Bus Decentralized Peripherals, is a digital fieldbus technology developed for industrial automation applications.
The communication architecture allows multiple automation devices to exchange information over a shared network. Instead of requiring an individual point-to-point connection for every process signal, a fieldbus network can transfer multiple types of process and diagnostic data through structured digital communication.
A typical PROFIBUS DP installation may include:
- Control-system interface
- PROFIBUS DP master
- Remote I/O devices
- Field instruments
- Drives
- Motor-control equipment
- Distributed automation stations
- Diagnostic information
The VE4014 provides the interface between the compatible Emerson control architecture and the PROFIBUS DP communication environment.
Main Functions of the VE4014
PROFIBUS DP Network Interface
The primary function of the VE4014 is to provide PROFIBUS DP interface capability within a compatible Emerson automation system.
This allows the control architecture to communicate with devices connected to the corresponding fieldbus network.
Digital Data Exchange
Instead of transferring only individual electrical signals, PROFIBUS communication allows structured data to be exchanged between participating devices.
Depending on the system configuration, this information may include:
- Process values
- Device status
- Control commands
- Diagnostic information
- Operating states
- Alarm-related information
- Configuration-related data
The exact data structure depends on the connected devices and control-system configuration.
Distributed Device Integration
PROFIBUS DP is particularly useful when automation equipment is distributed throughout a plant.
Remote equipment can communicate with the central control architecture without requiring every field signal to be individually wired back to a central cabinet.
System Diagnostics
Digital fieldbus architectures can provide diagnostic information that helps maintenance personnel identify communication, device, or configuration problems.
The available diagnostic information depends on the connected devices and Emerson system configuration.
How the PROFIBUS DP Interface Works
The VE4014 can be understood as an interface layer between the Emerson control system and the PROFIBUS DP network.
The general communication sequence is:
Controller → VE4014 → PROFIBUS DP Network → Field Device
and in the reverse direction:
Field Device → PROFIBUS DP Network → VE4014 → Control System
The interface module handles the communication path required by the host architecture.
The controller can then use received information as part of its programmed process-control strategy.
For example, a remote device may provide a measurement or equipment status value. The information is transferred through PROFIBUS DP to the interface module and then made available to the control system.
A control command can follow the opposite path from the controller through the interface and fieldbus network to the target device.
Role in Distributed Control Systems
The VE4014 can play an important role in extending communication between the central control architecture and distributed field equipment.
A modern process-control installation can contain hundreds or thousands of signals and devices. Using digital fieldbus communication can simplify the architecture by allowing multiple devices to communicate through an organized network.
The general architecture may be represented as:
Field Devices → PROFIBUS DP → VE4014 → Control Platform → HMI / Engineering System
This approach can support centralized monitoring while allowing field devices to remain physically distributed around the plant.
The interface module therefore contributes to the communication layer of the automation system rather than acting as a standalone process controller.
Industrial Applications
Process Manufacturing
Process manufacturing plants use distributed instrumentation and automation equipment to monitor and control continuous or batch processes.
The VE4014 can form part of a communication architecture connecting compatible PROFIBUS devices with the process-control system.
Chemical Industry
Chemical processing plants often require extensive instrumentation and distributed equipment. PROFIBUS communication can be used to transfer process and device information between field equipment and the control system.
Oil and Gas
Oil and gas facilities use distributed control and instrumentation systems across processing units, utility areas, and equipment packages.
A PROFIBUS interface can support communication between compatible field devices and the control architecture.
Water and Wastewater
Water-treatment facilities frequently use remote instruments, pumps, valves, analyzers, and distributed I/O equipment.
A fieldbus interface can simplify communication between these devices and the process-control system.
Power Generation
Power-generation plants contain numerous monitoring and control devices. Digital communication networks can help integrate distributed equipment into centralized control and monitoring systems.
General Industrial Automation
The VE4014 may also be used in other industrial installations where an Emerson control system requires compatible PROFIBUS DP communication capability.
PROFIBUS DP Network Architecture
A typical network can contain a control-system interface and multiple field devices.
A simplified example is:
Emerson Control System
↓
VE4014 KJ3243X1-BA1
↓
PROFIBUS DP Network
↓
Remote I/O / Instrument / Drive / Field Device
This architecture provides several practical benefits.
Field devices can be distributed close to the process, reducing the need for long individual signal cables. Digital communication also allows additional device information to be transferred beyond the basic process variable.
However, network design must follow the requirements of the actual PROFIBUS installation, including cable routing, termination, addressing, grounding, and configuration.
Installation Guidelines
Proper installation is essential for reliable PROFIBUS communication.
Verify Product Identification
Before installation, verify all relevant identifiers:
- VE4014
- KJ3243X1-BA1
- 12P2830X022
- Hardware revision
- Existing module position
- Host control-system configuration
These details should match the replacement requirements.
Power Isolation
Before removing or installing the module, follow the plant’s approved electrical isolation and maintenance procedures.
Electronic modules should not be removed or installed under conditions that could expose personnel or equipment to electrical hazards.
Module Position
Install the VE4014 in the designated position within the compatible Emerson system.
Ensure that the module is properly seated and mechanically secured.
Connector Inspection
Before connecting the module, inspect connectors and associated interfaces for:
- Bent contacts
- Dirt
- Corrosion
- Loose connections
- Mechanical damage
- Signs of overheating
A damaged connector can cause communication problems that may appear to be module faults.
PROFIBUS DP Wiring Considerations
Reliable fieldbus communication depends heavily on correct network wiring.
Important considerations include:
Cable Selection
Use the appropriate PROFIBUS-compatible communication cable for the application.
Cable Routing
Avoid routing communication cables directly alongside high-power conductors where unnecessary.
High levels of electrical interference can negatively affect communication reliability.
Network Termination
PROFIBUS networks require appropriate termination arrangements according to the network design.
Incorrect termination can result in intermittent communication or complete network instability.
Grounding and Shielding
Proper grounding and shielding practices are important for industrial fieldbus installations.
The exact grounding arrangement should follow the plant’s electrical design and applicable Emerson and PROFIBUS installation requirements.
Configuration and Commissioning
After physical installation, the communication system must be configured correctly.
A typical commissioning process includes:
1. Confirm Module Identification
Verify that the installed hardware corresponds to VE4014 KJ3243X1-BA1 12P2830X022.
2. Check Network Connections
Inspect the PROFIBUS connection and associated cable.
3. Verify Device Configuration
Confirm that the control-system configuration matches the connected PROFIBUS network.
4. Verify Device Addresses
Ensure that participating devices use the correct network addressing scheme.
5. Check Network Diagnostics
Review available diagnostic information for communication faults or configuration mismatches.
6. Test Data Exchange
Verify that expected process values and status information are being received correctly.
7. Test Control Commands
Where applicable, verify that commands sent from the control system reach the intended field device.
8. Confirm Stable Operation
Allow the system to operate under representative process conditions and monitor communication performance.
Troubleshooting the Emerson VE4014
When diagnosing a VE4014 communication problem, the entire PROFIBUS network should be considered.
No PROFIBUS Communication
Possible causes include:
- Incorrect module installation
- Loose network connection
- Damaged PROFIBUS cable
- Incorrect device addressing
- Configuration mismatch
- Network termination problem
- Grounding issue
- Electrical interference
- Host-system problem
- Interface-module fault
Start with physical connections and configuration before replacing the module.
Intermittent Communication
Intermittent communication may be associated with:
- Loose connectors
- Cable damage
- Incorrect termination
- Electromagnetic interference
- Poor shielding
- Grounding problems
- Temperature-related equipment behavior
- Network configuration problems
Monitoring the network while checking physical connections can help identify the source.
Device Not Detected
If a connected PROFIBUS device is not detected, check:
- Device power
- PROFIBUS connection
- Device address
- Network configuration
- Cable integrity
- Termination
- Interface-module status
- Controller configuration
A missing device does not necessarily indicate a failed VE4014.
Communication Fault After Module Replacement
If communication problems appear immediately after replacing a VE4014, verify:
- Correct part number
- Correct revision
- Correct module position
- Configuration compatibility
- Connector seating
- Network parameters
- Device addressing
- Control-system configuration
The replacement hardware must match the requirements of the existing system.
Preventive Maintenance
Routine maintenance can improve PROFIBUS network reliability.
Inspect Communication Cables
Check for physical damage, excessive bending, loose connections, and deterioration.
Inspect Connectors
Look for contamination, corrosion, or mechanical damage.
Monitor Network Diagnostics
Record recurring communication alarms and device faults.
Maintain Cabinet Conditions
Keep the cabinet clean and maintain appropriate environmental conditions.
Check Grounding
Verify that the communication network and cabinet grounding arrangements remain consistent with the engineering design.
Maintain Configuration Records
Keep current configuration files, network diagrams, device lists, and hardware identification records.
Good documentation can significantly reduce troubleshooting time.
Replacement and Spare-Part Management
The Emerson VE4014 KJ3243X1-BA1 12P2830X022 should be identified by its complete designation when sourcing replacement hardware.
The key identifiers are:
VE4014
KJ3243X1-BA1
12P2830X022
The physical specifications supplied for this module are:
Dimensions: 107 × 41 × 105 mm
Weight: 0.24 kg
When purchasing or replacing the module, physical dimensions should not be the only selection criteria. Electrical characteristics, communication function, hardware revision, connector configuration, and compatibility with the host Emerson system are equally important.
For critical process-control installations, maintaining a correctly identified spare can reduce downtime during hardware failure.
Compatible System Components
The VE4014 can form part of a broader Emerson process automation architecture containing several categories of equipment.
| Component | Typical Function |
|---|---|
| VE4014 Interface Module | PROFIBUS DP system interface |
| PROFIBUS DP Network | Digital fieldbus communication |
| Remote I/O | Distributed field signal processing |
| Process Instruments | Measurement of process variables |
| Drives | Motor speed and control |
| Controllers | Process-control logic |
| Terminal Assemblies | Field wiring interface |
| Engineering Workstation | System configuration and maintenance |
| Operator Station | Process monitoring |
| HMI / SCADA | Visualization and supervisory control |
The exact compatible hardware depends on the Emerson system architecture and configured PROFIBUS network.
Related Emerson Models
The Emerson VE family includes various modules for process control, I/O, communications, and system interfacing.
| Model | Product Type | General Function |
|---|---|---|
| VE3005 | Controller MD Module | Control-system processing |
| VE3006 | Digital Input Module | Digital signal acquisition |
| VE4002 Series | Digital Output Hardware | Discrete output control |
| VE4003 Series | Analog Input Hardware | Analog process measurement |
| VE4005 Series | Analog Output Hardware | Analog output control |
| VE4006P | Serial Interface Module | Serial communication |
| VE4007 | Fieldbus Card | Fieldbus integration |
| VE4009 | ASI Interface Card | ASI network interface |
| VE4010 Series | Digital Input Hardware | Discrete input processing |
| VE4011 Series | Digital Output Hardware | Discrete output processing |
| VE4012 Series | Analog Input Hardware | Analog signal acquisition |
| VE4013 Series | Input Hardware | Process input interface |
| VE4014 | PROFIBUS DP Interface Module | PROFIBUS DP communication |
Related models should not be treated as automatic replacements. Compatibility must be confirmed using the complete model and system configuration.
Engineering Best Practices
For reliable operation of the VE4014 PROFIBUS DP interface, several practices are recommended.
Maintain Accurate Network Documentation
Record device addresses, cable routes, termination locations, module positions, and control-system configuration.
Use Proper Fieldbus Cabling
Use suitable PROFIBUS communication cable and maintain appropriate installation practices.
Control Electromagnetic Interference
Separate communication wiring from high-power switching circuits where practical.
Maintain Proper Termination
Network termination should correspond to the actual PROFIBUS network topology.
Monitor Communication Health
Recurring communication faults should be investigated rather than repeatedly reset.
Keep Replacement Hardware Identified
A spare should be clearly labeled with the complete VE4014 KJ3243X1-BA1 12P2830X022 identification.
Key Advantages
The Emerson VE4014 provides several practical benefits when correctly integrated into a compatible process-control system:
- PROFIBUS DP communication interface
- Designed for industrial process automation
- Supports distributed field-device integration
- Compact 107 × 41 × 105 mm construction
- Approximate weight of 0.24 kg
- Supports digital fieldbus-based system architecture
- Suitable for integration with compatible Emerson control equipment
- Helps reduce complex point-to-point field wiring
- Supports organized industrial communication architectures
- Suitable for maintenance and replacement applications when correctly identified
Technical FAQs
What is the Emerson VE4014 KJ3243X1-BA1?
The Emerson VE4014 KJ3243X1-BA1 12P2830X022 is a PROFIBUS DP Series 2 Interface Module designed for compatible Emerson industrial process-control systems.
What is the function of the VE4014?
Its primary role is to provide a PROFIBUS DP interface between compatible Emerson control-system equipment and connected PROFIBUS devices.
What are the dimensions of the VE4014?
The listed dimensions are 107 × 41 × 105 mm.
What is the weight of the VE4014?
The listed weight is approximately 0.24 kg.
What is the full part number?
The module is identified as VE4014 KJ3243X1-BA1 12P2830X022.
What communication technology does the VE4014 use?
The product is identified as a PROFIBUS DP Series 2 Interface Module.
Is the VE4014 a PLC?
No. It is an interface module used for communication and system integration rather than a general-purpose PLC CPU.
Can the VE4014 communicate with remote PROFIBUS devices?
It is designed to provide PROFIBUS DP interface functionality within a compatible Emerson control architecture. The exact supported device configuration should be verified against the applicable system documentation.
What can cause PROFIBUS communication failure?
Potential causes include incorrect configuration, faulty cabling, poor connections, incorrect addressing, termination problems, grounding issues, electromagnetic interference, or hardware faults.
Can another VE-series module replace the VE4014?
Not automatically. The replacement must match the required communication function, hardware revision, connectors, and host-system configuration.
What should be checked before replacing the module?
Confirm the complete VE4014, KJ3243X1-BA1, and 12P2830X022 identifiers, together with the existing system configuration and hardware revision.
Conclusion
The Emerson VE4014 KJ3243X1-BA1 12P2830X022 PROFIBUS DP Series 2 Interface Module is a compact industrial communication component designed to integrate compatible Emerson control-system equipment with PROFIBUS DP fieldbus networks.
By providing a digital communication interface, the VE4014 can support the integration of distributed I/O, instrumentation, drives, and other compatible field devices into a structured process-control architecture. This makes the module relevant to industrial facilities where distributed automation equipment must exchange process, status, control, and diagnostic information with a central control system.
The module has listed dimensions of 107 × 41 × 105 mm and a weight of 0.24 kg, making it suitable for compact industrial control-system installations.
For installation and replacement, technicians should verify the complete product identification, including VE4014, KJ3243X1-BA1, and 12P2830X022, rather than relying only on physical appearance. Proper PROFIBUS wiring, network configuration, termination, grounding, and system commissioning are essential for stable communication and reliable long-term operation.
