Product Overview

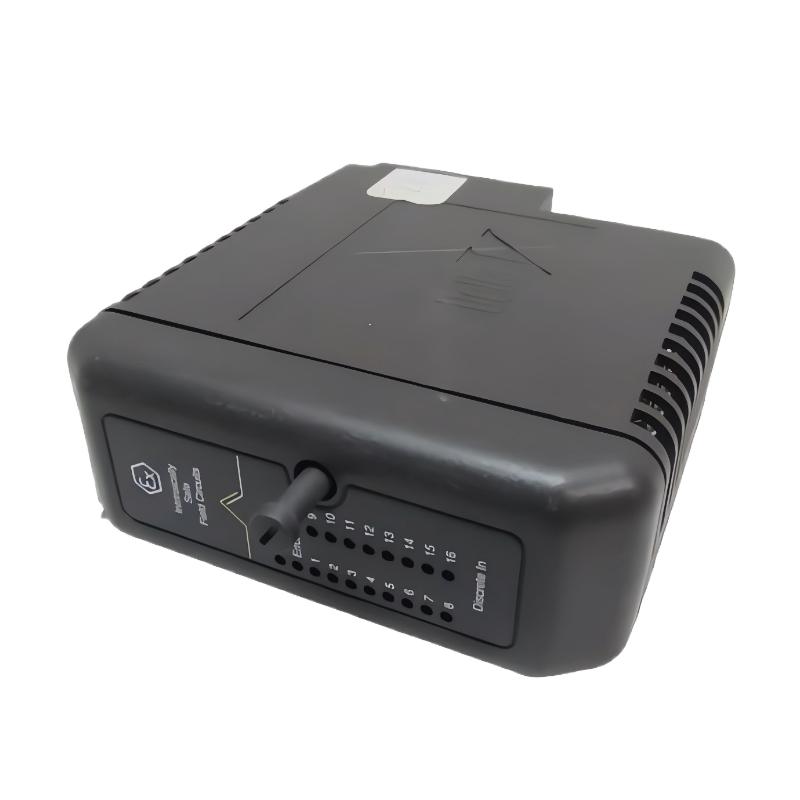

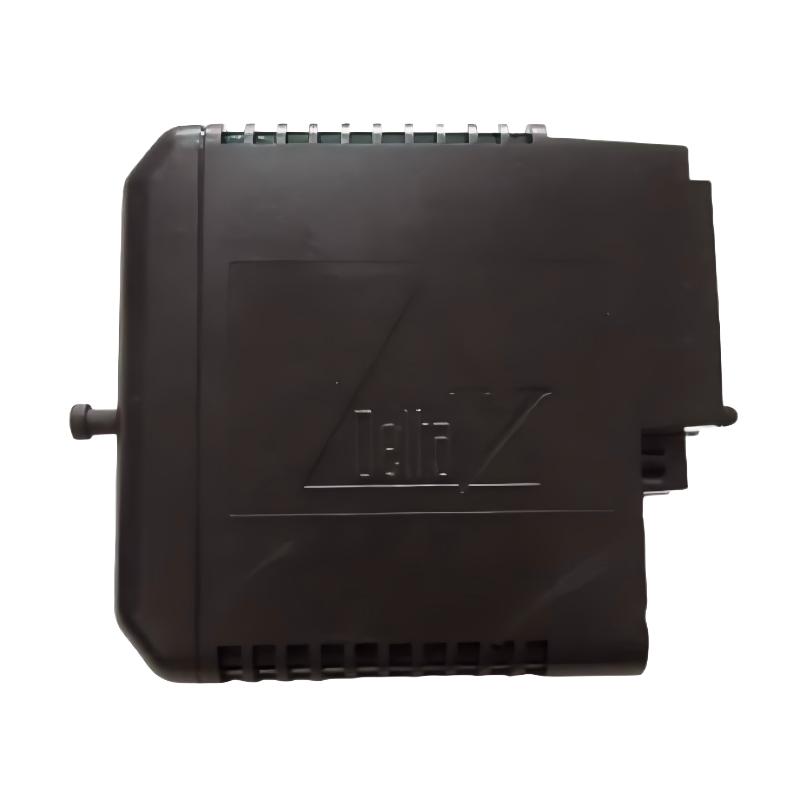

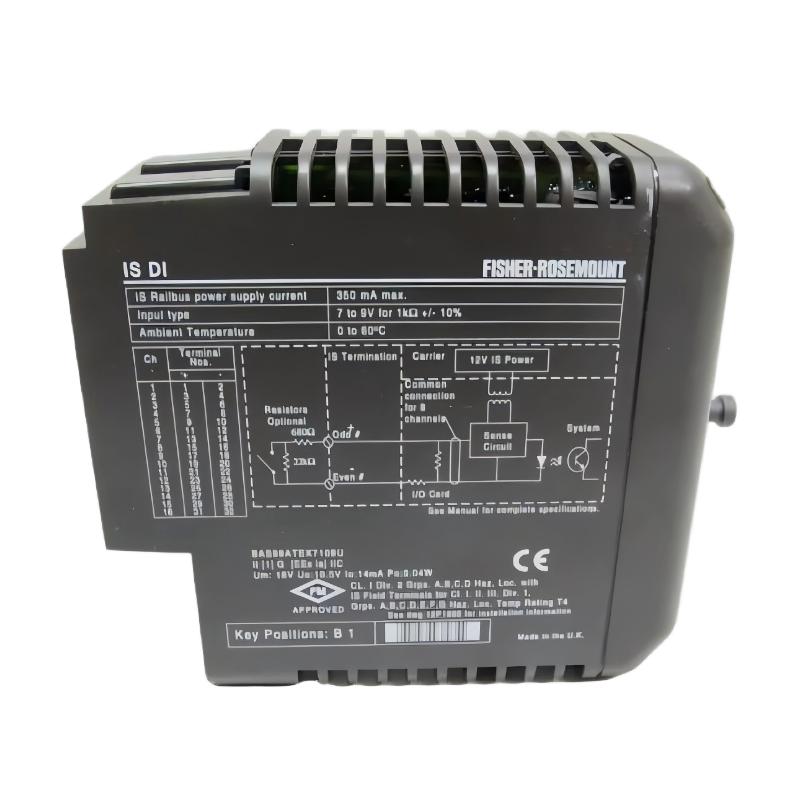

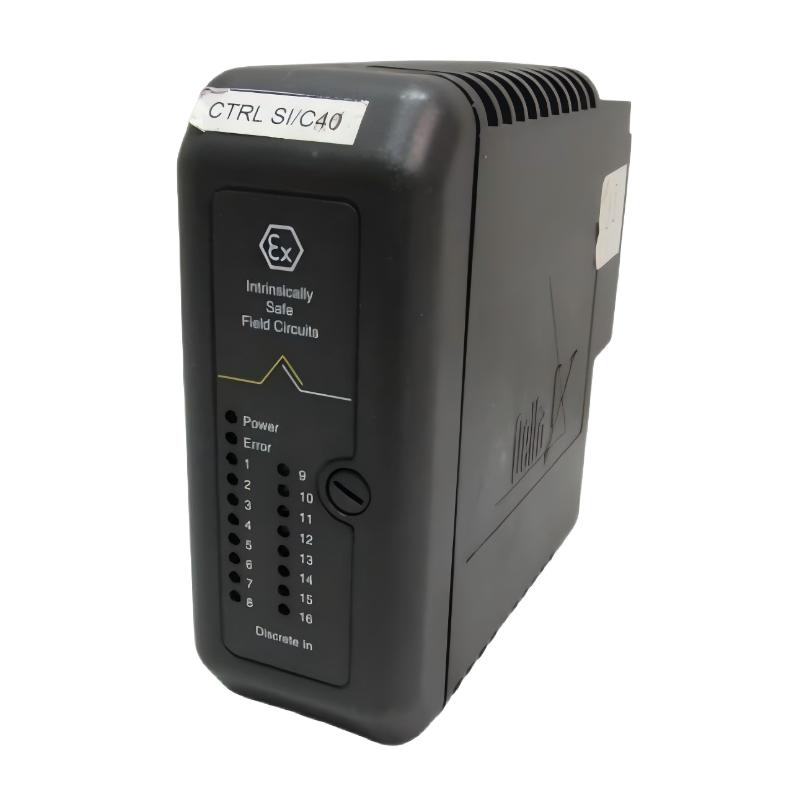

The Emerson VE4010B1 KJ3101X1-BB1 12P1866X042 IS DI Module is an industrial process automation input module designed for acquiring discrete signals from field devices and transferring those signals into a compatible Emerson control system. The IS DI designation identifies the module with intrinsically safe discrete input applications, making it suitable for control architectures where discrete field signals need to be integrated into process automation equipment under the appropriate system and hazardous-area design requirements.

Discrete input signals are essential in industrial control systems because controllers must continuously determine the status of field equipment before executing control logic. A discrete input may represent a switch state, valve position, equipment status, alarm condition, proximity detection, or another two-state field condition. By receiving these signals through an appropriate input module, the control system can make decisions based on actual equipment conditions.

The VE4010B1 KJ3101X1-BB1 12P1866X042 provides a dedicated interface between compatible field devices and the Emerson control architecture. It can therefore participate in monitoring, sequencing, permissive logic, alarm processing, and equipment interlocking applications.

The module has listed dimensions of 107 × 41 × 105 mm and a weight of approximately 0.7 kg. Its compact form factor is suitable for organized industrial control cabinets where multiple I/O modules and field interfaces must be installed within a limited space.

Because exact electrical parameters, channel configuration, intrinsic-safety characteristics, terminal assignments, and field-device compatibility can depend on the specific hardware revision and Emerson system configuration, these details should be confirmed against the applicable engineering documentation before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	VE4010B1
Part Number	KJ3101X1-BB1
Identification	12P1866X042
Product Type	IS DI Module
Functional Category	Discrete Input Module
Primary Function	Acquisition of discrete field signals
Application	Industrial Process Automation
Input Type	Discrete / Digital Input
Safety Application	Intrinsically Safe field-interface applications
Interface Role	Field device to control-system input interface
Dimensions	107 × 41 × 105 mm
Weight	0.7 kg
Installation	Compatible Emerson control-system equipment
Typical Applications	Switch monitoring, status detection, alarms, interlocks, process sequencing

Note: Exact input voltage range, current characteristics, channel count, isolation specification, terminal arrangement, and intrinsic-safety parameters should be verified from the applicable Emerson documentation for KJ3101X1-BB1 12P1866X042 and the installed system configuration.

---

What Is the Emerson VE4010B1 KJ3101X1-BB1?

The Emerson VE4010B1 KJ3101X1-BB1 12P1866X042 is an IS DI Module, meaning it is used for discrete input signal acquisition in an appropriate Emerson industrial process-control architecture.

The module’s primary purpose is to receive discrete information from field devices and make that information available to the control system.

Typical discrete field devices include:

• Limit switches
• Proximity switches
• Equipment status contacts
• Valve position switches
• Pressure switches
• Level switches
• Relay contacts
• Alarm contacts
• Interlock contacts
• Other compatible discrete field devices

A basic signal architecture can be represented as:

Field Device → Field Wiring → IS DI Module → Control System → Control Logic

When a field device changes state, the corresponding input condition can be detected by the control system. The controller can then use the information to execute programmed logic.

For example, a valve position switch may indicate that a valve has reached its commanded position. The control system can use that signal to permit the next stage of a process sequence.

---

Understanding IS DI Applications

The IS DI designation is particularly important in process industries where field instrumentation may be installed in hazardous locations.

Intrinsically safe systems are designed so that the electrical energy available to field circuits is controlled within specified limits to reduce the possibility of ignition in designated hazardous environments.

However, intrinsic safety is a complete system-design concept rather than a characteristic that should be assumed solely from a product name.

The complete installation may involve:

• Field instrumentation
• Intrinsically safe wiring
• Appropriate barriers or isolating interfaces
• Certified associated apparatus
• Grounding and bonding arrangements
• Hazardous-area classification
• System-specific installation requirements

Therefore, the VE4010B1 KJ3101X1-BB1 should be installed only as part of an approved and correctly engineered system configuration.

The actual hazardous-area compatibility and intrinsic-safety parameters must be verified from the applicable documentation before commissioning.

---

Function and Working Principle

Discrete Signal Acquisition

A discrete field device normally provides one of two principal states.

For example:

OFF / ON

or:

OPEN / CLOSED

The field device changes state when the associated physical condition changes.

The VE4010B1 receives the compatible discrete input condition and passes the information into the control architecture.

Field-State Detection

The module enables the automation system to recognize field conditions such as:

• Motor running status
• Motor stopped status
• Valve open
• Valve closed
• High-level switch activated
• Low-level switch activated
• Equipment fault
• Safety or interlock condition
• Object detected
• Mechanical position reached

The exact interpretation is determined by the control-system application.

Controller Processing

Once the discrete signal is acquired, the control system can evaluate it against programmed logic.

A simple sequence might be:

Command → Equipment Movement → Position Detection → DI Signal → Logic Verification → Next Process Step

This type of feedback is fundamental to automated sequencing.

Alarm and Interlock Processing

Discrete inputs are also frequently used for alarms and permissive conditions.

For example, the control system may prevent equipment startup unless a required status signal is present.

Similarly, an abnormal discrete state can be used to trigger an alarm or initiate a predefined protective action.

---

Role in Emerson Process Automation

The VE4010B1 KJ3101X1-BB1 12P1866X042 can serve as part of the field I/O layer in an Emerson process automation system.

A simplified architecture is:

Process → Field Device → IS DI Module → I/O Architecture → Controller → HMI / SCADA

Each layer performs a different function.

Field Device

The field device detects the physical condition.

IS DI Module

The module provides the discrete input interface required by the compatible control architecture.

Controller

The controller processes the input according to configured control logic.

HMI / SCADA

The operator interface can display status information, alarms, and process conditions where supported by the overall system.

This architecture allows simple field events to become meaningful information within a sophisticated process-control strategy.

---

Industrial Applications

Valve Position Monitoring

Process plants frequently use discrete position switches to determine whether valves have reached their required positions.

The control system can use these signals for:

• Valve-open confirmation
• Valve-closed confirmation
• Sequence permissives
• Alarm generation
• Interlock logic

Motor and Pump Status

Discrete contacts can provide basic equipment-status information.

A controller can compare a start command with the actual feedback signal to identify abnormal operating conditions.

Process Equipment Interlocks

Interlocks often depend on multiple discrete conditions.

For example, equipment may only be permitted to start when:

• A protective device is in the correct state
• A valve is positioned correctly
• A guard is closed
• A permissive signal is active
• Another process condition has been satisfied

The VE4010B1 can form part of the input path for these conditions.

Hazardous-Area Instrumentation

Where the overall system is designed for intrinsically safe field circuits, an IS discrete input module can be used to integrate suitable field contacts or switching devices into the control architecture.

The exact hazardous-area application must always be checked against the approved system design.

Chemical Processing

Chemical plants frequently use discrete switches and status contacts for monitoring process equipment, valve states, alarms, and protective conditions.

Oil and Gas

Oil and gas facilities use discrete field signals throughout production, processing, storage, and utility systems. IS input architectures are particularly relevant where field instrumentation is installed in classified areas.

Pharmaceutical and Process Manufacturing

Discrete feedback can be used to confirm equipment states, process steps, and machine sequences in automated manufacturing environments.

---

System Integration Architecture

The VE4010B1 can be considered part of a layered industrial control architecture.

Field Layer

Typical field devices include:

• Switches
• Proximity sensors
• Limit switches
• Valve position contacts
• Relay contacts
• Equipment status contacts

Input Interface Layer

The KJ3101X1-BB1 12P1866X042 provides the associated discrete input function.

Control Layer

The Emerson controller processes the acquired input information and executes programmed logic.

Supervisory Layer

An HMI or SCADA system can display equipment status and alarms where supported.

The complete architecture can therefore be represented as:

Field Device → VE4010B1 → Emerson Control Architecture → Controller → HMI / SCADA

Correct integration requires compatibility between the field device, wiring method, input module, controller configuration, and overall safety architecture.

---

Installation Guidelines

Verify the Complete Part Number

Before installing or replacing the module, confirm all available identification information:

• VE4010B1
• KJ3101X1-BB1
• 12P1866X042
• Hardware revision
• Existing installation location
• Associated terminal equipment
• Host Emerson system

The complete identification is important because Emerson control-system components can have similar physical formats while serving different functions.

Confirm System Compatibility

The module should be matched to the appropriate Emerson control-system architecture.

Do not determine compatibility solely from physical dimensions.

Electrical interface characteristics and system configuration must also be checked.

Review Hazardous-Area Requirements

For IS applications, the installation must follow the applicable hazardous-area engineering requirements.

Before commissioning, verify:

• Area classification
• Field-device approval
• Wiring method
• Barrier or isolation arrangement where applicable
• Grounding requirements
• System certification requirements
• Permitted field-device parameters

These requirements should be evaluated as a complete system.

Inspect Field Wiring

Before connecting the module, inspect field wiring for:

• Damaged insulation
• Loose terminals
• Incorrect connections
• Moisture
• Corrosion
• Excessive mechanical stress
• Incorrect cable routing

Good wiring practices are especially important in process automation installations.

---

Commissioning Procedure

A controlled commissioning process helps ensure that each discrete input operates correctly.

Step 1: Confirm Module Identification

Verify the module is VE4010B1 KJ3101X1-BB1 12P1866X042 and confirm the installed hardware configuration.

Step 2: Inspect Connections

Check all field connections and associated interface components.

Step 3: Verify Field Device Operation

Operate the relevant switch, sensor, or contact under controlled conditions.

Step 4: Observe Input Status

Confirm that the control system recognizes the expected change of state.

Step 5: Test Application Logic

Where the input is used for sequencing or interlocking, verify that the programmed logic responds correctly.

Step 6: Test Alarms

Confirm that required abnormal conditions generate the expected alarms.

Step 7: Record Results

Document the module identification, field-device connections, tested states, and commissioning results.

---

Troubleshooting the Emerson VE4010B1

Troubleshooting should begin at the field device and proceed through the signal path to the control system.

No Input Signal

If an expected discrete input is not detected, inspect:

• Field-device operation
• Field wiring
• Terminal connections
• Module installation
• Associated I/O hardware
• Controller configuration
• System diagnostics

A failed switch or broken cable can produce symptoms similar to an input-module failure.

Input Permanently Active

If an input remains continuously active, investigate:

• Field contact condition
• Shorted wiring
• Incorrect wiring
• Sensor failure
• Incorrect mechanical position
• Configuration problems
• Interface hardware

The field circuit should be tested before replacing the module.

Intermittent Input

Intermittent discrete signals may be caused by:

• Loose terminals
• Vibration
• Damaged cables
• Mechanical switch wear
• Poor sensor mounting
• Electrical interference
• Connector problems

Monitoring the input while operating the equipment can help identify the source.

Incorrect Equipment Status

If the HMI displays the wrong equipment state, verify the complete signal chain.

For example:

Actual Equipment Condition → Field Device → Wiring → VE4010B1 → Controller → HMI

This helps determine whether the problem is physical, electrical, configuration-related, or software-related.

Multiple Inputs Affected

If several inputs fail simultaneously, inspect common system elements before replacing individual components.

Potential areas include:

• Shared power
• Common wiring
• Terminal assemblies
• I/O interface
• Controller communication
• System configuration

A common-cause problem can affect multiple signals at the same time.

---

Preventive Maintenance

Preventive maintenance should cover both the input module and the connected field devices.

Inspect Field Devices

Check switches and sensors for mechanical wear, contamination, incorrect alignment, or physical damage.

Check Wiring

Inspect cables and terminals for corrosion, looseness, moisture, and mechanical damage.

Monitor Diagnostic Information

Use available system diagnostics to identify abnormal input behavior.

Test Critical Interlocks

Where permitted by the operating procedure, periodically verify that important interlocks and permissive signals respond correctly.

Maintain Cabinet Conditions

Control cabinets should be protected from excessive dust, moisture, heat, and vibration.

A clean and stable installation environment contributes to long-term reliability.

---

Replacement and Spare-Parts Considerations

When sourcing a replacement for the Emerson VE4010B1 KJ3101X1-BB1 12P1866X042 IS DI Module, the complete part number should be verified.

Important identification information includes:

• VE4010B1
• KJ3101X1-BB1
• 12P1866X042
• Hardware revision
• Existing system location
• Field-device type
• Terminal configuration
• Host control-system model
• Hazardous-area requirements

The listed physical dimensions are 107 × 41 × 105 mm, while the listed weight is 0.7 kg.

Physical dimensions alone should not be used to establish compatibility. An apparently similar Emerson I/O module may have different electrical characteristics or a different system role.

For IS applications, compatibility should also be evaluated within the complete intrinsic-safety system design.

---

Physical Dimensions and Cabinet Planning

The VE4010B1 KJ3101X1-BB1 has a compact listed size of:

107 × 41 × 105 mm

Its listed weight is:

0.7 kg

Mechanical Parameter	Value
Dimensions	107 × 41 × 105 mm
Weight	0.7 kg

When designing a cabinet layout, engineers should provide enough space not only for the module itself but also for:

• Field wiring
• Connectors
• Terminal access
• Cable bending
• Adjacent modules
• Maintenance access
• Identification labels

Good cabinet organization simplifies future troubleshooting and replacement work.

---

Signal Integrity and Wiring Practices

Reliable discrete input operation depends heavily on field wiring quality.

Recommended engineering practices include:

Keep Signal Wiring Organized

Clearly identified wiring makes commissioning and maintenance easier.

Avoid Unnecessary Cable Runs

Long or poorly routed signal cables can increase exposure to electrical interference.

Separate Sensitive Signals

Where appropriate, discrete signal wiring should be separated from high-power switching conductors.

Secure Field Connections

Loose connections can cause intermittent input transitions and difficult-to-diagnose faults.

Document Each Input

Input documentation should identify the field device, physical location, signal function, and corresponding control-system tag where applicable.

This documentation becomes particularly valuable during maintenance and system modifications.

---

Compatible System Components

The VE4010B1 may operate as part of a larger Emerson process automation system containing several functional components.

Component	Typical Function
Field Switch	Detects equipment condition
Proximity Sensor	Detects presence or position
Limit Switch	Provides mechanical position feedback
Valve Position Contact	Indicates valve state
VE4010B1	IS discrete input interface
I/O Infrastructure	Connects field signals to control electronics
Emerson Controller	Executes control logic
HMI	Displays status and alarms
SCADA System	Supervises process conditions
Process Equipment	Performs the physical operation

The exact combination depends on the installed Emerson architecture and application.

---

Related Emerson Models

Model / Family	Product Type	General Function
VE3005	Controller / I/O Module	Process control and I/O functions
VE3006	Digital Input Module	Discrete signal acquisition
VE4002	Discrete Output Module	Discrete equipment control
VE4003	Analog Input Module	Analog signal acquisition
VE4005	Analog Output Module	Analog signal output
VE4006P	Serial Interface Module	Serial communication
VE4007	Fieldbus Interface Card	Field communication
VE4009	ASI Interface Card	ASI field-device integration
VE4010B1	IS DI Module	Intrinsically safe discrete input applications

These products may be found within related Emerson process-control architectures, but a different module should not be treated as a direct replacement without confirming its function, electrical characteristics, and system compatibility.

---

Engineering Best Practices

The following practices can improve the reliability of a VE4010B1 installation:

• Verify the complete model and part number before replacement.
• Confirm compatibility with the host Emerson system.
• Follow the approved intrinsic-safety system design for IS applications.
• Check field-device wiring before diagnosing the input module.
• Maintain clear cabinet labeling.
• Test critical discrete signals during commissioning.
• Monitor abnormal or intermittent input transitions.
• Keep field sensors correctly installed and mechanically secure.
• Protect wiring from vibration, moisture, and physical damage.
• Maintain accurate system documentation.

A systematic approach reduces unnecessary module replacement and helps maintenance teams identify faults more efficiently.

---

Key Advantages

Dedicated Discrete Input Function

The VE4010B1 is designed for discrete signal acquisition, making it suitable for equipment-status and switching applications.

IS Application Capability

Its identification as an IS DI Module makes it relevant to appropriately engineered intrinsically safe discrete-input architectures.

Compact Construction

The listed 107 × 41 × 105 mm dimensions allow the module to fit into compact industrial control assemblies.

Supports Process Monitoring

Discrete field signals can provide important information about equipment states, valve positions, alarms, and process conditions.

Useful for Interlocking and Sequencing

Input states can be incorporated into programmed interlocks, permissives, and automated process sequences.

Emerson System Integration

The VE4010B1 can form part of a compatible Emerson industrial automation architecture when correctly matched to the host system.

---

Technical FAQs

What is the Emerson VE4010B1?

The Emerson VE4010B1 is an IS DI Module used for discrete input signal acquisition within compatible industrial process automation systems.

What is the full part number?

The complete identification provided for this module is KJ3101X1-BB1, with identification 12P1866X042.

What does IS DI mean?

IS DI refers to an intrinsically safe discrete input application. The exact intrinsic-safety implementation and permitted field-device characteristics must be verified against the applicable system documentation.

What types of signals can the module handle?

The module is intended for compatible discrete field signals, such as switch, contact, status, position, and proximity-related signals. Exact electrical input characteristics should be confirmed from the applicable documentation.

What are the dimensions of the VE4010B1?

The listed dimensions are 107 × 41 × 105 mm.

How much does the VE4010B1 weigh?

The listed weight is approximately 0.7 kg.

Is the VE4010B1 an analog input module?

No. It is identified as an IS DI Module, meaning it is associated with discrete input signal acquisition rather than conventional analog measurement.

Can the VE4010B1 be used for valve position monitoring?

Yes, compatible discrete valve-position feedback devices can be integrated into process-control architectures through an appropriate discrete input interface.

Can the module be used with proximity sensors?

It is associated with discrete input applications, including suitable switch/proximity detection devices. The exact sensor electrical requirements and system compatibility should be verified before installation.

What can cause an IS DI input failure?

Potential causes include field-device faults, wiring problems, loose terminals, incorrect configuration, installation errors, damaged connectors, or faults elsewhere in the I/O and control architecture.

Can another VE-series module replace the VE4010B1?

Not automatically. The replacement must match the required discrete input function, electrical interface, system architecture, hardware revision, and applicable intrinsic-safety requirements.

Why is correct wiring important?

Incorrect wiring can produce missing signals, false states, intermittent detection, or other abnormal input behavior. Proper wiring is especially important when the input forms part of a safety or hazardous-area system.

---

Conclusion

The Emerson VE4010B1 KJ3101X1-BB1 12P1866X042 IS DI Module is a specialized industrial automation input component designed to acquire compatible discrete field signals and integrate them into an Emerson process-control architecture. It can support applications involving equipment status, switch monitoring, valve position feedback, proximity detection, alarms, interlocks, and automated sequencing.

The module has listed dimensions of 107 × 41 × 105 mm and a weight of 0.7 kg, providing a compact form factor for industrial control-system installations.

For applications involving intrinsically safe field circuits, the VE4010B1 should be considered as part of the complete engineered system rather than as an isolated component. Field-device approvals, wiring, barriers or isolation interfaces where applicable, hazardous-area requirements, and control-system configuration should all be verified before commissioning.

For maintenance and replacement, technicians should confirm the complete identification VE4010B1 KJ3101X1-BB1 12P1866X042 and verify compatibility with the existing Emerson control architecture. Correct installation, accurate field wiring, systematic commissioning, and proper preventive maintenance can help maintain reliable discrete signal acquisition and stable industrial process control.
