Product Overview

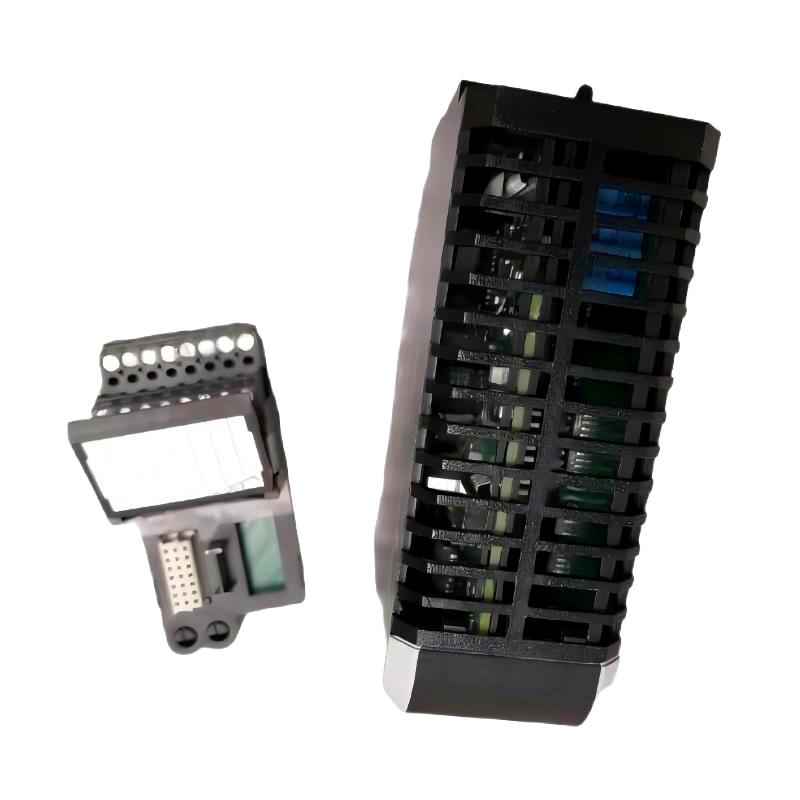

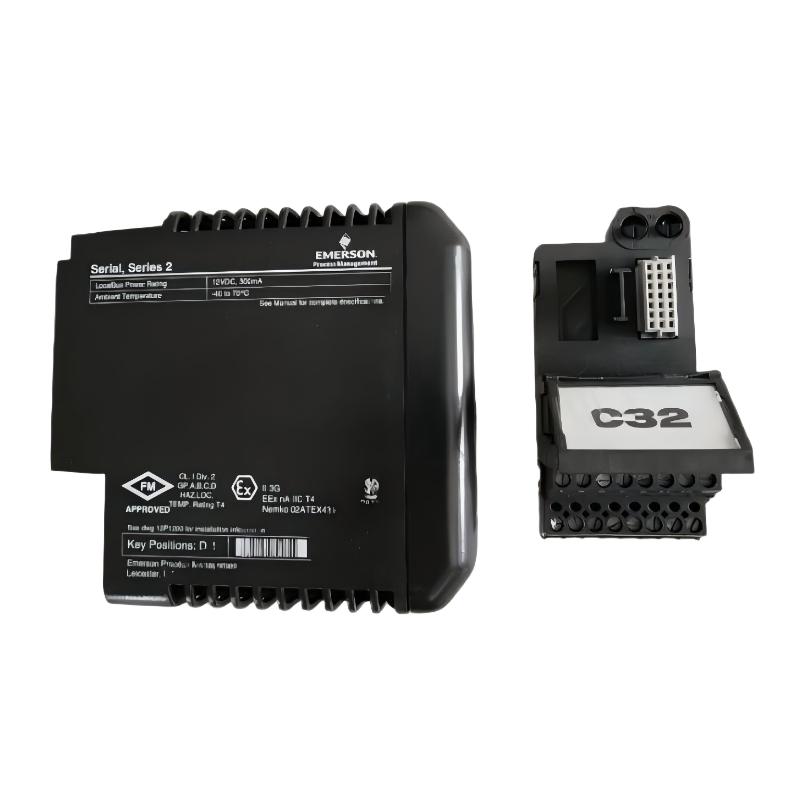

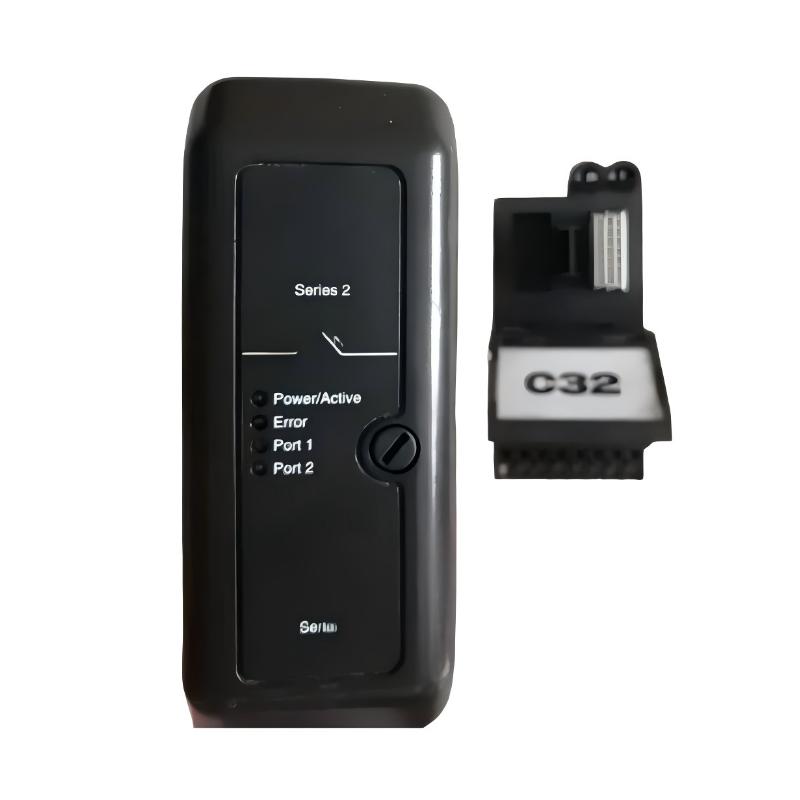

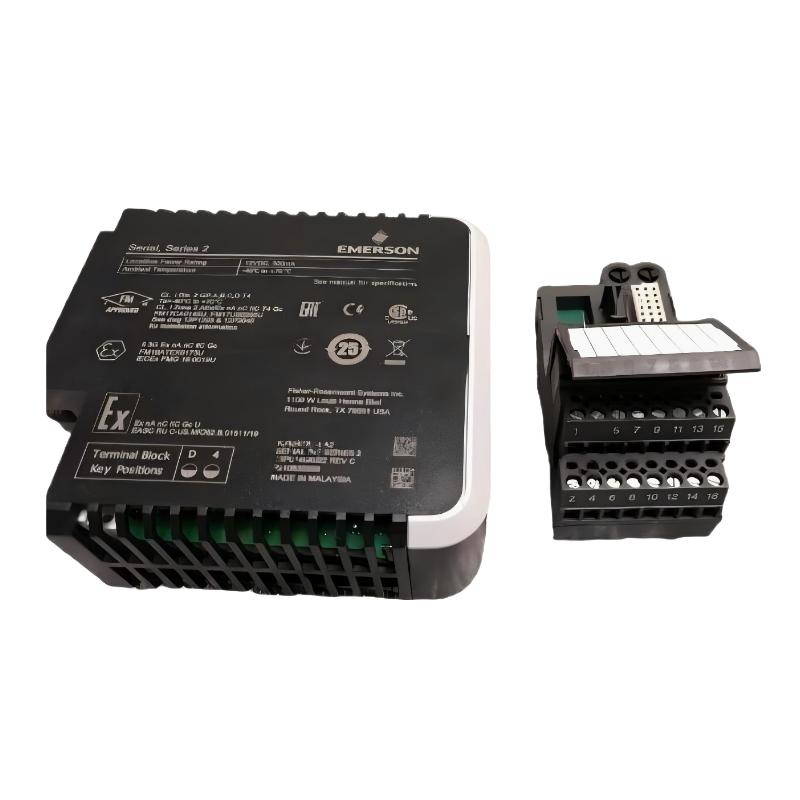

The Emerson VE4006P2 KJ3241X1-BA1 + KJ3003X1-EA1 M Series Serial Interface Card is an industrial communication interface component designed for serial data exchange within compatible Emerson process automation systems. It provides a dedicated interface between serial field equipment and the control architecture, allowing data from intelligent instruments, analyzers, controllers, meters, and other serial devices to become part of an automated process-control environment.

Serial communication remains important in many industrial facilities because a large number of field devices and legacy instruments continue to use established serial communication technologies. A dedicated interface card provides a structured connection between these devices and the automation system, supporting data acquisition, equipment monitoring, diagnostics, and, where applicable, bidirectional device communication.

The module is identified as Emerson VE4006P2, with associated hardware designations KJ3241X1-BA1 + KJ3003X1-EA1 and M Series Serial Interface Card. The listed physical dimensions are 107 × 41 × 105 mm, while the listed weight is approximately 0.78 kg.

Because serial communication equipment can vary significantly in protocol, electrical interface, addressing, and configuration, the exact communication characteristics of the VE4006P2 should be confirmed against the applicable Emerson system documentation and hardware revision before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	VE4006P2
Hardware Configuration	KJ3241X1-BA1 + KJ3003X1-EA1
Product Type	M Series Serial Interface Card
Product Family	Emerson VE4000 Series
Primary Function	Serial communication interface
Communication Role	Serial field-device data exchange
Application	Industrial process automation
Interface Type	Serial communication interface
Dimensions	107 × 41 × 105 mm
Weight	0.78 kg
Installation	Compatible Emerson industrial control system
Typical Applications	Instrument communication, equipment monitoring, legacy-device integration, process automation

Engineering note: Exact serial protocol support, electrical interface standard, number of communication channels, baud-rate range, isolation characteristics, terminal assignments, and supported device profiles should be verified against the applicable Emerson documentation and the exact hardware revision.

---

What Is the Emerson VE4006P2?

The VE4006P2 KJ3241X1-BA1 + KJ3003X1-EA1 is an M Series Serial Interface Card used to establish serial communication between compatible external equipment and an Emerson control system.

In a process automation environment, field devices generate large amounts of information. Some equipment communicates through analog signals, while other intelligent devices exchange information digitally through communication interfaces.

The VE4006P2 is designed for the latter type of application.

A simplified communication architecture is:

Serial Field Device → Serial Cable → VE4006P2 → Emerson I/O Architecture → Controller → Operator / Engineering System

The card can therefore form part of the communication path that transfers information from field equipment into the control environment.

Depending on the application and system configuration, the communication path can also operate in the reverse direction:

Controller → VE4006P2 → Serial Field Device

This allows a compatible device to exchange both measurement and status information as well as applicable commands or configuration data.

---

Function and Working Principle

Serial Signal Interface

The primary function of the VE4006P2 is to provide a serial communication interface between compatible industrial equipment and the Emerson control system.

The connected field device may transmit:

• Process measurements
• Equipment status
• Alarm information
• Diagnostic information
• Device parameters
• Operating data
• Identification information

The automation system can then use this information for monitoring, alarming, trending, diagnostics, or control strategies.

Data Exchange

Serial communication transfers information sequentially between connected devices.

A typical exchange can be represented as:

Field Device → Serial Transmission → VE4006P2 → Control System

The control system may then process the received information and make it available to operators or higher-level automation functions.

For systems requiring bidirectional communication, commands can travel in the opposite direction.

Communication Parameter Matching

Successful serial communication requires compatible settings on both sides of the connection.

Depending on the system, parameters may include:

• Communication speed
• Data format
• Parity
• Stop bits
• Device address
• Communication protocol
• Timeout
• Data mapping

Incorrect parameter matching can prevent communication even when the physical hardware is functioning correctly.

---

Role in Emerson Process Automation

The VE4006P2 can act as a communication bridge between serial instrumentation and the Emerson process-control environment.

A typical system architecture may include:

Field Instrument → Serial Interface → VE4006P2 → I/O System → Controller → Control Strategy → HMI / Engineering Station

This architecture allows serial device information to be incorporated into the broader automation system.

For example, an intelligent process instrument may transmit measurement and diagnostic information through a serial connection. The control system can receive this information and use it to monitor process conditions, generate alarms, record trends, or support maintenance activities.

The serial interface therefore extends the information available to the control system beyond conventional hardwired signals.

---

Industrial Applications

Process Instrumentation

Industrial instruments frequently provide both process measurements and diagnostic information. A serial interface can provide the communication path required to integrate these devices into an automation architecture.

Process Analyzers

Analyzers can generate detailed measurement information that may need to be transferred digitally to the control system. Serial communication can provide a practical interface for this type of equipment.

Intelligent Meters

Flow, energy, utility, and other industrial meters may contain digital communication capabilities. Their information can be incorporated into process monitoring and reporting systems through a suitable serial interface.

Legacy Equipment Integration

Many operating plants contain older equipment that remains operational but communicates through serial interfaces. A serial interface card can help integrate compatible legacy equipment into an established automation system.

Equipment Monitoring

Serial communication can provide access to:

• Device status
• Operating parameters
• Diagnostic codes
• Maintenance information
• Measurement values
• Device alarms

This information can support centralized monitoring.

Industrial Manufacturing

Manufacturing systems may use serial interfaces for specialized machines, test equipment, instrumentation, and auxiliary controllers.

---

M Series Serial Communication Architecture

The VE4006P2 is identified as an M Series Serial Interface Card, and its function should be considered as part of the complete M Series system architecture.

A simplified structure is:

External Serial Equipment

↓

Communication Cable

↓

KJ3241X1-BA1 + KJ3003X1-EA1

↓

VE4006P2 Interface

↓

Emerson Control Architecture

↓

Controller / Operator Interface

Each component has a specific role in the communication chain.

The external device generates or receives serial information. The communication cable carries the signal, while the interface card provides the connection to the automation architecture.

---

System Integration

The VE4006P2 should be installed only in a compatible Emerson system and in the intended I/O position.

A complete system may include:

Component	Function
Serial Field Device	Generates or receives device data
Communication Cable	Transfers serial information
VE4006P2	Provides serial interface functionality
Emerson I/O Architecture	Integrates the interface into the control system
Controller	Executes control and monitoring logic
Operator Interface	Displays process and equipment information
Engineering Station	Provides configuration and maintenance functions
Control Network	Transfers system information
Process Equipment	Performs the physical industrial operation

The exact architecture depends on the installed Emerson platform and application.

---

Installation Guidelines

Verify the Complete Part Identification

Before installation, confirm all available identification information:

VE4006P2

KJ3241X1-BA1 + KJ3003X1-EA1

Check model markings, hardware revision, connectors, and installation location.

This is particularly important because similar Emerson modules may have different communication functions.

Inspect the Card

Before installation, inspect the card for:

• Physical damage
• Connector damage
• Contamination
• Corrosion
• Signs of overheating
• Damaged components
• Mechanical deformation

Any visible abnormality should be investigated before commissioning.

Confirm Host-System Compatibility

Verify that the VE4006P2 is compatible with the intended Emerson control architecture and I/O position.

The software configuration should correspond to the physical module installed in the system.

Verify Field Wiring

Serial communication wiring should be checked carefully before connection.

Inspect:

• Cable continuity
• Connector pin assignment
• Terminal connections
• Shielding
• Grounding
• Cable routing
• Device connection

Incorrect wiring can result in communication loss or unstable operation.

---

Serial Communication Configuration

After physical installation, the communication interface should be configured according to the requirements of the connected device.

Communication Speed

The connected equipment and control system must use compatible communication speeds.

Data Format

Character format, parity, and stop-bit parameters should be matched correctly.

Device Address

If multiple devices share a serial communication structure, each device may require an appropriate address.

Duplicate addresses can result in communication conflicts.

Protocol

The external equipment and control system must use compatible communication protocols or communication methods.

Data Mapping

The relationship between transmitted data and control-system variables must be configured correctly.

A communication link may appear operational while still producing incorrect process values if the data mapping is wrong.

---

Commissioning Procedure

A controlled commissioning process helps verify the communication system before normal operation.

Step 1: Verify Hardware

Confirm the VE4006P2 and the associated KJ3241X1-BA1 + KJ3003X1-EA1 hardware identification.

Step 2: Inspect the Installation

Check mounting, connectors, wiring, and the surrounding cabinet environment.

Step 3: Verify Device Connections

Confirm that the serial field device is correctly connected and powered.

Step 4: Configure Communication

Enter the appropriate communication parameters required by the connected device.

Step 5: Establish Communication

Check whether the Emerson system receives valid communication information.

Step 6: Verify Data

Compare received information against the connected field device or another trusted reference.

Step 7: Test Commands

If bidirectional communication is required, verify that applicable commands can be transmitted correctly.

Step 8: Monitor Operation

Observe the system during normal operating conditions and verify stable communication.

---

Troubleshooting the VE4006P2

No Serial Communication

If the system does not receive data from the connected device, inspect:

• Module installation
• Card identification
• System configuration
• Cable continuity
• Connector wiring
• Device power
• Device address
• Communication parameters
• Protocol configuration
• System diagnostics

Do not assume that the card is defective until the complete communication path has been checked.

Intermittent Communication

Intermittent communication can result from:

• Loose connectors
• Damaged cables
• Electrical interference
• Poor grounding
• Shielding problems
• Incorrect communication settings
• Device instability
• Environmental conditions

Physical inspection and diagnostic monitoring should be performed together.

Incorrect Data

If communication exists but values are incorrect, check:

• Data mapping
• Device configuration
• Protocol parameters
• Address settings
• Data format
• Scaling
• Variable assignment

A data-configuration problem can produce incorrect values without indicating an electronic hardware failure.

Communication Timeout

Repeated timeout events may be caused by:

• Incorrect communication speed
• Incorrect protocol
• Device not responding
• Cable problems
• Address conflicts
• Electrical interference
• Inappropriate timeout settings

The external field device should be checked as part of the troubleshooting process.

Communication Stops During Operation

If communication initially works but later fails, investigate:

• Cable movement
• Vibration
• Temperature
• Power stability
• Electrical interference
• Device condition
• Connector reliability
• System loading

Intermittent environmental problems may only become visible after the equipment has been running for some time.

---

Preventive Maintenance

Preventive maintenance should address the complete communication system.

Inspect Connectors

Check the card and field connectors for looseness, contamination, corrosion, or mechanical damage.

Inspect Communication Cables

Check cables for:

• Insulation damage
• Excessive bending
• Mechanical stress
• Moisture
• Loose terminals
• Shielding problems

Monitor Communication Diagnostics

Repeated communication errors or timeouts may indicate a developing problem.

Maintain Cabinet Conditions

Keep the control cabinet within the environmental conditions required by the installed equipment and maintain suitable cleanliness and ventilation.

Document Configuration

Maintain records of:

• Module identification
• Device addresses
• Communication settings
• Connected equipment
• Cable identification
• I/O configuration

Accurate documentation simplifies future maintenance and replacement.

---

Replacement Considerations

When replacing the Emerson VE4006P2 KJ3241X1-BA1 + KJ3003X1-EA1 M Series Serial Interface Card, the complete hardware identification should be checked.

Important information includes:

• VE4006P2 model
• KJ3241X1-BA1
• KJ3003X1-EA1
• Hardware revision
• Connector arrangement
• Host-system compatibility
• Serial communication requirements
• Field-device configuration
• Existing software configuration

The listed dimensions are 107 × 41 × 105 mm, and the listed weight is 0.78 kg.

Physical dimensions should not be used as the sole basis for replacement. Communication cards with similar dimensions can have substantially different functions.

---

Physical Dimensions and Weight

The compact form factor of the VE4006P2 makes it suitable for dense industrial control installations.

Physical Parameter	Value
Height	107 mm
Width	41 mm
Depth	105 mm
Weight	0.78 kg

These values are useful for:

• Cabinet planning
• Spare-parts management
• Equipment inventory
• Replacement preparation
• Maintenance logistics

Actual mounting clearance should be determined from the host equipment installation requirements.

---

Compatible System Components

The VE4006P2 may be used as part of an Emerson automation architecture containing:

• Emerson controllers
• Emerson I/O assemblies
• Serial communication devices
• Process analyzers
• Intelligent instrumentation
• Industrial meters
• Serial cables
• Terminal assemblies
• Control networks
• Operator interfaces
• Engineering workstations
• Process-control software
• Diagnostic systems

The exact compatible hardware depends on the specific Emerson system configuration.

---

Related Emerson Models

Model	Product Type	General Function
VE4006P	Serial Interface Module	Serial device communication
VE4006P2	M Series Serial Interface Card	Serial communication interface
VE4005S2B5	Analog Output Card	Analog process output
VE4005S2B3	Analog Output Card	Analog output interfacing
VE4003S2	Analog Input Card	Analog signal acquisition
VE4003S2B3	Analog Input Module	Analog input and field termination
VE4002S2	Discrete Output Card	Discrete process output
VE3006	Digital Input Module	Digital field signal acquisition

These models represent related Emerson automation components, but they are not automatically interchangeable. Compatibility must be verified using the complete system configuration and hardware identification.

---

Engineering Best Practices

Maintain Accurate Device Records

Document each serial device connected to the control system, including its address, communication parameters, physical location, and function.

Use Appropriate Cable Routing

Communication cables should be routed using suitable industrial installation practices and separated from high-power conductors where appropriate.

Minimize Electrical Interference

Proper shielding, grounding, and cable separation can help maintain serial communication reliability.

Avoid Address Conflicts

Where multiple serial devices are connected, each device should have the correct unique address according to the applicable communication architecture.

Verify Data at the Source

When incorrect information appears in the control system, compare it with the original field device before replacing the interface card.

Test After Replacement

After installing a replacement module, verify communication, data accuracy, diagnostics, and field-device response before returning the system to normal automatic operation.

---

Key Advantages

• Dedicated serial communication interface
• M Series industrial automation application
• Supports integration of compatible serial field devices
• Suitable for intelligent instrumentation
• Useful for legacy equipment integration
• Supports centralized device monitoring
• Compact 107 × 41 × 105 mm form factor
• Listed weight of 0.78 kg
• Suitable for industrial process-control environments
• Can form part of a larger Emerson automation and communication architecture

---

Technical FAQs

What is the Emerson VE4006P2?

The Emerson VE4006P2 is an M Series Serial Interface Card designed to provide serial communication functionality within compatible Emerson industrial automation systems.

What are the associated part numbers?

The hardware configuration provided for the module is KJ3241X1-BA1 + KJ3003X1-EA1, with the additional identification VE4006P2.

What is the main function of the VE4006P2?

Its main function is to provide an interface for serial data communication between compatible external equipment and the Emerson control architecture.

What devices can use a serial interface?

Depending on the system configuration, serial interfaces may be used with intelligent instruments, analyzers, meters, controllers, legacy equipment, and other industrial devices.

What are the dimensions of the VE4006P2?

The listed dimensions are 107 × 41 × 105 mm.

How much does the VE4006P2 weigh?

The listed weight is approximately 0.78 kg.

Why might a serial device fail to communicate?

Possible causes include incorrect wiring, incompatible communication parameters, incorrect device addressing, protocol mismatch, cable damage, electrical interference, field-device faults, or interface hardware problems.

Can another Emerson serial interface replace the VE4006P2?

A different serial interface should not automatically be considered a replacement. The communication characteristics, host architecture, connector configuration, field-device requirements, and hardware revision must be checked first.

How should communication faults be diagnosed?

Start with the complete communication chain: field device, power, cable, connectors, communication parameters, VE4006P2 status, controller configuration, data mapping, and system diagnostics.

Is the VE4006P2 suitable for legacy equipment?

A compatible serial interface can be useful for integrating existing serial equipment into an industrial automation system, provided that the communication protocol and electrical interface requirements are satisfied.

---

Conclusion

The Emerson VE4006P2 KJ3241X1-BA1 + KJ3003X1-EA1 M Series Serial Interface Card is an industrial communication component designed to provide serial interfacing between compatible field equipment and an Emerson process automation architecture. It can help bring information from intelligent instruments, analyzers, meters, controllers, and other serial devices into the centralized control environment.

With listed dimensions of 107 × 41 × 105 mm and a weight of 0.78 kg, the VE4006P2 provides a compact solution for industrial communication and I/O integration.

Reliable operation depends on correct hardware identification, suitable communication configuration, proper cable installation, accurate device addressing, signal integrity, and correct control-system configuration. For replacement or maintenance, the complete VE4006P2 KJ3241X1-BA1 + KJ3003X1-EA1 identification should be verified rather than relying only on physical appearance.

When correctly integrated, the Emerson VE4006P2 can serve as an important communication interface within an industrial automation system, helping connect serial field equipment with process monitoring, diagnostics, data acquisition, and automated control functions.
