Product Overview

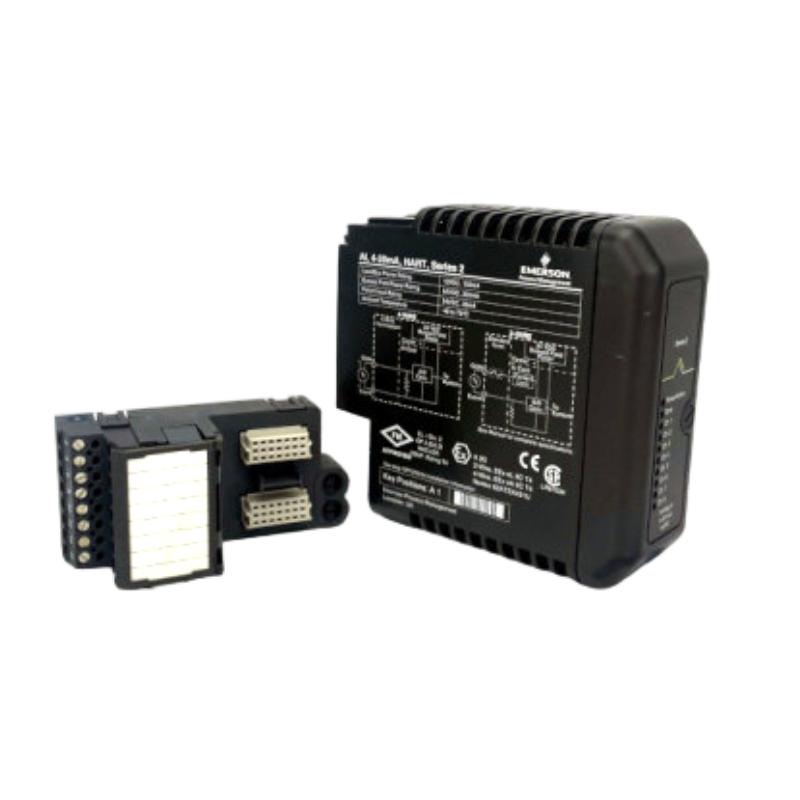

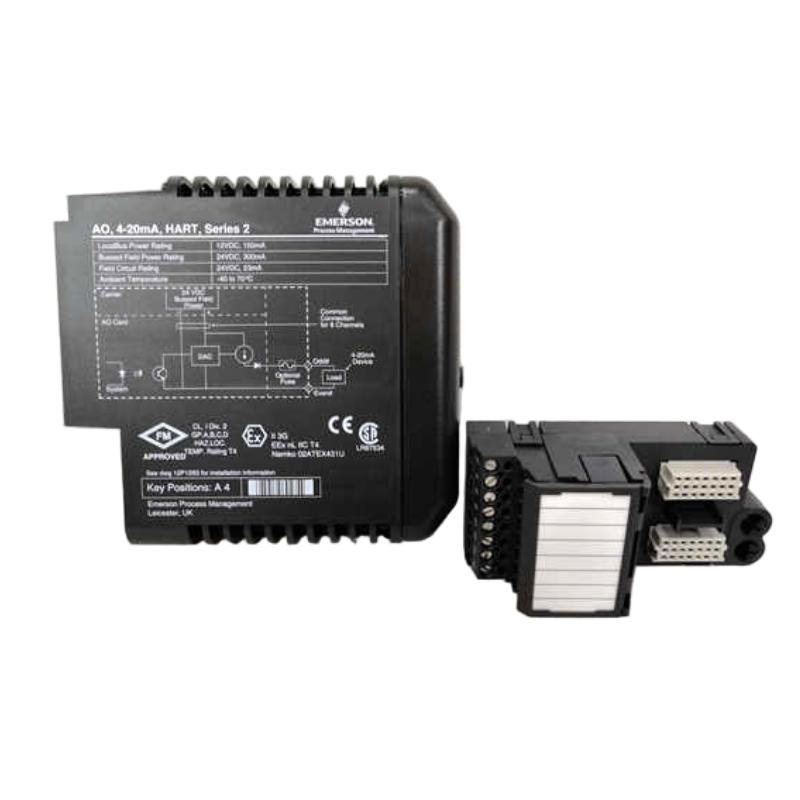

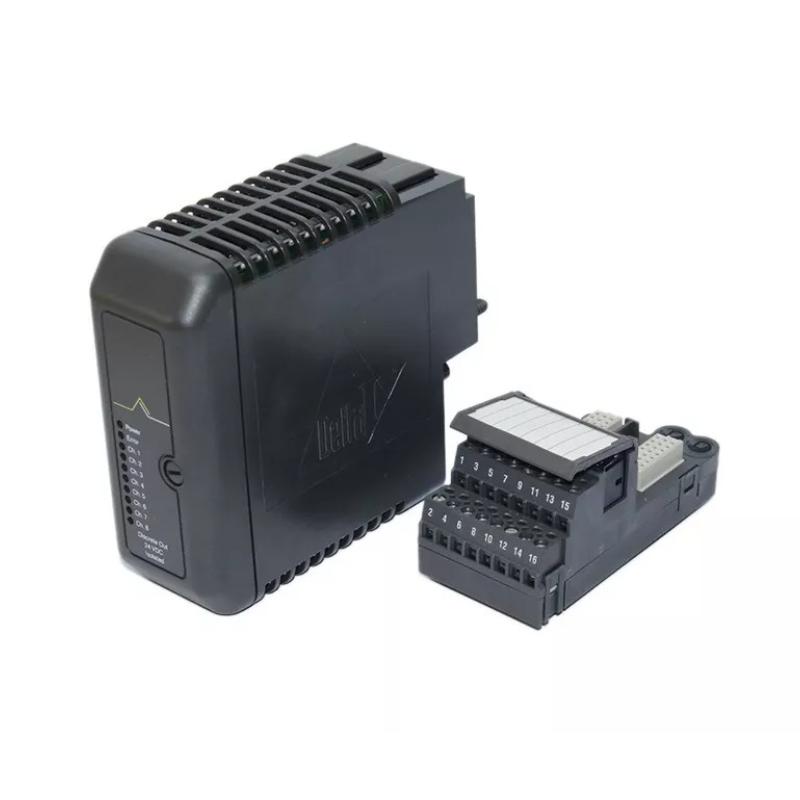

The Emerson VE4005S2B5 Analog Output Card is an industrial process-control interface component designed to provide analog output functionality within compatible Emerson automation systems. As part of the VE4000-series I/O architecture, the card serves as an important interface between the control system and field devices that require continuously variable analog signals.
Analog output cards are commonly used when a controller needs to regulate process equipment rather than simply switch devices on or off. Depending on the host system and configured application, an analog output channel can be used to communicate a variable control command to equipment such as control valves, actuators, positioners, signal converters, and other analog-input devices.
The Emerson VE4005S2B5 is identified as an Analog Output Card, with listed physical dimensions of 107 × 41 × 105 mm and a weight of approximately 0.281 kg. Its compact form allows it to be installed as part of an industrial I/O assembly where reliable signal interfacing and efficient cabinet utilization are important.
The card should be evaluated together with the associated Emerson system, terminal arrangement, field wiring, controller configuration, and I/O architecture. Exact electrical characteristics and channel configuration should always be confirmed against the installed hardware documentation and revision before commissioning or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4005S2B5 |
| Product Type | Analog Output Card |
| Product Family | Emerson VE4000 Series |
| Primary Function | Analog output signal interfacing |
| Application | Industrial process control and automation |
| Interface Role | Controller-to-field-device output interface |
| Signal Type | Analog output |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.281 kg |
| Installation | Compatible Emerson industrial I/O system |
| Typical Applications | Process control, valve regulation, actuator control, analog command generation |
Engineering note: Exact output range, channel count, electrical loading limits, isolation characteristics, terminal assignments, and other detailed electrical specifications should be verified against the applicable Emerson documentation and the exact hardware revision.
What Is the Emerson VE4005S2B5?
The VE4005S2B5 is an Emerson Analog Output Card used to transmit variable control signals from an industrial control system to compatible field equipment.
Unlike a discrete output, which normally represents a simple state such as ON or OFF, an analog output represents a continuously adjustable process command. This makes analog output interfaces particularly important in applications where the controller needs to regulate a process variable gradually.
A simplified control path can be represented as:
Control Strategy → VE4005S2B5 Analog Output Card → Field Wiring → Actuator / Valve / Converter → Process
For example, a process controller may calculate that a control valve should move toward a different operating position. The controller sends the required command through the I/O architecture, and the analog output interface provides the corresponding signal to the field device.
The exact signal format and operating range depend on the specific system configuration and should be confirmed before connecting field equipment.
Function and Working Principle
Analog Command Generation
The primary role of the VE4005S2B5 is to provide analog output information from the control system to connected field equipment.
The controller determines the required output value based on the process-control strategy. The analog output card then provides the corresponding electrical output through the appropriate I/O interface.
This allows the control system to perform gradual adjustments instead of relying only on discrete switching.
Controller-to-Field Communication
The VE4005S2B5 forms part of the communication path between control logic and physical process equipment.
A typical sequence is:
- The controller evaluates process measurements.
- Control logic calculates the required output.
- The command is transferred to the I/O system.
- The VE4005S2B5 processes the output command.
- The analog signal is delivered to the field interface.
- The field device responds to the command.
- The process changes accordingly.
- Feedback is returned through the appropriate input channels.
This closed-loop structure is fundamental to modern process automation.
Continuous Process Regulation
Analog outputs are particularly useful for continuous processes because they allow equipment to be adjusted progressively.
Examples include:
- Valve positioning
- Actuator control
- Flow regulation
- Pressure control
- Temperature regulation
- Speed reference generation
- Process setpoint transmission
- Equipment demand control
The VE4005S2B5 therefore contributes to precise and flexible process control when integrated into an appropriate Emerson automation architecture.
Role in Emerson Process Automation
Within an Emerson process-control system, an analog output card acts as a bridge between software-based control strategies and physical process equipment.
A modern process-control architecture can contain several layers:
Operator Interface → Control Strategy → Controller → I/O System → VE4005S2B5 → Field Device → Process
The VE4005S2B5 occupies the field-interface portion of this architecture.
Its function is especially important in applications where the control system must continuously adjust a field device according to changing process conditions.
For example, a control algorithm may compare a measured process value with a target value. If a correction is required, the controller calculates a new output command. The analog output card communicates this command to the relevant field device.
This enables automated control without requiring an operator to manually adjust the equipment.
Industrial Applications
Control Valve Regulation
One of the most common uses for analog output interfaces is control-valve regulation. A variable analog command can be used to instruct a compatible valve positioner or actuator to change valve position.
This allows the process system to regulate:
- Flow
- Pressure
- Temperature
- Liquid level
- Gas flow
- Process composition
Pump and Flow Control
Analog commands can also be used as references for compatible pump-control equipment. The control system can adjust a process demand according to measured flow, pressure, or level.
Heating and Temperature Systems
Industrial heating systems may require variable commands to control compatible equipment. Analog output signals can be incorporated into temperature-control strategies where gradual regulation is required.
Chemical Processing
Chemical processes frequently depend on accurate control of flow, pressure, concentration, and other variables. Analog outputs provide a practical interface between process-control logic and field equipment.
Water and Wastewater Treatment
Water-treatment systems use numerous continuously adjustable devices, including valves, dosing equipment, and other process-control equipment. An analog output interface can be part of the control path for these systems.
Oil and Gas Processing
Process facilities often contain extensive networks of valves, actuators, and control equipment. Analog I/O cards can provide the signal interface required for automated regulation.
Manufacturing Processes
Industrial manufacturing systems can also use analog output signals for equipment regulation, material processing, temperature control, and other continuously variable functions.
System Integration
The VE4005S2B5 should be integrated according to the architecture of the host Emerson control system.
A typical configuration may include:
| System Layer | Function |
|---|---|
| Operator Interface | Displays process information and control parameters |
| Engineering Environment | Configures control and I/O functions |
| Controller | Executes process-control logic |
| I/O Architecture | Transfers controller data to field interfaces |
| VE4005S2B5 | Provides analog output functionality |
| Terminal / Field Wiring | Connects the I/O system to field equipment |
| Field Device | Performs the required physical action |
| Process | Responds to the control command |
The exact arrangement depends on the Emerson platform and installed hardware.
Analog Output Signal Considerations
Analog signals are sensitive to wiring quality, grounding, interference, and installation practices. For this reason, reliable system performance requires more than simply installing the output card.
Before commissioning, engineers should confirm:
- Correct I/O card identification
- Correct terminal arrangement
- Correct field-device connection
- Appropriate signal type
- Correct configured output range
- Correct scaling
- Proper grounding
- Cable integrity
- Appropriate shielding where required
- Correct controller configuration
The actual output characteristics should not be assumed from the model name alone.
Installation Guidelines
Verify the Exact Model
Before installing a replacement, confirm that the existing module is identified as VE4005S2B5.
Check:
- Model number
- Revision
- Board markings
- Connector arrangement
- Terminal configuration
- Host system
- I/O position
- Associated field wiring
Similar-looking Emerson I/O cards may have different functions and electrical characteristics.
Inspect the Installation Area
The surrounding installation should be checked for:
- Excessive dust
- Moisture
- High temperature
- Mechanical vibration
- Loose connections
- Contamination
- Cable damage
A clean and controlled installation environment helps protect electronic components.
Check Field Wiring
Before connecting the card, verify the associated field wiring against the approved system documentation.
Incorrect wiring may result in:
- Incorrect output signals
- Field-device malfunction
- Control instability
- Unexpected process behavior
- Equipment damage
Verify Grounding
Proper grounding and signal-reference practices should be followed according to the host system’s engineering requirements.
Poor grounding can contribute to analog signal instability and electrical interference.
Commissioning Procedure
A structured commissioning process can reduce the risk of incorrect analog output behavior.
Step 1: Verify Hardware
Confirm the VE4005S2B5 model, revision, physical installation, and associated I/O hardware.
Step 2: Check Connections
Inspect the card connectors, terminal connections, field wiring, and associated interface components.
Step 3: Confirm Configuration
Verify that the controller configuration corresponds to the installed analog output card and its intended I/O position.
Step 4: Check Scaling
Confirm that the engineering-unit scaling corresponds correctly to the configured output range.
For example, the control system may associate a minimum output value with one process condition and the maximum value with another.
Step 5: Perform Controlled Testing
Test the output under controlled operating conditions before placing the process into normal automatic operation.
Step 6: Verify Field Response
Confirm that the connected valve, actuator, converter, or other field device responds correctly to the output command.
Step 7: Confirm Closed-Loop Operation
After verifying individual output behavior, confirm that the complete process-control loop operates correctly.
Troubleshooting the VE4005S2B5
No Analog Output
If the field device receives no expected signal, check:
- Card installation
- Power and system status
- I/O configuration
- Terminal connections
- Field wiring
- Controller output command
- I/O diagnostics
- Field-device condition
The problem may originate anywhere in the controller-to-field signal path.
Incorrect Output Value
An incorrect analog output may be caused by:
- Incorrect scaling
- Incorrect configuration
- Wiring problems
- Wrong I/O assignment
- Field-device configuration
- Signal conversion problems
- Card-level faults
Compare the commanded value with the measured output and the expected field-device response.
Unstable Analog Output
An unstable signal can be associated with:
- Electrical interference
- Poor grounding
- Damaged cable
- Loose terminals
- Incorrect configuration
- Unstable control logic
- Field-device feedback problems
Trend the signal over time to determine whether the problem is random, periodic, or related to process changes.
Output Stuck at One Value
A fixed output may indicate a configuration problem, controller logic issue, communication problem, wiring fault, or hardware problem.
The controller command should first be compared with the actual output measurement.
Intermittent Operation
Intermittent behavior can be caused by:
- Loose connectors
- Damaged wiring
- Vibration
- Environmental conditions
- Poor terminal connections
- System communication problems
- Hardware degradation
Inspecting the complete signal path is generally more effective than immediately replacing the output card.
Preventive Maintenance
Regular inspection can help maintain reliable analog output performance.
Inspect Connectors
Check connectors and terminals for looseness, contamination, corrosion, or physical damage.
Inspect Field Cables
Look for damaged insulation, excessive bending, moisture ingress, and mechanical stress.
Monitor Output Trends
Long-term trend monitoring can reveal abnormal behavior before a complete failure occurs.
Check Cabinet Conditions
Maintain suitable temperature, ventilation, cleanliness, and humidity conditions around the automation equipment.
Review Diagnostics
System diagnostics should be reviewed periodically for communication, I/O, or configuration-related indications.
Verify Field Devices
A malfunctioning valve, actuator, or signal converter can appear to be an I/O-card problem. Field equipment should therefore be tested as part of the troubleshooting process.
Replacement Considerations
When replacing an Emerson VE4005S2B5 Analog Output Card, exact identification is important.
Technicians should verify:
- Full model number
- Revision information
- I/O type
- Connector configuration
- Terminal arrangement
- Host Emerson platform
- Engineering configuration
- Associated terminal components
- Existing field wiring
The physical dimensions of the VE4005S2B5 are 107 × 41 × 105 mm, with a listed weight of 0.281 kg.
Physical dimensions alone should not be used to determine compatibility. Emerson cards with similar mechanical dimensions may perform different I/O functions.
Where a system has redundant or safety-related architecture, replacement procedures should also follow the plant’s approved maintenance and change-control procedures.
Physical Dimensions and Cabinet Planning
The compact dimensions of the VE4005S2B5 make it suitable for dense industrial I/O assemblies.
| Physical Parameter | Value |
|---|---|
| Height | 107 mm |
| Width | 41 mm |
| Depth | 105 mm |
| Weight | 0.281 kg |
These dimensions can be useful when planning:
- Cabinet layouts
- Replacement inventory
- I/O rack arrangements
- Maintenance access
- Spare-part storage
- Shipping requirements
Actual clearance requirements should be determined from the host equipment installation arrangement rather than from board dimensions alone.
Compatible System Components
The VE4005S2B5 may be incorporated into a broader Emerson process-control system containing:
- Emerson controllers
- Emerson I/O systems
- Analog input cards
- Analog output cards
- Digital input modules
- Digital output modules
- Terminal blocks
- I/O carriers
- Field wiring assemblies
- Operator interfaces
- Engineering workstations
- Control networks
- Control valves
- Valve positioners
- Actuators
- Signal converters
The exact compatible components depend on the host platform and system configuration.
Related Emerson Models
| Model | Product Type | General Function |
|---|---|---|
| VE4005S2 | Analog Output Card | Analog process output |
| VE4005S2B1 | Analog Output Module with Terminal Blocks | Analog output and field termination |
| VE4005S2B2 | I/O Module with Terminal Blocks | Integrated I/O interface |
| VE4005S2B3 | Analog Output Card | Analog output interface |
| VE4005S2B3 KJ3221X1-BA1 + KJ4001X1-CE1 | Output Module with Terminal Blocks | Analog output and field connection |
| VE4003S2 | Analog Input Card | Analog signal acquisition |
| VE4003S2B3 | Analog Input Module with Terminal Blocks | Analog input and field termination |
| VE4003S6B1 | Analog Input Card | Process analog input |
| VE4002S2 | Discrete Output Card | Discrete process output |
These models belong to related Emerson I/O product categories, but similar model numbers do not automatically indicate interchangeability. Exact compatibility should be confirmed before replacement.
Engineering Best Practices
For reliable operation of the VE4005S2B5, several engineering practices should be followed.
Use Correct I/O Configuration
The software configuration should accurately represent the installed hardware and I/O position.
Maintain Signal Integrity
Analog signal cables should be installed using appropriate industrial wiring practices and kept away from unnecessary sources of electrical interference.
Separate Power and Signal Wiring
Where practical, low-level analog signal wiring should be routed separately from high-power switching circuits.
Document Every I/O Point
Maintain accurate records of:
- I/O location
- Signal designation
- Field device
- Engineering range
- Terminal assignment
- Controller configuration
- Maintenance history
Test Before Automatic Operation
Output testing should be performed in a controlled condition before returning a process to fully automatic operation.
Verify the Complete Loop
An analog output card should not be tested in isolation. The controller, I/O interface, field wiring, receiving device, and process response should all be considered.
Key Advantages
- Dedicated analog output functionality
- Compact industrial I/O form factor
- Suitable for process-control applications
- Supports variable rather than simple ON/OFF control commands
- Can interface control logic with compatible field equipment
- Suitable for valve and actuator control applications
- Supports integration into larger Emerson automation architectures
- Compact 107 × 41 × 105 mm physical dimensions
- Listed weight of 0.281 kg
- Suitable for applications requiring continuous process regulation
Technical FAQs
What is the Emerson VE4005S2B5?
The VE4005S2B5 is an Emerson Analog Output Card designed for analog signal interfacing within compatible industrial process-control systems.
What is the function of an analog output card?
An analog output card converts a controller’s output command into an analog signal that can be transmitted to a compatible field device such as a valve positioner, actuator, or signal converter.
What is the difference between analog and digital output?
A digital output normally represents discrete states such as ON and OFF. An analog output provides a variable control value that can represent a continuously adjustable command.
What are the dimensions of the VE4005S2B5?
The listed dimensions are 107 × 41 × 105 mm.
How much does the VE4005S2B5 weigh?
The listed weight is approximately 0.281 kg.
Where can the VE4005S2B5 be used?
It can be used in compatible Emerson process-control and industrial automation systems where analog output signals are required for applications such as valve regulation, actuator control, process regulation, and other variable control functions.
Can the VE4005S2B5 directly replace another Emerson analog output card?
Not automatically. The model number, revision, I/O characteristics, terminal arrangement, system configuration, and associated hardware should be verified before replacement.
What can cause an analog output failure?
Potential causes include configuration errors, incorrect wiring, loose connections, electrical interference, controller problems, field-device faults, or hardware failure.
How should an analog output problem be diagnosed?
Start with the complete signal path: controller command, I/O configuration, VE4005S2B5 status, terminals, field wiring, actual output measurement, and field-device response.
Is the VE4005S2B5 suitable for process automation?
Yes, as an analog output interface within a compatible Emerson automation architecture, it can support continuously variable control functions used in industrial process applications.
Conclusion
The Emerson VE4005S2B5 Analog Output Card is a compact industrial I/O component designed to provide analog output functionality within compatible Emerson process-control systems. By connecting controller-generated commands with suitable field devices, the card can contribute to continuous regulation of valves, actuators, process equipment, and other analog-controlled devices.
With listed dimensions of 107 × 41 × 105 mm and a weight of 0.281 kg, the VE4005S2B5 is suitable for applications where compact I/O hardware and dependable analog signal interfacing are required.
Its performance depends on correct system configuration, field wiring, grounding, signal integrity, and the condition of the connected equipment. For installation, replacement, or troubleshooting, engineers should verify the complete VE4005S2B5 identification and applicable system documentation rather than relying on physical appearance alone.
When correctly integrated, the Emerson VE4005S2B5 can form an important part of an industrial automation architecture, providing the analog interface required to translate digital control strategies into practical, continuously variable process actions.
