Product Overview
The Emerson VE4005S2B3 KJ3221X1-BA1 + KJ4001X1-CE1 Output Module with Terminal Blocks is an industrial process-control I/O assembly designed to provide an organized interface between a compatible Emerson automation system and connected field equipment. The assembly combines the KJ3221X1-BA1 output module with the KJ4001X1-CE1 terminal block, integrating the electronic I/O function with a dedicated field-wiring interface.
In modern process automation systems, output modules are responsible for transferring commands generated by the control system to field devices. Depending on the application and configured signal type, these devices may include control valves, actuators, positioners, process equipment, and other equipment requiring a controlled electrical command.
The terminal block provides an important connection point between the I/O electronics and field wiring. Combining the output module and terminal interface into one assembly can simplify cabinet organization, wiring identification, commissioning, troubleshooting, and maintenance.
The Emerson VE4005S2B3 has supplied dimensions of 107 × 41 × 105 mm and a weight of approximately 0.231 kg. Its compact physical format makes it suitable for industrial control cabinets and distributed I/O installations where space efficiency is important.
The exact electrical characteristics of the KJ3221X1-BA1 and KJ4001X1-CE1 combination, including channel configuration, signal range, electrical loading, isolation, resolution, accuracy, and terminal assignments, should be verified against the applicable Emerson documentation and hardware revision before engineering, installation, or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4005S2B3 |
| Product Type | Output Module with Terminal Blocks |
| Output Module | KJ3221X1-BA1 |
| Terminal Block | KJ4001X1-CE1 |
| Product Family | Emerson VE Series |
| Primary Function | Industrial output signal interface |
| Assembly Type | Output module + terminal block |
| Signal Direction | Control system to field equipment |
| Application | Process automation and industrial control |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.231 kg |
| Installation | Compatible Emerson automation architecture |
| Field Interface | Terminal-block based field wiring |
| Typical Applications | Control valves, actuators, process equipment and industrial control loops |
Note: Exact channel count, output signal type, output range, load capability, isolation characteristics, accuracy, resolution, and terminal assignments should be confirmed for the specific hardware revision and installed Emerson system.
What Is the Emerson VE4005S2B3?
The Emerson VE4005S2B3 described here is an Output Module with Terminal Blocks consisting of the KJ3221X1-BA1 output module and KJ4001X1-CE1 terminal block.
The assembly provides a structured interface between an Emerson control system and external field circuits.
The output module performs the electronic I/O function, while the terminal block provides the physical termination interface for associated field wiring.
A simplified signal architecture is:
Controller → KJ3221X1-BA1 → KJ4001X1-CE1 → Field Wiring → Field Device
This arrangement provides a clear separation between control-system electronics and field-level wiring.

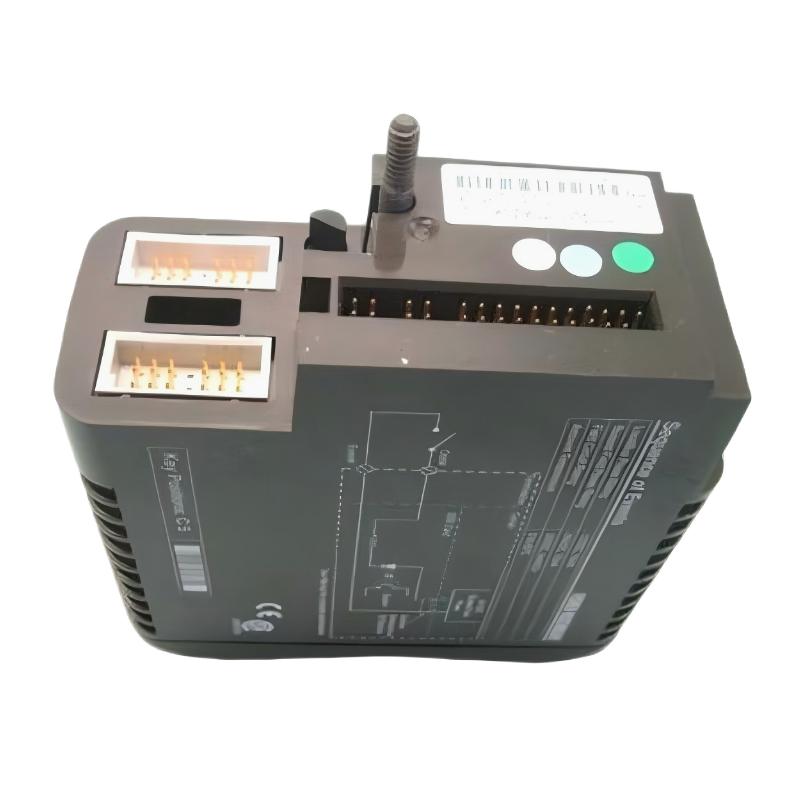

KJ3221X1-BA1 Output Module
The KJ3221X1-BA1 is the output-module component of the VE4005S2B3 assembly.
Its primary role is to interface controller-generated output commands with the field side of the automation system.
An output module can be used to communicate commands to compatible field equipment according to the configured control strategy.
For example, a process controller may calculate a valve command based on pressure, flow, temperature, or level feedback. The output module then provides the corresponding interface to the field circuit.
The exact electrical output characteristics must be confirmed from the applicable system documentation.

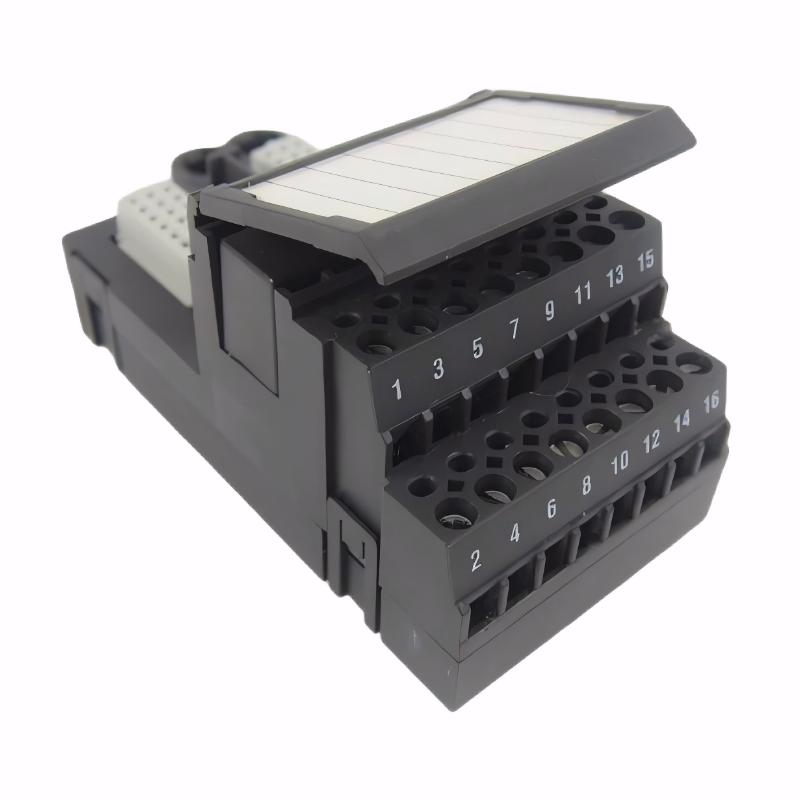

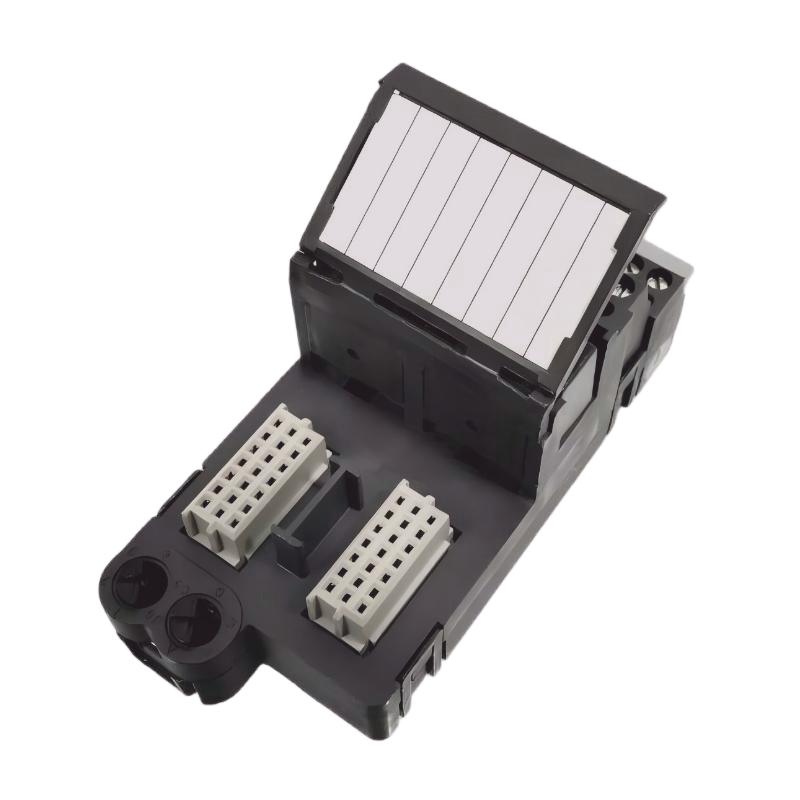

KJ4001X1-CE1 Terminal Block
The KJ4001X1-CE1 is the terminal-block component associated with the VE4005S2B3 assembly.
A terminal block provides an organized physical connection between the I/O module and field wiring.
This is especially useful in industrial control cabinets where numerous field circuits must be installed, identified, tested, and maintained.
The terminal interface can support maintenance activities such as:
- Field-wire inspection
- Loop testing
- Continuity checks
- Signal tracing
- Terminal verification
- Wiring replacement
- Fault isolation
The exact terminal assignment should always be verified using the applicable Emerson wiring documentation.
Function and Working Principle
The VE4005S2B3 works as part of a complete process-control system.
A representative control loop can be described as:
Process → Sensor → Input System → Controller → Output Module → Terminal Block → Field Device → Process
Process Measurement
Field instruments detect physical process conditions.
Typical variables include:
- Pressure
- Flow
- Temperature
- Level
- Equipment status
- Other process-specific measurements
Controller Processing
The controller compares process measurements with configured setpoints and executes the programmed control strategy.
Output Calculation
When a process adjustment is required, the controller calculates an appropriate output command.
Output Interface
The KJ3221X1-BA1 receives the output command and provides the corresponding field-side output interface.
Field Termination
The signal is routed through the KJ4001X1-CE1 terminal block and associated field wiring.
Field Device Response
The connected field device responds to the command.
Feedback
The resulting process condition is measured again, allowing the control system to continue regulating the process.
Role in Emerson Process Automation
The VE4005S2B3 serves as part of the I/O interface layer in a compatible Emerson automation architecture.
A modern process-control system may contain:
- Field sensors
- Transmitters
- Input modules
- Controllers
- Output modules
- Terminal blocks
- Control valves
- Actuators
- Drives
- HMI systems
- Engineering workstations
- SCADA platforms
The controller handles process logic, while the output assembly provides the physical connection to field equipment.
The combination of KJ3221X1-BA1 and KJ4001X1-CE1 therefore provides an organized path from control logic to field wiring.
Industrial Applications
Control Valve Systems
Control valves are frequently used in industrial process loops.
A compatible output interface can be used to provide a variable command to valve-control equipment for applications such as:
- Flow regulation
- Pressure control
- Temperature control
- Level control
The specific electrical requirements of the valve positioner must be confirmed before connection.
Chemical Processing
Chemical-processing facilities contain many automated control loops.
Output assemblies can interface with valves, actuators, dosing systems, and other equipment involved in chemical-process regulation.
Oil and Gas
Oil and gas facilities use distributed control and instrumentation for production, processing, storage, and utility systems.
Output modules can form part of the field interface for compatible control equipment.
Water and Wastewater
Water-treatment facilities use automated process equipment for:
- Flow control
- Pump control
- Chemical dosing
- Pressure regulation
- Level management
- Valve control
An output module with terminal interface can be incorporated into suitable Emerson control systems.
Power Generation
Power-generation plants require extensive process instrumentation and control.
Output I/O assemblies can support control loops involving valves, auxiliary systems, cooling equipment, pumps, and other process equipment.
Industrial Manufacturing
Manufacturing systems may require variable control of heating equipment, actuators, drives, valves, and other process devices.
The VE4005S2B3 can be integrated where the installed Emerson architecture supports the required output function.
System Integration
The VE4005S2B3 should be treated as one component within a complete industrial automation architecture.
A representative arrangement is shown below:
| Component | Typical Function |
|---|---|
| Process Sensor | Measures physical process conditions |
| Input Interface | Transfers measurements into the control system |
| Controller | Executes control logic |
| VE4005S2B3 | Provides output interface |
| KJ3221X1-BA1 | Output module |
| KJ4001X1-CE1 | Field terminal block |
| Field Wiring | Transfers control signals |
| Control Valve | Regulates process flow |
| Actuator | Performs mechanical control |
| HMI | Provides operator visualization |
| Engineering Station | Configuration and maintenance |
| SCADA | Supervisory monitoring |
The exact architecture depends on the installed Emerson system and project configuration.
Installation Guidelines
Verify Product Identification
Before installation or replacement, confirm:
- VE4005S2B3 model
- KJ3221X1-BA1 output module
- KJ4001X1-CE1 terminal block
- Hardware revision
- Existing installation position
- Host-system configuration
- Field-device requirements
Complete identification helps prevent incorrect replacement.
Check Mechanical Installation
The supplied dimensions of the assembly are 107 × 41 × 105 mm.
Cabinet planning should provide enough space for the module, terminal wiring, connectors, ventilation, and maintenance access.
Verify Field Wiring
Before energizing the system, inspect:
- Terminal assignments
- Field cable connections
- Signal polarity where applicable
- Shielding
- Grounding
- Cable routing
- Field-device interface requirements
All connections should match the approved engineering drawings.
Inspect Before Power-Up
Check for:
- Damaged connectors
- Loose hardware
- Incorrectly installed wiring
- Contamination
- Physical damage
- Improper module seating
A careful inspection can prevent installation-related faults.
Cabinet Installation and Environmental Considerations
The compact 107 × 41 × 105 mm size makes the VE4005S2B3 suitable for dense control cabinet layouts.
However, the cabinet should still provide adequate environmental control.
Important considerations include:
- Suitable temperature
- Controlled humidity
- Appropriate ventilation
- Low dust and contamination
- Proper grounding
- Protection from vibration
- Separation from high-energy conductors
Exact environmental limits should be confirmed against the applicable Emerson documentation.
Commissioning Procedure
A complete commissioning procedure should verify the output module, terminal block, field wiring, control configuration, and connected equipment.
Step 1: Visual Inspection
Inspect the VE4005S2B3 for physical damage or installation abnormalities.
Step 2: Confirm Module Position
Verify that the assembly is installed in the correct location.
Step 3: Check Terminal Wiring
Compare field wiring with the approved system drawings.
Step 4: Verify Software Configuration
Confirm that the configured I/O point corresponds to the installed hardware.
Step 5: Test Output
Where permitted by plant operating procedures, generate a controlled output command.
Step 6: Observe Field Response
Verify that the connected field device responds correctly.
Step 7: Verify Process Feedback
Check the related process measurement to confirm that the field action produces the expected process response.
Step 8: Return to Normal Operation
After successful testing, return the loop to normal automatic operation and monitor stability.
Troubleshooting the VE4005S2B3
Output faults should be investigated across the entire signal path.
No Output Signal
Potential causes include:
- Incorrect I/O configuration
- Module installation problem
- Terminal connection fault
- Field wiring problem
- Controller logic issue
- Field-device power problem
- Hardware fault
The controller, output module, terminal block, wiring, and field device should be checked systematically.
Incorrect Output Value
Possible causes include:
- Incorrect engineering scaling
- Configuration mismatch
- Wiring errors
- Grounding problems
- Electrical interference
- Field-device configuration
- Controller calculation
- Hardware problems
The configured signal range should be compared with the requirements of the field device.
Field Device Does Not Respond
If the control system generates an output command but the field equipment does not respond, inspect:
- Controller output status
- I/O configuration
- KJ3221X1-BA1 status
- KJ4001X1-CE1 terminal connections
- Field wiring
- Field-device power
- Actuator or valve condition
This method helps isolate the fault without unnecessarily replacing functioning hardware.
Intermittent Output
Intermittent behavior may be caused by:
- Loose terminals
- Damaged field cables
- Connector problems
- Electrical interference
- Grounding issues
- Vibration
- Field-device instability
- Module faults
Signal monitoring and physical inspection should be performed together.
Preventive Maintenance
Inspect the Terminal Block
The KJ4001X1-CE1 should be inspected periodically for loose connections, contamination, corrosion, or mechanical damage.
Inspect Field Cables
Check for:
- Damaged insulation
- Loose conductors
- Moisture
- Mechanical stress
- Excessive bending
- Poor routing
Monitor Process Trends
Output trends can reveal abnormal control-loop behavior.
Persistent oscillation, unexpected saturation, or unusual output movement may indicate a process, tuning, configuration, field-device, or hardware issue.
Inspect Cabinet Conditions
Keep the control cabinet clean, dry, properly ventilated, and protected from excessive vibration and heat.
Replacement Considerations
When replacing the Emerson VE4005S2B3 KJ3221X1-BA1 + KJ4001X1-CE1 Output Module with Terminal Blocks, verify the complete assembly identification.
Important details include:
- VE4005S2B3
- KJ3221X1-BA1
- KJ4001X1-CE1
- Hardware revision
- Existing module position
- Terminal arrangement
- Field wiring
- Host-system configuration
- Connected field equipment
Physical dimensions alone are not sufficient to establish interchangeability.
The replacement should match the required electrical function, terminal arrangement, and Emerson system configuration.
Physical Dimensions and Weight
The supplied physical specifications for the VE4005S2B3 are:
- Dimensions: 107 × 41 × 105 mm
- Weight: 0.231 kg
These dimensions are useful for:
- Control cabinet planning
- Spare-parts inventory
- Maintenance preparation
- Replacement logistics
- Mechanical installation
- Equipment storage
The compact design is suitable for installations containing multiple process I/O assemblies.
Signal Integrity and Wiring Practices
Reliable output operation depends on correct field wiring and electrical installation.
Cable Routing
Keep process signal wiring appropriately separated from high-power switching conductors where practical.
Shielding
Use suitable shielding practices according to the electrical design and installation requirements.
Grounding
Follow the approved plant grounding architecture.
Secure Termination
Ensure that field conductors are securely terminated and protected from mechanical movement.
Documentation
Maintain accurate records of terminal assignments, field cables, I/O points, and connected equipment.
Compatible System Components
Depending on the Emerson automation architecture, the VE4005S2B3 may be associated with:
- Emerson control processors
- Emerson I/O systems
- KJ3221X1-BA1 output modules
- KJ4001X1-CE1 terminal blocks
- Analog input modules
- Analog output modules
- Digital input modules
- Digital output modules
- Process transmitters
- Control valves
- Valve positioners
- Actuators
- Variable-speed drives
- HMI systems
- Engineering workstations
- SCADA systems
- Industrial communication infrastructure
Exact compatibility should be verified against the installed system configuration.
Related Emerson Models
| Model | Product Type | General Function |
|---|---|---|
| VE4005S2 | Analog Output Card | Analog output interface |
| VE4005S2B1 | Output Module with Terminal Blocks | Output and field termination |
| VE4005S2B2 | Input/Output Module with Terminal Blocks | I/O and field termination |
| VE4005S2B3 | Output Module with Terminal Blocks | Output and field termination |
| VE4003S2 | Analog Input Card | Analog signal acquisition |
| VE4003S6B1 | Analog Input Card | Process input interface |
| VE4003S7 | Isolated Input Module | Isolated input interface |
| VE4003S7B1 | Input Module Card | Industrial input interface |
| VE4002S2 | Discrete Output Card | Discrete field control |
These products are related Emerson I/O components but should not be considered direct substitutes without confirming electrical function and system compatibility.
Engineering Best Practices
Verify the Complete Part Number
Record the complete assembly identification before ordering or replacing the module.
For this configuration, the key designations are VE4005S2B3, KJ3221X1-BA1, and KJ4001X1-CE1.
Confirm Hardware Revision
Hardware revision information should be checked before replacement because system compatibility may depend on revision.
Match Terminal Configuration
Do not assume that different terminal blocks have identical wiring arrangements.
Perform Complete Loop Testing
Testing the entire signal path provides a more reliable commissioning result than checking the output module alone.
Document Field Connections
Maintain updated wiring diagrams and I/O assignment records.
Maintain Spare Parts
Replacement modules should be stored under appropriate environmental conditions and protected from electrostatic and mechanical damage.
Key Advantages
- Integrated output module and terminal-block configuration
- Includes KJ3221X1-BA1 output module
- Includes KJ4001X1-CE1 terminal block
- Compact 107 × 41 × 105 mm form factor
- Listed weight of 0.231 kg
- Organized field-wiring interface
- Suitable for industrial process-control applications
- Supports structured cabinet installation
- Simplifies field connection and signal tracing
- Suitable for compatible Emerson automation architectures
- Supports systematic commissioning and troubleshooting
Technical FAQs
What is the Emerson VE4005S2B3?
The Emerson VE4005S2B3 described here is an Output Module with Terminal Blocks consisting of the KJ3221X1-BA1 output module and KJ4001X1-CE1 terminal block.
What is the KJ3221X1-BA1?
The KJ3221X1-BA1 is the output-module component of the VE4005S2B3 assembly and provides the electronic interface between the compatible control system and field circuits.
What is the KJ4001X1-CE1?
The KJ4001X1-CE1 is the terminal-block component that provides the physical field-wiring interface associated with the output module.
What are the dimensions of the VE4005S2B3?
The supplied dimensions are 107 × 41 × 105 mm.
What is the weight of the VE4005S2B3?
The supplied weight is approximately 0.231 kg.
What applications can use the VE4005S2B3?
The assembly can be used in compatible Emerson process-control systems for applications involving control valves, actuators, process equipment, and other field devices requiring the appropriate output interface.
Is the VE4005S2B3 a standalone controller?
No. It is an I/O assembly and operates as part of a compatible Emerson control architecture.
What should be checked before replacing the VE4005S2B3?
Verify the complete assembly designation, KJ3221X1-BA1, KJ4001X1-CE1, hardware revision, installation position, wiring, host-system configuration, and connected field-device requirements.
Why is the terminal block important?
The terminal block provides an organized physical connection point between the I/O module and field wiring, helping simplify installation, testing, troubleshooting, and maintenance.
Can another Emerson output module replace the VE4005S2B3?
A different Emerson module should not automatically be considered interchangeable. Electrical function, terminal arrangement, hardware revision, system configuration, and field-device requirements should all be verified first.
Conclusion
The Emerson VE4005S2B3 KJ3221X1-BA1 + KJ4001X1-CE1 Output Module with Terminal Blocks is a compact industrial I/O assembly designed to provide an organized interface between a compatible Emerson automation system and connected field equipment.
By combining the KJ3221X1-BA1 output module with the KJ4001X1-CE1 terminal block, the assembly integrates the electronic output interface with a structured field-wiring connection. This arrangement can simplify control-cabinet wiring, signal identification, loop testing, commissioning, troubleshooting, and maintenance.
The supplied physical specifications are 107 × 41 × 105 mm and 0.231 kg, making the VE4005S2B3 suitable for compact industrial control and process-automation installations.
For replacement and engineering applications, the complete VE4005S2B3, KJ3221X1-BA1, and KJ4001X1-CE1 designations should be verified together. Proper matching of the module, terminal interface, system configuration, and field wiring is essential for reliable operation.
When correctly integrated into a compatible Emerson control architecture, the VE4005S2B3 provides a practical interface between process-control logic and field-level equipment.
