Product Overview

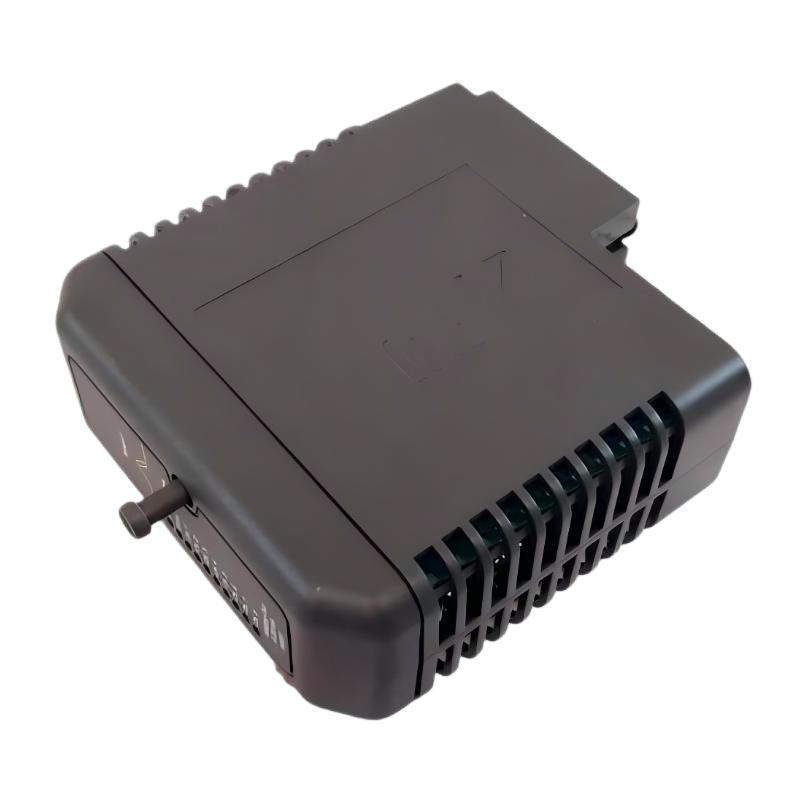

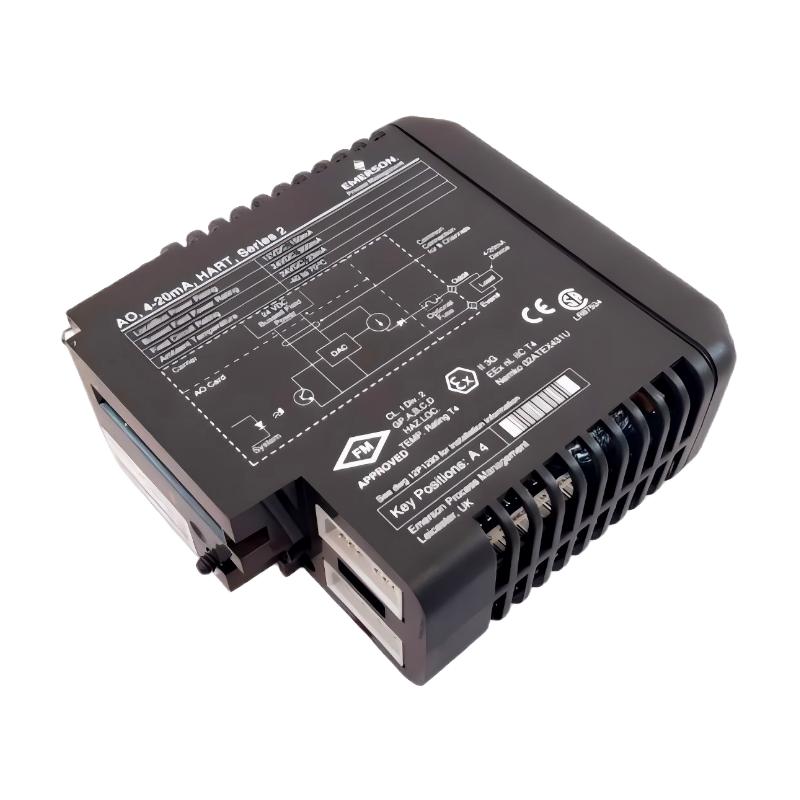

The Emerson VE4005S2B1 KJ3221X1-BA1 + KJ4001X1-CA1 Output Module with Terminal Blocks is an industrial process-control I/O assembly designed to provide an interface between a compatible Emerson automation system and connected field devices. The assembly combines the KJ3221X1-BA1 output module with the KJ4001X1-CA1 terminal block, providing both the electronic output interface and the associated field-wiring connection.
Analog and process outputs are essential in industrial automation because many field devices require continuously controlled commands rather than simple ON/OFF switching. Depending on the system configuration, output interfaces can be used with control valves, actuators, positioners, drives, and other process equipment.
The VE4005S2B1 assembly provides a practical interface between controller logic and field wiring. The output module handles the electronic I/O function, while the terminal block provides an organized termination point for field connections. This combined arrangement can simplify cabinet wiring, maintenance, replacement, and system integration.
The listed physical dimensions of the Emerson VE4005S2B1 are 107 × 41 × 105 mm, with a listed weight of 0.231 kg. These compact dimensions make the assembly suitable for space-conscious industrial control cabinets and distributed process-control installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4005S2B1 |
| Product Type | Output Module with Terminal Blocks |
| Output Module | KJ3221X1-BA1 |
| Terminal Block | KJ4001X1-CA1 |
| Product Family | Emerson VE Series |
| Primary Function | Industrial output signal interface |
| Assembly Type | Output module + terminal block |
| Application | Process automation and industrial control |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.231 kg |
| Installation | Compatible Emerson I/O architecture |
| Field Interface | Terminal-block based field wiring |
| Typical Applications | Control valves, actuators, process equipment and automation outputs |
Important: Exact output channel count, signal type, output range, electrical loading, isolation characteristics, resolution, accuracy, and terminal assignments should be verified against the applicable Emerson documentation and hardware revision before installation or replacement.
What Is the Emerson VE4005S2B1?
The Emerson VE4005S2B1 is an output-module assembly consisting of the KJ3221X1-BA1 output module and KJ4001X1-CA1 terminal block.
The purpose of this configuration is to provide an organized method of connecting an Emerson control system to external field equipment.
The output module performs the electronic interface function. The terminal block provides the physical termination point between the module and field wiring.
A simplified architecture can be represented as:
Controller → VE4005S2B1 Output Module → KJ4001X1-CA1 Terminal Block → Field Wiring → Field Device
This arrangement separates control-system electronics from the field termination interface and can make installation and maintenance more manageable.

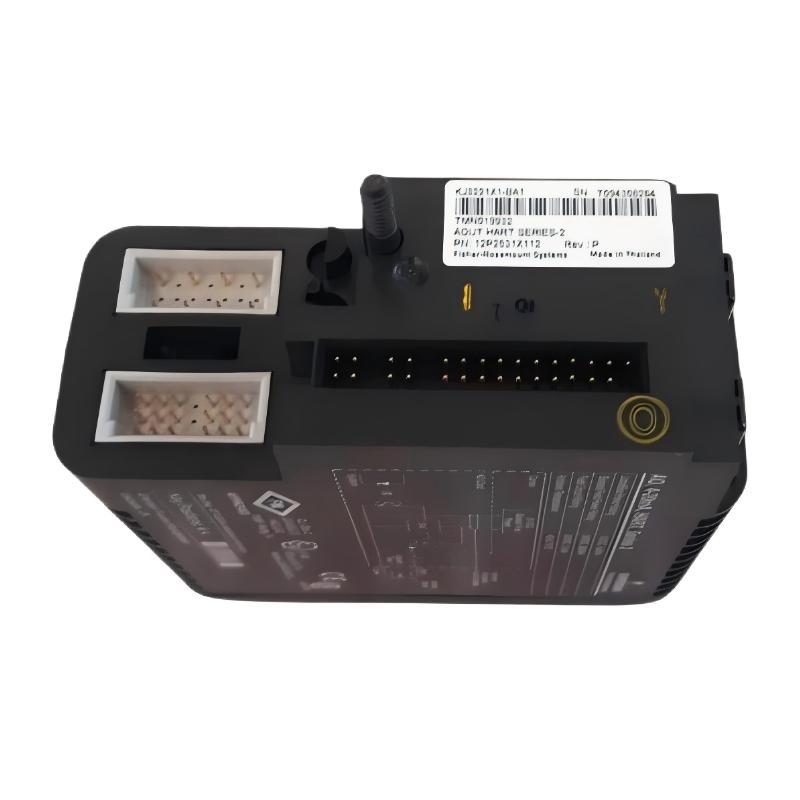

KJ3221X1-BA1 Output Module
The KJ3221X1-BA1 is the output-module portion of the VE4005S2B1 assembly.
Its role is to receive output commands from the compatible control architecture and provide the corresponding output interface toward the field side.
The module participates in the controller-to-field signal path and can be used in applications where a process device must be controlled according to continuously changing or configured output values.
The exact electrical output characteristics should be verified for the specific hardware configuration rather than inferred solely from the model designation.

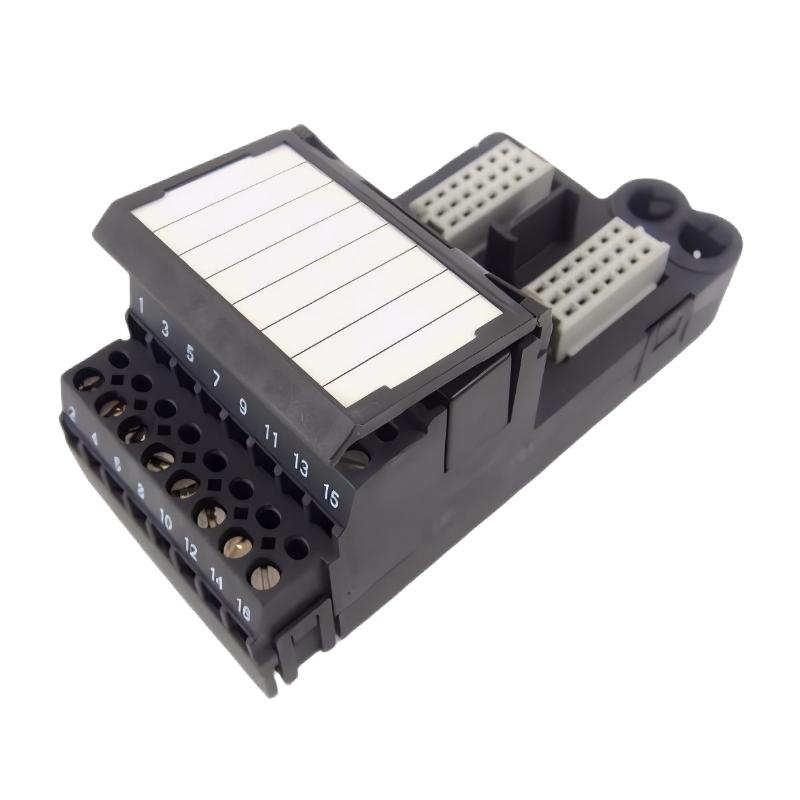

KJ4001X1-CA1 Terminal Block
The KJ4001X1-CA1 provides the terminal interface associated with the output module.
Terminal blocks are particularly important in industrial automation because they create an organized connection point between I/O electronics and field wiring.
A well-organized terminal arrangement can help technicians:
- Identify field circuits
- Perform loop checks
- Isolate individual connections
- Replace modules efficiently
- Trace wiring during troubleshooting
- Maintain cabinet documentation
- Reduce wiring errors
The exact terminal assignment and wiring arrangement should always be confirmed using the applicable system drawings and Emerson documentation.
Function and Working Principle
The VE4005S2B1 operates as part of a larger control loop rather than as an independent controller.
A typical process-control sequence is:
1. Process Measurement
Sensors measure conditions such as pressure, temperature, flow, or level.
2. Input Processing
The measured information is transmitted to the control system through the appropriate input interface.
3. Control Calculation
The controller compares the process measurement with the configured setpoint.
4. Output Command
The control algorithm determines the required output value.
5. Output Module Processing
The KJ3221X1-BA1 receives the controller’s output command and provides the corresponding output interface.
6. Field Termination
The signal passes through the KJ4001X1-CA1 terminal block and associated field wiring.
7. Field Device Response
The connected actuator or control device responds to the output command.
8. Process Feedback
The resulting process condition is measured again, completing the control loop.
This architecture allows the VE4005S2B1 to participate in continuous industrial process regulation.
Role in Emerson Process Automation
The VE4005S2B1 is an interface component within a broader Emerson process-control architecture.
A typical automation system may contain:
Field Instruments → I/O System → Controller → Output Interface → Field Actuators → Process
Each layer has a specific role.
The controller executes the control strategy, while the output module provides the physical interface between controller logic and field equipment.
The terminal block adds an organized field-wiring interface to the output assembly.
This division of functions is useful in large industrial systems because maintenance personnel can more easily identify the controller, I/O module, termination point, and field device as separate parts of the signal chain.
Industrial Applications
Process Control Valves
Control valves often require continuously adjustable commands.
The VE4005S2B1 can form part of an output loop connected to suitable valve-control equipment where the system configuration supports the required output interface.
Applications may include:
- Flow regulation
- Pressure control
- Temperature control
- Level regulation
- Process isolation and modulation
Chemical Processing
Chemical plants use numerous control loops to regulate process conditions.
Output modules can be used to provide commands to valves, actuators, dosing equipment, and other process-control devices.
Oil and Gas
Process automation systems in oil and gas facilities require reliable I/O interfaces for equipment monitoring and control.
Output modules can participate in control loops involving pumps, valves, compressors, and other process equipment.
Water and Wastewater Treatment
Water-treatment plants commonly use automated valves, dosing systems, pumps, and other control equipment.
The VE4005S2B1 can be integrated into a compatible automation architecture for field-device control.
Power Generation
Power-generation processes contain many continuously controlled systems, including fuel, steam, cooling, and auxiliary equipment.
Output I/O assemblies can provide the interface required for process-control commands.
Manufacturing
Industrial manufacturing systems may use analog and process outputs to regulate equipment speed, temperature, pressure, flow, and other operating parameters.
System Integration
The VE4005S2B1 should be installed as part of a compatible Emerson control system.
A representative architecture may include:
| Component | Typical Role |
|---|---|
| Process Transmitter | Measures process conditions |
| Input Module | Acquires field measurements |
| Emerson Controller | Executes control logic |
| VE4005S2B1 | Provides output interface |
| KJ3221X1-BA1 | Performs output-module function |
| KJ4001X1-CA1 | Provides field termination |
| Field Wiring | Transfers output signals |
| Control Valve / Actuator | Performs physical control action |
| HMI | Displays process information |
| Engineering Station | Configuration and maintenance |
| SCADA System | Supervisory monitoring |
The actual architecture depends on the installed Emerson platform and system design.
Installation Guidelines
Verify the Complete Assembly
Before installation, confirm all identification information:
- VE4005S2B1
- KJ3221X1-BA1
- KJ4001X1-CA1
- Hardware revision
- Existing module location
- Terminal configuration
- Host I/O architecture
- Field wiring
This is especially important when replacing an existing module.
Confirm Mechanical Compatibility
The listed dimensions are 107 × 41 × 105 mm.
The available cabinet space should be checked before installation, including the space required for wiring, connectors, ventilation, and maintenance access.
Verify Field Wiring
Before energizing the system, check:
- Terminal identification
- Field cable routing
- Signal polarity where applicable
- Cable shielding
- Grounding
- Field-device requirements
- Wiring against approved drawings
Incorrect wiring can cause abnormal output behavior or equipment faults.
Protect Against Electrical Interference
Analog and other low-level process signals should be separated from high-voltage switching conductors where practical.
Appropriate cable routing and grounding practices help maintain signal integrity.
Commissioning Procedure
A structured commissioning process helps confirm that both the electronic module and field termination are operating correctly.
Step 1: Inspect the Assembly
Check the VE4005S2B1 for physical damage, contamination, loose components, or damaged connectors.
Step 2: Verify Installation
Confirm that the module and terminal block are correctly seated and secured.
Step 3: Check Wiring
Compare the installed wiring against the approved system drawings.
Step 4: Verify Configuration
Confirm that the control-system configuration corresponds to the installed output hardware.
Step 5: Perform a Controlled Output Test
Where permitted by operating procedures, generate a controlled output command and observe the field response.
Step 6: Verify Feedback
Check the corresponding process measurement to confirm that the field device responds correctly.
Step 7: Confirm Automatic Operation
After successful testing, return the loop to its normal operating state and monitor process stability.
Troubleshooting the VE4005S2B1
Troubleshooting should cover the complete signal path from controller to field device.
No Output
Possible causes include:
- Incorrect I/O configuration
- Module installation problem
- Wiring fault
- Terminal connection problem
- Field-device power issue
- Controller logic issue
- Module fault
- Incorrect system configuration
Check the signal path systematically instead of immediately replacing the module.
Output Value Is Incorrect
An incorrect output may result from:
- Incorrect engineering scaling
- Configuration mismatch
- Wiring problems
- Field-device configuration
- Reference/common connection issues
- Controller calculation
- Hardware problems
The configured output range should be compared with the requirements of the connected field equipment.
Field Device Does Not Respond
If the controller indicates that an output command is being generated but the field device does not respond, inspect:
- Controller output status
- VE4005S2B1 status
- KJ3221X1-BA1 installation
- KJ4001X1-CA1 terminal connections
- Field wiring
- Field-device power
- Actuator or valve condition
This approach helps identify whether the problem is located in the controller, I/O assembly, wiring, or field equipment.
Intermittent Output
Intermittent behavior can be caused by:
- Loose terminals
- Damaged cables
- Connector problems
- Electrical interference
- Grounding problems
- Field-device instability
- Controller logic
- Hardware faults
Physical inspection and signal monitoring should be performed together.
Preventive Maintenance
Regular maintenance can improve long-term reliability.
Inspect Terminal Connections
The KJ4001X1-CA1 terminal block should be checked for loose, damaged, contaminated, or corroded connections.
Inspect Field Cables
Check cables for:
- Damaged insulation
- Mechanical stress
- Moisture
- Loose termination
- Excessive bending
- Poor routing
Monitor Process Trends
Output trends can reveal abnormal control behavior before a complete failure occurs.
Unexpected oscillation or excessive output movement may indicate a process, tuning, field-device, or configuration issue.
Inspect the Cabinet
Maintain suitable cabinet conditions and protect the electronics from excessive dust, moisture, heat, and vibration.
Replacement Considerations
When replacing an Emerson VE4005S2B1 KJ3221X1-BA1 + KJ4001X1-CA1 Output Module with Terminal Blocks, the complete assembly identification should be verified.
Important information includes:
- VE4005S2B1 model
- KJ3221X1-BA1 module
- KJ4001X1-CA1 terminal block
- Hardware revision
- Existing installation position
- Field wiring
- Control-system configuration
- Associated field equipment
Do not select a replacement solely because another module has the same physical dimensions.
The electrical function, terminal arrangement, system compatibility, and hardware revision should all be checked before installation.
Physical Dimensions and Weight
The supplied physical specifications for the VE4005S2B1 are:
- Dimensions: 107 × 41 × 105 mm
- Weight: 0.231 kg
These specifications are useful for:
- Control cabinet planning
- Spare-parts inventory
- Replacement logistics
- Maintenance preparation
- Mechanical installation planning
The compact design can be advantageous where multiple process-control I/O assemblies are installed in a limited cabinet area.
Signal Integrity and Wiring Practices
Reliable output performance depends heavily on proper field wiring.
Good engineering practices include:
Appropriate Cable Routing
Keep signal wiring away from high-current and high-frequency switching conductors where practical.
Secure Termination
Ensure field conductors are properly terminated and mechanically secure.
Correct Shielding
Use appropriate shielding practices where required by the installation and signal environment.
Proper Grounding
Grounding should follow the system’s approved electrical design rather than relying on improvised connections.
Accurate Documentation
Every field connection should be documented so that maintenance personnel can trace the signal from the output module to the field device.
Compatible System Components
Depending on the installed Emerson architecture, the VE4005S2B1 may be associated with:
- Emerson controllers
- Emerson I/O systems
- KJ3221X1-BA1 output modules
- KJ4001X1-CA1 terminal blocks
- Analog input modules
- Digital input modules
- Digital output modules
- Process transmitters
- Control valves
- Valve positioners
- Actuators
- Drives
- HMI systems
- Engineering workstations
- SCADA systems
- Industrial communication infrastructure
Exact compatibility should be confirmed against the host system configuration.
Related Emerson Models
| Model | Product Type | General Function |
|---|---|---|
| VE4005S2 | Analog Output Card | Analog output interface |
| VE4005S2B1 | Output Module with Terminal Blocks | Integrated output and field termination |
| VE4003S2 | Analog Input Card | Analog signal acquisition |
| VE4003S6B1 | Analog Input Card | Process input interface |
| VE4003S7 | Isolated Input Module | Isolated input interface |
| VE4003S7B1 | Input Module Card | Industrial input interface |
| VE4002S2 | Discrete Output Card | Discrete field control |
| VE4002S2T1 | Standard I/O Terminal Block | Field wiring termination |
| VE4002S2T2B1 | Discrete Output Module | Digital output interface |
These products belong to related Emerson I/O categories. They should not be considered direct substitutes without checking the system configuration and required I/O function.
Engineering Best Practices
Verify the Complete Part Number
Always record the complete product designation before ordering a replacement.
Match the Terminal Arrangement
The terminal block is an integral part of the field-wiring architecture. A different terminal arrangement may require wiring changes.
Verify the Control Configuration
The engineering configuration should correspond to the actual installed I/O hardware.
Test the Complete Loop
A successful module test does not necessarily confirm correct field-device operation. A complete loop test is recommended whenever operating conditions permit.
Maintain Spare-Part Records
Record module identification, revision, installation position, and associated terminal hardware in the maintenance database.
Document Field Wiring
Accurate wiring documentation reduces troubleshooting time and lowers the risk of incorrect reconnection during maintenance.
Key Advantages
- Integrated output module and terminal-block configuration
- Uses KJ3221X1-BA1 output module
- Includes KJ4001X1-CA1 terminal block
- Compact 107 × 41 × 105 mm physical format
- Low listed weight of 0.231 kg
- Provides organized controller-to-field-device interfacing
- Suitable for industrial process-control applications
- Supports structured cabinet wiring
- Simplifies field termination and maintenance
- Suitable for integration into compatible Emerson automation systems
Technical FAQs
What is the Emerson VE4005S2B1?
The Emerson VE4005S2B1 is an Output Module with Terminal Blocks consisting of the KJ3221X1-BA1 output module and KJ4001X1-CA1 terminal block.
What is the KJ3221X1-BA1?
The KJ3221X1-BA1 is the output-module component of the VE4005S2B1 assembly. It provides the electronic output interface within the compatible Emerson control architecture.
What is the function of the KJ4001X1-CA1?
The KJ4001X1-CA1 provides the terminal-block interface used to organize and terminate associated field wiring.
What are the dimensions of the VE4005S2B1?
The listed dimensions are 107 × 41 × 105 mm.
How much does the VE4005S2B1 weigh?
The listed weight is approximately 0.231 kg.
What can the VE4005S2B1 be used for?
It can be used in compatible Emerson process-control systems for output interfacing with field equipment such as control valves, actuators, and other process devices.
Is the VE4005S2B1 a standalone controller?
No. It is an I/O output assembly and relies on a compatible Emerson control architecture to provide the required control logic.
What should be checked before replacement?
The complete model number, KJ3221X1-BA1 module, KJ4001X1-CA1 terminal block, hardware revision, system configuration, wiring, and field-device requirements should be verified.
Why is the terminal block important?
The terminal block provides an organized physical connection point between the output electronics and field wiring, making installation, testing, troubleshooting, and maintenance more manageable.
Can another Emerson output card replace the VE4005S2B1?
A different output card should not automatically be considered interchangeable. Electrical function, system compatibility, terminal arrangement, hardware revision, and field-device requirements must be verified first.
Conclusion
The Emerson VE4005S2B1 KJ3221X1-BA1 + KJ4001X1-CA1 Output Module with Terminal Blocks is a compact industrial I/O assembly designed to provide an organized interface between a compatible Emerson process-control system and connected field equipment.
Combining the KJ3221X1-BA1 output module with the KJ4001X1-CA1 terminal block, the assembly integrates the electronic output function with a dedicated field termination interface. This configuration can simplify cabinet wiring, field connection management, commissioning, troubleshooting, and maintenance.
The supplied physical specifications are 107 × 41 × 105 mm and 0.231 kg, making the VE4005S2B1 suitable for compact industrial control installations.
For reliable operation, engineers and maintenance technicians should verify the complete model designation, hardware revision, system configuration, terminal arrangement, field wiring, and connected equipment before installation or replacement. Correct integration of the output module and terminal block is essential for stable communication between the automation system and the physical process.
