Product Overview

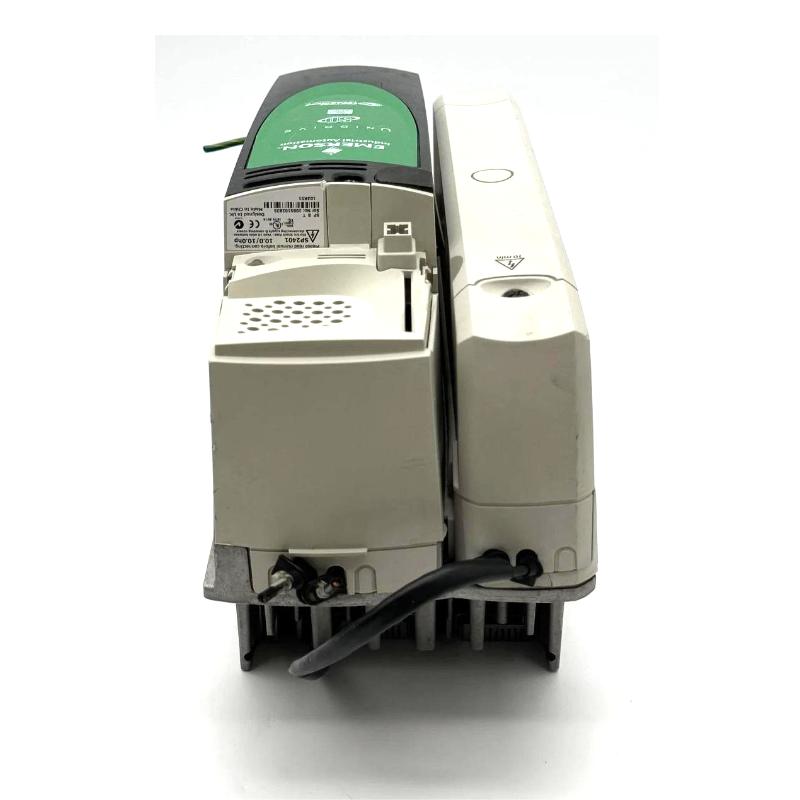

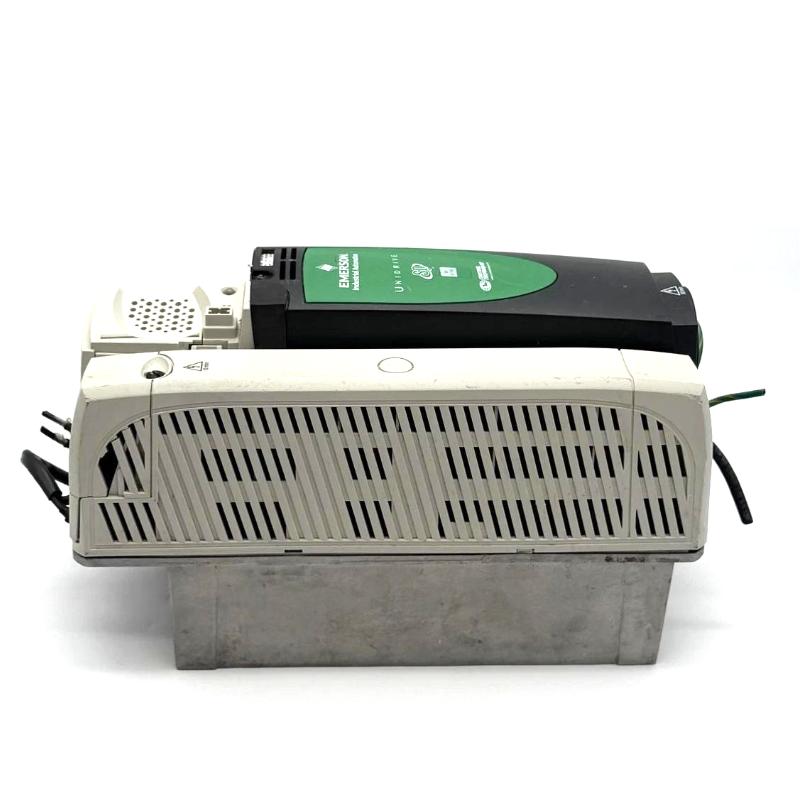

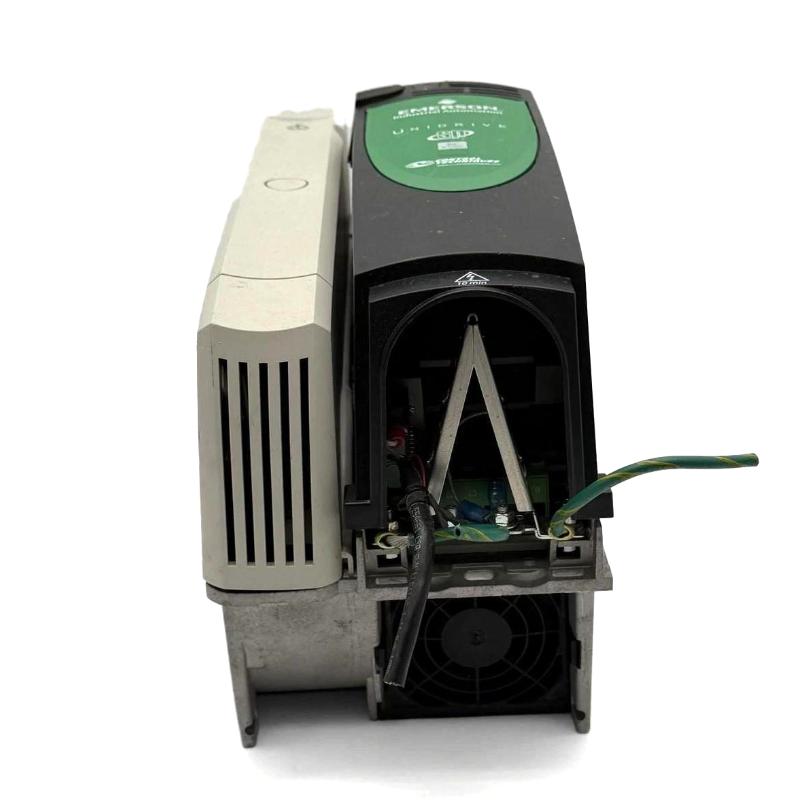

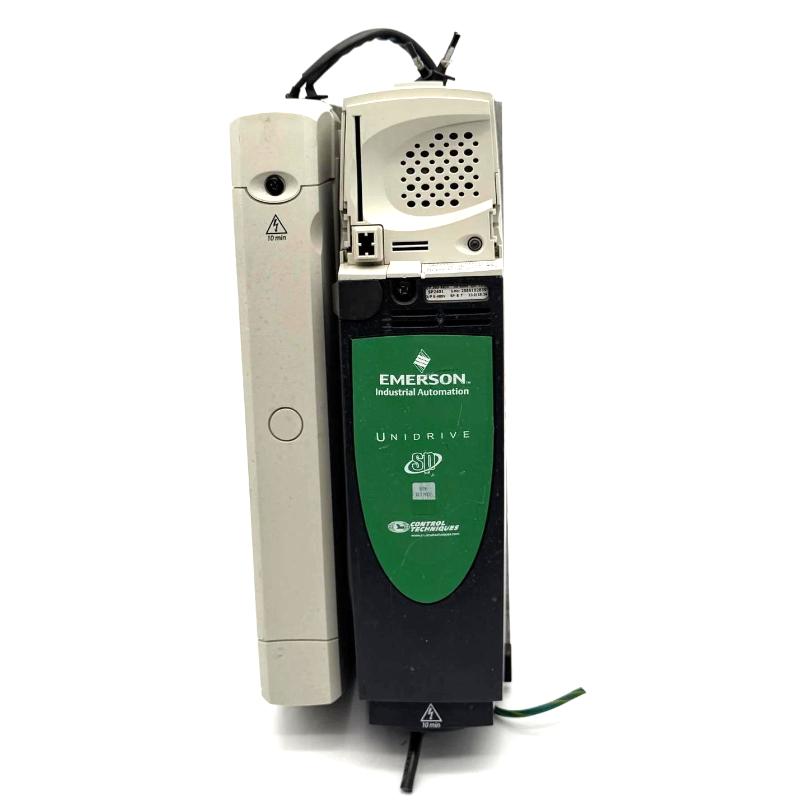

The Emerson SP2401 Unidrive SP Series AC Drive is a variable-speed drive for industrial motor-control systems that require adjustable speed, configurable motor response and integration with automated equipment. As a Size 2 model in the Unidrive SP range, it offers a higher current capacity than the SP1400 series models, making it suitable for applications with greater motor-current requirements.

For a three-phase 380–480 V AC supply, the SP2401 is rated at 13.0 A continuous output current in Heavy Duty operation and 15.3 A in Normal Duty operation. The selected duty must match the motor’s rated current, overload demand and operating cycle. These current ratings are more useful for drive selection than nominal motor power alone, particularly where the driven load experiences frequent changes in torque or starting demand.

The SP2401 can be configured for compatible induction motor and servo-control applications. In a machine control panel, it processes operating commands and speed references, applies programmed acceleration and deceleration behavior, and reports operating status or fault conditions. Optional Unidrive SP modules can extend its communication, feedback or application functions where supported by the chosen configuration.

Technical Specifications

Product Features

• Higher current capacity: Provides 13.0 A Heavy Duty and 15.3 A Normal Duty continuous output-current ratings for applications requiring more current than smaller SP1400 models.
• Size 2 platform: Fits applications where a Size 1 drive’s output-current rating is insufficient, subject to panel and electrical requirements.
• Configurable motor control: Supports operating modes selected according to the connected motor and application.
• Adjustable speed response: Allows speed references and operating limits to be configured for the machine’s process.
• Programmable acceleration and deceleration: Helps match motor response to load inertia and production-cycle requirements.
• Serial communication: Supports Modbus RTU communication with compatible automation equipment.
• Expansion capability: Supports compatible Unidrive SP option modules for additional communication, feedback or control functions.
• Drive diagnostics: Provides operating-state and fault information to assist commissioning and troubleshooting.
• Industrial control integration: Can be incorporated into PLC-based systems through supported control and communication interfaces.

Working Principle

The SP2401 converts incoming three-phase AC power into a controlled electrical output for the connected motor. Its power electronics regulate motor operation according to the selected control mode, configured motor data and incoming speed or operating commands. The drive’s response depends on the programmed settings and the characteristics of the connected load.

The model’s continuous output-current rating is 13.0 A in Heavy Duty operation and 15.3 A in Normal Duty operation. Heavy Duty is relevant where the application has greater overload demands, while Normal Duty permits the higher continuous-current rating under its specified conditions. The motor and load must be evaluated against the applicable rating and any required derating conditions.

Speed references and ramp parameters determine how the motor responds to command changes. For machinery with substantial inertia, rapid stopping or repeated deceleration, engineers should evaluate the stopping method and braking requirements. An unsuitable deceleration setting can result in excessive stopping time or drive trips.

The drive also monitors operating conditions and reports faults when it detects a condition that interrupts normal operation. Troubleshooting should start with the fault indication and the operating circumstances, then examine supply quality, motor wiring, load conditions, control references and configuration settings.

Role in an Industrial Motor Control Architecture

The SP2401 functions as the motor-control layer between the electrical supply, machine controller and driven equipment. It regulates motor output according to the configured control strategy and provides operating information that can be used for sequencing, supervision and fault response.

Industrial Applications

Installation and Maintenance

1. Verify the model code: Confirm that the unit is an SP2401 and that its electrical ratings match the motor and application requirements.
2. Check the incoming supply: Verify the three-phase supply voltage and frequency against the drive’s rating information before connecting power.
3. Inspect the drive assembly: Check accessible terminals, connectors and the enclosure for damage, contamination or signs of overheating.
4. Provide adequate ventilation: Follow the required mounting clearances and cooling instructions to manage heat inside the control panel.
5. Verify protective grounding: Ensure that protective-earth connections comply with the electrical design and applicable installation requirements.
6. Match the duty rating: Compare the motor’s rated current and overload demand with the 13.0 A Heavy Duty and 15.3 A Normal Duty ratings.
7. Check motor wiring: Verify conductor sizing, terminal tightness, insulation and cable routing before energizing the drive.
8. Review control connections: Confirm run commands, stop signals, speed references and machine interlocks against the electrical drawings.
9. Configure motor parameters: Enter the required motor data and verify that the selected control mode suits the application.
10. Assess stopping requirements: Review acceleration, deceleration and braking arrangements where the machine has high inertia or frequent stopping cycles.
11. Test control and communication: Verify command response, reference scaling, Modbus RTU communication and installed option modules before production use.
12. Record commissioning results: Document motor data, duty selection, parameter settings, option modules, fault history and functional test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides 13.0 A Heavy Duty and 15.3 A Normal Duty continuous output-current ratings.
• Offers greater current capacity than the smaller SP1400 frame models.
• Supports configurable motor control and adjustable speed references.
• Includes serial communication for integration with compatible automation equipment.
• Supports compatible expansion modules for additional control or feedback functions.
• Supplies status and fault information for commissioning and maintenance.

Technical FAQs

How can the SP2401 be assessed for operation at elevated ambient temperatures?

Check the installation environment against the drive’s specified operating conditions and apply any required derating for temperature, altitude or switching frequency. Also verify that panel ventilation and clearances are adequate for the actual heat load.

What should be checked if the SP2401 repeatedly trips when the motor starts under load?

Review the trip code, motor current, load resistance, starting sequence and configured acceleration ramp. Verify the motor data and selected duty rating, and check whether the driven equipment is mechanically obstructed before changing protection settings.

How can the SP2401’s serial interface be incorporated into an existing control network?

Confirm that the controller supports the drive’s Modbus RTU interface, then configure the communication address and serial parameters consistently at both ends. Test status reading, command handling and communication-loss behavior before relying on the link for machine operation.

What should be considered when replacing an SP1400-series drive with an SP2401?

Check the motor current requirement, supply configuration, panel mounting arrangement, wiring, parameter mapping and control interfaces. A higher-current model should not be treated as a direct drop-in replacement until the installation and application settings have been reviewed.
