Product Overview

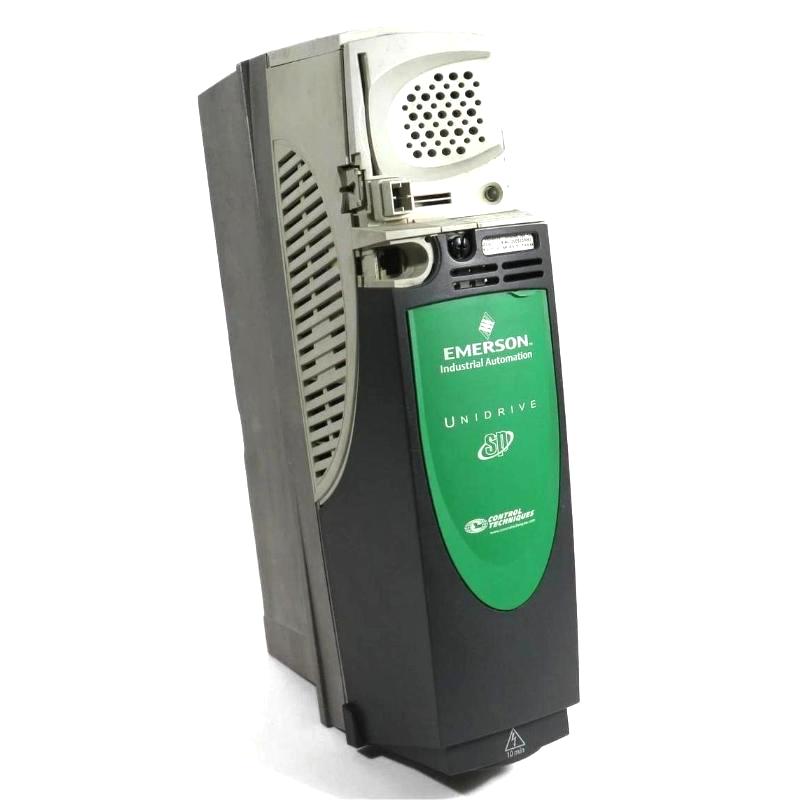

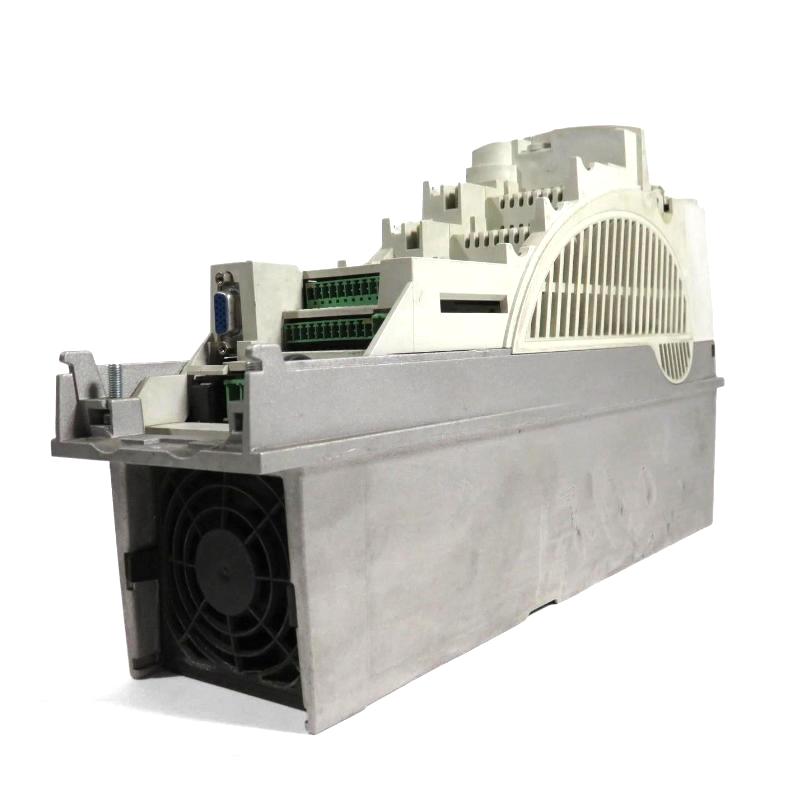

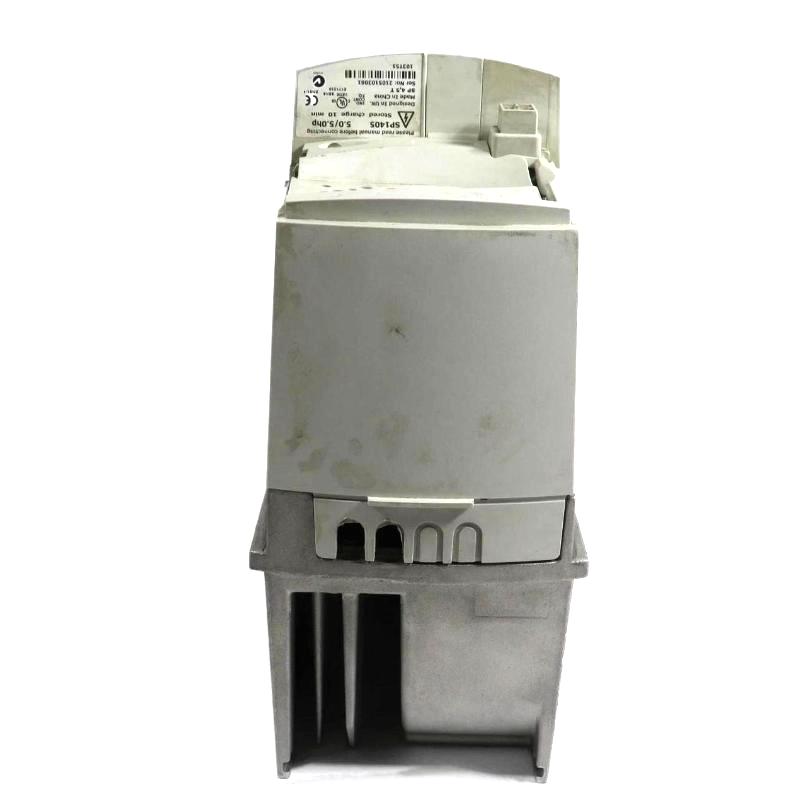

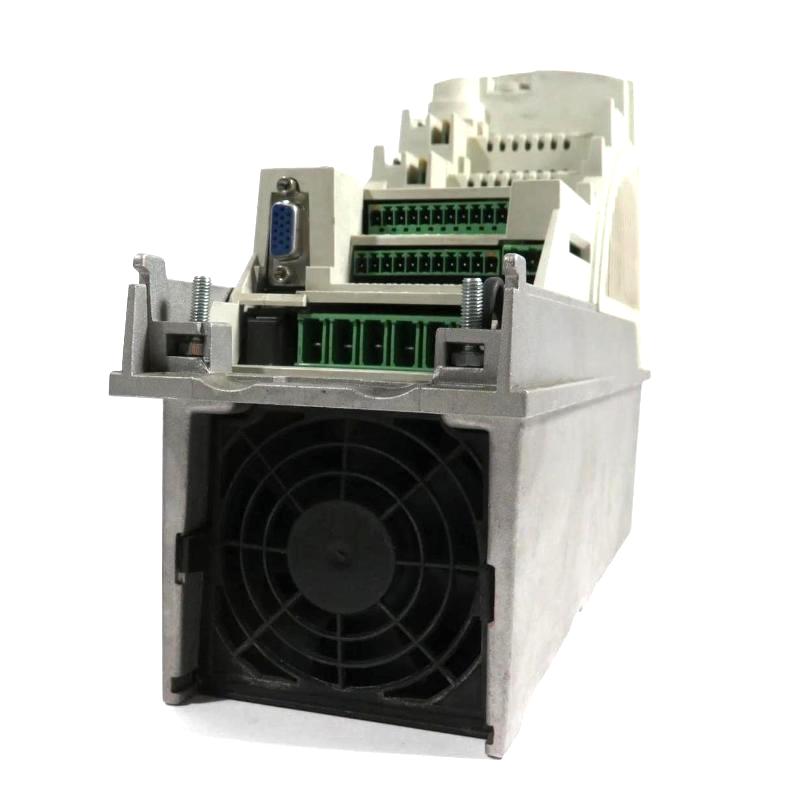

The Emerson SP1405 Unidrive SP Series AC Drive is a variable-speed drive for industrial motor systems operating from a three-phase AC supply. It belongs to the Unidrive SP family, which supports configurable motor-control strategies for applications that require adjustable speed, controlled torque response and integration with machine automation.

The SP1405 has a continuous output-current rating of 7.6 A in Heavy Duty mode and 8.8 A in Normal Duty mode for the 380–480 V model. This distinction matters when selecting a drive for equipment with different overload demands. The motor’s rated current, starting behavior and load profile must be considered alongside the selected duty rating.

In a production machine, the drive regulates motor operation in response to configured references and control commands. Engineers can adjust motor parameters, speed limits and acceleration or deceleration behavior to suit the process. The Unidrive SP platform also supports optional modules for applications requiring additional communication, feedback or specialized control interfaces.

Technical Specifications

Product Features

• Separate duty ratings: Supports 7.6 A Heavy Duty and 8.8 A Normal Duty continuous output-current ratings for different load profiles.
• Three-phase power conversion: Controls compatible motors supplied from a 380–480 V AC industrial power system.
• Configurable motor-control modes: Supports control arrangements selected according to the motor and application requirements.
• Integrated control I/O: Provides digital, analog and relay interfaces for compatible machine signals.
• Adjustable speed references: Allows motor speed to follow configured external commands or internal references.
• Programmable ramp settings: Enables acceleration and deceleration behavior to be matched to the driven machine.
• Expansion capability: Three option slots support compatible modules for additional functions and interfaces.
• Serial communication: Onboard Modbus RTU supports data exchange with compatible automation equipment.
• Drive diagnostics: Operating status and fault information assist troubleshooting and commissioning.
• Application-specific configuration: Motor parameters and control settings can be adapted to the process rather than relying on fixed operating behavior.

Working Principle

The SP1405 converts incoming three-phase AC power into a controlled output for the connected motor. Its power electronics regulate the output according to the selected control mode, motor parameters and active speed or torque reference. The control system adjusts motor operation within the configured limits and the drive’s electrical ratings.

For this model, the continuous output-current rating differs by duty: 7.6 A for Heavy Duty and 8.8 A for Normal Duty. The appropriate selection depends on the motor’s current demand and the application’s overload characteristics. A drive should not be selected solely by comparing nominal motor power, because starting conditions and load variations can affect suitability.

The drive’s control inputs and internal parameters determine its response to run commands, reference changes and stopping requests. Acceleration and deceleration settings influence the mechanical response of the system. Applications with high inertia or frequent stopping may also require careful assessment of the braking arrangement.

During a fault, the drive reports a corresponding status or trip condition. Troubleshooting should begin with the displayed fault information and the circumstances in which it occurred. Supply quality, motor wiring, reference signals, load behavior and configuration should be checked before changing protection-related settings.

Role in an Industrial Motor Control Architecture

The SP1405 serves as the motor-control layer between the electrical supply, machine controller and driven equipment. It executes the configured control strategy, processes external commands and supplies status information for coordinated machine operation.

Industrial Applications

Installation and Maintenance

1. Verify the model code: Confirm that the unit is an SP1405 and that its supply and output ratings match the intended application.
2. Check the incoming supply: Verify the three-phase supply voltage and frequency against the drive’s rating information before connecting power.
3. Inspect the unit: Check terminals, connectors and accessible components for visible damage, contamination or signs of overheating.
4. Provide suitable ventilation: Follow the applicable installation clearances and cooling requirements to manage heat inside the control panel.
5. Confirm protective grounding: Verify the protective-earth connection against the electrical installation design and applicable regulations.
6. Select the correct duty: Compare motor current and overload requirements with the 7.6 A Heavy Duty and 8.8 A Normal Duty ratings.
7. Check motor connections: Verify conductor sizing, terminal tightness, insulation and cable routing before energizing the drive.
8. Validate the control signals: Check digital commands, analog references, relay circuits and machine interlocks against the control drawings.
9. Configure motor parameters: Enter the required motor data and confirm that the selected control mode is appropriate for the application.
10. Review ramp and stopping behavior: Set acceleration and deceleration parameters to suit the mechanical load and process cycle.
11. Test communication and I/O: Verify the required control signals, Modbus RTU communication and any installed option modules before production use.
12. Document commissioning results: Record motor data, duty selection, parameter settings, installed options, fault history and functional test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides 7.6 A Heavy Duty and 8.8 A Normal Duty continuous output-current ratings.
• Supports configurable motor control for compatible industrial applications.
• Includes digital, analog and relay I/O for machine integration.
• Offers onboard Modbus RTU communication.
• Supports optional expansion for additional feedback, I/O and network functions.
• Provides status and fault information for commissioning and maintenance.

Technical FAQs

How can a speed-reference signal be checked when the SP1405 does not follow the requested setpoint?

Compare the external command with the reference value interpreted by the drive. Check the selected reference source, input scaling, minimum and maximum speed limits, enable conditions and any active override. This helps distinguish a signal problem from a parameter or operating-state restriction.

What should be reviewed when the SP1405 trips during a sudden increase in machine load?

Examine the recorded fault and the current demand at the time of the trip. Check whether the load is binding, whether motor parameters are correct, and whether the selected duty rating suits the application’s overload profile. Avoid raising protection limits before identifying the cause.

How can Modbus RTU be used to supervise the SP1405?

A compatible controller or monitoring system can exchange supported drive data over the serial interface. Configure the communication address and serial settings, then verify the required status and command mapping. Test communication loss behavior before relying on network commands for machine operation.

What should be checked when adding an option module to an existing SP1405 installation?

Verify that the module supports the Unidrive SP platform and the required function, then check slot placement, parameter configuration and any wiring changes. After installation, confirm that the drive recognizes the module and test its communication, feedback or I/O functions before returning the machine to service.
