Product Overview

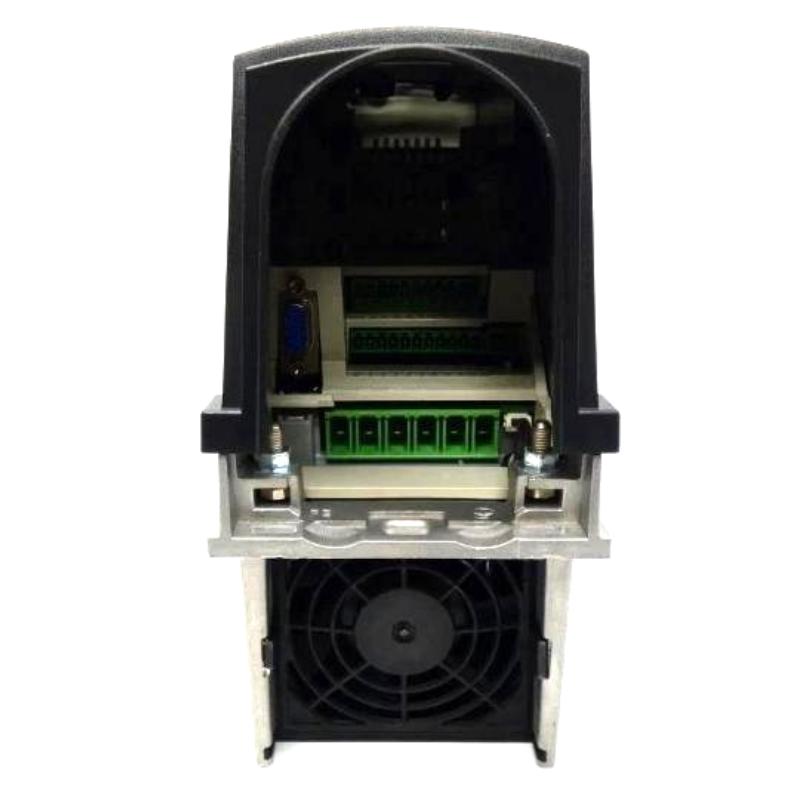

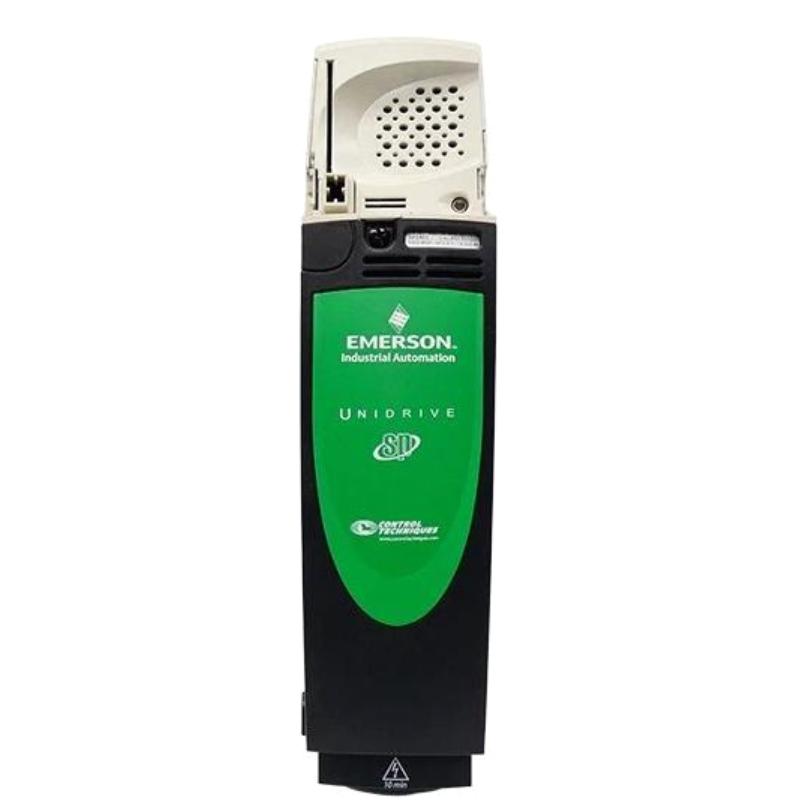

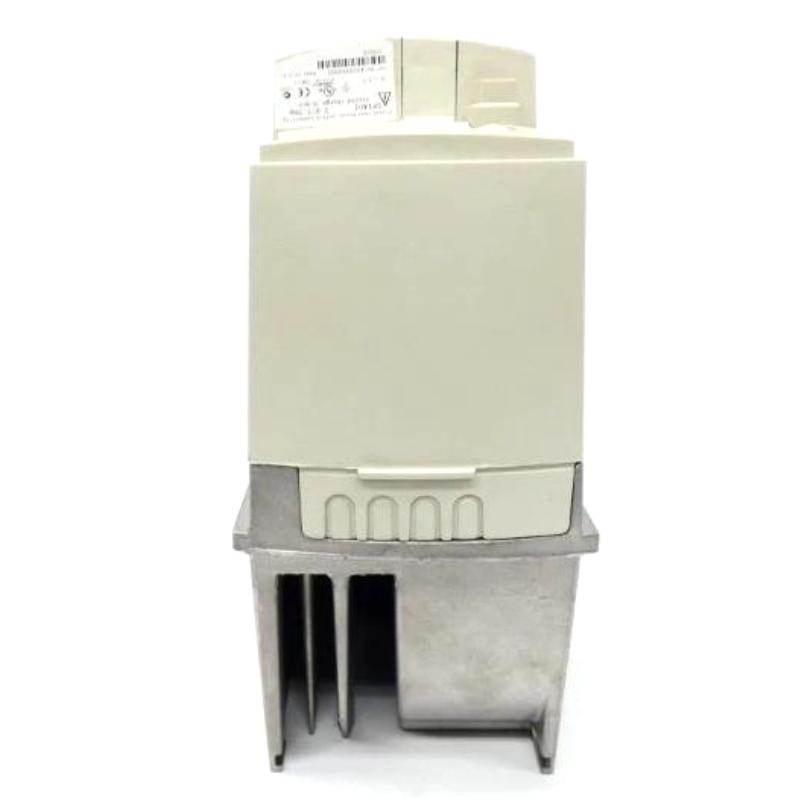

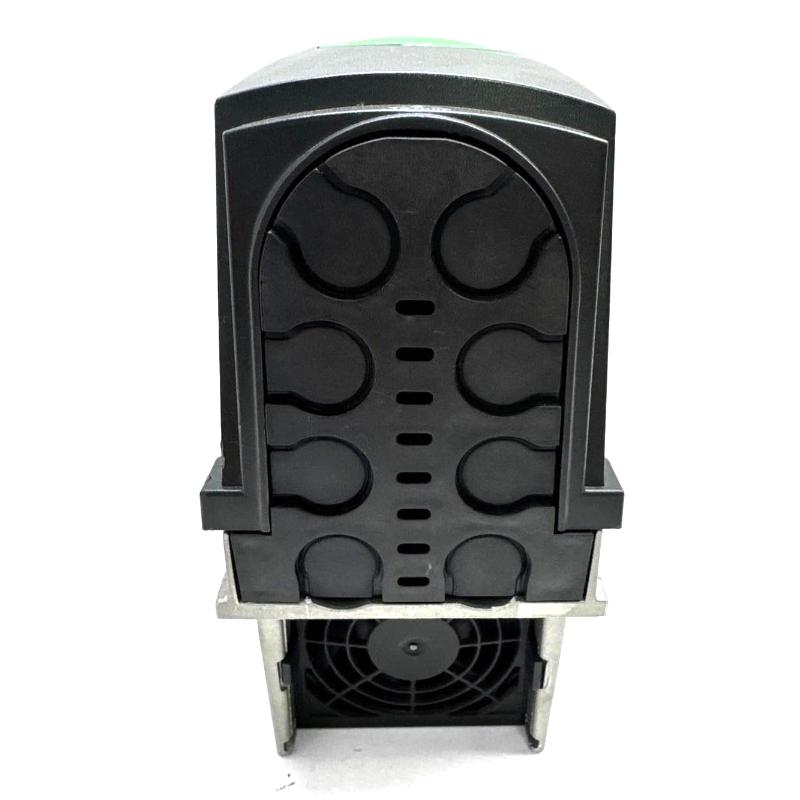

The Emerson SP1401 Unidrive SP Series AC Drive is a variable-speed drive for controlling AC motor operation in industrial machinery. It belongs to the Unidrive SP platform, which supports configurable motor-control modes and adjustable operating parameters. The drive allows machine builders and maintenance engineers to coordinate motor speed, acceleration, deceleration and stopping behavior with the requirements of the driven equipment.
The SP1401 is a Size 1 model in the Unidrive SP range. Its documented current ratings are 2.1 A for Heavy Duty operation and 2.8 A for Normal Duty operation. These ratings are important when matching the drive to a motor, particularly where starting torque, overload capability and the expected load profile affect model selection.
In a machine control panel, the drive receives operating commands and speed references from local controls or an external automation system. It adjusts its output to regulate the connected motor, while configurable parameters determine how the motor responds during starting, running and stopping. The platform also supports optional interface modules for applications requiring additional communication, feedback or control functionality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / Control Techniques |
| Model | SP1401 |
| Product Series | Unidrive SP |
| Product Type | AC Drive |
| Drive Frame Size | Size 1 |
| Drive Type | Universal variable-speed AC drive |
| Motor Compatibility | Induction and supported servo motor applications |
| Heavy Duty Output Current | 2.1 A |
| Normal Duty Output Current | 2.8 A |
| Control Method | Configurable motor-control modes |
| Speed Reference | Configurable through supported drive inputs and interfaces |
| Parameter Configuration | Programmable operating parameters |
| Optional Expansion | Compatible optional interface and feedback modules, subject to application requirements |
| Dimensions | 368 × 100 × 219 mm |
| Weight | 1.4 kg |
Product Features
- Adjustable motor speed: Changes motor operating speed in response to configured references and machine requirements.
- Configurable duty ratings: Provides separate Heavy Duty and Normal Duty current ratings for selecting the drive according to the load profile.
- Programmable acceleration and deceleration: Allows ramp settings to be adjusted for the mechanical response of the driven equipment.
- Flexible motor control: Supports configurable control modes for suitable induction and supported servo motor applications.
- Parameter-based setup: Lets commissioning personnel adjust motor data, operating limits and control behavior.
- External command integration: Can work with compatible machine controllers and external control signals.
- Optional interface expansion: Supports compatible option modules for applications requiring additional feedback or communication functions.
- Diagnostic information: Provides drive status and fault information to assist commissioning and troubleshooting.
- Industrial automation integration: Fits into motor-control architectures where drive operation must coordinate with PLC logic and machine interlocks.
Working Principle
The SP1401 receives electrical power and converts it into a controlled output for the connected motor. Its power electronics regulate the output according to the selected control mode, configured motor data and incoming speed or operating commands. By adjusting the output frequency and associated control variables, the drive regulates motor speed and torque behavior within its specified operating limits.
During commissioning, the motor nameplate information and the drive’s current rating must be matched to the application. The Heavy Duty rating is 2.1 A, while the Normal Duty rating is 2.8 A. The appropriate duty selection depends on the motor and load requirements, including starting demand and expected overload conditions.
Acceleration and deceleration parameters determine how quickly the motor responds to a change in reference. These settings affect mechanical stress, stopping behavior and the response of the driven machine. Additional control or feedback functions depend on the selected operating mode and any compatible option modules installed.
When the drive detects a fault or an operating condition outside its configured limits, it can indicate a fault state and respond according to its settings. Troubleshooting should therefore include the drive’s displayed status, parameter configuration, motor connections and the wider machine control sequence.
Role in an Industrial Motor Control Architecture
The SP1401 acts as the motor-speed control layer between the electrical supply, automation controller and driven machine. It executes configured motor-control commands while returning status and diagnostic information that can be used by the machine control system.
| System Component | Function | Relationship to the Drive |
|---|---|---|
| AC Power Supply | Provides electrical input power | Supplies the drive through correctly rated protective and isolation equipment |
| AC Motor | Converts electrical power into mechanical motion | Receives the drive’s controlled output |
| PLC or Machine Controller | Executes machine sequencing and interlocks | Sends compatible run commands and speed references |
| Operator Control Station | Provides local start, stop and speed commands | Interfaces with the drive through supported control connections |
| Speed Reference Source | Defines the requested motor speed | Supplies a configured reference signal or digital command |
| Motor Feedback Device | Reports speed or position where required | Connects through a compatible feedback interface when supported by the selected configuration |
| Protective Devices | Provide isolation and upstream circuit protection | Protect the supply circuit according to the system design |
| Machine Interlocks | Prevent operation under unsafe or invalid process conditions | Coordinate drive enable and stopping commands |
| Supervisory Monitoring System | Displays machine and drive status | Uses supported communication or controller-mapped status information |
Industrial Applications
| Application | Operating Requirement | Role of the SP1401 |
|---|---|---|
| Conveyor Machinery | Adjust motor speed to suit material flow | Regulates motor operation according to the configured speed reference |
| Pumps and Fluid Handling Equipment | Match motor speed to process demand | Supports adjustable-speed operation when the motor and pump duty are suitable |
| Fans and Blowers | Vary airflow through motor-speed control | Changes motor speed in response to the control reference |
| Packaging Machinery | Coordinate motor response with machine sequences | Executes configured speed and ramp settings |
| Material Processing Equipment | Control motor operation under changing loads | Applies the selected motor-control mode and operating limits |
| General Industrial Machinery | Coordinate drive behavior with PLC commands | Provides variable-speed motor control and drive status information |
Installation and Maintenance
- Verify the model identification: Confirm that the drive is an SP1401 and that its current rating matches the intended motor-control application.
- Check the supply requirements: Confirm the drive’s required input voltage and supply arrangement from the applicable unit rating information before connecting power.
- Inspect the drive and terminals: Check for visible damage, contamination, loose connections or signs of overheating before installation.
- Provide suitable panel ventilation: Follow the specified installation clearances and cooling requirements so heat can dissipate during operation.
- Verify protective grounding: Connect protective earth in accordance with the installation instructions and applicable electrical regulations.
- Check motor compatibility: Compare the motor nameplate data with the drive’s current capability and the intended Heavy Duty or Normal Duty operating mode.
- Inspect motor cable connections: Confirm that the output conductors, terminal connections and cable insulation are suitable for the installation.
- Review control wiring: Verify run commands, stop circuits, speed references and interlocks against the machine’s electrical drawings.
- Set motor parameters: Enter the required motor nameplate data and application-specific control parameters before running the machine.
- Configure ramp settings: Adjust acceleration and deceleration values to suit the driven equipment and avoid unnecessary mechanical stress.
- Test operation under controlled conditions: Verify direction, speed response, stopping behavior and fault indication before releasing the machine for normal operation.
- Record maintenance findings: Document drive settings, fault history, wiring inspections and any parameter changes made during service.
Compatible System Components
| Component | Function | Compatibility Consideration |
|---|---|---|
| Compatible AC Motor | Provides mechanical output for the machine | Match motor ratings and control requirements to the SP1401 |
| PLC or Machine Controller | Manages operating sequences | Confirm that command signals and interface arrangements are supported |
| Operator Control Station | Provides local operation commands | Verify the selected control wiring and stop-circuit design |
| Speed Reference Device | Supplies the required speed command | Match the signal type and scaling to the configured drive input |
| Motor Feedback Device | Supplies speed or position feedback | Requires a compatible feedback option and supported device |
| Optional Communication Module | Adds a supported network interface | Verify the exact module, protocol and drive compatibility |
| Upstream Protective Device | Provides supply-circuit protection | Select according to the electrical installation requirements |
| Motor Isolation Device | Enables safe isolation for maintenance | Coordinate with the system’s isolation and safety procedures |
| Cooling and Panel Ventilation Equipment | Manages heat within the control enclosure | Size according to the panel thermal load and installation conditions |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Emerson SP1402 | Unidrive SP AC Drive | Adjacent model in the same frame and product family | Compare current ratings and the required motor duty |
| Emerson SP1403 | Unidrive SP AC Drive | Higher-current model within the same model group | Select only after checking the motor current and application duty |
| Emerson SP1404 | Unidrive SP AC Drive | Related Size 1 model with a different current rating | Verify the required output current and supply configuration |
| Emerson SP1405 | Unidrive SP AC Drive | Higher-rated model in the SP1400 group | Check its ratings against the motor and driven load before substitution |
Key Advantages
- Provides adjustable-speed control for compatible AC motor applications.
- Offers distinct Heavy Duty and Normal Duty current ratings for application matching.
- Supports programmable acceleration, deceleration and motor-control parameters.
- Integrates with compatible machine controllers and external command sources.
- Supports optional expansion for applications requiring additional interfaces or feedback.
- Supplies drive status and fault information to support maintenance and troubleshooting.
Technical FAQs
What is the difference between the SP1401 Heavy Duty and Normal Duty current ratings?
The SP1401 is rated at 2.1 A for Heavy Duty operation and 2.8 A for Normal Duty operation. The appropriate rating depends on the load profile and required overload performance. The selected duty must be suitable for both the motor and the driven machine.
What should be checked before replacing an SP1401 with another Unidrive SP model?
Compare the complete model designation, input supply requirements, output current rating, duty mode, control wiring and installed option modules. A model from the same family is not automatically a direct replacement if its electrical ratings or configuration differ.
Why might a motor fail to reach the commanded speed when using the SP1401?
Check the active speed reference, configured upper and lower speed limits, control mode, motor data and any active current or torque limits. Also inspect external interlocks and controller commands that may restrict the requested operating speed.
Which parameters should be recorded before changing the drive configuration?
Record the motor nameplate data, duty selection, control mode, speed limits, acceleration and deceleration settings, input assignments, option-module configuration and any application-specific parameters. Keeping a verified record makes it easier to restore operation if a change produces unexpected behavior.
