Product Overview

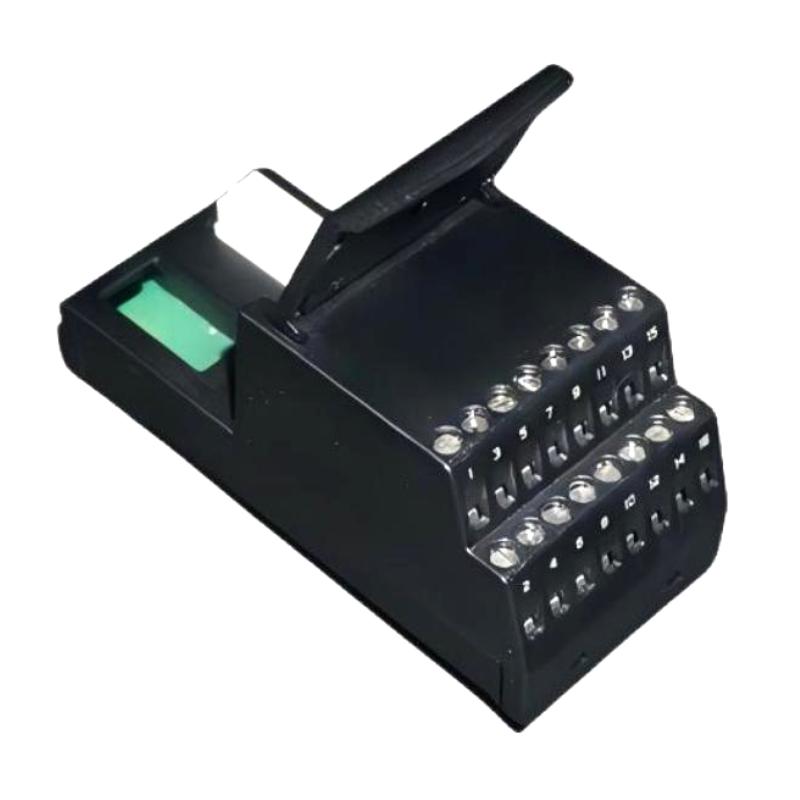

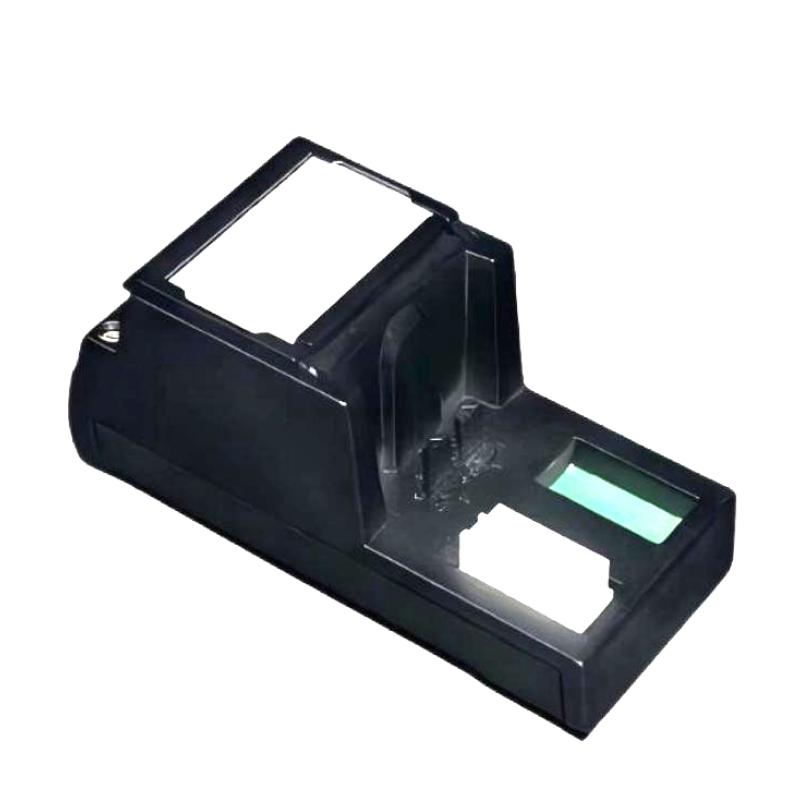

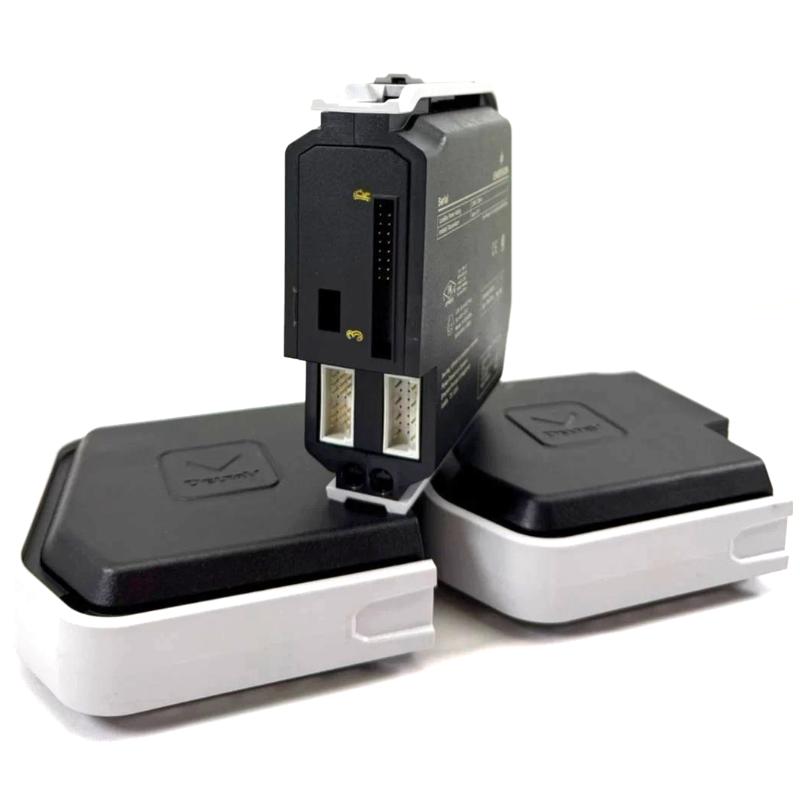

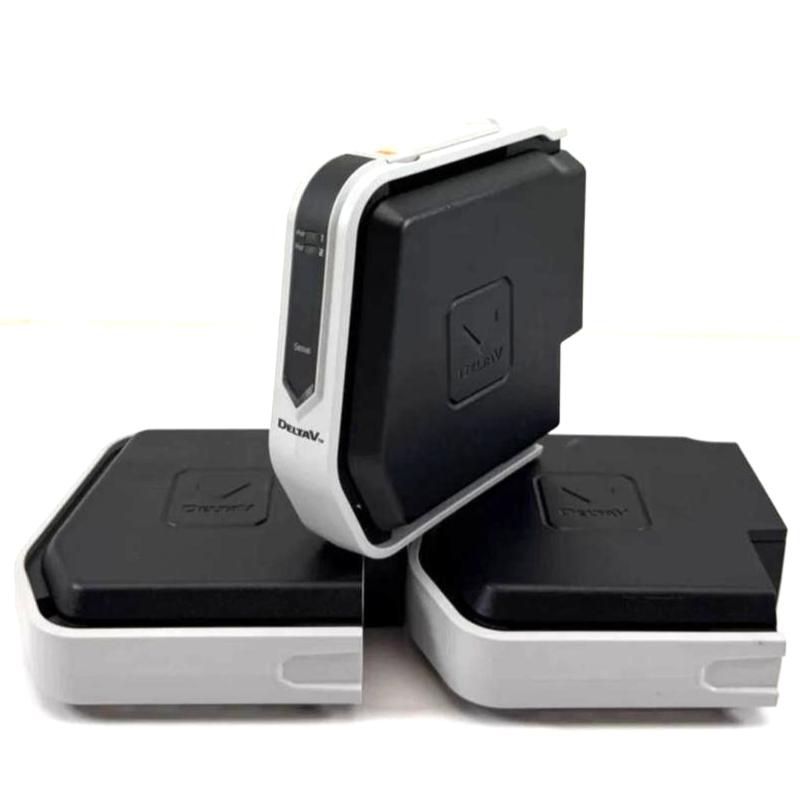

The Emerson SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 DeltaV S-series Serial Interface Card is a serial communication interface assembly used with DeltaV S-series control systems. The assembly combines the SE4006P2 interface card with its associated hardware components to establish serial communication between the DeltaV system and compatible external equipment.
In a plant environment, this type of interface is useful when intelligent instruments, packaged equipment, controllers, or other subsystem devices exchange operational data through serial communication. Instead of bringing every device into the control system through individual analog and discrete signals, serial communication can carry equipment information through an established communication interface.
The KJ3241X1-BK1 and KJ4006X1-BD1 designations identify associated DeltaV hardware within the complete assembly. For replacement work, technicians should therefore verify the complete combination rather than checking only the SE4006P2 card number.
The assembly is particularly relevant to existing DeltaV installations where maintaining the original communication architecture is important. Troubleshooting should cover the card, associated hardware, serial connection, external device, and DeltaV configuration as one communication path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SE4006P2 |
| Associated Part Numbers | KJ3241X1-BK1 + KJ4006X1-BD1 |
| Product Family | Emerson DeltaV S-series |
| Product Type | Serial Interface Card |
| Primary Function | Serial communication interface |
| System Role | Control system communication interface |
| Application | Industrial automation and process control |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.29 kg |
Product Features
- Serial communication interface for DeltaV S-series systems
- Complete assembly identified by SE4006P2, KJ3241X1-BK1, and KJ4006X1-BD1
- Supports integration of compatible serial equipment
- Suitable for intelligent instruments and packaged control systems
- Provides a dedicated communication path between external equipment and DeltaV
- Useful for equipment data exchange and supervisory functions
- Fits existing DeltaV S-series control architectures
- Suitable for maintenance and replacement of installed DeltaV communication hardware
Working Principle
The SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 assembly establishes the physical interface between the DeltaV S-series architecture and compatible serial equipment. Data from the external device travels through the serial connection into the interface assembly and is then made available to the DeltaV control system.
External Serial Equipment → Serial Connection → SE4006P2 Assembly → DeltaV S-series I/O → DeltaV Controller
Communication can also operate in the opposite direction when the application requires commands, requests, or configuration-related data to be transferred from DeltaV toward the connected equipment.
For troubleshooting, the communication path should be treated as a complete circuit. A communication failure can result from the external device, wiring, interface assembly, configuration, or communication parameters, even when the SE4006P2 itself has no visible physical fault.
Role in a DeltaV S-series Control Architecture
The assembly serves as the serial communication layer between external intelligent equipment and the DeltaV control system. It differs from analog and digital I/O cards because its primary task is exchanging structured device data rather than handling individual continuous or discrete field signals.
External Intelligent Device → Serial Interface Assembly → DeltaV S-series I/O → DeltaV Controller → HMI / SCADA
| System Element | Function |
|---|---|
| External Intelligent Device | Generates or receives serial equipment data |
| KJ4006X1-BD1 | Associated hardware within the serial interface assembly |
| KJ3241X1-BK1 | Associated DeltaV hardware for the complete interface arrangement |
| SE4006P2 | Provides the serial communication interface |
| DeltaV Controller | Processes received data and executes control strategies |
| HMI / Operator Station | Displays equipment information and communication status |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Integration of serial intelligent equipment |
| Packaged Equipment | Connecting vendor control systems to DeltaV |
| Oil and Gas | Equipment data exchange and supervisory monitoring |
| Power Generation | Communication with auxiliary control equipment |
| Chemical Processing | Integration of intelligent process devices |
| Industrial Utilities | Serial communication with utility equipment |
Installation and Maintenance
- Verify the complete SE4006P2, KJ3241X1-BK1, and KJ4006X1-BD1 combination before installation.
- Confirm compatibility with the existing DeltaV S-series architecture.
- Check the serial interface requirements of the connected external device.
- Verify communication wiring and terminal assignments before commissioning.
- Confirm that the external device is powered and operating normally.
- Check communication parameters and addressing at both ends of the serial connection.
- Inspect connectors and terminals for looseness, contamination, or physical damage.
- Check the interface assembly when communication is unavailable or unstable.
- Determine whether the fault affects one external device or several devices using the same communication architecture.
- Compare DeltaV communication status with the operating status of the connected equipment.
- Record the existing hardware combination and wiring before removing the assembly for replacement.
- After replacement, verify stable communication and confirm that valid device data is available to the DeltaV system.
Related Components
| Component | Function |
|---|---|
| DeltaV Controller | Processes communication data and executes control strategies |
| SE4006P2 | Provides the serial communication interface |
| KJ3241X1-BK1 | Associated hardware in the interface assembly |
| KJ4006X1-BD1 | Associated hardware in the interface assembly |
| Serial Communication Cable | Transfers data between the interface and external equipment |
| External Serial Device | Exchanges operational data with DeltaV |
| DeltaV S-series I/O Carrier | Provides the physical I/O platform |
| DeltaV Engineering Station | Used for configuration and maintenance |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson SE4006P2 | DeltaV S-series Serial Interface Card | Serial device integration |
| Emerson SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 | Serial Interface Assembly | DeltaV serial communication |
| Emerson DeltaV S-series Serial Interface Cards | Serial Communication | Intelligent equipment integration |
| Emerson DeltaV S-series Analog Input Cards | Analog Input | Process measurement acquisition |
| Emerson DeltaV S-series Analog Output Cards | Analog Output | Continuous process control |
| Emerson DeltaV S-series Digital Input Cards | Digital Input | Discrete signal acquisition |
| Emerson DeltaV S-series Digital Output Cards | Digital Output | Discrete equipment control |
| Emerson DeltaV S-series I/O Carriers | I/O Carrier | S-series I/O installation |
Key Advantages
- Complete serial interface assembly for compatible DeltaV S-series systems
- Combines the SE4006P2 interface with associated DeltaV hardware
- Suitable for intelligent equipment and packaged-system integration
- Supports serial data exchange within the control architecture
- Useful for maintaining established DeltaV communication installations
- Practical for replacement and field-service applications
Technical FAQs
Why should the three part numbers be checked together when replacing this assembly?
The complete identification includes SE4006P2, KJ3241X1-BK1, and KJ4006X1-BD1. Checking only the main card number may not be sufficient when the installed system depends on the associated hardware arrangement.
What is the difference between this assembly and a DeltaV analog I/O card?
An analog I/O card handles continuous electrical signals, while the SE4006P2 assembly is used for serial data communication with compatible external equipment. The communication architecture and configuration requirements are therefore different.
What can cause communication loss after replacing the assembly?
Incorrect hardware selection, wiring problems, connector issues, communication parameters, device addressing, or DeltaV configuration can all prevent successful communication. The complete communication path should be checked rather than assuming the replacement card is defective.
What should be documented before removing the existing SE4006P2 assembly?
Record the complete part-number combination, wiring arrangement, connected equipment, communication configuration, and relevant channel or system settings. This information makes it easier to reproduce the original communication arrangement after replacement.
