Product Overview

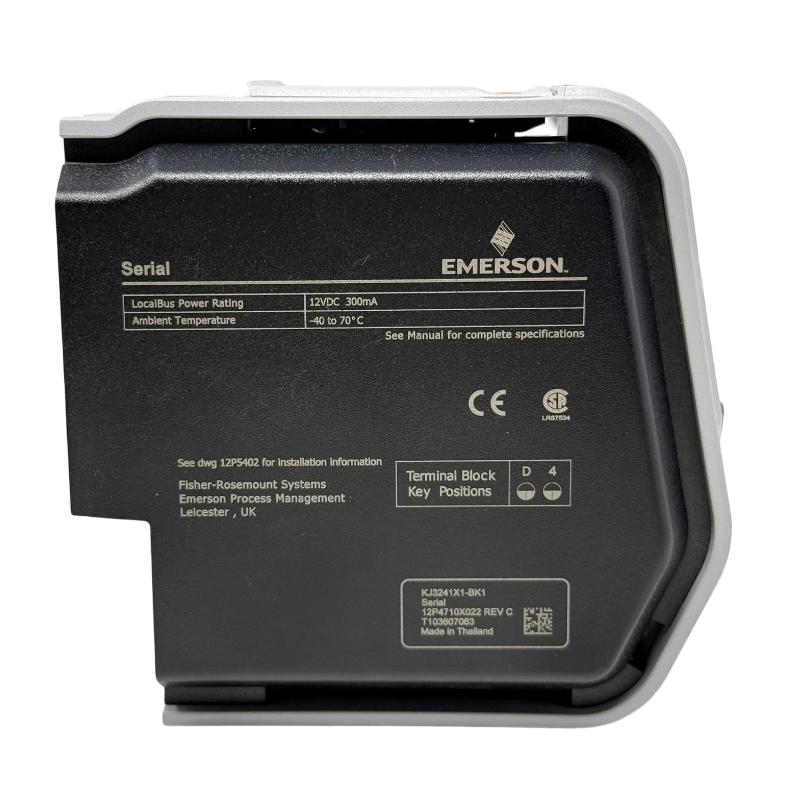

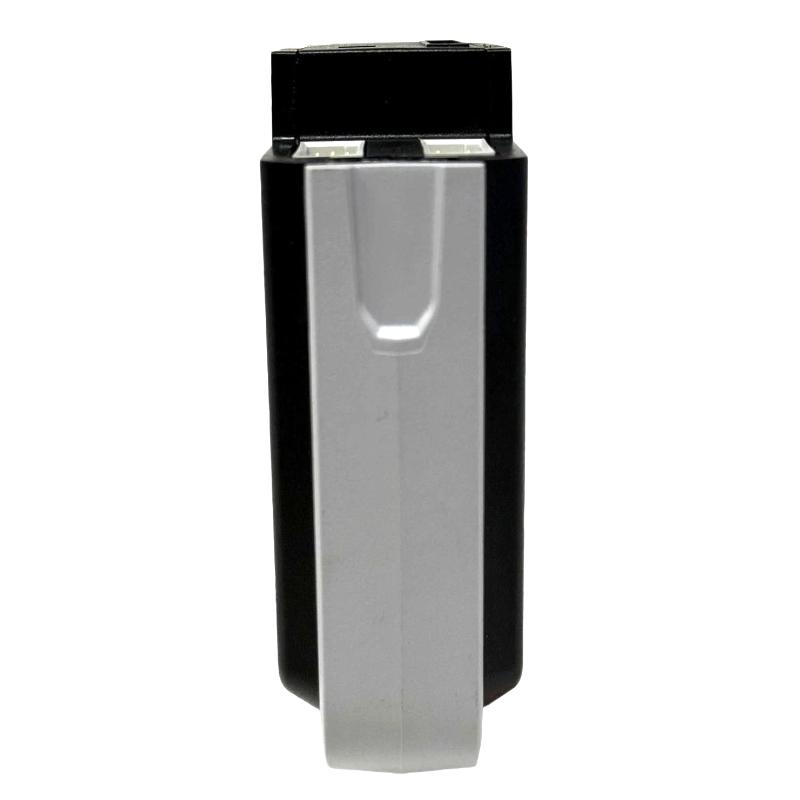

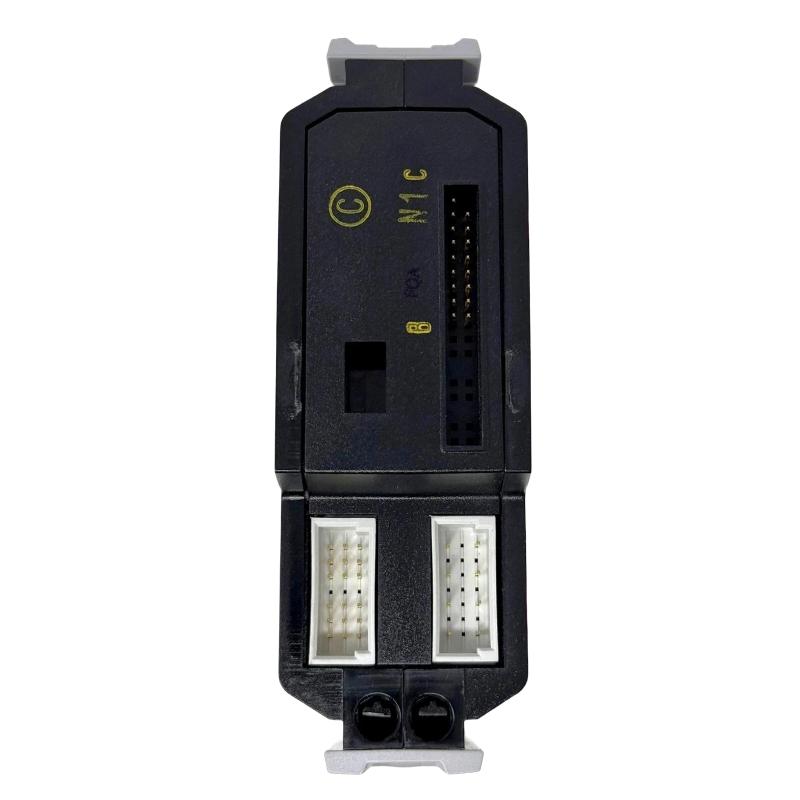

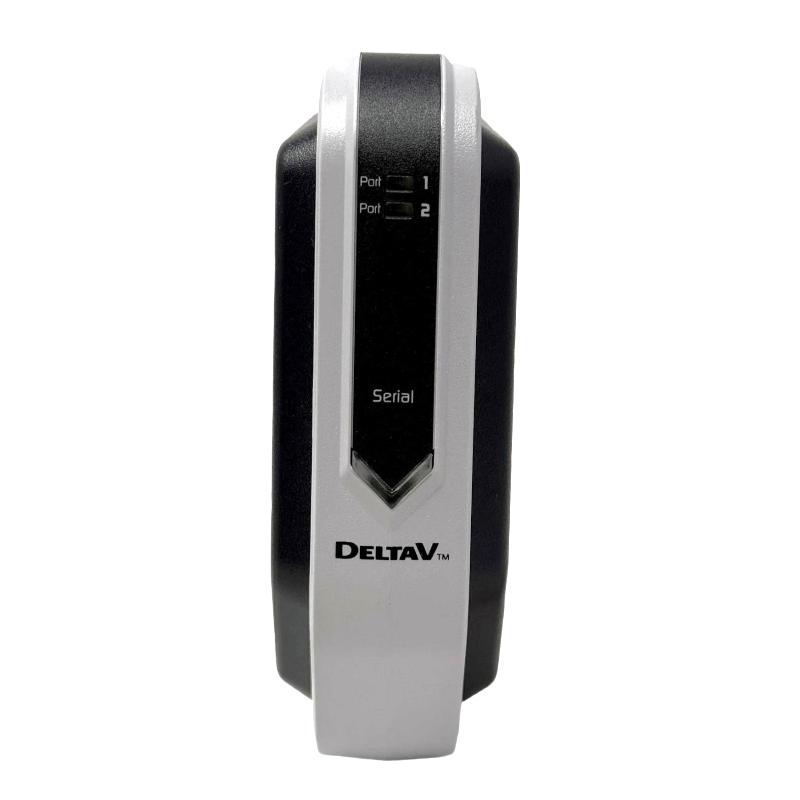

The Emerson SE4006P2 DeltaV S-series Serial Interface Card is a serial communication interface used within DeltaV S-series control systems. It provides a connection point between the DeltaV control architecture and compatible serial devices, allowing equipment data to be exchanged with the control system.
In a typical plant installation, the card can be used where serial communication is required between the DeltaV system and external instruments, controllers, intelligent devices, or packaged equipment. This is particularly useful when the field or subsystem equipment communicates through a serial interface rather than a conventional analog or discrete I/O channel.
The SE4006P2 is suited to applications where operational data, device information, or control-related information must move between the DeltaV environment and an external serial device. It can be applied in process plants, packaged control systems, utilities, and equipment integration projects.
For maintenance, communication faults should be investigated across the complete serial path. The card, termination arrangement, communication wiring, connected device, and configured communication parameters should be checked before determining whether the interface card itself requires replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SE4006P2 |
| Product Family | Emerson DeltaV S-series |
| Product Type | Serial Interface Card |
| Primary Function | Serial communication interface |
| System Role | Control system communication interface |
| Application | Industrial automation and process control |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.29 kg |
Product Features
- Serial communication interface for DeltaV S-series systems
- Connects compatible serial devices with the DeltaV control architecture
- Suitable for intelligent field equipment and packaged systems
- Supports equipment integration through serial communication
- Useful where conventional I/O connections are not sufficient
- Integrates into the DeltaV S-series I/O architecture
- Suitable for process plants and industrial automation systems
- Practical for maintenance and replacement of existing DeltaV installations
Working Principle
The SE4006P2 establishes a serial communication path between the DeltaV control system and a compatible external device. Data generated by the connected equipment is transferred through the serial interface toward the DeltaV system, while applicable commands or requests can travel in the opposite direction.
External Serial Device → SE4006P2 Serial Interface Card → DeltaV I/O Architecture → DeltaV Controller
DeltaV Controller → SE4006P2 → Serial Communication Path → External Device
The controller can use information received through the interface for monitoring, supervisory functions, diagnostics, or control strategies supported by the connected system. When communication fails, checking the physical connection and communication configuration together is important because either side can prevent successful data exchange.
Role in a DeltaV S-series Control Architecture
The SE4006P2 occupies the communication interface layer between DeltaV S-series control equipment and external serial devices. Unlike an analog input or output card, its primary task is data communication rather than direct continuous signal acquisition or generation.
External Serial Equipment → SE4006P2 → S-series I/O Architecture → DeltaV Controller → HMI / SCADA
| System Element | Function |
|---|---|
| External Serial Device | Provides equipment data or receives communication commands |
| SE4006P2 | Provides the serial communication interface |
| S-series I/O Architecture | Connects the interface card to the DeltaV system |
| DeltaV Controller | Processes received information and executes control strategies |
| HMI / Operator Station | Displays equipment and communication information |
| SCADA / Supervisory System | Provides higher-level monitoring where applicable |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Integration of serial intelligent devices |
| Packaged Equipment | Connecting vendor equipment to DeltaV |
| Power Generation | Communication with auxiliary control equipment |
| Oil and Gas | Equipment data exchange within process systems |
| Water Treatment | Serial integration of monitoring and control devices |
| Industrial Utilities | Communication with intelligent utility equipment |
Installation and Maintenance
- Verify that the SE4006P2 is compatible with the existing DeltaV S-series configuration.
- Confirm the serial interface requirements of the connected external device.
- Check the communication wiring and terminal assignments before commissioning.
- Verify that the connected device is powered and operating normally.
- Confirm the communication parameters configured on both ends of the serial link.
- Inspect connectors and terminals for looseness, corrosion, or physical damage.
- Check the complete communication path when the DeltaV system cannot exchange data with the external device.
- Determine whether the problem affects one connected device or multiple communication channels.
- Compare communication status information with the actual operating condition of the external equipment.
- Check DeltaV configuration and device addressing when communication is intermittent or unavailable.
- Record existing wiring and configuration before removing the card for replacement.
- After replacement, verify communication in both directions and confirm that the DeltaV system receives valid device data.
Related Components
| Component | Function |
|---|---|
| DeltaV Controller | Processes communication data and executes control strategies |
| DeltaV S-series I/O Carrier | Provides the physical I/O platform |
| Serial Communication Wiring | Carries data between the card and external equipment |
| Serial Field Device | Exchanges data with the DeltaV system |
| Termination Assembly | Provides field-side connection and wiring termination |
| HMI / Operator Station | Displays equipment and communication status |
| DeltaV Engineering Station | Used for configuration and maintenance |
| Packaged Equipment Controller | Provides serial data from external machinery or equipment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson SE4006P2 | DeltaV S-series Serial Interface Card | Serial device integration |
| Emerson DeltaV S-series Serial Interface Cards | Serial Communication | Equipment communication |
| Emerson DeltaV S-series Analog Input Cards | Analog Input | Process signal acquisition |
| Emerson DeltaV S-series Analog Output Cards | Analog Output | Analog process control |
| Emerson DeltaV S-series Digital Input Cards | Digital Input | Discrete signal acquisition |
| Emerson DeltaV S-series Digital Output Cards | Digital Output | Discrete equipment control |
| Emerson DeltaV S-series I/O Carriers | I/O Carrier | S-series I/O installation |
| Emerson DeltaV Termination Assemblies | Termination Interface | Field wiring connection |
Key Advantages
- Dedicated serial communication interface for DeltaV S-series systems
- Suitable for integration of intelligent external equipment
- Allows equipment data to be exchanged through a serial communication path
- Useful for packaged systems and subsystem integration
- Integrates with the DeltaV S-series I/O architecture
- Practical for maintenance and replacement applications
Technical FAQs
What is the SE4006P2 used for in a DeltaV system?
The SE4006P2 provides a serial communication interface between the DeltaV S-series control architecture and compatible external serial equipment. It is used for data exchange rather than direct analog signal acquisition.
What should be checked when a connected serial device is not communicating?
Check the external device’s power and operating status first, followed by communication wiring, connections, addressing, and configured communication parameters. The SE4006P2 channel and DeltaV configuration should then be checked to determine whether the interface is correctly configured.
Why can serial communication become intermittent even when the card appears to be operating normally?
Intermittent communication can result from unstable wiring, poor connections, incorrect communication parameters, electrical interference, or problems at the connected device. The entire communication path should be checked instead of assuming that the interface card is defective.
What information should be verified before replacing the SE4006P2?
Verify the exact card model, DeltaV S-series configuration, connected device requirements, communication wiring, channel assignment, and configuration parameters. After replacement, confirm stable two-way communication and valid data exchange with the external equipment.
