Product Overview

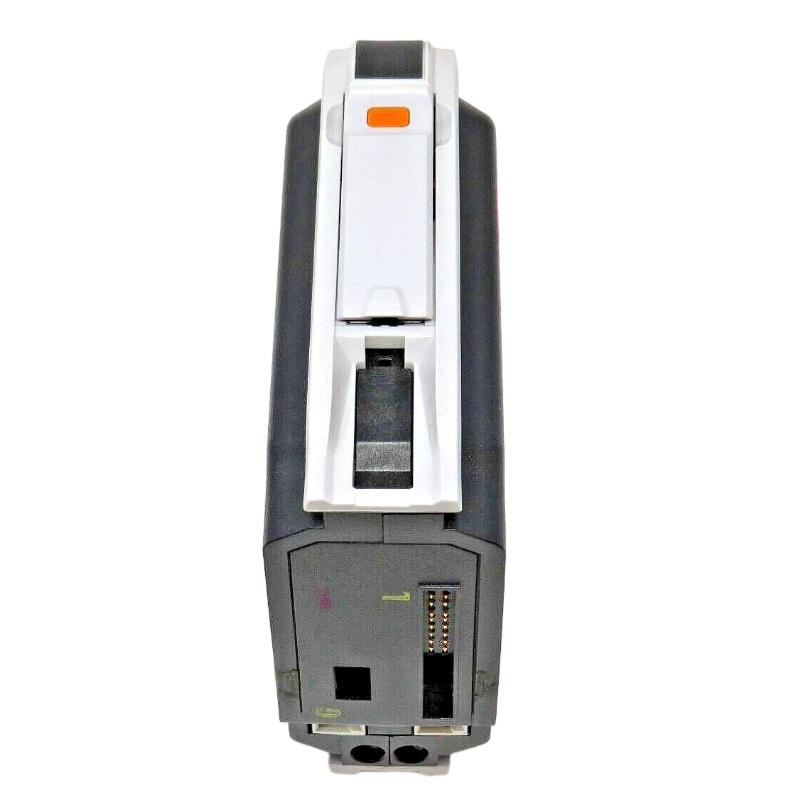

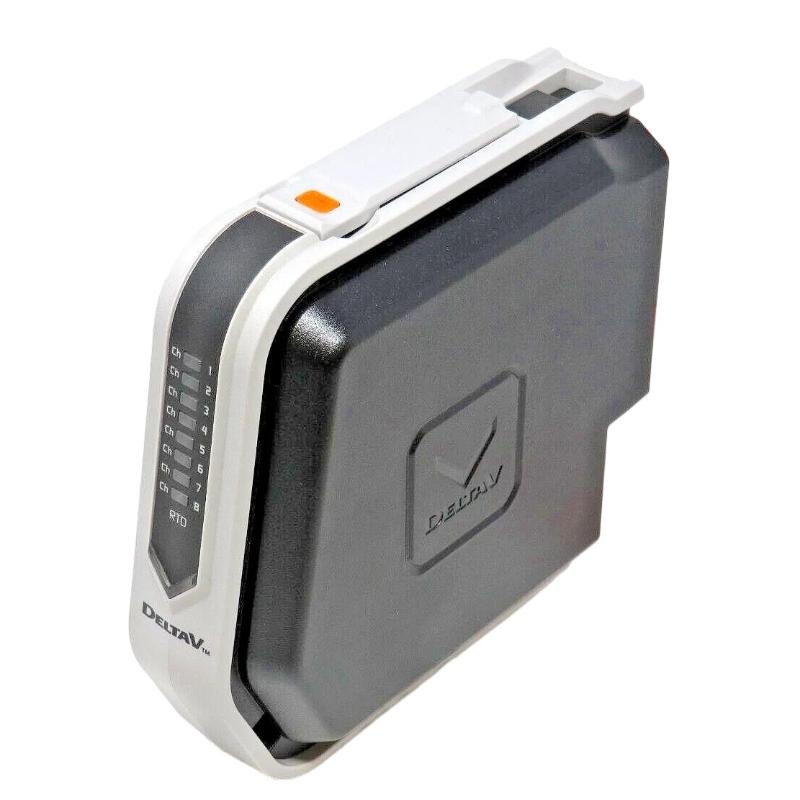

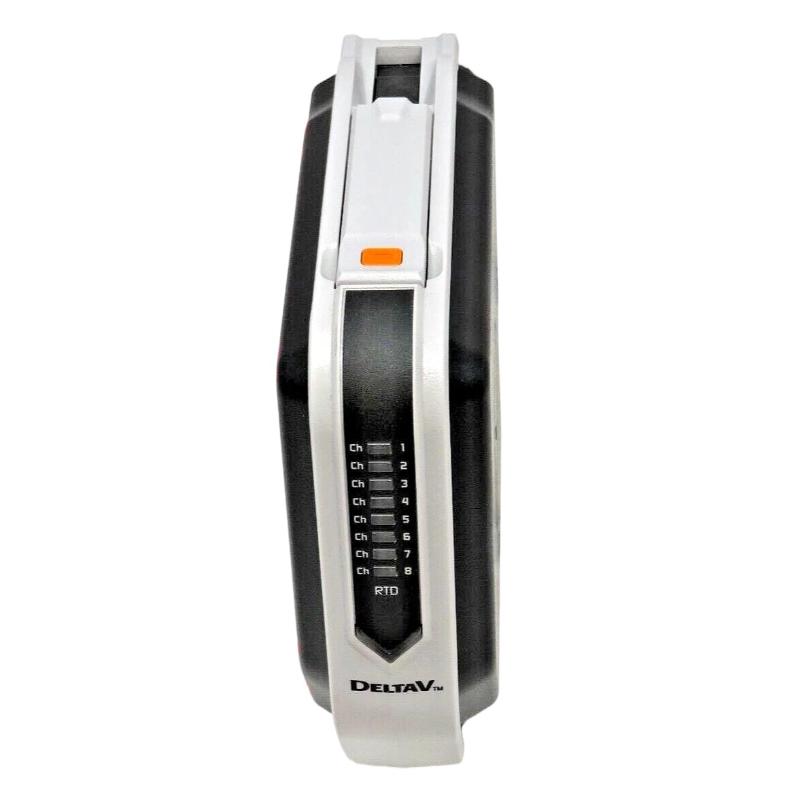

The Emerson SE4003S2B6 is a DeltaV S-series Analog Input Card used to collect continuous analog measurements from field instrumentation and make those values available to the DeltaV control system. It belongs to the I/O layer of the distributed control architecture, where field signals are acquired before being passed into control strategies, operator displays, alarm functions, and historical data processing.

In a process plant, the card can sit behind instruments measuring variables such as pressure, temperature, flow, or level. For example, a flow transmitter installed on a production line can send its changing process signal through the field termination system to the analog input card. DeltaV then uses the acquired value for process indication, control calculations, alarm management, and trending.

The SE4003S2B6 is also relevant to maintenance and expansion work on established DeltaV S-series installations. When replacing an existing card, engineers should verify the complete I/O configuration rather than selecting a replacement based only on physical dimensions or general product family.

Technical Specifications

Product Features

• DeltaV S-series integration — Intended for modular DeltaV S-series I/O architectures.
• Continuous analog signal acquisition — Collects changing process measurements from connected field instrumentation.
• Process-control system interface — Makes field measurement data available to DeltaV control strategies and operator functions.
• Modular construction — Fits within the distributed I/O structure of a DeltaV installation.
• Suitable for process instrumentation — Applicable to monitoring tasks involving common analog process variables.
• Maintenance-friendly identification — The model number provides a clear reference when managing spare I/O hardware and replacement activities.

Working Principle

The SE4003S2B6 forms the acquisition point between a field instrument and the DeltaV control system.

A representative signal path is:

Process Variable → Field Transmitter → Field Termination → SE4003S2B6 → DeltaV Control System → Operator / Control Application

Consider a level transmitter installed on a storage vessel. As the liquid level changes, the transmitter generates a corresponding analog signal. The signal reaches the S-series I/O assembly and is acquired by the SE4003S2B6. DeltaV can then associate the input with the configured process tag and use the value for display, alarm handling, control logic, calculations, or historical trending.

This architecture also makes troubleshooting more systematic. If the displayed value is frozen or outside the expected range, an engineer can work backward through the signal path: check the field instrument, verify loop wiring and termination, inspect the I/O channel status, and finally examine the DeltaV configuration.

Role in a DeltaV Distributed Control Architecture

The analog input card serves as the boundary between physical process instrumentation and software-based control functions.

At the field level, transmitters respond to real process conditions. At the I/O level, the SE4003S2B6 acquires the electrical representation of those measurements. The DeltaV control layer then interprets the input according to the configured process strategy.

This arrangement is especially useful in large plants because field measurements can be distributed around the facility while remaining accessible to centralized control strategies and operator interfaces.

For maintenance teams, the I/O layer also provides a practical diagnostic boundary. A signal problem can be isolated by determining whether the abnormality exists at the instrument, wiring, I/O card, or control-configuration level.

Industrial Applications

Chemical Processing

The SE4003S2B6 can be used to acquire continuous measurements from process transmitters installed around reactors, vessels, pipelines, and utility systems. These measurements can feed DeltaV control loops and process alarms.

Oil and Gas

Distributed field instrumentation frequently generates large numbers of analog process values. The card can form part of the I/O infrastructure used to bring these measurements into the DeltaV environment.

Power and Utilities

Pressure, temperature, flow, and level measurements from auxiliary systems can be collected for plant monitoring and control. The I/O card can sit within distributed control cabinets serving different areas of the facility.

Pharmaceutical and Fine Chemical Production

Continuous process measurements can be incorporated into DeltaV control strategies for monitoring production equipment and supporting automated process sequences.

Water and Wastewater

Analog measurements from pumping, storage, treatment, and utility equipment can be collected and presented to the control system for operational supervision.

Installation and Maintenance

Before installation, confirm the SE4003S2B6 model against the project documentation and installed DeltaV S-series architecture. The associated carrier, termination hardware, field wiring, and software configuration should all be considered part of the replacement check.

For a card replacement, document the existing channel assignment and wiring before removing the original hardware. After the replacement, check the I/O status in DeltaV and verify that the corresponding process tag receives the expected measurement.

A useful commissioning practice is to compare the DeltaV reading with the local field indication or an appropriate test source. If the two values disagree, investigate the complete signal path rather than immediately assuming that the I/O card is defective.

For spare-parts management, keeping the exact model designation together with the system location and application record can simplify future maintenance work.

Related Components

Depending on the plant architecture, the SE4003S2B6 may be used alongside:

• DeltaV S-series I/O carriers
• S-series terminal and termination assemblies
• DeltaV controllers
• Field pressure transmitters
• Temperature transmitters and process sensors
• Flow transmitters
• Level transmitters
• 24 VDC control-system power equipment
• DeltaV engineering and operator stations
• Configured control modules and process graphics

The actual supporting components should be matched to the installed DeltaV system configuration.

Recommended Related Models

For maintenance teams working with DeltaV analog I/O, the following related models can be considered:

1. Emerson SE4003S2B2 — DeltaV S-series Analog Input Card
2. Emerson SE4003S2B4 — DeltaV S-series Analog Input Card
3. Emerson SE4003S2B5 — DeltaV S-series Analog Input Card
4. Emerson SE4003S2B6 — DeltaV S-series Analog Input Card
5. Emerson DeltaV S-series I/O Carriers — Supporting modular I/O hardware
6. Emerson DeltaV S-series Terminal Assemblies — Field-side connection and termination hardware

Key Advantages

• Fits the modular DeltaV S-series I/O architecture.
• Acquires continuous process measurements for DeltaV applications.
• Suitable for distributed field instrumentation.
• Supports process monitoring, control, alarms, and trending through the DeltaV environment.
• Practical for system expansion and maintenance activities.
• Compact modular construction for installation within DeltaV I/O assemblies.

Technical FAQs

What type of field measurement can be connected to the SE4003S2B6?

The card is intended for analog process input applications. Typical plant measurements include pressure, temperature, flow, and level, provided that the field device and complete I/O configuration match the required input arrangement.

What is the first step when a DeltaV analog value suddenly becomes abnormal?

Check whether the field instrument itself is producing the expected signal. After that, inspect the associated wiring and termination before moving to the SE4003S2B6 channel and DeltaV configuration. This approach helps distinguish an instrument or loop fault from an I/O hardware fault.

Is replacing the SE4003S2B6 only a matter of installing the new card?

No. A proper replacement also requires checking the installed I/O architecture, carrier and termination arrangement, channel assignment, field wiring, and DeltaV configuration. The replacement should be followed by an operational check of the affected process tags.

Why is channel identification important when maintaining this analog input card?

A single I/O card can be associated with multiple process measurements in a control system. Correct channel identification links each physical field signal to the intended DeltaV tag and control strategy. Recording the original channel assignment before maintenance helps avoid wiring or configuration errors after replacement.
