Product Overview

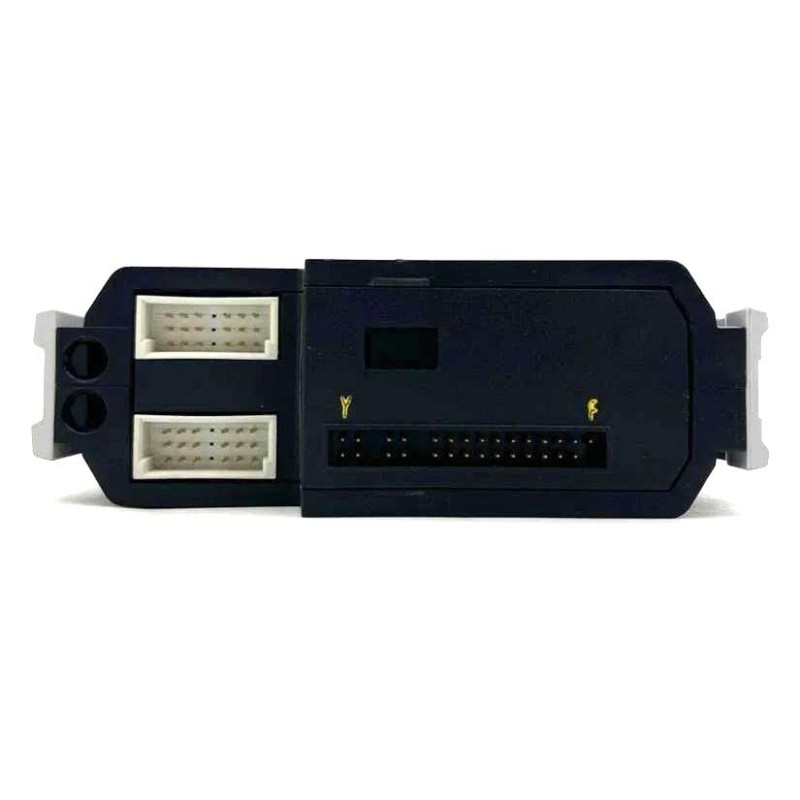

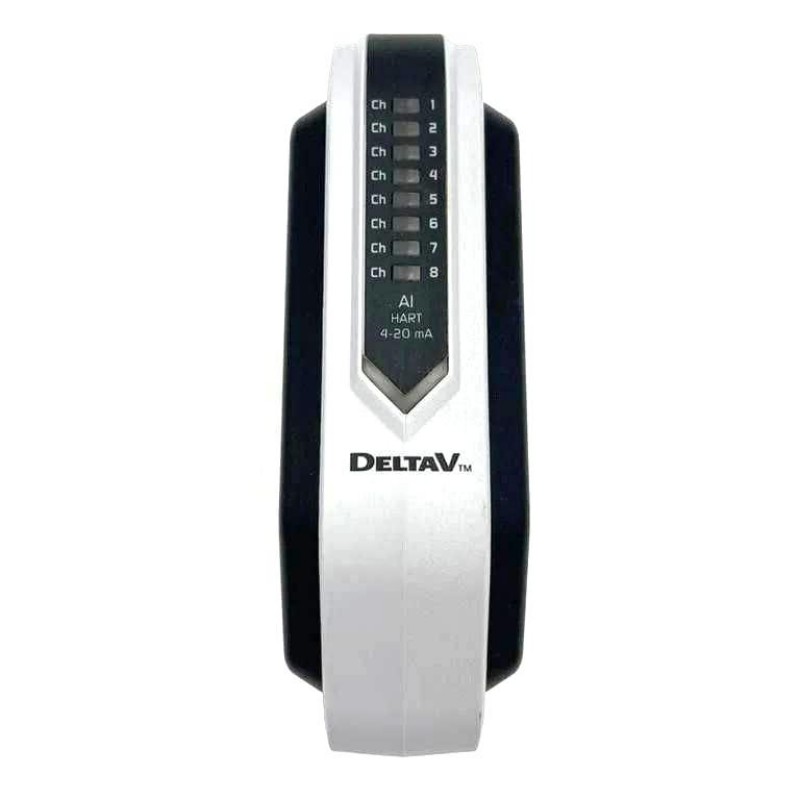

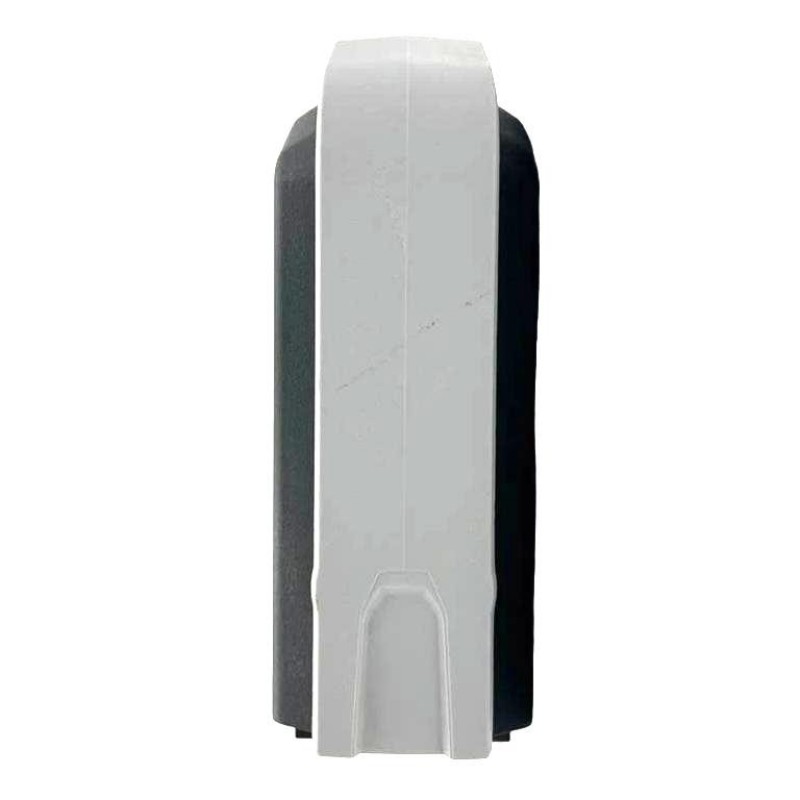

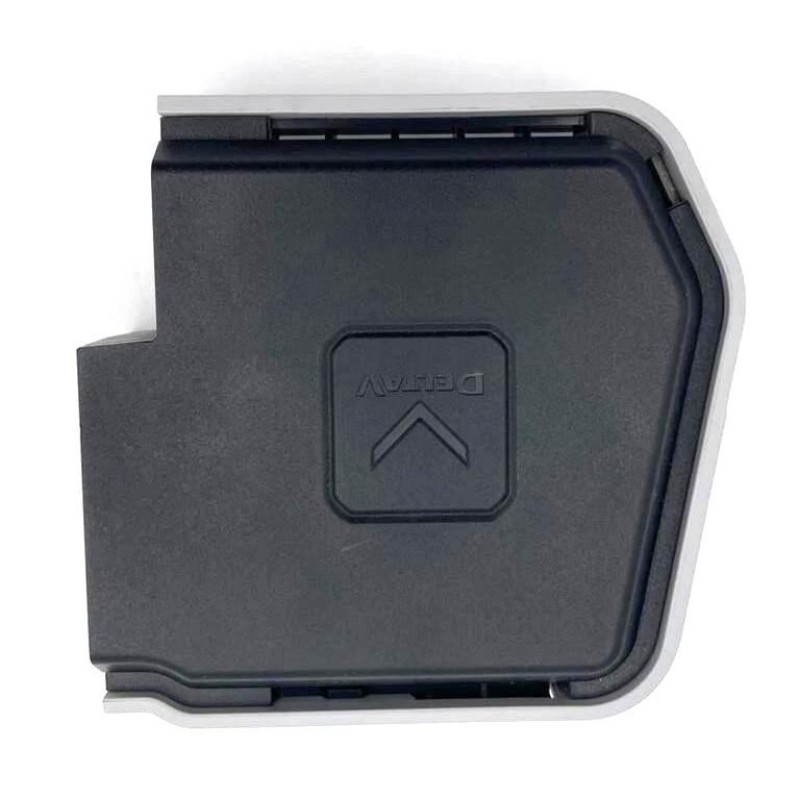

The Emerson SE4003S2B5 KJ3222X1-BK1 is a DeltaV S-series Analog Input Card used to bring continuous process measurements from field instrumentation into the DeltaV control system. It sits between field transmitters and the DeltaV controller, converting incoming analog process signals into data that can be used for monitoring, alarming, trending, regulatory control, and operator displays.

In a typical process installation, the card may receive measurements from transmitters associated with pressure, temperature, flow, level, or other continuously varying process variables. Once the field value reaches the I/O subsystem, the DeltaV system can make that information available to control strategies and operator stations without requiring a separate signal-conditioning arrangement for each application.

The SE4003S2B5 is particularly relevant when expanding or maintaining an existing DeltaV S-series I/O architecture. For replacement work, the model designation and carrier arrangement should be checked against the installed DeltaV configuration before installation, especially where the I/O card forms part of an established control strategy.

Technical Specifications

Product Features

• DeltaV S-series architecture — Intended for integration into Emerson DeltaV S-series I/O systems.
• Analog process measurement — Handles continuously varying field measurements for process monitoring and control.
• Direct integration with DeltaV control strategies — Input values can be used by configured control modules, alarms, displays, and historical functions.
• Suitable for process instrumentation — Practical for applications involving transmitters and other analog field devices.
• Compact I/O form factor — Fits within the modular DeltaV I/O architecture used in distributed control installations.
• Useful for system expansion and replacement — Can be considered when adding I/O capacity or replacing an existing card with the same model.

Working Principle

The SE4003S2B5 operates as the signal interface between field instrumentation and the DeltaV control environment.

A typical signal path can be represented as:

Field Transmitter → DeltaV Terminal/Carrier → SE4003S2B5 Analog Input Card → DeltaV Controller → Control Strategy / Operator Station

The field instrument generates an analog representation of the measured process variable. The input card receives this signal and converts the electrical measurement into usable process data for the DeltaV system. The controller can then apply configured scaling, alarming, control logic, interlocks, or calculation functions according to the plant application.

For example, a pressure transmitter installed on a process line may continuously change its output as line pressure varies. The analog input channel captures that changing signal, allowing the DeltaV control strategy to compare the measured value with its configured operating limits or control target.

During troubleshooting, the important point is to separate field wiring problems, I/O channel problems, and configuration problems. A missing or abnormal value at the operator station does not necessarily mean that the input card itself has failed.

Role in a DeltaV Process Control System

The SE4003S2B5 occupies the field-I/O layer of a DeltaV distributed control system.

Its position can be viewed as:

Field Layer
Transmitters and process instruments

↓

I/O Layer
SE4003S2B5 Analog Input Card

↓

Control Layer
DeltaV Controllers and configured control modules

↓

Supervisory Layer
Operator stations, alarms, trends, and process displays

This separation is useful during commissioning and maintenance. When an analog value appears incorrect, technicians can verify the instrument output and wiring first, then inspect the corresponding I/O channel and finally check DeltaV configuration and scaling.

Industrial Applications

Chemical and Petrochemical Processing
Analog measurements from pressure, temperature, flow, and level transmitters can be brought into the DeltaV system for continuous process supervision and control.

Oil and Gas Facilities
The card can be used within distributed instrumentation systems where large numbers of continuously varying process measurements must be collected by the control system.

Power Generation
Process variables associated with boilers, turbines, auxiliary systems, cooling circuits, and balance-of-plant equipment can be monitored through analog input channels.

Pharmaceutical Manufacturing
Analog field measurements can be incorporated into DeltaV control strategies where process conditions need continuous monitoring and documented operating data.

Water and Wastewater Treatment
Applications can include continuous monitoring of pressure, flow, tank level, and other analog process variables across treatment and utility systems.

Installation and Maintenance

Before installation, confirm that the SE4003S2B5 matches the intended DeltaV S-series I/O configuration and that the associated carrier, terminal arrangement, field wiring, and control-system configuration are appropriate for the application.

During replacement, record the existing channel assignment and field wiring before removing the original card. This helps prevent an otherwise straightforward hardware replacement from becoming a wiring or channel-identification problem.

After installation, verify the I/O status in the DeltaV system and compare the displayed process value with the local instrument reading. If the measurement is incorrect, check the field instrument, loop wiring, termination points, channel assignment, and configured engineering range systematically.

For maintenance teams, keeping a correctly identified spare card available can reduce downtime when an unexpected I/O fault occurs in a running process system.

Related Components

The SE4003S2B5 normally operates as part of a larger DeltaV I/O assembly rather than as a standalone device. Depending on the installation, related equipment can include:

• DeltaV S-series I/O carriers
• S-series terminal blocks and termination assemblies
• DeltaV controllers
• Field pressure, temperature, flow, and level transmitters
• 24 VDC control-system power infrastructure
• DeltaV engineering and operator workstations
• Control modules and process graphics associated with the analog measurement

The exact supporting hardware should be determined from the installed DeltaV architecture and project configuration.

Recommended Related Models

For DeltaV analog-input applications, the following models are useful related products to consider:

1. Emerson SE4003S2B2 — DeltaV S-series Analog Input Card
2. Emerson SE4003S2B4 — DeltaV S-series Analog Input Card
3. Emerson SE4003S2B5 — DeltaV S-series Analog Input Card
4. Emerson KJ3222X1-BK1 — DeltaV S-series Analog Input Card identification used with the SE4003S2B5
5. Emerson DeltaV S-series I/O Carriers — Supporting hardware for modular I/O installation
6. Emerson DeltaV S-series Terminal Assemblies — Used for field-side signal termination and wiring

Key Advantages

• Integrates analog field measurements into the DeltaV control environment.
• Suitable for continuous process-variable acquisition.
• Fits the modular DeltaV S-series I/O architecture.
• Useful for both system expansion and like-for-like maintenance.
• Supports a structured troubleshooting path from field instrument through I/O and controller layers.
• Compact form factor for distributed I/O installations.

Technical FAQs

What should be checked before replacing an SE4003S2B5?

Confirm the complete model designation, KJ3222X1-BK1 identification, installed carrier and terminal arrangement, channel assignment, and DeltaV configuration. Field wiring should also be documented before removing the existing card.

Can an abnormal analog value be caused by something other than the SE4003S2B5?

Yes. A faulty transmitter, damaged loop wiring, incorrect termination, incorrect channel configuration, or an unsuitable engineering range can all produce an abnormal reading. Checking the field signal before replacing the card can prevent unnecessary hardware replacement.

How should the SE4003S2B5 be checked during commissioning?

Verify the physical installation first, then confirm I/O status in DeltaV and compare the system value against the field instrument. Applying a controlled test signal where appropriate can help distinguish between an instrument-side problem and an I/O-channel problem.

What information is most useful when selecting a replacement analog input card?

The exact DeltaV card model, part number, installed I/O architecture, carrier and termination arrangement, channel requirements, and existing configuration should all be checked. Matching only the physical appearance of an I/O card is not sufficient for a controlled replacement.
