Product Overview

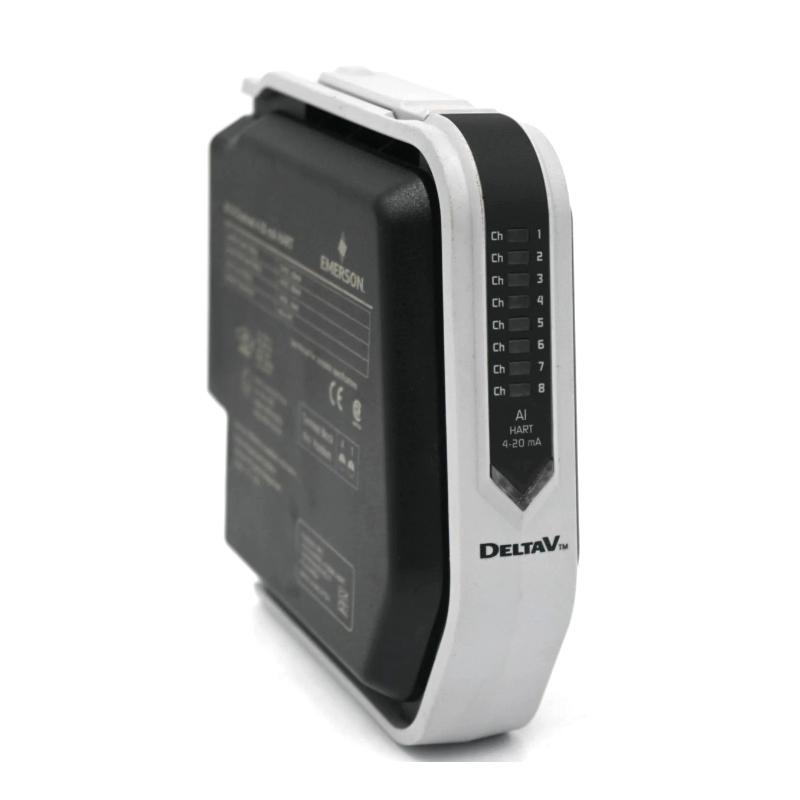

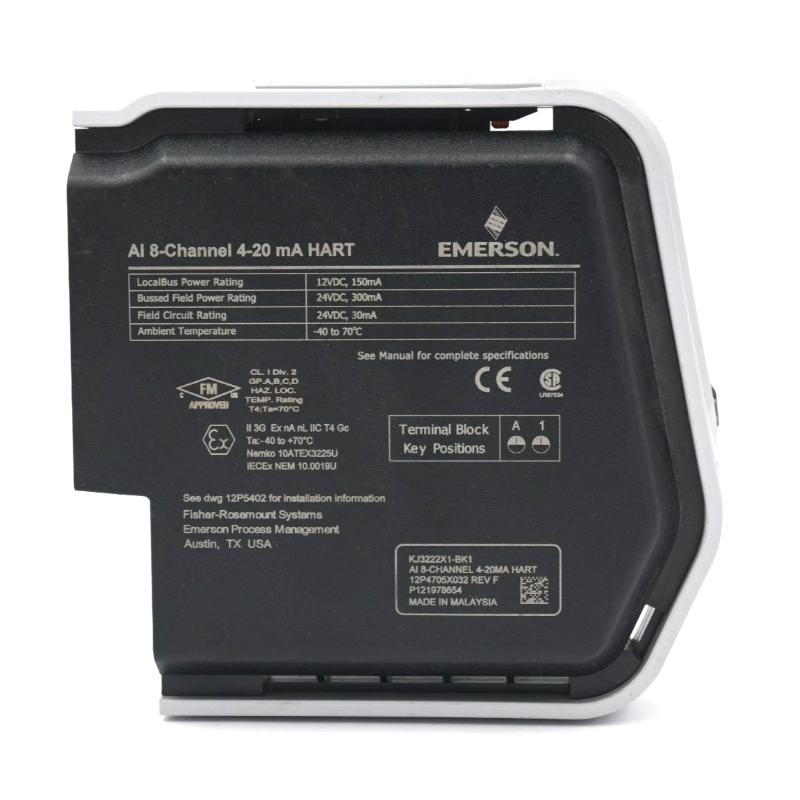

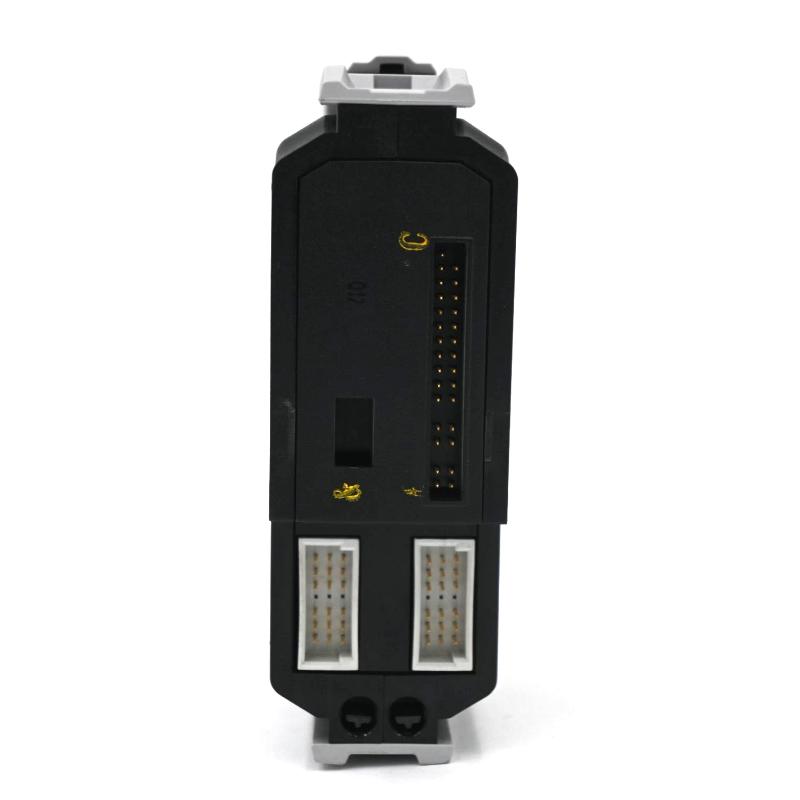

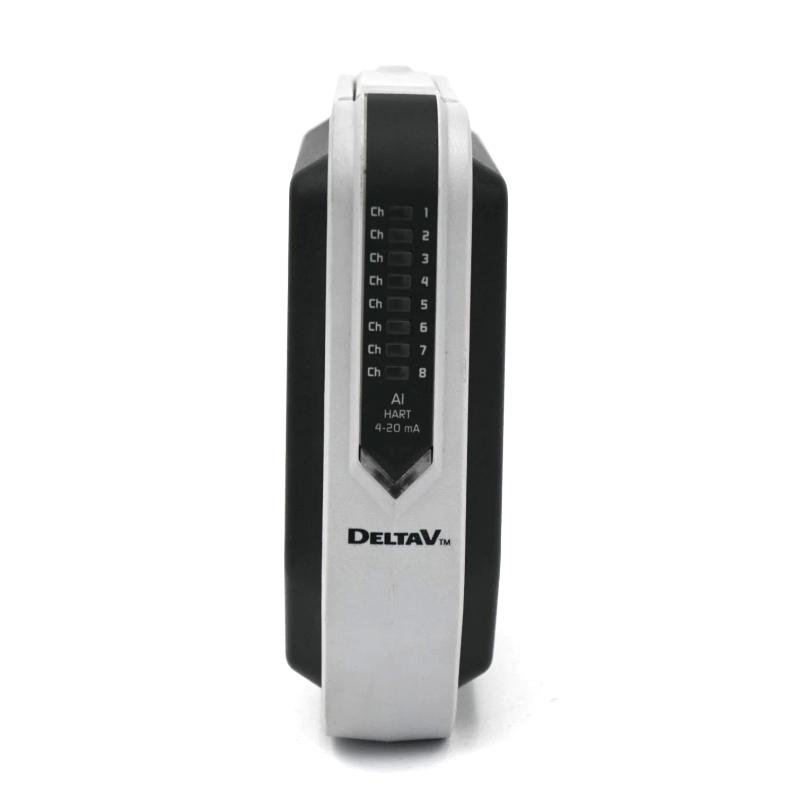

The Emerson SE4003S2B1 KJ3222X1-BK1 is an 8-channel analog input card for the DeltaV S-series control platform, handling 4–20 mA signals with HART communication.
In a typical process-control installation, transmitters located in the field continuously report variables such as pressure, flow, level, or temperature through current-loop signals. The SE4003S2B1 brings these measurement signals into the DeltaV control system, where they can be displayed, alarmed, recorded, and used by control strategies.
The KJ3222X1-BK1 designation is associated with the SE4003S2B1 hardware configuration. The combination is commonly encountered when identifying S-series I/O hardware for system maintenance, replacement, or inventory management.
An 8-channel arrangement allows multiple field loops to be handled within the same I/O section, making the card applicable to distributed transmitter connections in process plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4003S2B1 |
| Associated Part Number | KJ3222X1-BK1 |
| Product Family | DeltaV S-series |
| Product Type | Analog Input Card |
| Input Type | 4–20 mA |
| Communication | HART |
| Input Channels | 8 |
| Primary Function | Analog Field Signal Acquisition |
| System Role | Analog Input Interface |
| Application | Industrial Automation / Process Control |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.399 kg |
Product Features
- Emerson DeltaV S-series Analog Input Card
- SE4003S2B1 model
- KJ3222X1-BK1 associated designation
- 8-channel analog input
- 4–20 mA signal acquisition
- HART-capable field-device interface
- Suitable for process transmitter signals
- Supports centralized acquisition of field measurements
- Applicable to DeltaV process-control applications
- Suitable for maintenance and replacement projects
Working Principle
The SE4003S2B1 receives analog current signals from field transmitters and makes the measured information available to the DeltaV control system.
A common signal path is:
Process Variable → Field Transmitter → 4–20 mA Loop → SE4003S2B1 → DeltaV Controller → Control / Monitoring Application
For example, a pressure transmitter may convert the measured process pressure into a 4–20 mA signal. The input card receives the current-loop signal and transfers the measurement into the DeltaV system.
Where HART communication is used, the same field loop can also carry digital device information in addition to the primary analog measurement. This allows the control system to work with both the process variable and applicable transmitter information.
The resulting measurement can be used for:
- Process indication
- High / low alarms
- Trending
- Control calculations
- Interlocks
- Equipment monitoring
- Operator displays
- Historical data collection
Role in a DeltaV S-series Control Architecture
The SE4003S2B1 sits on the measurement side of the DeltaV control architecture.
| System Element | Function |
|---|---|
| Process Equipment | Produces the measured process condition |
| Field Transmitter | Converts the physical variable into a measurement signal |
| 4–20 mA Loop | Carries the analog measurement |
| SE4003S2B1 | Acquires the analog input |
| DeltaV Controller | Processes the measurement |
| Control Application | Uses the value for control and monitoring |
| Operator Station | Displays process information |
| Historian / Supervisory Layer | Stores and analyzes process data |
The quality of the final process value depends on the complete measurement path, including the transmitter, loop wiring, termination, input channel, and DeltaV configuration.
Industrial Applications
Oil and Gas
The card can collect transmitter signals associated with pressure, flow, level, and other continuously measured process variables.
Chemical Processing
Typical applications include monitoring reactor conditions, vessel levels, pipeline pressure, and process flow.
Power Generation
Analog measurements from plant instrumentation can be brought into the DeltaV system for equipment monitoring and process regulation.
Water Treatment
The input channels can be used with process transmitters measuring flow, pressure, level, and other plant variables.
Manufacturing
Applications include monitoring process equipment and integrating analog transmitter measurements into automated production systems.
Installation and Maintenance
Correct loop identification is important when working with an analog input card because each channel may correspond to a specific process transmitter.
Recommended maintenance practices include:
- Confirm the complete SE4003S2B1 KJ3222X1-BK1 identification.
- Verify the configured channel assignment.
- Identify the transmitter connected to each channel.
- Record existing loop connections.
- Check terminal and field wiring.
- Inspect connectors for damage or poor contact.
- Verify transmitter power and loop continuity.
- Check the incoming 4–20 mA signal where appropriate.
- Review DeltaV input configuration.
- Install the replacement card according to the approved procedure.
- Confirm channel status after installation.
- Compare the displayed process value with the field instrument.
- Check applicable alarms and control functions.
- Verify HART communication where it is being used.
An incorrect process value should not automatically be attributed to the input card. The transmitter, loop power, wiring, termination, channel configuration, and process instrument itself should all be considered during troubleshooting.
Related Components
| Component | Function |
|---|---|
| Emerson SE4003S2B1 | 8-channel Analog Input Card |
| KJ3222X1-BK1 | Associated DeltaV hardware designation |
| DeltaV Controller | Processes acquired measurements |
| 4–20 mA Transmitter | Generates analog process signal |
| HART Field Device | Provides analog and digital field information |
| Field Terminal Hardware | Provides loop connection |
| Operator Station | Displays process values |
| Engineering Station | Handles configuration and diagnostics |
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| Emerson SE4003S2B1 KJ3222X1-BK1 | DeltaV S-series Analog Input Card | 8-channel 4–20 mA / HART |
| Emerson SE4003S2B2 | DeltaV S-series Analog Input Card | 8-channel 4–20 mA / HART |
| Emerson SE4003S2B4 | DeltaV S-series Analog Input Card | 8-channel 4–20 mA / HART |
| Emerson SE4003S2B5 | DeltaV S-series Analog Input Card | 8-channel 4–20 mA / HART |
| Emerson SE4033S2B1 | DeltaV S-series Redundant Analog Input Card | Redundant analog input |
| Emerson SE4003S2B6 | DeltaV S-series Analog Input Plus Card | 16-channel 4–20 mA / HART |
| Emerson SE4003S4B1 | DeltaV S-series Analog Input Card | Thermocouple / mV applications |
| Emerson SE4003S6B1 | DeltaV S-series Analog Input Card | RTD / resistance applications |
Key Advantages
- 8-channel analog input architecture
- 4–20 mA process signal acquisition
- HART-capable field-device interface
- Suitable for pressure, flow, level, and other transmitter measurements
- Fits the DeltaV S-series I/O architecture
- Supports process monitoring and control applications
- KJ3222X1-BK1 associated hardware designation
- Suitable for DeltaV maintenance and replacement work
Technical FAQs
What type of field transmitter can be connected to the SE4003S2B1?
The card is intended for 4–20 mA analog field signals and can be used with process transmitters that communicate measurement information through this current-loop format. HART-enabled devices can also use the digital communication layer associated with the loop.
Why would HART communication matter when the process variable already uses 4–20 mA?
The 4–20 mA signal carries the primary analog measurement, while HART can carry additional digital information from the field device. This can be useful for device-related information, configuration, and diagnostics without replacing the basic current-loop measurement.
What should be checked when the DeltaV process value remains fixed?
Start by checking whether the transmitter output changes with the actual process condition. Then check loop power, wiring, termination, input-channel status, and DeltaV configuration. A fixed value can originate from either the field instrument or the signal path rather than the input card alone.
How can an input-channel problem be distinguished from a transmitter problem?
Compare the transmitter’s actual loop output with what reaches the corresponding input channel. If the transmitter produces the expected signal but the DeltaV value is incorrect, attention should shift toward the wiring, termination, input hardware, or configuration. If the transmitter output itself is incorrect, the investigation should begin at the field instrument.
