Product Overview

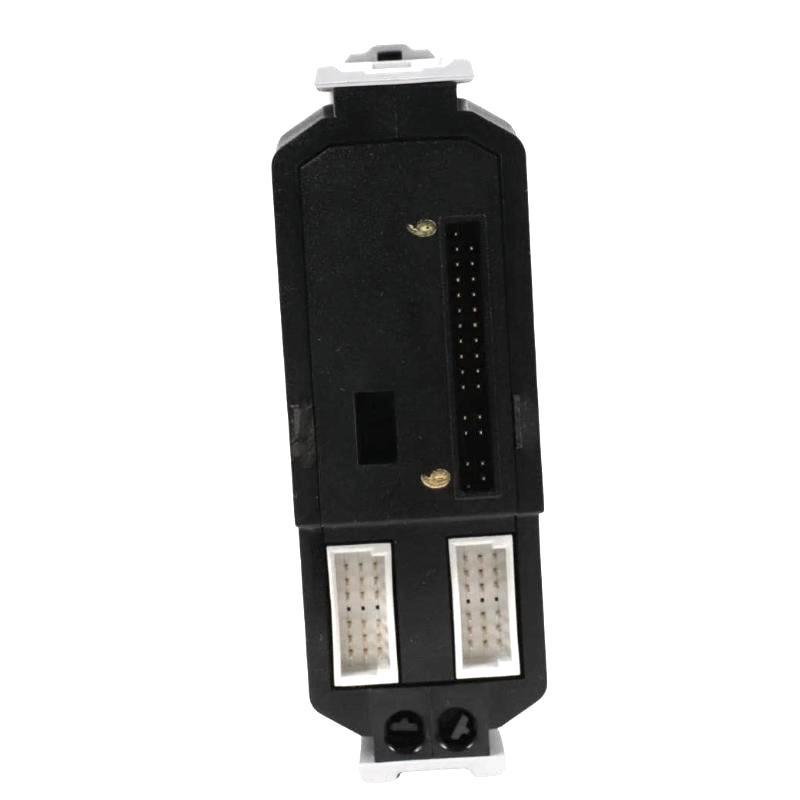

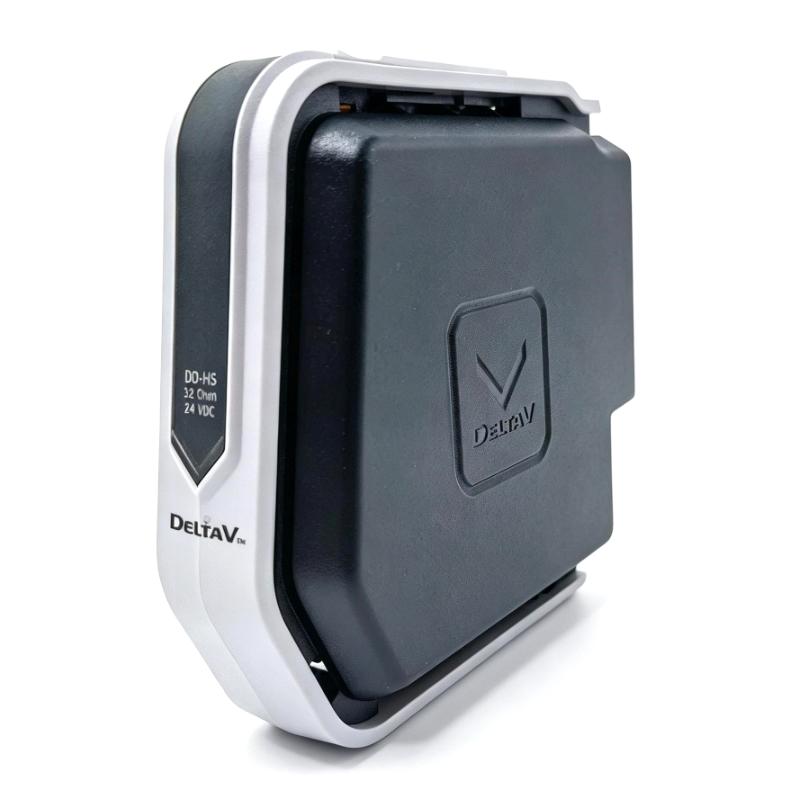

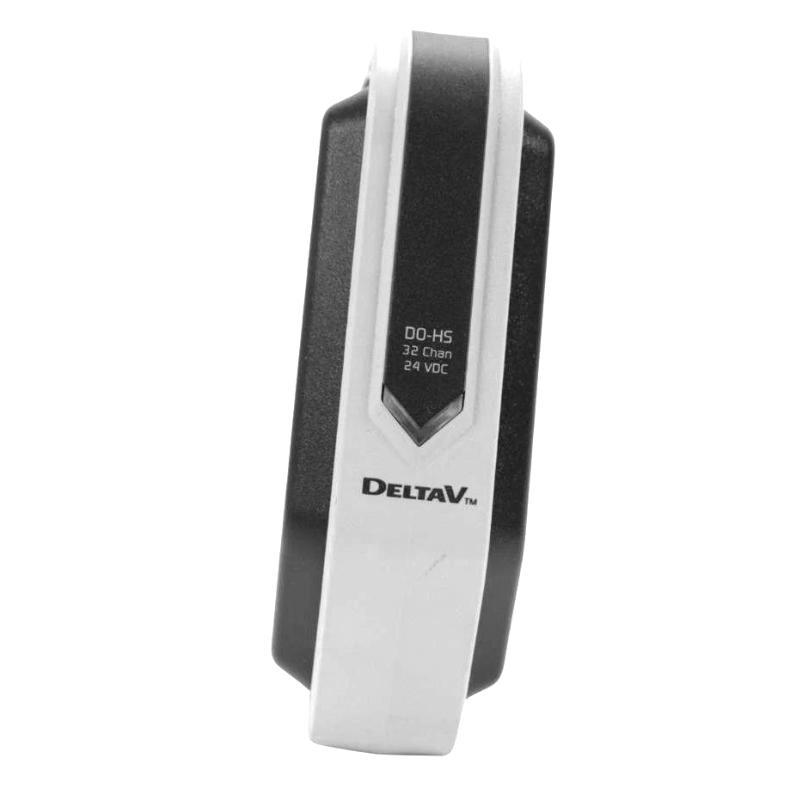

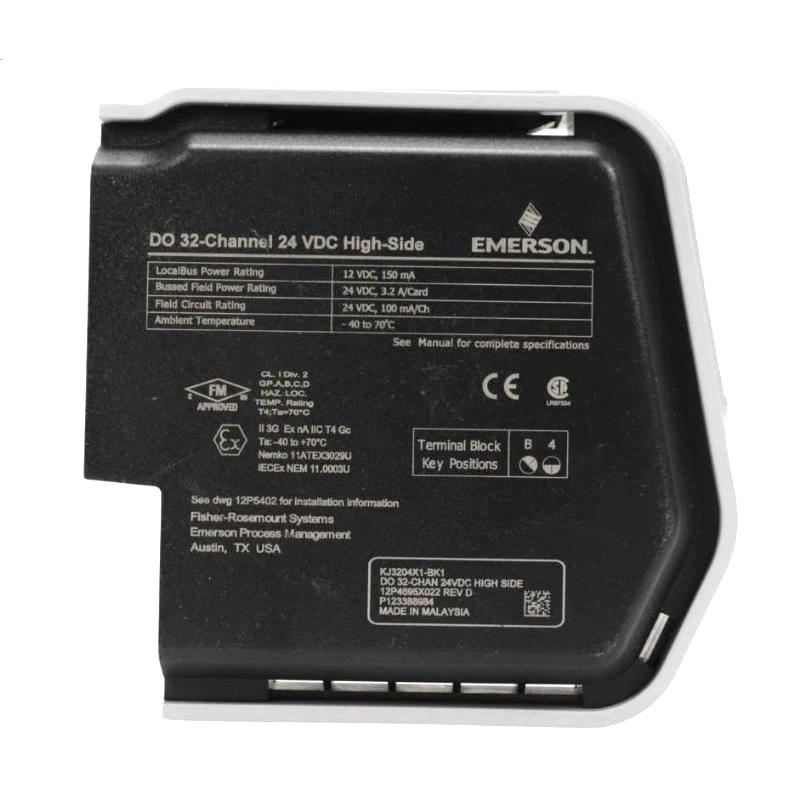

The Emerson SE4002S1T2B5 DeltaV S-series Discrete Output Card is used on the output side of an Emerson DeltaV control system to send discrete commands to field equipment.

In a typical process-control installation, the controller does more than monitor process conditions. It also needs to initiate physical actions. A pump may need to start, a motor may need to stop, a valve may need to open or close, or a field relay may need to change state as part of an automatic sequence. The SE4002S1T2B5 forms the I/O interface through which these discrete commands reach the field circuit.

The card is particularly relevant to equipment whose operation can be represented by defined states rather than a continuously varying value. Typical commands include START/STOP, OPEN/CLOSE, ENABLE/DISABLE, RESET, and other binary control actions.

A practical process sequence may look like:

Process Condition → DeltaV Control Logic → SE4002S1T2B5 → Field Circuit → Equipment Response

For example, a pump can be permitted to start only when suction conditions, valve position, and other configured permissives are satisfactory. Once the DeltaV logic authorizes the sequence, the output card sends the required discrete command to the pump-control circuit.

The SE4002S1T2B5 should therefore be considered together with its connected termination hardware, field wiring, interface relays, actuators, and feedback signals. A problem observed at the equipment does not necessarily originate inside the output card.

Technical Specifications

Product Features

The SE4002S1T2B5 is used when a DeltaV application needs to issue defined binary commands to field-side equipment.

• Emerson DeltaV S-series Discrete Output Card
• Model SE4002S1T2B5
• Discrete command output for field devices
• Interfaces DeltaV control logic with external circuits
• Suitable for equipment start and stop commands
• Applicable to valve and solenoid applications
• Can be used with relay-based control circuits
• Supports automated equipment sequences
• Applicable to permissive and interlock-related actions
• Suitable for process-control installations
• Useful for I/O replacement and maintenance work

Before installation, the output channel assignment and connected field circuit should be compared with the existing system configuration.

Working Principle

The SE4002S1T2B5 works as the link between a software-based control decision and a physical field action.

A simplified signal path is:

DeltaV Application → SE4002S1T2B5 → Termination → Field Wiring → Control Device

The DeltaV application determines when an output should change state. That decision may come from an operator command, an automatic sequence, a permissive condition, or programmed interlock logic.

Once the output command is issued, the corresponding channel changes state and the signal enters the field circuit.

For example:

Pump Start Command → Output Channel → Motor Control Circuit → Pump

For a valve:

Open Command → Output Channel → Solenoid / Actuator Circuit → Valve

For a relay-controlled circuit:

Control Command → Output Channel → Interposing Relay → External Equipment

The output card therefore does not independently determine the operating sequence. Its role is to transfer the configured command generated by the DeltaV control strategy into the appropriate field-side circuit.

Command, Action, and Feedback

A useful troubleshooting method is to separate three different stages:

Command → Physical Action → Feedback

Suppose DeltaV sends a pump-start command through the SE4002S1T2B5.

The output card handles the command path:

DeltaV → SE4002S1T2B5 → Pump Control Circuit

The pump then performs the physical action.

A separate feedback input may report:

Pump Running Contact → Discrete Input → DeltaV

This distinction matters during commissioning. An output channel showing the commanded state does not necessarily mean that the final equipment has reached its intended operating condition.

For example, if DeltaV commands a valve to open but the open-position feedback does not change, engineers can investigate the actuator, solenoid, mechanical valve condition, wiring, or feedback circuit rather than immediately assuming that the output card has failed.

Role in a DeltaV S-series Control Architecture

The SE4002S1T2B5 occupies the discrete-output layer of the DeltaV S-series architecture.

A simplified arrangement is:

Operator / Automatic Sequence → DeltaV Controller → SE4002S1T2B5 → Field Interface → Equipment

This architecture allows control logic, I/O processing, and final field action to remain separate while working together as one control loop.

Typical Control Scenarios

The SE4002S1T2B5 can be used in several common process-control sequences.

Equipment Start and Stop

A discrete output can initiate or terminate operation of equipment through an appropriate motor-control or interface circuit.

Valve Open and Close

For on/off valve applications, an output command can operate the associated solenoid or actuator circuit.

Equipment Reset

Some field devices require a discrete reset command after a fault or protective trip. The output channel can form part of that reset circuit.

Sequence-Based Control

Automatic process sequences may use discrete outputs at defined steps. For example, a valve may be commanded to open before a pump is allowed to start.

Interlock Actions

When a configured process condition requires equipment to be stopped, disabled, or moved to a predetermined state, the output can carry the corresponding command.

Industrial Applications

Installation and Maintenance

A discrete output can directly influence physical equipment, so maintenance should follow the plant’s approved isolation, testing, and commissioning procedures.

Recommended practices include:

• Confirm the complete SE4002S1T2B5 model.
• Verify the assigned DeltaV I/O position.
• Review the existing channel configuration.
• Identify the equipment associated with each output.
• Document field wiring before removing the card.
• Inspect termination connections.
• Check interposing relays and interface devices.
• Inspect output wiring for loose or damaged conductors.
• Review the field-side control circuit.
• Verify the DeltaV output configuration.
• Inspect the card and its connectors.
• Follow the required equipment isolation procedure.
• Install the replacement card.
• Restore the field wiring.
• Check output-channel diagnostics.
• Perform controlled output testing.
• Confirm the field device responds correctly.
• Verify associated feedback signals.
• Check relevant alarms and interlocks.
• Test the affected automatic sequence.
• Record the final configuration.

When an output channel appears to operate normally but the equipment does not respond, trace the complete circuit:

SE4002S1T2B5 → Termination → Field Wiring → Relay / Interface → Actuator → Equipment

If the equipment responds correctly but the DeltaV status remains incorrect, investigate the feedback path separately.

Compatible System Components

The SE4002S1T2B5 normally works with both DeltaV system components and field-side control hardware.

Recommended Related Models

For an SEO-oriented product group, the following models are relevant to DeltaV discrete command, feedback, and event-monitoring applications.

Key Advantages

• Emerson DeltaV S-series Discrete Output Card.
• Model SE4002S1T2B5.
• Transfers discrete commands to field circuits.
• Suitable for start/stop and open/close functions.
• Applicable to motors, valves, solenoids, and relays.
• Supports automatic process sequences.
• Useful for interlock-related output actions.
• Can be paired with discrete feedback inputs.
• Suitable for DeltaV maintenance and replacement projects.

Technical FAQs

Can the SE4002S1T2B5 directly control a motor or valve?

The output card forms the discrete command interface, but the final field connection depends on the equipment’s control circuit. An interposing relay, motor-control circuit, solenoid, or actuator may be required between the I/O channel and the actual equipment.

What happens if the output command is issued but the equipment does not move?

Check the signal path from the output card through the termination and field wiring to the relay, solenoid, actuator, or motor-control circuit. If the command reaches the field device but the equipment remains inactive, the fault may be on the equipment side rather than in the DeltaV I/O card.

Why should the output channel be checked together with its associated feedback?

The output confirms the command generated by DeltaV, while feedback confirms the resulting equipment state. Comparing both signals can reveal cases where a command was issued but the expected physical action did not occur.

What information should be recorded before replacing an SE4002S1T2B5?

Record the complete model number, I/O position, channel assignments, field wiring, termination arrangement, connected equipment, and relevant DeltaV configuration. This information helps ensure that the replacement card is returned to the same functional role without introducing channel or wiring errors.
