Product Overview

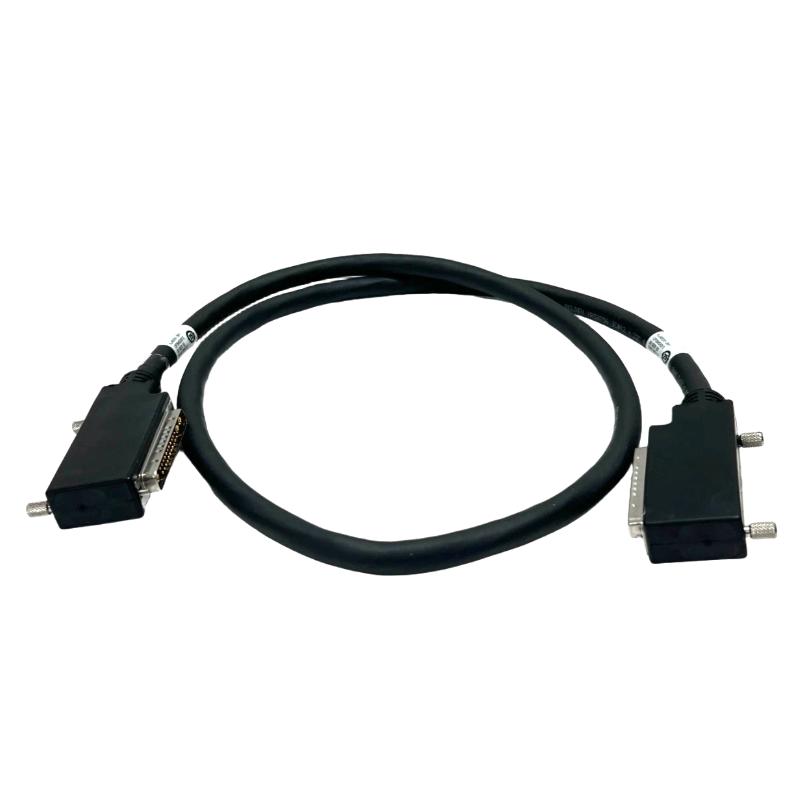

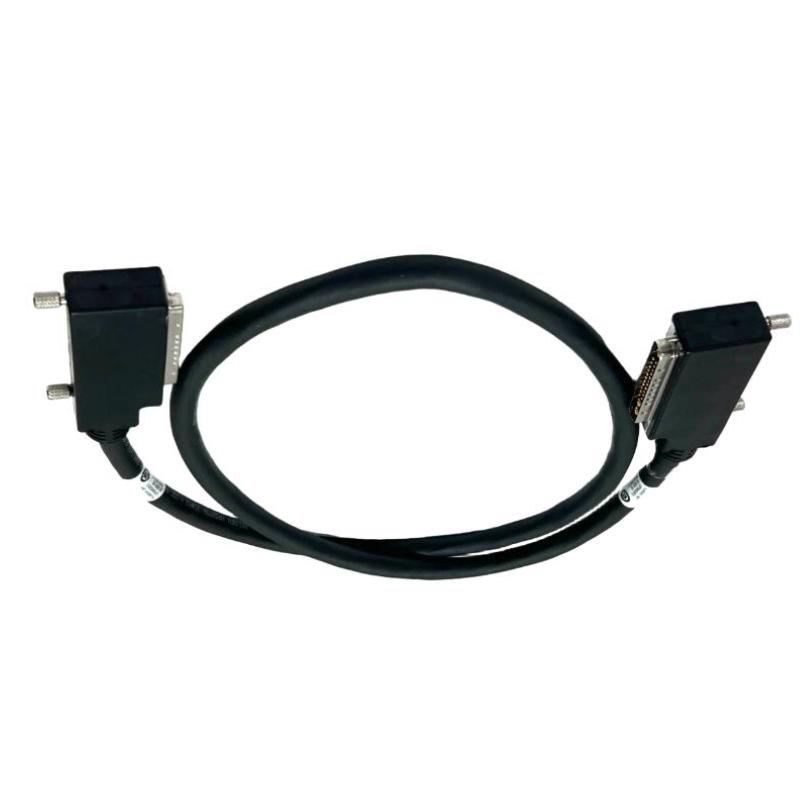

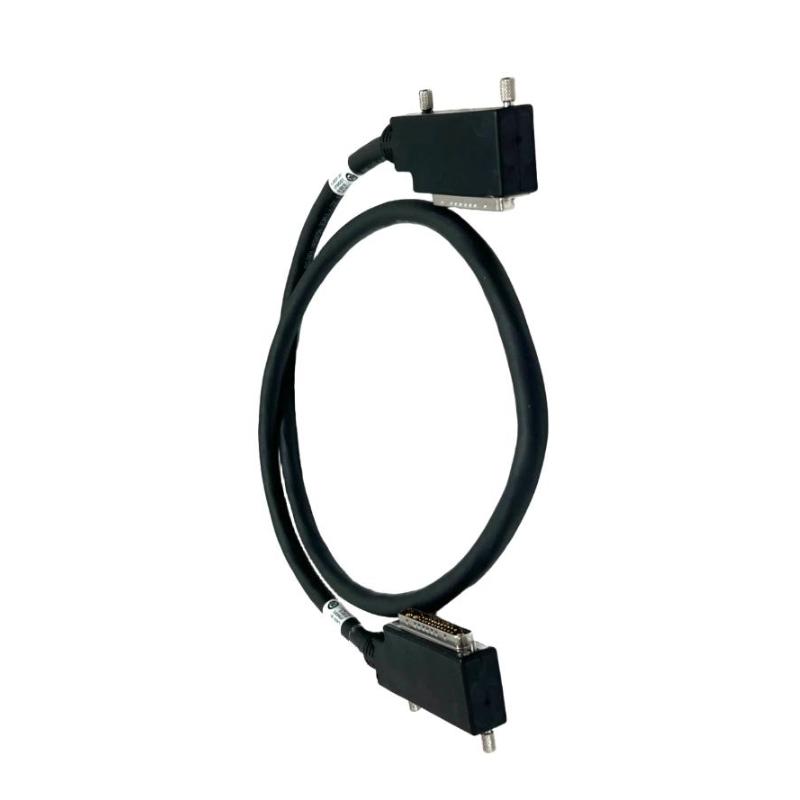

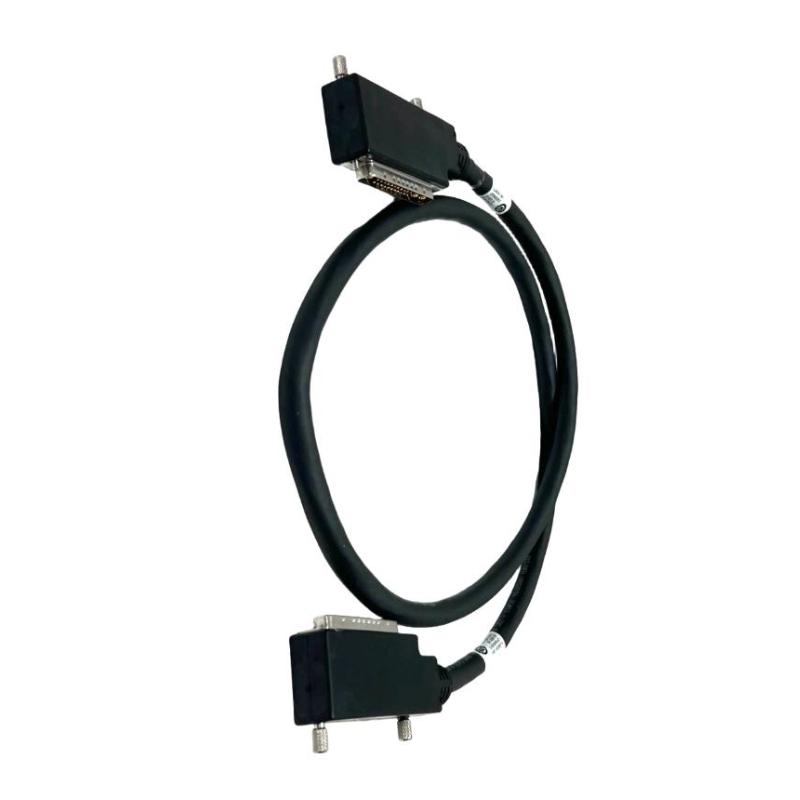

The Emerson SE4000L6P48 48-Pin Round Ribbon Cable is a multi-conductor cable assembly used to connect compatible Emerson industrial automation hardware. Its 48-pin configuration allows multiple electrical signals to be carried through a single organized cable connection.
With a 6-meter cable length, the SE4000L6P48 is suitable for installations where connected control-system components are positioned some distance apart. It can be used for internal cabinet wiring, equipment interconnection, or other compatible Emerson system configurations where a defined multi-pin cable connection is required.
When replacing the cable, the complete part number and connector configuration should be matched rather than selecting a cable solely according to its physical length.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | SE4000L6P48 |
| Product Type | 48-Pin Round Ribbon Cable |
| Number of Pins | 48-Pin |
| Cable Type | Round Ribbon Cable |
| Cable Length | 6 meters |
| Shipping Weight | 3 kg |
| Application | Industrial Automation / Control System |
| System Role | Signal and Hardware Interconnection |
Product Features
- Emerson 48-pin cable assembly
- 48-pin connection configuration
- Round ribbon cable construction
- 6-meter cable length
- Suitable for compatible Emerson control-system hardware
- Provides multiple signal connections through a single cable
- Useful for industrial control cabinet installations
- Suitable for system maintenance and hardware replacement
- Shipping weight: 3 kg
Working Principle
The SE4000L6P48 provides an electrical connection between compatible Emerson automation components.
A simplified connection can be represented as:
Control / Interface Hardware → SE4000L6P48 → Compatible System Hardware
The cable contains multiple conductors corresponding to the 48-pin interface. This allows numerous electrical signals to be transferred through one organized cable assembly instead of requiring separate individual wires for each connection.
The 6-meter length provides installation flexibility when the connected components are not located directly beside one another.
The cable itself does not perform signal processing or control logic. Its role is to maintain the required electrical connection between the associated system components.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Interconnection of compatible control hardware |
| Industrial Control Cabinets | Connecting separated system components |
| Manufacturing Automation | Multi-signal hardware connections |
| Process Control | Signal transfer between system assemblies |
| System Expansion | Connecting additional compatible hardware |
| Maintenance and Replacement | Replacement of existing multi-pin cable assemblies |
Compatible System Components
| Component | Function |
|---|---|
| Emerson SE4000L6P48 | 48-pin system interconnection |
| Compatible Controller | Control and processing |
| I/O Hardware | Field signal interface |
| Controller Carrier | Provides system mounting and connections |
| Interface Module | Signal interface between system components |
| Control-System Hardware | Provides associated automation functions |
Exact compatibility should be confirmed against the specific Emerson system architecture and connector arrangement.
Installation and Maintenance
The SE4000L6P48 should be installed with attention to cable routing and connector protection. Although the cable provides a convenient multi-pin connection, incorrect installation can affect multiple signals simultaneously.
Recommended checks include:
- Confirm the complete SE4000L6P48 part number.
- Verify the 48-pin connector configuration.
- Confirm the required 6-meter cable length.
- Check connector orientation before installation.
- Inspect all connector contacts for damage or contamination.
- Avoid excessive bending or pulling.
- Keep the cable away from excessive heat and mechanical interference.
- Ensure connectors are fully seated.
- Check continuity if signal-related faults occur.
- Inspect the cable for cuts, abrasion, or damaged insulation.
For replacement work, matching the pin configuration is particularly important because a cable with the correct length but an incorrect interface may not be suitable.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson SE4000L6P48 | 48-Pin Round Ribbon Cable | Multi-signal system interconnection | Industrial automation |
| Emerson SE4000L6P20 | 20-Pin Round Ribbon Cable Set | System interconnection | Control-system applications |
| Emerson SE3051C0 | 2-Wide Power/Controller Carrier | Controller and power hardware carrier | Control-system infrastructure |
| Emerson SE3009 | Controller | Control and processing | Process automation |
| Emerson KJ3223X1-BA1 | DeltaV Analog Input Card | Analog signal acquisition | Process control |
| Emerson KL3031X1-BA1 | RTD / Resistance CHARM | Temperature and resistance input | Process instrumentation |
When selecting a replacement cable, confirm the complete part number, pin configuration, connector arrangement, and cable length.
Key Advantages
- 48-pin round ribbon cable
- 6-meter cable length
- Supports multiple electrical connections through one cable assembly
- Suitable for compatible Emerson automation hardware
- Useful for control cabinet and system interconnection
- Simplifies multi-conductor installation
- Shipping weight of 3 kg
Technical FAQs
What is the Emerson SE4000L6P48 used for?
The SE4000L6P48 is a 48-pin round ribbon cable used to establish multi-conductor electrical connections between compatible Emerson industrial automation components.
How long is the SE4000L6P48 cable?
The stated cable length is 6 meters, allowing connected components to be positioned with additional separation within the installation.
What is the difference between the SE4000L6P48 and SE4000L6P20?
The primary stated difference is the pin configuration. The SE4000L6P48 uses a 48-pin connection, while the SE4000L6P20 uses a 20-pin configuration. They should not be treated as interchangeable without confirming system compatibility.
What should be checked before replacing an SE4000L6P48?
Verify the complete part number, 48-pin configuration, connector arrangement, cable length, and the interfaces of the connected Emerson components. Physical condition and cable continuity should also be checked when troubleshooting.
