Product Overview

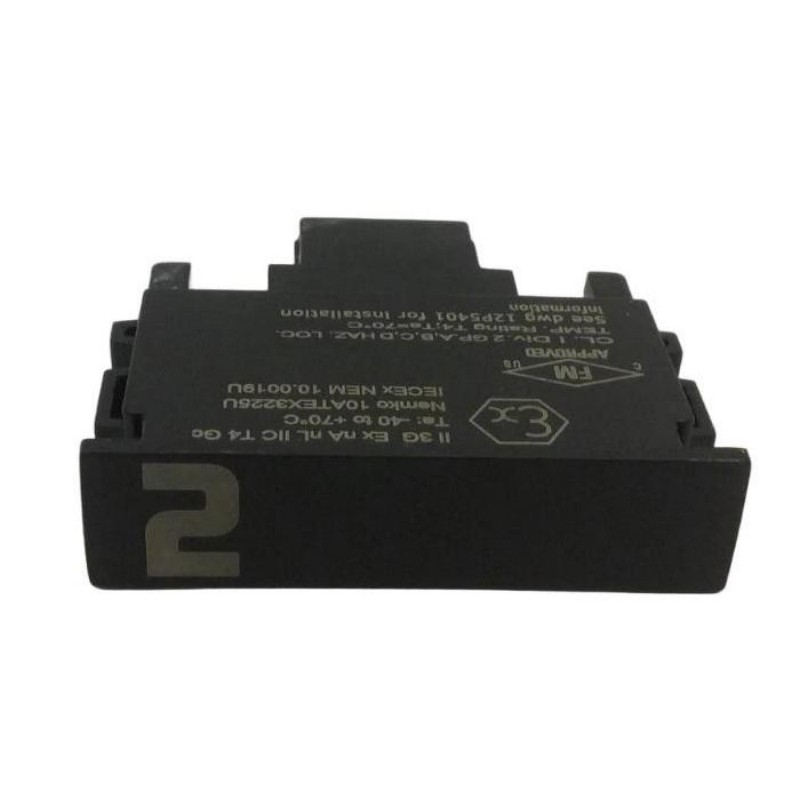

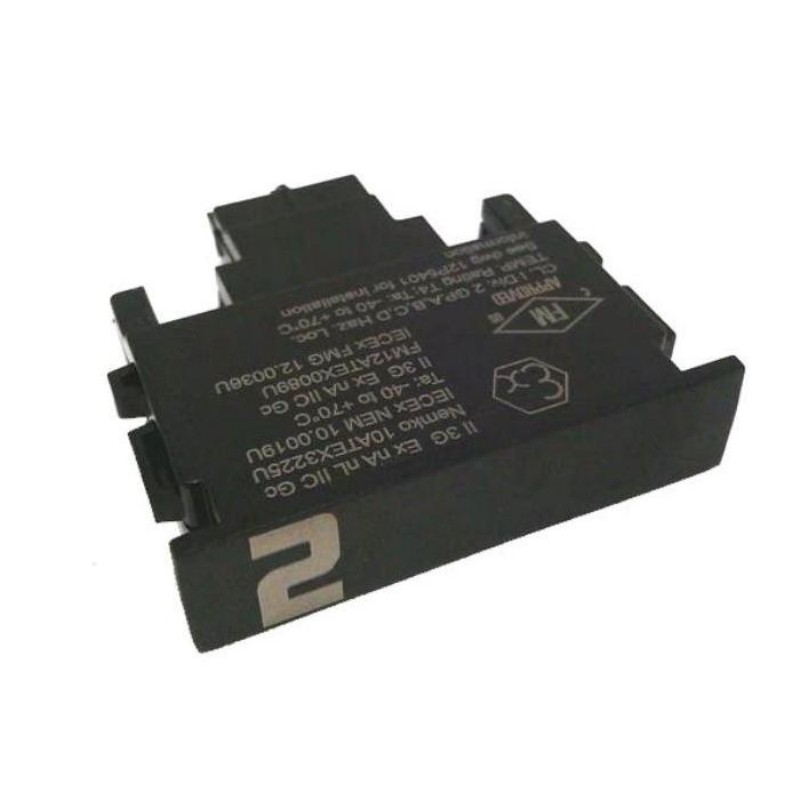

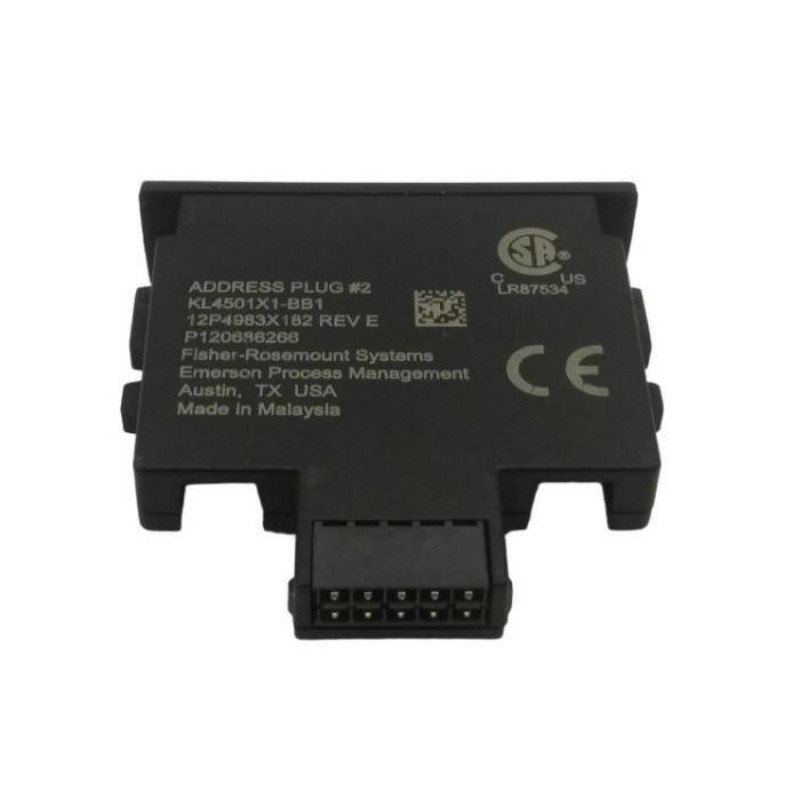

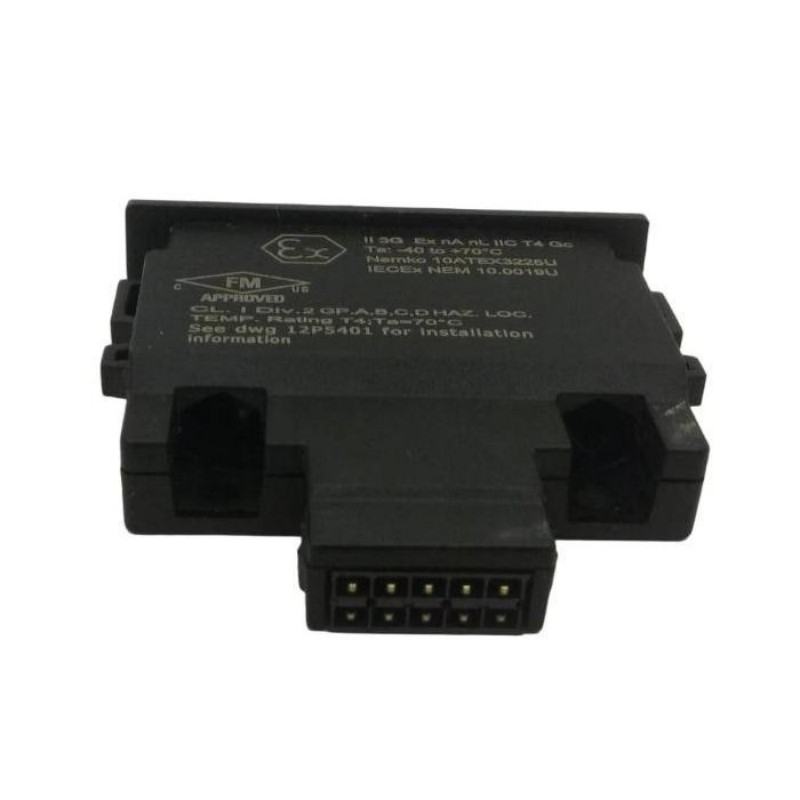

The Emerson KL4501X1-BB1 CHARM Address Plug is a hardware identification and addressing component used within the Emerson DeltaV CHARMs I/O architecture. It is associated with the physical organization of modular CHARMs hardware and helps maintain the relationship between the installed I/O hardware and the system configuration.
In a DeltaV cabinet, multiple CHARMs can be arranged in a structured I/O system, with different modules handling analog measurements, digital signals, temperature inputs, outputs, or other specialized functions. The control system needs to distinguish these hardware positions correctly. An address plug forms part of that hardware-level identification arrangement.
This makes the KL4501X1-BB1 particularly relevant during CHARMs installation, I/O expansion, module replacement, cabinet commissioning, and maintenance. Although physically small, an addressing component can affect how the control system recognizes or associates installed hardware.
The KL4501X1-BB1 should therefore be considered as a supporting component of the DeltaV I/O architecture rather than as a field signal-processing module.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | KL4501X1-BB1 |
| Product Type | CHARM Address Plug |
| System | Emerson DeltaV |
| I/O Architecture | DeltaV CHARMs |
| Main Function | CHARM Hardware Addressing / Identification |
| System Role | Addressing Component |
| Application | Modular I/O Hardware Configuration |
| Typical Installation | DeltaV CHARMs I/O System |
| Dimensions | 50 × 50 × 25 mm |
| Weight | 0.089 kg |
Product Features
The KL4501X1-BB1 is used as part of the hardware addressing arrangement in a modular CHARMs installation.
Key characteristics include:
- Emerson DeltaV CHARMs compatibility
- CHARM address plug functionality
- Supports hardware identification and addressing
- Used within modular I/O installations
- Relevant to CHARM cabinet configuration
- Suitable for I/O hardware replacement and commissioning
- Supports organized CHARMs system installation
- Compact hardware construction
- Dimensions of 50 × 50 × 25 mm
- Stated weight of 0.089 kg
The address plug does not replace an analog or digital CHARM. Its function is associated with the identification and organization of the hardware within the I/O architecture.
Working Principle
The basic relationship can be viewed as:
Physical CHARM Installation → Address Identification → DeltaV I/O Configuration → Correct Hardware Association
A DeltaV CHARMs system can contain a large number of modular I/O components. Each physical position needs to correspond with the system’s configured hardware structure.
The KL4501X1-BB1 forms part of this addressing arrangement. When the physical hardware and configuration agree, the DeltaV system can correctly associate the installed I/O hardware with its intended location and function.
For example, during an I/O cabinet expansion, several new CHARMs may be installed for pressure, temperature, flow, and equipment-status signals. If the physical addressing arrangement does not correspond with the engineering configuration, the system may report unexpected hardware identification or configuration discrepancies.
For this reason, the address plug becomes particularly relevant during commissioning and hardware replacement, even though it does not directly process the field signal itself.
Industrial Applications
The KL4501X1-BB1 is applicable to industrial facilities using DeltaV CHARMs-based I/O architectures.
| Application | Typical Use |
|---|---|
| Chemical Processing | Modular I/O cabinet configuration |
| Oil and Gas | Distributed field I/O organization |
| Refining | Process-control cabinet expansion |
| Power Generation | Control-system hardware identification |
| Water Treatment | Distributed I/O installation |
| Pharmaceutical Manufacturing | Process automation infrastructure |
| Process Skids | Compact modular I/O systems |
| Industrial Automation | CHARMs hardware configuration |
Its main value is in maintaining a correctly organized modular I/O installation rather than directly measuring or controlling a process variable.
Compatible System Components
The KL4501X1-BB1 operates alongside other components within the DeltaV CHARMs architecture.
| Component | Function |
|---|---|
| CHARM Address Plug | Provides hardware addressing / identification |
| CHARMs I/O Modules | Perform specific input and output functions |
| I/O Carrier | Provides the CHARM mounting and system interface |
| Analog Input CHARM | Acquires continuous process signals |
| Digital Input CHARM | Acquires discrete field signals |
| Analog Output CHARM | Provides analog control outputs |
| Digital Output CHARM | Provides discrete control outputs |
| DeltaV Controller | Executes configured control strategies |
| Engineering Workstation | Used for I/O configuration |
| Field Instrumentation | Provides process measurements and equipment status |
The KL4501X1-BB1 should be matched with the correct CHARMs hardware arrangement. A component that looks similar or has comparable dimensions should not automatically be considered interchangeable.
Installation and Maintenance
The KL4501X1-BB1 should be installed according to the applicable DeltaV CHARMs hardware arrangement. Before replacement, the physical position and associated configuration should be documented.
This is especially important when a cabinet contains many similar CHARM modules. Mixing hardware positions or addressing components can make commissioning and troubleshooting considerably more difficult.
Recommended checks include:
- Confirm the complete KL4501X1-BB1 model.
- Verify the DeltaV CHARMs architecture.
- Confirm the intended hardware position.
- Check the corresponding I/O configuration.
- Inspect the address plug for physical damage.
- Check mechanical seating.
- Inspect adjacent CHARMs and carrier connections.
- Verify the associated I/O carrier.
- Review hardware identification within the DeltaV system.
- Check for configuration mismatches after installation.
- Confirm that the expected I/O hardware is correctly recognized.
- Perform appropriate system verification after replacement.
If the DeltaV system reports an unexpected hardware position, the address plug should be checked together with the carrier, CHARM position, configuration, and surrounding hardware.
Recommended Related Models
For the KL4501X1-BB1, related components should be selected according to the specific DeltaV CHARMs architecture and hardware arrangement.
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson KL4501X1-BB1 | CHARM Address Plug | Hardware addressing / identification | DeltaV CHARMs systems |
| Emerson DeltaV CHARMs | I/O Architecture | Modular field I/O | Process automation |
| Emerson DeltaV I/O Carriers | Carrier | CHARM mounting and system interface | Distributed I/O |
| Emerson Analog Input CHARMs | I/O Module | Analog signal acquisition | Process measurement |
| Emerson Digital Input CHARMs | I/O Module | Discrete signal acquisition | Equipment status |
| Emerson Digital Output CHARMs | I/O Module | Discrete control output | Valves and actuators |
When selecting a replacement address plug, the exact model and the associated CHARMs installation should be confirmed. The physical dimensions of an alternative component are not sufficient to establish compatibility.
Key Advantages
- CHARM hardware addressing functionality
- DeltaV CHARMs architecture
- Supports modular I/O identification
- Suitable for CHARMs cabinet configuration
- Useful during I/O installation and replacement
- Supports organized hardware positioning
- Compact component format
- Suitable for industrial process-control systems
- Dimensions of 50 × 50 × 25 mm
- Stated weight of 0.089 kg
Technical FAQs
What role does the KL4501X1-BB1 play in a CHARMs I/O system?
The KL4501X1-BB1 is an addressing component associated with the identification and organization of CHARMs hardware. It is not responsible for directly acquiring or generating process signals.
Why is the exact address plug model important during replacement?
Different address components may correspond to different hardware arrangements or system configurations. Matching the exact model helps maintain the intended relationship between the physical installation and the DeltaV configuration.
What symptoms can indicate an addressing or hardware-identification problem?
Unexpected hardware identification, configuration mismatches, or an I/O position being associated with the wrong configured module can indicate a problem with the hardware addressing arrangement. The carrier and DeltaV configuration should also be checked.
Does replacing an address plug require checking the DeltaV configuration?
Yes. The physical hardware arrangement and the system configuration should correspond after replacement. Verification should include the CHARM position, associated hardware, addressing arrangement, and expected I/O identification.
