Product Overview

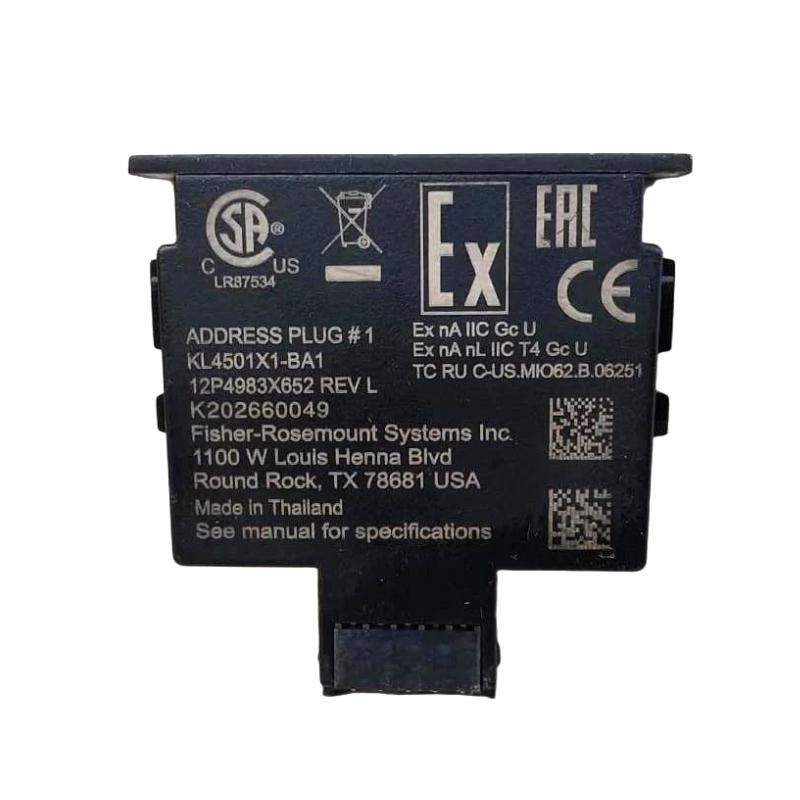

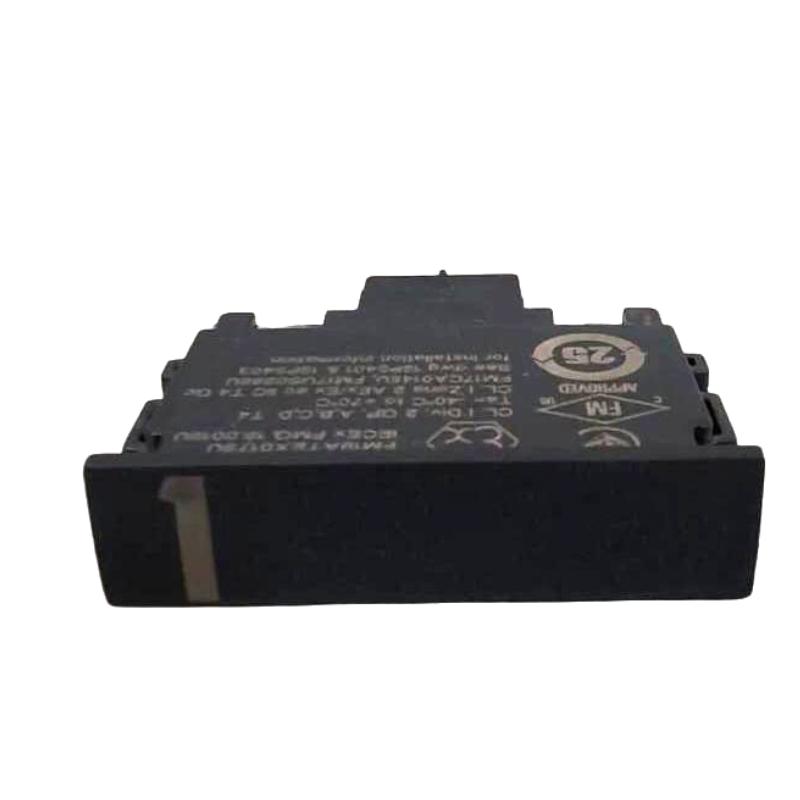

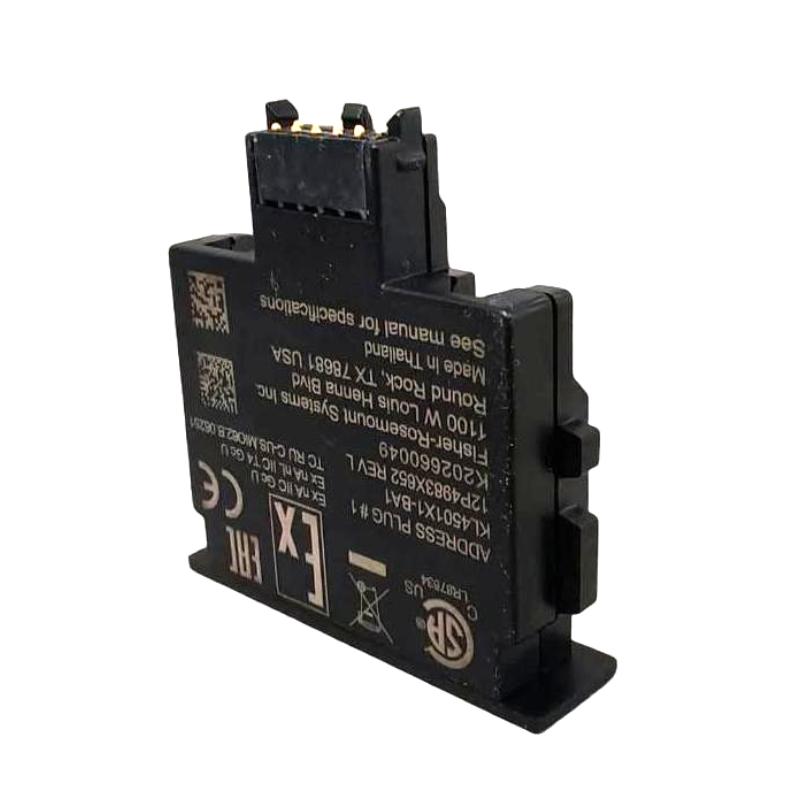

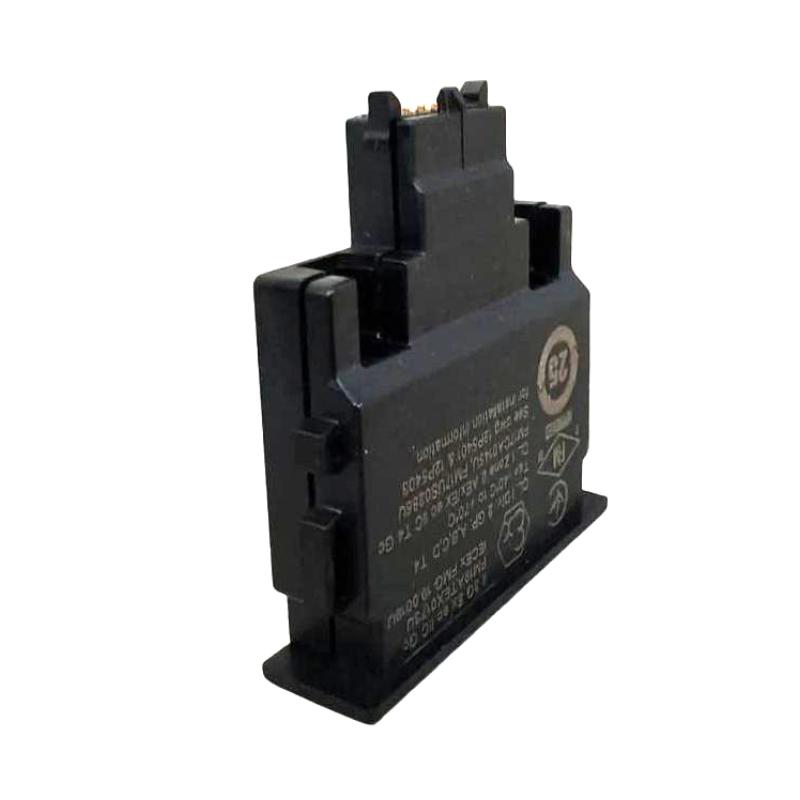

The Emerson KL4501X1-BA1 CHARM Address Plug is a hardware component used within the Emerson DeltaV CHARMs I/O architecture to establish the identification or addressing relationship of a CHARM installation.
Unlike an analog input, digital output, or other signal-processing CHARM, the address plug is associated with the system’s hardware identification and organization. This distinction is important when working with modular I/O systems, because the physical location of a CHARM is not necessarily sufficient for the control system to determine how that hardware should be associated with the configured I/O channels.
In a practical DeltaV installation, multiple CHARMs can be installed in the same I/O structure. Each position needs to correspond correctly with the system configuration so that field signals are associated with the intended channels. The KL4501X1-BA1 forms part of this hardware-level addressing arrangement.
This makes the component particularly relevant during I/O expansion, cabinet assembly, CHARM replacement, commissioning, and maintenance. A small addressing component can have a direct effect on whether the installed I/O hardware is correctly recognized and associated with the intended system configuration.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | KL4501X1-BA1 |
| Product Type | CHARM Address Plug |
| System | Emerson DeltaV |
| I/O Architecture | DeltaV CHARMs |
| Main Function | CHARM Hardware Addressing / Identification |
| System Role | Addressing Component |
| Application | Modular I/O System Configuration |
| Typical Installation | DeltaV CHARMs I/O Architecture |
| Dimensions | 22 × 104 × 106 mm |
| Weight | 0.05 kg |
Product Features
The KL4501X1-BA1 is a small but important component within a modular CHARMs installation.
Key characteristics include:
- Emerson DeltaV CHARMs compatibility
- CHARM address plug functionality
- Used for hardware addressing or identification
- Supports organized modular I/O installation
- Relevant to CHARM cabinet configuration
- Suitable for DeltaV I/O system maintenance
- Used as part of the CHARM hardware architecture
- Compact physical format
- Dimensions of 22 × 104 × 106 mm
- Stated weight of 0.05 kg
Because the address plug is associated with hardware identification rather than field signal conditioning, it should be considered separately from the actual input or output CHARM installed in the system.
Working Principle
The basic relationship can be represented as:
DeltaV Configuration → CHARM Addressing → CHARM Position / Identification → I/O System
A modular I/O system may contain numerous CHARMs performing different functions. The control system needs a consistent relationship between the physical hardware and the configured I/O channels.
The KL4501X1-BA1 forms part of the hardware arrangement used to establish that relationship. When the addressing hardware corresponds correctly with the system configuration, the installed CHARM can be associated with its intended position and function.
For example, consider a control cabinet containing several temperature inputs, pressure inputs, and digital signals. If the hardware addressing arrangement does not correspond with the configured I/O structure, a technician may encounter channel identification or configuration problems even though the individual CHARM modules themselves are operational.
This is why address-related components should be checked whenever I/O hardware is added, replaced, rearranged, or commissioned.
Industrial Applications
The KL4501X1-BA1 is primarily relevant to industrial control systems using modular DeltaV CHARMs I/O.
| Application | Typical Use |
|---|---|
| Chemical Plants | CHARM I/O cabinet configuration |
| Oil and Gas | Distributed I/O hardware organization |
| Refineries | Modular process-control systems |
| Power Generation | Control cabinet I/O configuration |
| Water Treatment | Distributed process I/O |
| Pharmaceutical Plants | Process automation hardware |
| Process Skids | Compact modular I/O arrangements |
| Industrial Automation | CHARM-based control architectures |
Its practical value is greatest in systems where many modular I/O channels must be correctly identified and maintained.
Compatible System Components
The KL4501X1-BA1 is used alongside other components that make up a DeltaV CHARMs installation.
| Component | Function |
|---|---|
| CHARM Address Plug | Establishes hardware addressing / identification |
| CHARMs I/O Modules | Handle specific field input or output signals |
| I/O Carrier | Provides the physical and system interface for CHARMs |
| Field Wiring | Connects field devices to the I/O system |
| Analog Input CHARM | Acquires continuous process signals |
| Digital Input CHARM | Acquires discrete status signals |
| Analog Output CHARM | Sends analog control signals |
| Digital Output CHARM | Sends discrete commands |
| DeltaV Controller | Executes configured control strategies |
| Engineering Workstation | Used for I/O configuration and system engineering |
The address plug should be matched with the correct CHARMs architecture and installation arrangement. It should not be evaluated as an independent replacement for an I/O module.
Installation and Maintenance
The KL4501X1-BA1 should be handled as part of the DeltaV CHARMs hardware configuration. During installation or replacement, the physical location and associated system configuration should be documented before changing the existing arrangement.
This is particularly important when several identical-looking CHARMs are installed next to one another.
Recommended checks include:
- Confirm the complete KL4501X1-BA1 model.
- Verify the DeltaV CHARMs architecture.
- Confirm the intended CHARM position.
- Check the corresponding I/O configuration.
- Inspect the address plug for physical damage.
- Check mechanical seating.
- Inspect adjacent CHARM and carrier connections.
- Verify the associated I/O carrier.
- Review hardware identification in the DeltaV system.
- Check for configuration mismatches after replacement.
- Confirm that the expected I/O channels are correctly identified.
- Perform an appropriate system verification after installation.
If the system reports an unexpected I/O position or hardware mismatch, the address plug should be checked together with the CHARM position, carrier, configuration, and associated system hardware.
Recommended Related Models
For the KL4501X1-BA1, related components should be selected according to the DeltaV CHARMs installation rather than simply by physical size.
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson KL4501X1-BA1 | CHARM Address Plug | Hardware addressing / identification | DeltaV CHARMs systems |
| Emerson DeltaV CHARMs | I/O Architecture | Modular field I/O | Process automation |
| Emerson DeltaV I/O Carriers | Carrier | CHARM mounting and system interface | Distributed I/O |
| Emerson Analog Input CHARMs | I/O Module | Analog signal acquisition | Process measurement |
| Emerson Digital Input CHARMs | I/O Module | Discrete signal acquisition | Equipment status |
| Emerson Digital Output CHARMs | I/O Module | Discrete control output | Valves and actuators |
When replacing the KL4501X1-BA1, the correct address-plug type and associated CHARMs architecture should be confirmed. A visually similar component is not necessarily interchangeable.
Key Advantages
- CHARM addressing functionality
- DeltaV CHARMs architecture
- Supports modular I/O identification
- Suitable for I/O cabinet configuration
- Useful during CHARM installation and replacement
- Supports organized hardware configuration
- Compact component format
- Suitable for industrial process-control systems
- Dimensions of 22 × 104 × 106 mm
- Stated weight of 0.05 kg
Technical FAQs
What is the purpose of the KL4501X1-BA1 CHARM Address Plug?
The KL4501X1-BA1 is associated with the hardware addressing or identification arrangement of a DeltaV CHARMs installation. It helps maintain the relationship between the physical I/O hardware and the configured system structure.
Can an address plug be treated as a replacement for a CHARM I/O module?
No. The address plug and the CHARM I/O module serve different purposes. The CHARM performs the actual field signal function, while the address plug is associated with hardware identification and addressing within the I/O architecture.
What problems can occur if the addressing arrangement does not match the DeltaV configuration?
The system may identify the hardware incorrectly or report a configuration mismatch. An I/O channel may also appear associated with an unexpected position, which can complicate commissioning and troubleshooting.
What should be checked after replacing a KL4501X1-BA1?
Verify the physical CHARM position, associated carrier, address arrangement, and DeltaV I/O configuration. The system should then be checked to confirm that the expected hardware and channels are correctly identified.
