Product Overview

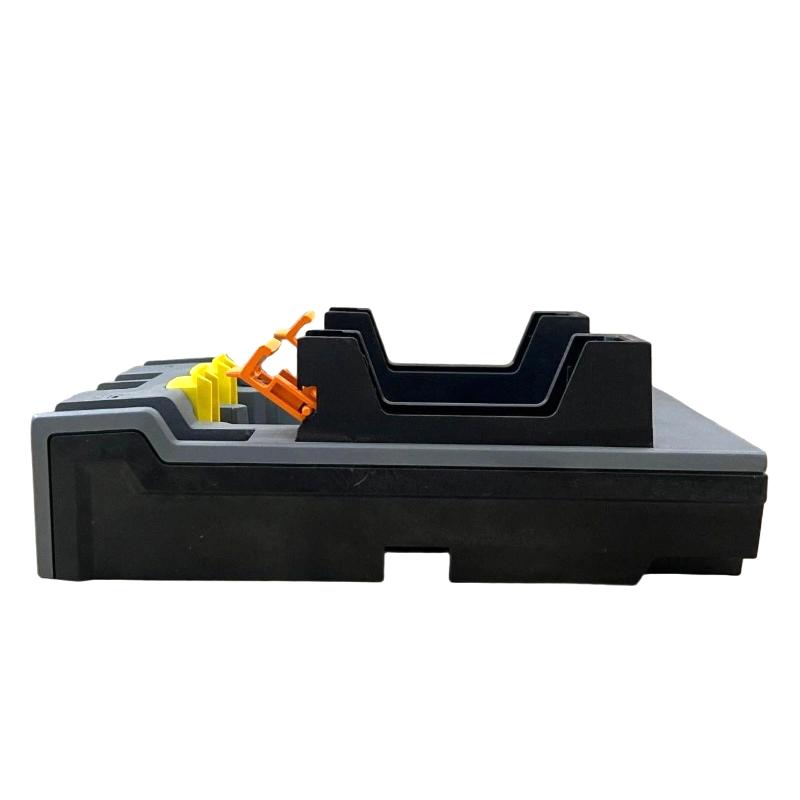

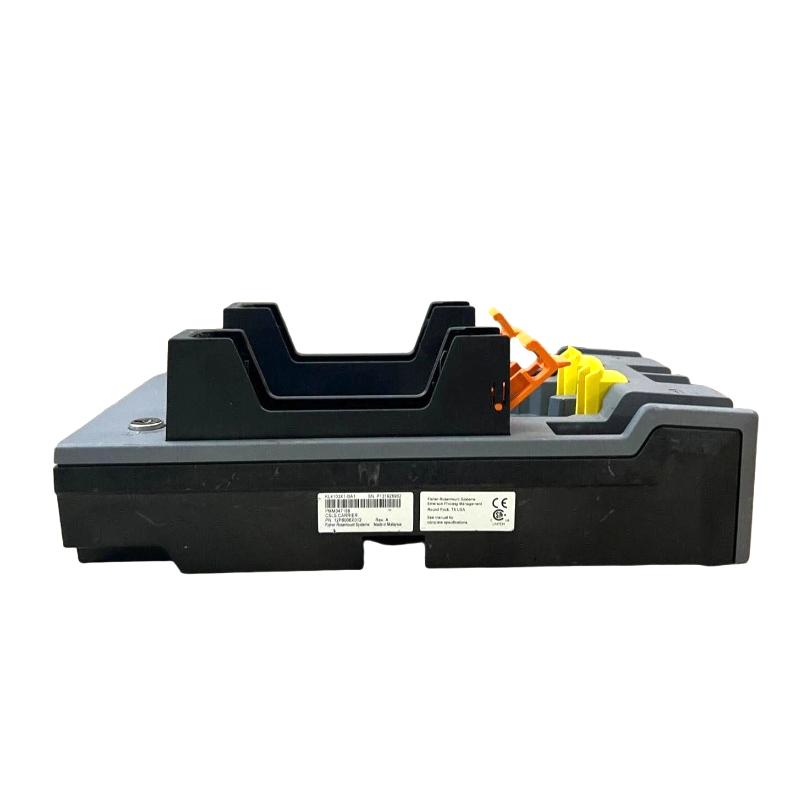

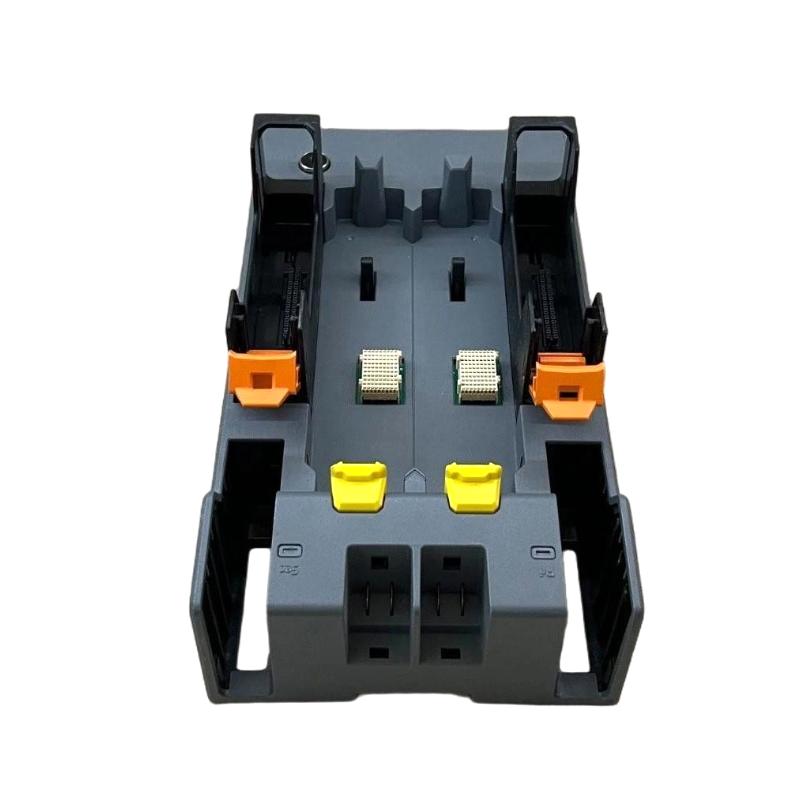

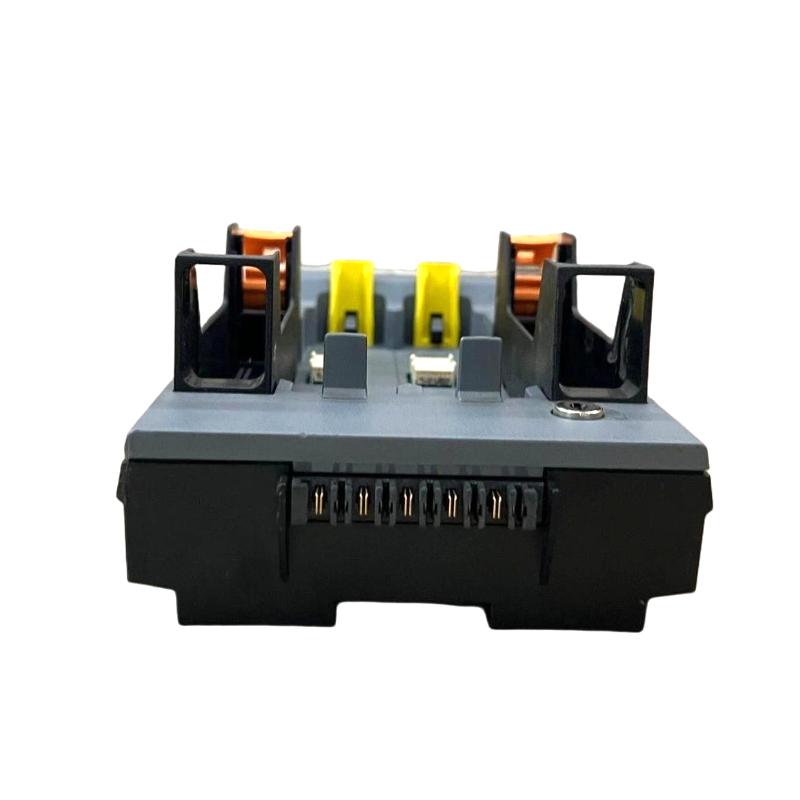

The Emerson KL4103X1-BA1 CHARMs Smart Logic Solver is a logic-processing component used within the Emerson DeltaV CHARMs architecture for applications that require dedicated logic execution in addition to standard process I/O.

In a process plant, field signals often need more than simple acquisition. A temperature switch may need to initiate a shutdown sequence, several pressure conditions may need to be evaluated together, or permissive conditions may need to be satisfied before equipment is allowed to start. Logic functions such as these can be handled within the control and safety architecture rather than being implemented solely through individual field devices.

The KL4103X1-BA1 is intended for this type of application. It sits within the CHARMs-based system and works with associated I/O and control components to process configured logic.

A practical example is a pump protection sequence. The system may need to consider discharge pressure, motor status, valve position, and process permissives before allowing the pump to operate. A smart logic solver can form part of the system that evaluates these conditions and determines the appropriate logic response.

Its actual role depends on the DeltaV architecture and the control or safety strategy in which it is installed.

Technical Specifications

Product Features

The KL4103X1-BA1 adds logic-processing capability to a CHARMs-based DeltaV architecture.

Key characteristics include:

• Emerson DeltaV CHARMs compatibility
• Smart logic solver functionality
• Configurable logic processing
• Interaction with system I/O
• Suitable for process-control logic
• Applicable to interlock and permissive functions
• Suitable for industrial automation systems
• Compact hardware format
• Intended for distributed control architectures
• Dimensions of 130 × 35 × 110 mm
• Stated weight of 0.45 kg

The module should be evaluated according to the actual logic requirements of the application. The required I/O, controller architecture, logic configuration, and system-level functionality all affect the final implementation.

Working Principle

The basic relationship can be represented as:

Field Inputs → CHARMs I/O → Smart Logic Solver → Logic Result → Control / Output Function

The logic solver receives information from the configured control-system inputs and evaluates those signals according to the programmed logic.

For example, a machine may require three conditions before starting:

1. The process pressure must be within an acceptable range.
2. A valve must be confirmed open.
3. The equipment permissive signal must be active.

The logic solver can evaluate these conditions together rather than treating each signal independently. If all required conditions are satisfied, the corresponding logic result can be passed to the appropriate control function.

This approach is useful for interlocks, permissives, sequencing, equipment protection, and other applications where several process conditions must be evaluated together.

The actual logic behavior depends on the configuration loaded into the DeltaV system. The hardware itself does not determine the process strategy without the corresponding engineering configuration.

Industrial Applications

The KL4103X1-BA1 can be used in industrial process systems where multiple conditions must be evaluated to control or protect equipment.

It is particularly useful where process decisions depend on several signals rather than a single discrete input.

Compatible System Components

The KL4103X1-BA1 normally works with other components within the DeltaV CHARMs architecture.

The exact arrangement depends on the application. A logic solver may work alongside standard control logic, field I/O, and equipment-level control functions rather than operating as an isolated component.

Installation and Maintenance

The KL4103X1-BA1 should be installed in the appropriate DeltaV CHARMs architecture and configured according to the intended control or logic application.

Before replacing the module, the existing configuration should be documented. This is especially important when the logic solver participates in equipment interlocks or process shutdown sequences.

Recommended checks include:

• Confirm the complete KL4103X1-BA1 part number.
• Verify the DeltaV CHARMs architecture.
• Confirm the associated controller and I/O arrangement.
• Record the existing logic configuration.
• Check module seating and physical connections.
• Inspect connectors for damage or contamination.
• Verify system power.
• Check communication paths.
• Review controller and module diagnostics.
• Confirm associated input and output channels.
• Verify configured logic after replacement.
• Test relevant interlocks and permissives.
• Perform a controlled commissioning sequence before returning the system to normal operation.

If an expected interlock does not operate correctly, the logic solver should not automatically be considered faulty. The input signal, configuration, controller communication, output path, and field device should also be examined.

Recommended Related Models

For the KL4103X1-BA1, related products are best selected according to the required control architecture and the type of logic being implemented.

When selecting a replacement, the intended logic function and system architecture should be checked together. A conventional I/O module may accept the same type of field signal but cannot necessarily perform the same configured logic function.

Key Advantages

• Smart logic solver functionality
• DeltaV CHARMs architecture
• Configurable logic processing
• Suitable for interlocks and permissives
• Supports equipment-control logic
• Works with distributed I/O architectures
• Suitable for industrial process automation
• Compact installation format
• Dimensions of 130 × 35 × 110 mm
• Stated weight of 0.45 kg

Technical FAQs

What is the KL4103X1-BA1 used for in a DeltaV system?

The KL4103X1-BA1 is used for configured logic processing within a CHARMs-based DeltaV architecture. Typical functions can include interlocks, permissives, equipment logic, and process sequences that require multiple conditions to be evaluated together.

How is a smart logic solver different from a standard digital input module?

A digital input module primarily acquires field status signals. A smart logic solver works with system signals and applies configured logic to determine a result. The two components can therefore serve different functions within the same control architecture.

What should be investigated if an interlock does not operate as expected?

The input signals, logic configuration, communication status, associated controller, output path, and field device should all be checked. A logic problem does not necessarily indicate a hardware failure of the KL4103X1-BA1.

Is the logic configuration retained simply by replacing the KL4103X1-BA1?

Replacement should not be treated as a purely mechanical operation. The system configuration and logic associated with the module should be verified after installation, followed by the appropriate functional tests for the affected control or interlock functions.
