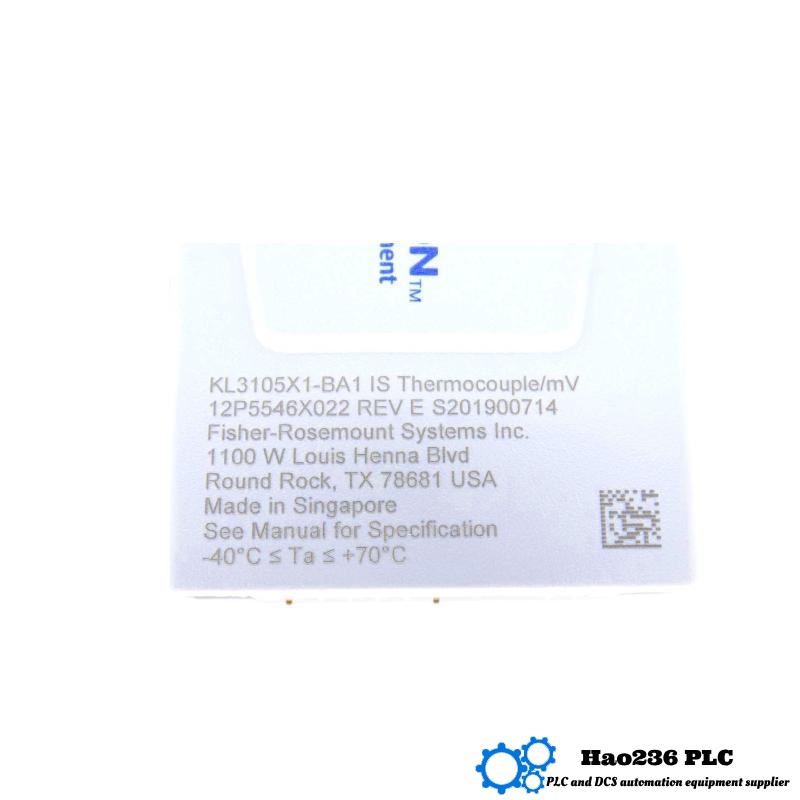

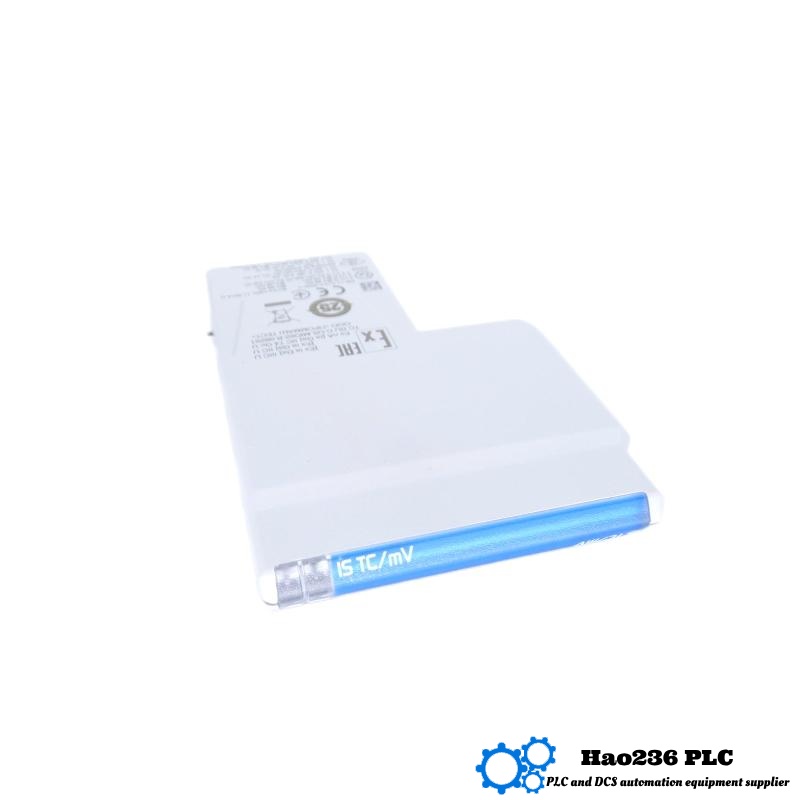

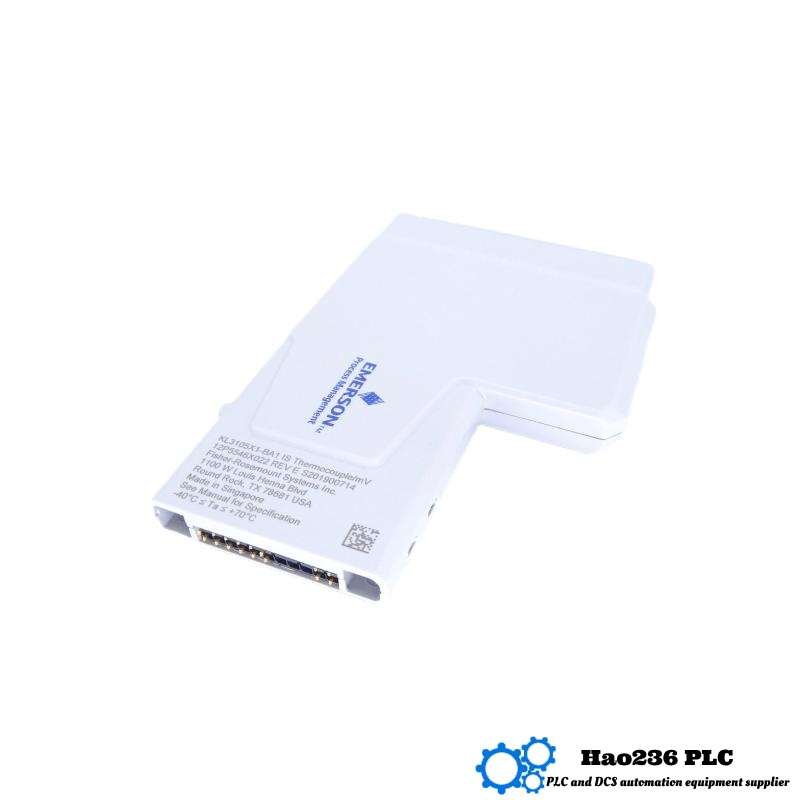

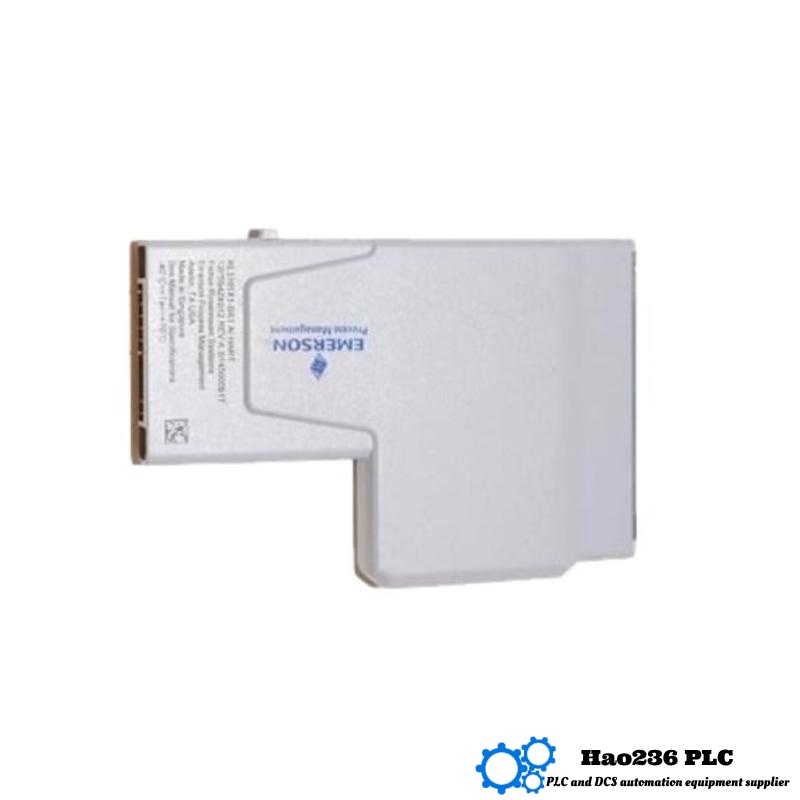

Emerson KL3105X1-BA1 Safety Thermocouple/mV CHARM Module
Product Overview
The Emerson KL3105X1-BA1 is a safety thermocouple/mV CHARM module designed for use in the DeltaV series of control systems. It is specifically engineered to provide high-performance temperature measurement and voltage conversion in industrial processes. The module is equipped to interface with thermocouple and mV signals, offering a reliable solution for safety-critical applications in sectors such as oil and gas, chemical processing, and power generation.
This module features intrinsic safety capabilities, making it suitable for use in hazardous environments. It also offers high accuracy and fast response times for reliable process control, ensuring that critical temperature and voltage readings are consistently captured and processed.
Product Parameters
| Parameter | Value |
|---|---|
| Model | KL3105X1-BA1 |
| Module Type | Safety Thermocouple/mV CHARM |
| Input Signal | Thermocouple, mV |
| Dimensions (mm) | 100 × 25 × 70 |
| Weight | 0.4 kg |
| Accuracy | ±0.1% of reading |
| Input Range | -200 mV to 100 mV |
| Power Supply | 24 V DC |
| Communication Protocol | HART, DeltaV CHARM |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Mounting | CHARM slot |
| Isolation | Galvanic isolation |
Product Introduction
The Emerson KL3105X1-BA1 is part of the DeltaV CHARM (CHARacterized Analog Module) system, providing an advanced solution for the integration of thermocouples and mV-based sensors into process automation systems. This module can interface with various types of thermocouples (such as J, K, T, E, etc.) and mV sensors, offering broad compatibility for temperature and voltage measurement needs.
The KL3105X1-BA1 module is designed with intrinsic safety features, making it ideal for hazardous areas. The HART communication protocol ensures easy integration and operation within the DeltaV control system, allowing for easy configuration, calibration, and real-time diagnostics.
With its compact size and mounting flexibility (designed for CHARM slots), the module is easy to install in the existing DeltaV control architecture. The high accuracy (±0.1% of reading) and wide temperature range (-40°C to +70°C) ensure consistent and reliable performance in industrial settings.
Product Applications
-
Temperature Measurement: Used for monitoring critical temperatures in chemical processing, refineries, power plants, and oil & gas facilities.
-
Voltage Measurement: For applications requiring precise measurement of mV signals from various sensors or equipment.
-
Safety Critical Applications: The module’s intrinsic safety features make it ideal for use in hazardous areas where safe operation is paramount.
-
Process Control Systems: Integrated into DeltaV control systems for precise monitoring of temperature and voltage to maintain optimal process conditions.
-
Data Logging and Diagnostics: Enables real-time data collection and diagnostics, supporting predictive maintenance strategies in industrial plants.
Product Advantages
-
Intrinsic Safety: Specifically designed to operate in hazardous environments, ensuring safety compliance in industrial and chemical plants.
-
High Accuracy: With an accuracy of ±0.1%, the KL3105X1-BA1 ensures precise and reliable readings for critical process control.
-
Broad Compatibility: Compatible with a wide range of thermocouples and mV sensors, making it versatile for different measurement needs.
-
Seamless Integration: Fully compatible with DeltaV control systems, simplifying installation, calibration, and system integration.
-
Compact Design: The CHARM module design allows for a small, space-efficient footprint, making it ideal for installations with limited space.
-
Wide Temperature Range: With an operating temperature range from -40°C to +70°C, it can function reliably in a variety of industrial environments.
-
Durability: The module is built to withstand harsh industrial environments, with an IP20 protection rating.
Brand: Emerson
Emerson is a global leader in process automation, known for delivering innovative and reliable solutions for industrial applications. With a strong focus on safety, accuracy, and efficiency, Emerson provides advanced automation solutions across sectors such as oil and gas, power generation, chemical processing, and food and beverage.
The DeltaV series by Emerson is a cornerstone of their control systems offering, providing flexible, scalable, and highly reliable solutions for managing complex industrial processes. The KL3105X1-BA1 module is an integral part of this series, offering a robust solution for integrating temperature and voltage measurements into DeltaV systems.
DeltaV Series
The DeltaV series from Emerson is a comprehensive line of process control and automation systems designed to manage complex industrial operations. The DeltaV system is known for its ease of use, high scalability, and integration capabilities. It supports a wide range of I/O modules and CHARM modules, providing flexibility for users in industries like chemical, power, oil & gas, and food processing.
Related Models
| Model | Input Type | Input Range | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| KL3104X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3106X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3107X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3108X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3109X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
Popular Emerson Models
| Model | Input Type | Input Range | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| KL3105X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3102X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3103X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3101X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
| KL3110X1-BA1 | Thermocouple/mV | -200 mV to 100 mV | 24 V DC | 100 × 25 × 70 | 0.4 |
FAQ
-
Q: What type of sensors does the KL3105X1-BA1 support?
A: The module supports thermocouples and mV sensors. -
Q: What is the accuracy of the KL3105X1-BA1?
A: The accuracy is ±0.1% of the reading. -
Q: What is the power supply range for the KL3105X1-BA1?
A: The module requires a 24 V DC power supply. -
Q: What is the input range of the KL3105X1-BA1?
A: The input range is -200 mV to 100 mV. -
Q: What communication protocols are supported by the KL3105X1-BA1?
A: The module supports HART and DeltaV CHARM protocols. -
Q: What is the operating temperature range of the KL3105X1-BA1?
A: The operating temperature range is -40°C to +70°C. -
Q: How is the KL3105X1-BA1 mounted?
A: The module is mounted on a CHARM slot within the DeltaV system. -
Q: What is the weight of the KL3105X1-BA1?
A: The weight is 0.4 kg. -
Q: Is the KL3105X1-BA1 suitable for hazardous environments?
A: Yes, it is designed with intrinsic safety features for use in hazardous environments. -
Q: What is the protection rating of the KL3105X1-BA1?
A: The protection rating is IP20.
