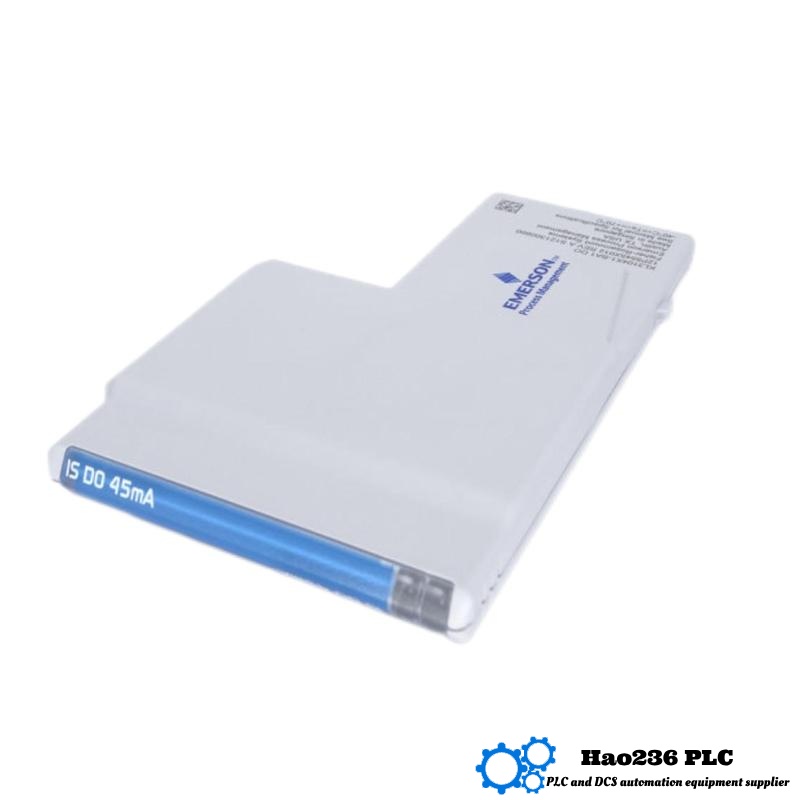

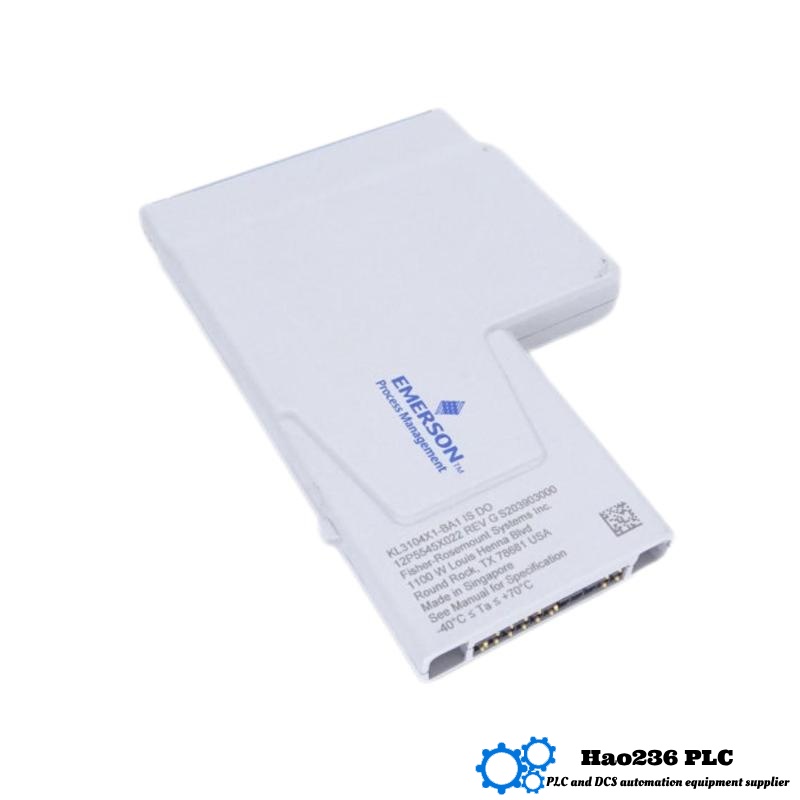

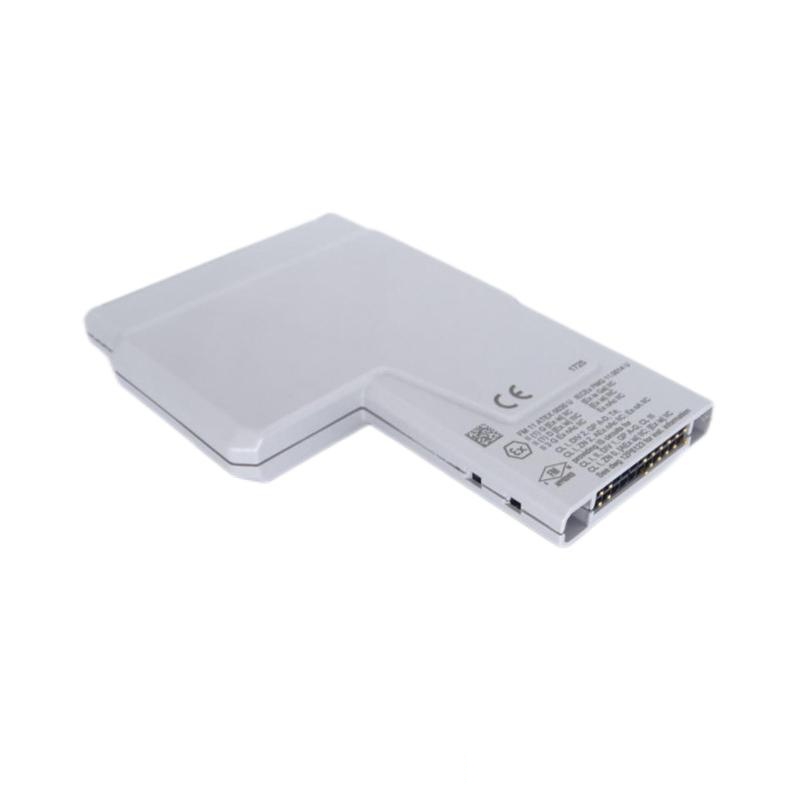

Emerson KL3104X1-BA1 Digital Output CHARM Module
Product Overview
The Emerson KL3104X1-BA1 is a digital output CHARM (CHARacterization Module) module designed for use in the DeltaV system. With compact dimensions of 7.62 x 76.2 x 114.3 mm and a lightweight design of 0.031 kg, this module is ideal for applications that require precise and reliable digital signal output.
The KL3104X1-BA1 module allows users to control field devices with digital output capabilities. It is specifically designed for use with the DeltaV process control systems and provides enhanced flexibility and ease of integration within an automated environment. The digital output feature makes it an essential component for controlling actuators, solenoids, and other devices that require a high degree of accuracy.
As part of the DeltaV CHARM family, this module allows for quick and easy system expansion while ensuring that your automation system remains highly efficient and accurate. The modular design enables users to expand or modify their systems without extensive downtime or complex rewiring, making it an optimal choice for continuous process control applications.
Applications
-
Industrial Automation: The KL3104X1-BA1 digital output CHARM module is perfect for controlling devices such as valves, actuators, or other digital output devices in industrial automation systems.
-
Process Control: Ideal for processes where digital output signals need to be sent to actuators or other control systems, especially in industries like chemicals, oil & gas, and pharmaceuticals.
-
Energy Management: It plays a critical role in systems designed to monitor and control energy usage, improving overall operational efficiency.
-
Manufacturing and Assembly Lines: This module can be used to automate tasks on manufacturing lines, controlling machines or other equipment that require digital signals.
-
Water Treatment: It can also be applied in water treatment plants where digital output is used to control pumps, valves, and other systems.
Advantages
-
Compact Design: The KL3104X1-BA1 module is compact, measuring 7.62 x 76.2 x 114.3 mm, which makes it easy to fit into tight spaces within control cabinets or panels.
-
Lightweight: Weighing only 0.031 kg, this module is easy to handle and install, reducing the risk of installation errors.
-
Flexible Integration: Easily integrates into the DeltaV control system, enabling rapid system expansion without significant downtime.
-
Reliable Performance: Known for its high reliability, it ensures continuous performance, reducing the risk of system failures in critical applications.
-
Modular and Scalable: The KL3104X1-BA1 is part of the DeltaV CHARM system, allowing users to expand and scale their system as required, without the need for major rewiring.
-
Cost-Effective: Reduces system cost by providing an efficient solution that requires minimal maintenance, ensuring high uptime and reliability.
Brand Information
-
Brand: Emerson
-
Product Line: DeltaV
Emerson is a global leader in automation technology, offering a wide range of solutions to improve process control and industrial automation. The DeltaV system is an advanced, highly flexible automation platform that supports a variety of applications from simple process control to complex systems integration.
Product Specifications
| Parameter | Value |
|---|---|
| Dimensions | 7.62 x 76.2 x 114.3 mm |
| Weight | 0.031 kg |
| I/O Type | Digital Output |
| Output Channels | 4 |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Power Consumption | 1.6 W |
| Mounting Type | DIN Rail Mountable |
| Compatibility | DeltaV CHARM System |
| Status Indication | LED indicators |
Recommended Models from DeltaV CHARM Series
| Model | Type | Output Channels | Weight | Operating Temperature | Power Consumption |
|---|---|---|---|---|---|
| KL3104X1-BA1 | Digital Output CHARM | 4 | 0.031 kg | –40°C to +70°C | 1.6 W |
| KL3102X1-BA1 | Digital Output CHARM | 2 | 0.031 kg | –40°C to +70°C | 1.6 W |
| KL3106X1-BA1 | Digital Output CHARM | 6 | 0.031 kg | –40°C to +70°C | 1.6 W |
| KL3108X1-BA1 | Digital Output CHARM | 8 | 0.031 kg | –40°C to +70°C | 1.6 W |
| KL3112X1-BA1 | Digital Output CHARM | 12 | 0.031 kg | –40°C to +70°C | 1.6 W |
Popular Emerson Models
| Model | Type | Output Channels | Weight | Operating Temperature | Power Consumption |
|---|---|---|---|---|---|
| KL3104X1-BA1 | Digital Output CHARM | 4 | 0.031 kg | –40°C to +70°C | 1.6 W |
| KL1301X1-BA1 | Analog Input CHARM | 1 | 0.041 kg | –40°C to +70°C | 1.6 W |
| KL1302X1-BA1 | Analog Input CHARM | 2 | 0.041 kg | –40°C to +70°C | 1.6 W |
| KL1316X1-BA1 | Analog Input CHARM | 16 | 0.041 kg | –40°C to +70°C | 1.6 W |
| KL1331X1-BA1 | Mixed I/O CHARM | 8 | 0.041 kg | –40°C to +70°C | 1.6 W |
FAQ (Frequently Asked Questions)
Q1: What is the KL3104X1-BA1 used for?
A1: The KL3104X1-BA1 is a digital output CHARM module used to send digital output signals from the DeltaV system to field devices such as actuators, solenoids, or other output control devices.
Q2: How many output channels does the KL3104X1-BA1 module have?
A2: The KL3104X1-BA1 module has 4 output channels, allowing for the control of multiple devices simultaneously.
Q3: What is the power consumption of the KL3104X1-BA1?
A3: The KL3104X1-BA1 consumes 1.6 W of power during operation.
Q4: What is the size of the KL3104X1-BA1 module?
A4: The KL3104X1-BA1 module measures 7.62 x 76.2 x 114.3 mm, making it compact and easy to integrate into control panels.
Q5: What is the operating temperature range for the KL3104X1-BA1?
A5: The KL3104X1-BA1 module operates within the temperature range of –40°C to +70°C, making it suitable for various industrial environments.
Q6: How is the KL3104X1-BA1 module mounted?
A6: The module is mounted using a DIN rail, which is a standard mounting method for easy installation and integration.
Q7: Can I use the KL3104X1-BA1 module with systems other than DeltaV?
A7: No, the KL3104X1-BA1 module is specifically designed for use with the DeltaV system and may not be compatible with other systems.
Q8: How do I know the module is functioning correctly?
A8: The KL3104X1-BA1 module has LED indicators that show the status of each output channel, ensuring easy troubleshooting and monitoring.
Q9: Is the KL3104X1-BA1 module scalable?
A9: Yes, as part of the DeltaV CHARM system, the module is scalable, and additional modules can be added as needed to expand the system.
Q10: Is there any specific maintenance required for the KL3104X1-BA1?
A10: The KL3104X1-BA1 is designed for low-maintenance operation. Regular checks for proper wiring, signal integrity, and LED status indicators should be performed.
