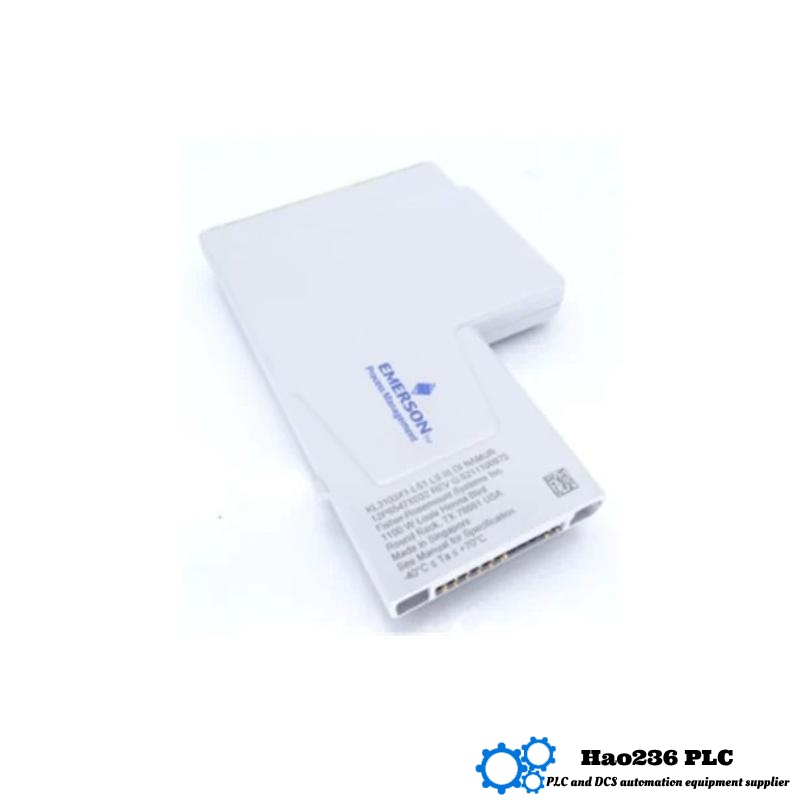

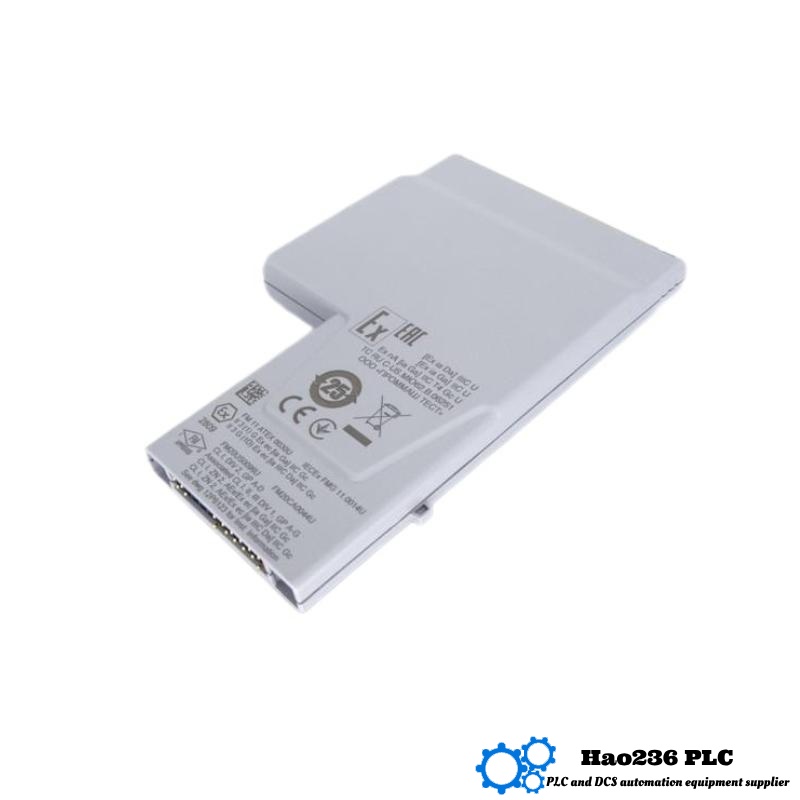

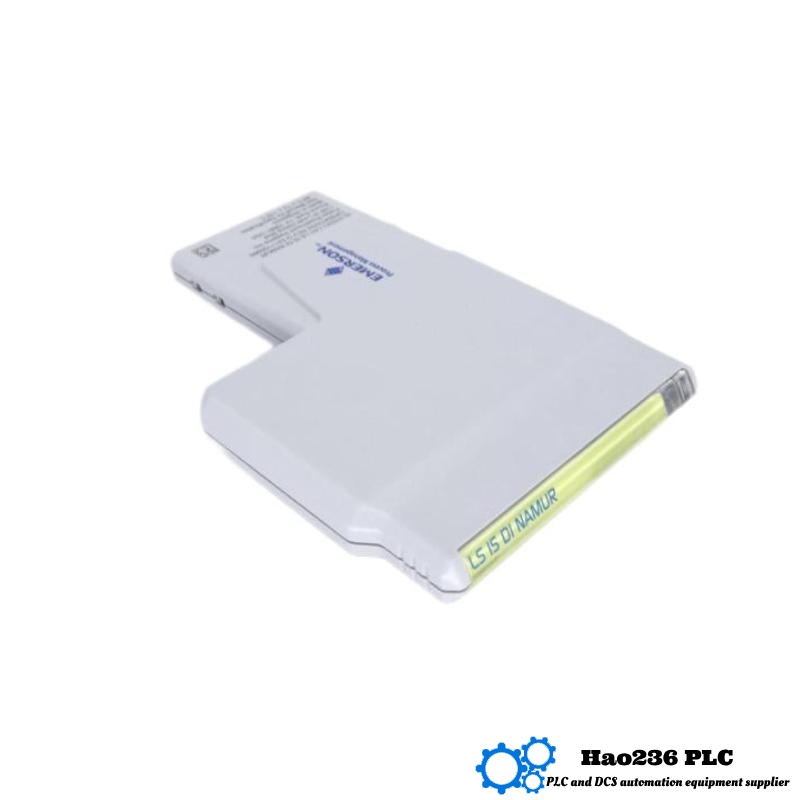

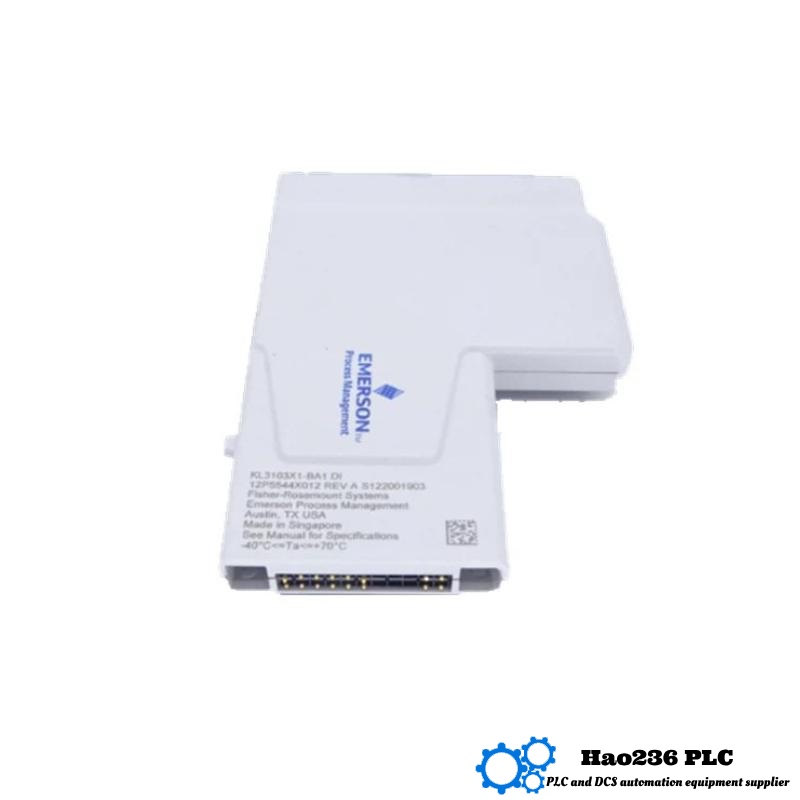

Emerson KL3103X1-LS1 Digital Input (DI) Feature Module
Product Introduction
The Emerson KL3103X1-LS1 is a high-quality digital input feature module designed for use within the DeltaV distributed control system (DCS). It is engineered to provide precise, reliable digital input signal detection and processing, essential for monitoring and controlling industrial automation processes. This module integrates smoothly into the DeltaV ecosystem, offering consistent performance and ease of use for operators managing complex control systems.
Measuring 120 x 150 x 45 mm and weighing 0.5 kg, the compact and lightweight design makes installation and maintenance straightforward. The KL3103X1-LS1 is optimized to handle multiple discrete input signals simultaneously, providing accurate status monitoring of field devices such as switches, sensors, and safety systems. Its robust construction ensures operation under demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KL3103X1-LS1 |
| Module Type | Digital Input (Feature) Module |
| Dimensions | 120 x 150 x 45 mm |
| Weight | 0.5 kg |
| Number of Input Channels | 16 discrete inputs |
| Input Voltage | 24 V DC nominal |
| Input Current | 2-3 mA per channel |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Communication Interface | DeltaV system backplane |
| Operating Temperature | -20 °C to +60 °C |
| Mounting | DIN rail or rack mount |
| Certifications | CE, UL, and other relevant certifications |
Product Applications
The KL3103X1-LS1 is widely used in:
-
Process Automation: Monitoring discrete input signals from field equipment such as limit switches and digital sensors for process control.
-
Safety Instrumented Systems: Capturing status inputs from safety devices, ensuring rapid response to abnormal conditions.
-
Manufacturing Facilities: Tracking equipment on/off status and process alarms to maintain production continuity.
-
Power Generation: Collecting input data from turbines, generators, and control panels for system monitoring.
-
Water and Wastewater Treatment: Monitoring pumps, valves, and other equipment statuses to maintain process efficiency.
Product Advantages
-
High Signal Integrity: Advanced channel isolation minimizes noise interference, ensuring accurate signal detection.
-
DeltaV Compatibility: Fully compatible with the Emerson DeltaV system, enabling seamless configuration and operation.
-
Compact Form Factor: Space-saving design facilitates installation in crowded control cabinets.
-
Reliable Operation: Designed to perform reliably in harsh industrial environments with wide operating temperature support.
-
Safety and Compliance: Meets international safety and performance certifications for industrial automation equipment.
-
Ease of Maintenance: Modular design allows for easy replacement and system upgrades without downtime.
Brand Information
Emerson is a global leader in industrial automation, renowned for delivering reliable, innovative solutions in process control. The KL3103X1-LS1 module is part of the DeltaV series, which offers scalable, robust control system components tailored for various industries worldwide.
Recommended Models (Same Series or Related)
| Model Number | Description | Input Channels | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| KL3103X1-BA1 | Digital Input Module, 16 Channels | 16 | 120 x 150 x 45 | 0.5 | Similar channel count |
| KL3104X1-BA1 | Digital Input Module, 32 Channels | 32 | 120 x 150 x 45 | 0.7 | Higher channel count |
| KL3110X1-BA1 | Digital Output Module, 16 Channels | 16 | 120 x 150 x 45 | 0.5 | Output module counterpart |
| KL3106X1-BA1 | Digital Input Module, 8 Channels | 8 | 120 x 150 x 45 | 0.4 | Smaller channel count |
| KL3123X1-BA1 | Analog Input Module, 8 Channels | 8 | 120 x 150 x 45 | 0.6 | For analog signal inputs |
Popular Emerson DeltaV Models
| Model Number | Description | Application | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| KL3103X1-LS1 | Digital Input Feature Module, 16 Channels | General process control | 120 x 150 x 45 | 0.5 |
| KL3104X1-BA1 | Digital Input Module, 32 Channels | Large digital input counts | 120 x 150 x 45 | 0.7 |
| KL3110X1-BA1 | Digital Output Module, 16 Channels | Control actuators | 120 x 150 x 45 | 0.5 |
| KL3121X1-BA1 | Analog Input Module, 4 Channels | Precision analog signals | 120 x 150 x 45 | 0.5 |
| KL3122X1-BA1 | Analog Output Module, 4 Channels | Analog control outputs | 120 x 150 x 45 | 0.5 |
Frequently Asked Questions (FAQ)
Q1: What are the dimensions of the KL3103X1-LS1 module?
A1: The module measures 120 x 150 x 45 mm.
Q2: What is the weight of this digital input module?
A2: It weighs approximately 0.5 kg.
Q3: How many digital input channels does the KL3103X1-LS1 support?
A3: It supports 16 discrete digital input channels.
Q4: What is the nominal input voltage for the digital inputs?
A4: The nominal input voltage is 24 V DC.
Q5: Is the module compatible with Emerson DeltaV systems?
A5: Yes, it is fully compatible and designed for integration with the DeltaV system.
Q6: What is the operating temperature range for this module?
A6: The operating temperature range is -20 °C to +60 °C.
Q7: Does the module provide isolation between input channels?
A7: Yes, it features channel-to-channel and channel-to-backplane isolation.
Q8: What certifications does the KL3103X1-LS1 hold?
A8: It complies with CE, UL, and other industrial safety certifications.
Q9: Can the module be mounted on a DIN rail?
A9: Yes, the module supports DIN rail and rack mounting.
Q10: How does the module handle signal noise?
A10: Advanced isolation technology reduces noise and ensures signal integrity.
