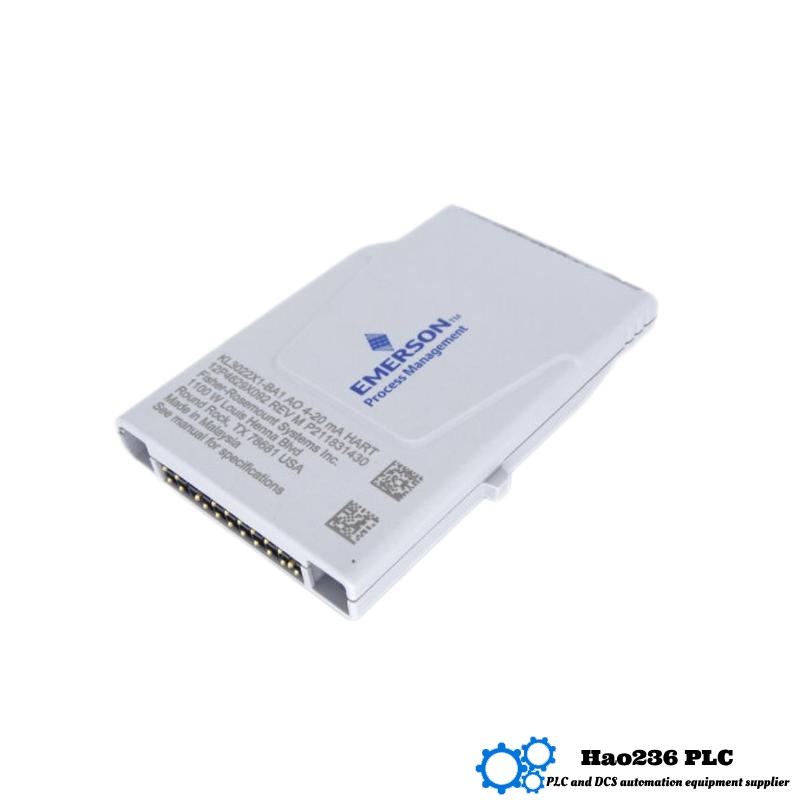

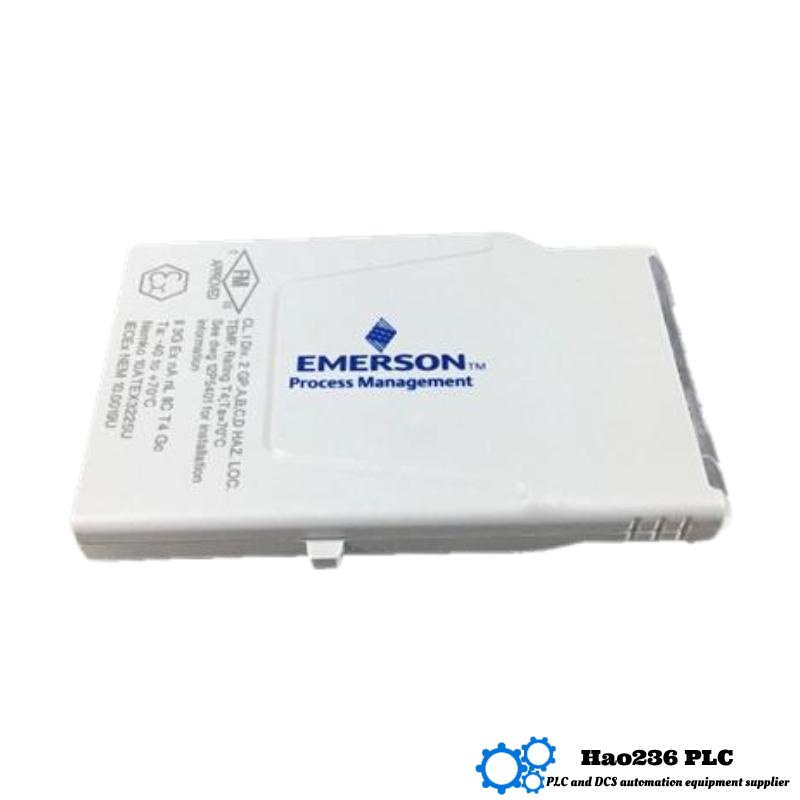

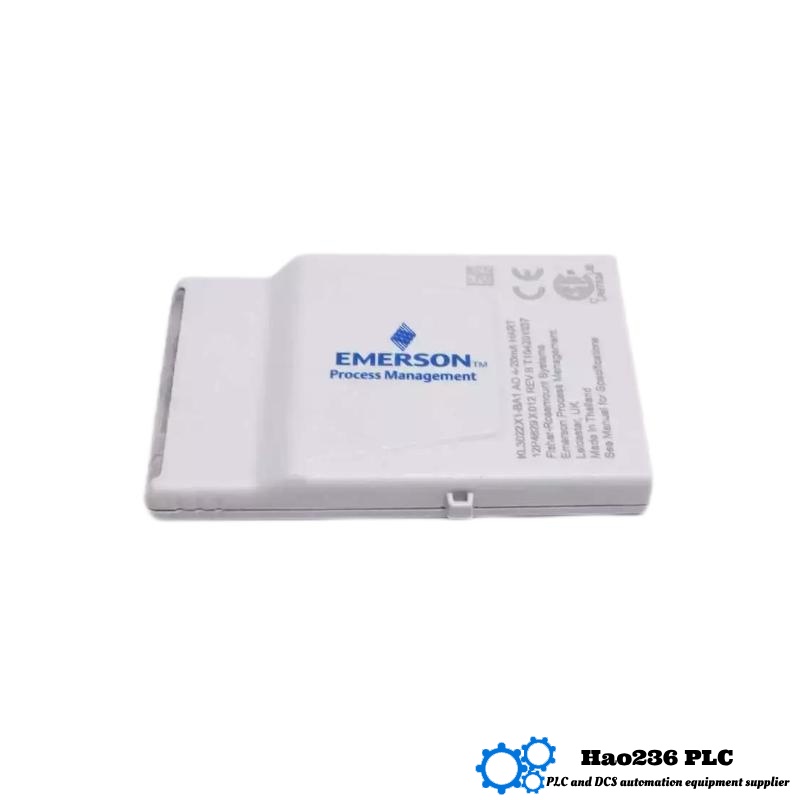

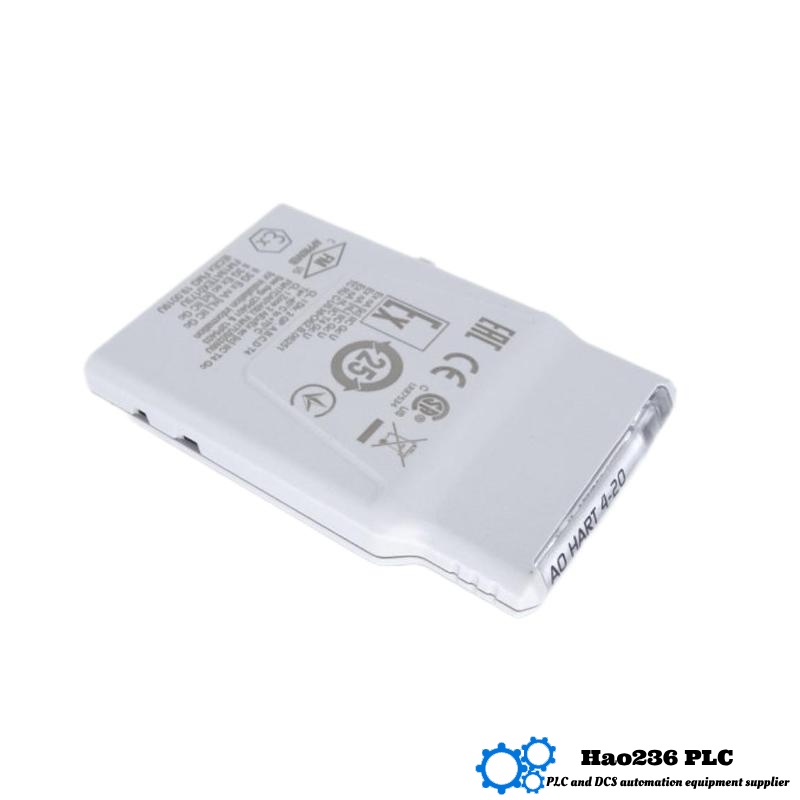

Emerson KL3022X1-BA1 CHARM Terminal Block
Product Overview:
The Emerson KL3022X1-BA1 is a CHARM terminal block designed for the DeltaV series. It facilitates connections between field devices and control systems while providing robust, reliable performance in industrial settings. The CHARM technology allows for easy integration, reduced wiring complexity, and enhanced system diagnostics. The KL3022X1-BA1 is a compact, space-efficient module that supports both analog and digital signals, making it a versatile choice for various industrial applications.
Product Applications:
The KL3022X1-BA1 is used in diverse industrial applications, including:
-
Connecting sensors, actuators, and field devices to control systems
-
Enabling remote monitoring and data acquisition
-
Integrating analog and digital signals in process control systems
-
Facilitating communication in distributed control systems (DCS)
-
Providing seamless connections for DeltaV CHARM systems
Industries that benefit from this product include oil and gas, pharmaceuticals, chemical processing, energy, and manufacturing.
Product Advantages:
-
Compact Design: Minimizes panel space and simplifies installation.
-
Ease of Integration: Fully compatible with DeltaV systems and other CHARM modules.
-
Improved Maintenance: Hot-swappable for easy replacement without system downtime.
-
Enhanced Diagnostics: Provides real-time status and fault monitoring.
-
Cost Efficiency: Reduces wiring complexity, lowering installation and maintenance costs.
Brand Information:
Brand: Emerson
Product Series: DeltaV
Technology: CHARM
Application: Industrial automation, process control, and distributed control systems
Technical Specifications
| Parameter | Details |
|---|---|
| Model | KL3022X1-BA1 |
| Type | CHARM Terminal Block |
| Dimensions | 110 x 100 x 30 mm |
| Weight | 0.05 kg |
| Voltage Range | 24V DC ±10% |
| Mounting | DIN Rail |
| Communication | Modbus TCP/IP |
| Compatibility | DeltaV CHARM System |
Recommended Models (Same Series or Related)
| Model | Type | Dimensions | Weight | Description |
|---|---|---|---|---|
| KL3023X1-BA1 | Digital Input | 110 x 100 x 30 mm | 0.05 kg | Digital Input CHARM |
| KL3024X1-BA1 | Analog Output | 110 x 100 x 30 mm | 0.05 kg | Analog Output CHARM |
| KL3025X1-BA1 | Mixed I/O | 110 x 100 x 30 mm | 0.05 kg | Mixed I/O CHARM |
| KL3026X1-BA1 | Relay Output | 110 x 100 x 30 mm | 0.05 kg | Relay Output CHARM |
| KL3027X1-BA1 | Temperature Input | 110 x 100 x 30 mm | 0.05 kg | Temperature Input CHARM |
Top 5 Popular Emerson Models
| Model | Type | Dimensions | Weight | Description |
|---|---|---|---|---|
| KJ4001X1-BD1 | Digital Input | 156 x 132 x 50 mm | 0.3 kg | Digital Input Module |
| KJ4010X1-BF1 | Analog Output | 160 x 130 x 55 mm | 0.35 kg | Analog Output Module |
| KL2001X1-BD1 | Ethernet I/O | 156 x 132 x 50 mm | 0.3 kg | Ethernet I/O Module |
| KL3001X1-BD1 | Digital Input | 156 x 132 x 50 mm | 0.3 kg | Digital Input CHARM |
| KL4001X1-BD1 | Mixed I/O | 156 x 132 x 50 mm | 0.3 kg | Mixed I/O CHARM |
FAQ (Frequently Asked Questions)
Q1: What is the purpose of the KL3022X1-BA1?
A1: It serves as a terminal block for connecting field devices in industrial control systems, providing signal interfacing for the DeltaV CHARM system.
Q2: Is the KL3022X1-BA1 compatible with all DeltaV systems?
A2: Yes, it is fully compatible with DeltaV CHARM systems, ensuring seamless integration.
Q3: What is the operating voltage range?
A3: The module operates at 24V DC ±10%.
Q4: How is the KL3022X1-BA1 mounted?
A4: It is mounted on a DIN rail, providing a secure and easy installation method.
Q5: What is the weight of the KL3022X1-BA1?
A5: The unit weighs 0.05 kg, making it lightweight and compact.
Q6: Does the KL3022X1-BA1 support hot-swapping?
A6: Yes, it is designed for hot-swapping, allowing maintenance without system shutdown.
Q7: What communication protocol is supported?
A7: It supports Modbus TCP/IP for seamless communication within the DeltaV network.
Q8: Is the KL3022X1-BA1 suitable for hazardous environments?
A8: Yes, it is engineered for industrial use, including harsh and hazardous environments.
Q9: How does the KL3022X1-BA1 improve diagnostics?
A9: It provides real-time status monitoring and fault detection, simplifying maintenance.
Q10: Can the KL3022X1-BA1 be used for both input and output connections?
A10: Yes, it can handle both analog and digital signals, making it a versatile terminal block.
