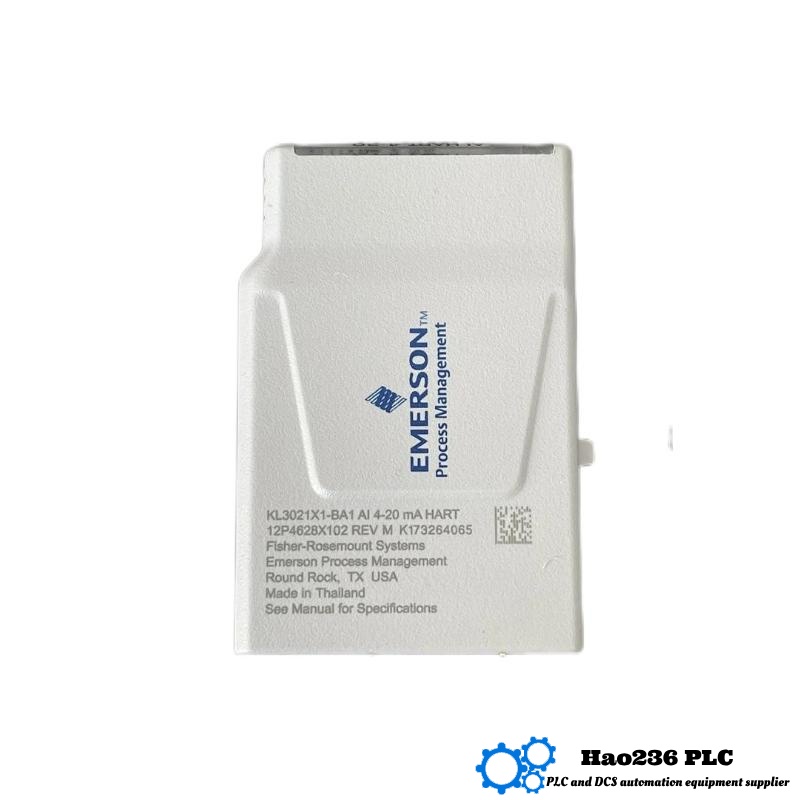

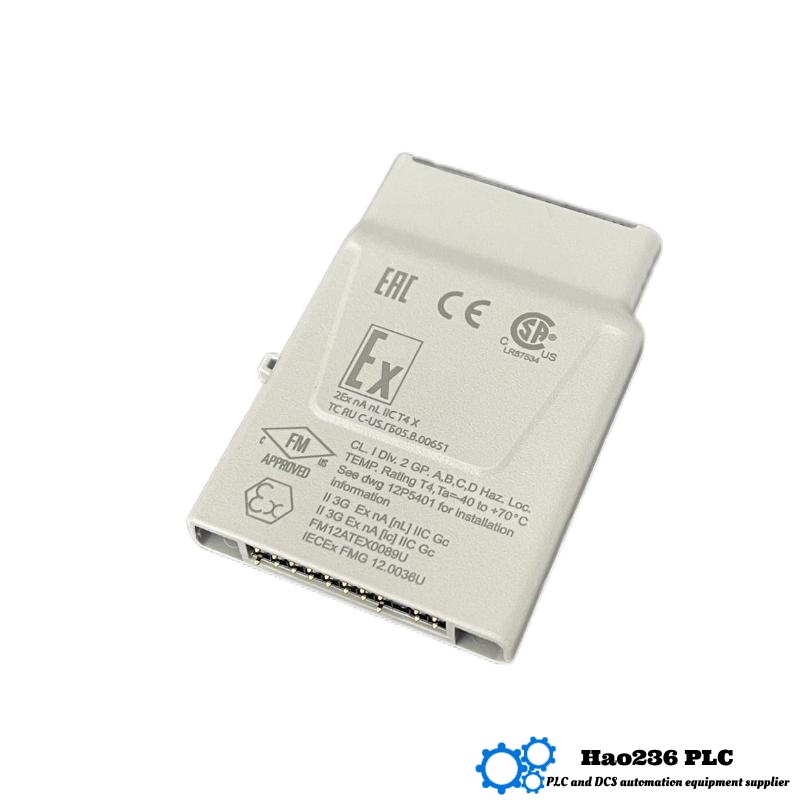

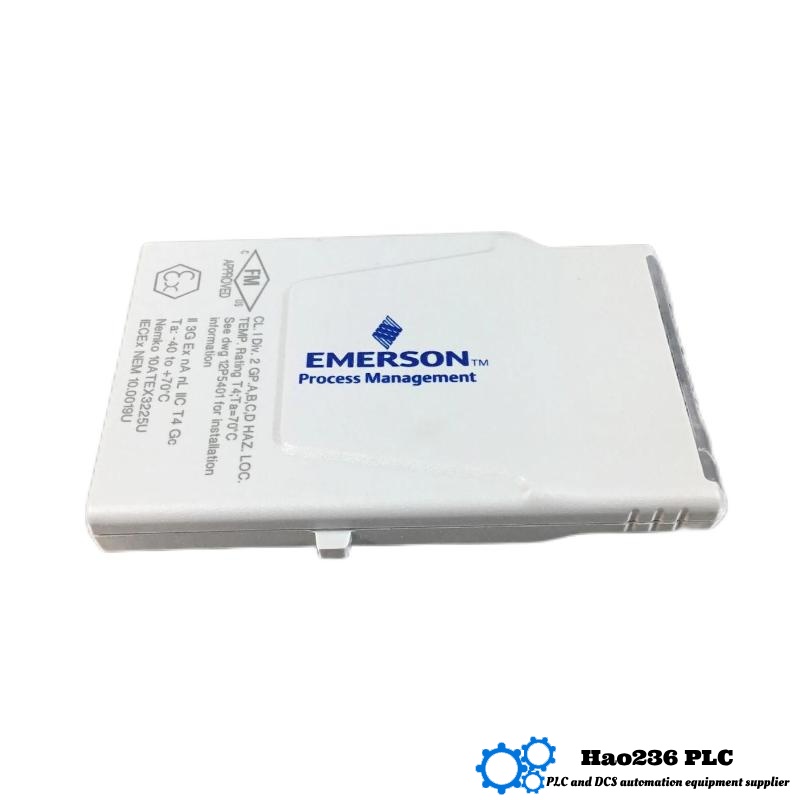

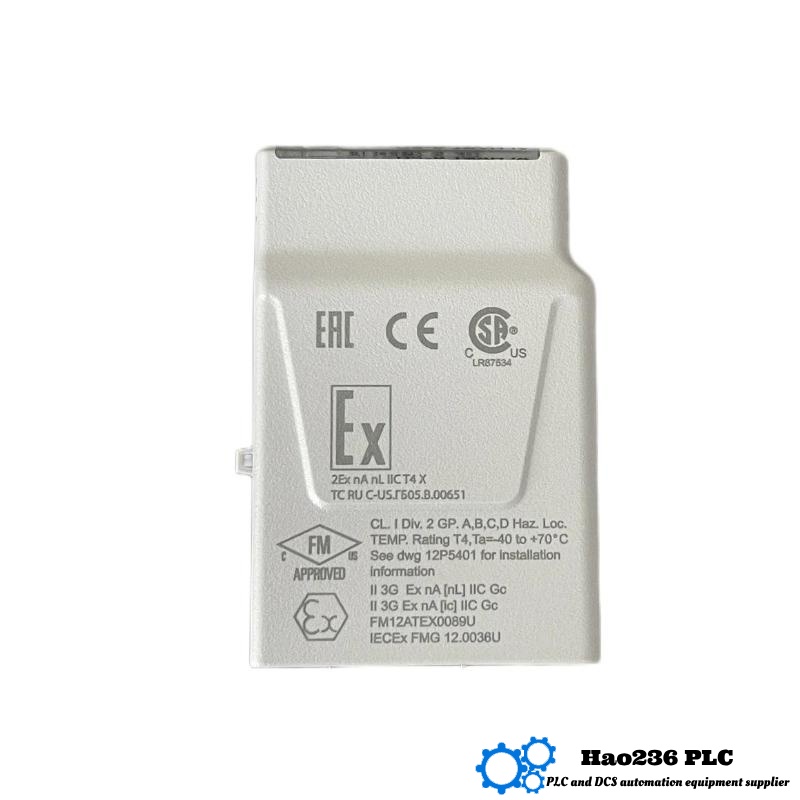

Emerson KL3021X1-BA1 CHARMs Analog Input Card
Product Introduction
The Emerson KL3021X1-BA1 is a key component of the Emerson DeltaV control system, specifically designed for industrial automation processes. This card serves as an analog input module within the DeltaV system, offering high-quality performance and reliability for controlling and monitoring industrial processes. It integrates seamlessly with the DeltaV distributed control system (DCS), supporting various applications that require precise and real-time data acquisition from analog devices.
This CHARM module is optimized for high-accuracy measurement, ensuring that data is captured with minimal latency. It’s widely used in industries such as chemical processing, power generation, and manufacturing, where maintaining process accuracy is crucial.
Key Features
-
Precise Analog Input: Capable of handling a wide range of analog signals.
-
Compact Design: Fits within the DeltaV CHARM system.
-
Seamless Integration: Works within DeltaV control systems for optimized performance.
-
Robust Performance: Built to handle demanding industrial environments.
Applications
The KL3021X1-BA1 module is ideal for a range of industrial applications that require accurate and continuous monitoring of analog inputs. These applications include:
-
Process Control: Used to measure temperature, pressure, flow, and other critical process variables.
-
Energy Management: Ideal for power generation systems, where accurate monitoring of system parameters is required.
-
Chemical Processing: Ensures the continuous monitoring of reaction conditions.
-
Manufacturing: Integrated in automation systems to control machinery and equipment.
Product Advantages
-
High Precision: Ensures accuracy in measurements, which is critical in industries such as power and chemical processing.
-
Reliability: Known for robust performance in challenging environments.
-
Flexibility: Can handle a wide range of input types, making it adaptable for various industrial applications.
-
Compact and Modular: Easy to integrate into existing DeltaV systems without requiring significant space.
-
Low Maintenance: Designed for minimal intervention, reducing downtime and operational costs.
Brand and Series
-
Brand: Emerson
-
Series: DeltaV System (CHARM Module)
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | KL3021X1-BA1 |
| Input Type | Analog |
| Signal Range | 0–10V, 4–20mA |
| Resolution | 16-bit |
| Channel Count | 8 Channels |
| Power Consumption | 1.8 W (typical) |
| Dimensions (L x W x H) | 120 x 150 x 45 mm |
| Weight | 0.5 kg |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -40 to +85°C |
| Humidity Range | 5 to 95% RH, non-condensing |
| Communication Protocol | DeltaV CHARMs Interface |
| Mounting | DIN Rail |
| Status Indicators | LED Indicators for Power, Faults, and I/O |
Recommended Models from the Same DeltaV Series
| Model | Input Type | Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| KL3021X1-BA2 | Analog | 8 | 120 x 150 x 45 mm | 0.5 kg |
| KL3012X1-BA1 | Analog | 12 | 120 x 150 x 45 mm | 0.5 kg |
| KL3031X1-BA1 | Analog | 8 | 120 x 150 x 45 mm | 0.5 kg |
| KL3072X1-BA1 | Analog | 16 | 120 x 150 x 45 mm | 0.5 kg |
| KL3050X1-BA1 | Analog | 4 | 120 x 150 x 45 mm | 0.5 kg |
Top 5 Popular Emerson Products
| Model | Type | Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| MX3021X1-BA1 | Analog Input | 8 | 120 x 150 x 45 mm | 0.5 kg |
| KL3020X1-BA1 | Digital Input | 8 | 120 x 150 x 45 mm | 0.5 kg |
| EK2000-BA2 | Analog Output | 4 | 120 x 150 x 45 mm | 0.5 kg |
| KL3012X1-BA2 | Analog Input | 12 | 120 x 150 x 45 mm | 0.5 kg |
| KL3070X1-BA1 | Digital Output | 8 | 120 x 150 x 45 mm | 0.5 kg |
Frequently Asked Questions (FAQs)
-
Q: What is the input signal range for the KL3021X1-BA1 module?
A: The input signal range is 0-10V or 4-20mA, making it compatible with a wide variety of sensors. -
Q: How many channels does the KL3021X1-BA1 have?
A: The KL3021X1-BA1 has 8 input channels. -
Q: What is the maximum operating temperature for the module?
A: The maximum operating temperature is +60°C. -
Q: Can the KL3021X1-BA1 module be used in hazardous environments?
A: Yes, it is designed for use in industrial environments but should be evaluated for specific hazardous areas. -
Q: What is the power consumption of the module?
A: The typical power consumption is 1.8W. -
Q: How is the module mounted?
A: The KL3021X1-BA1 is mounted on a DIN rail for easy installation. -
Q: Does the module come with any diagnostic indicators?
A: Yes, it features LED indicators for power status, faults, and I/O. -
Q: What communication protocol does this module use?
A: The module communicates using the DeltaV CHARMs interface. -
Q: Can the module handle high-speed data inputs?
A: Yes, it provides 16-bit resolution for precise data capture, even in high-speed applications. -
Q: What is the weight of the KL3021X1-BA1 module?
A: The module weighs 0.5 kg, making it lightweight and easy to integrate.
