Product Overview

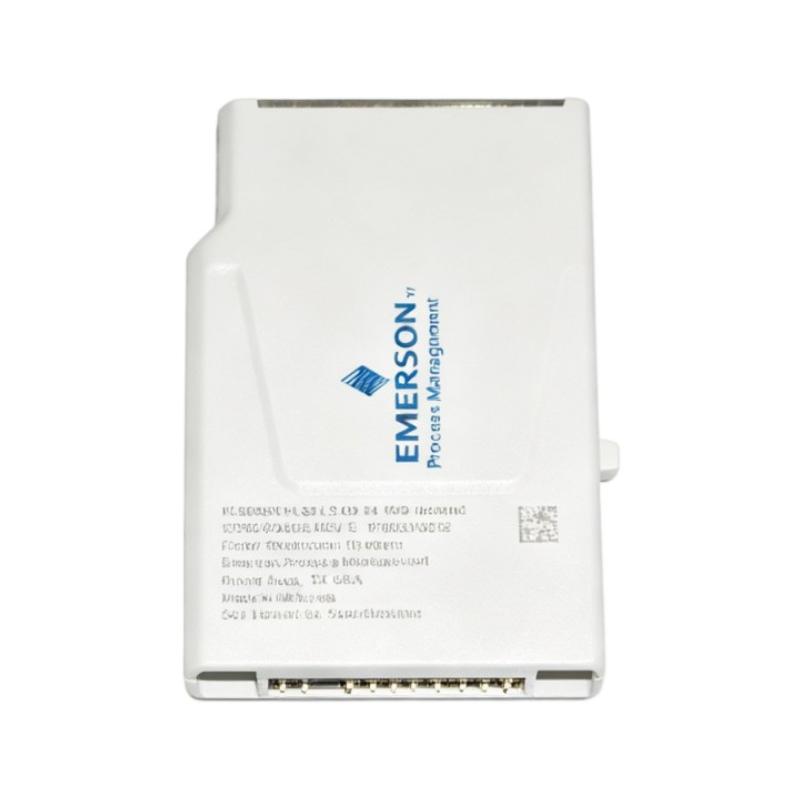

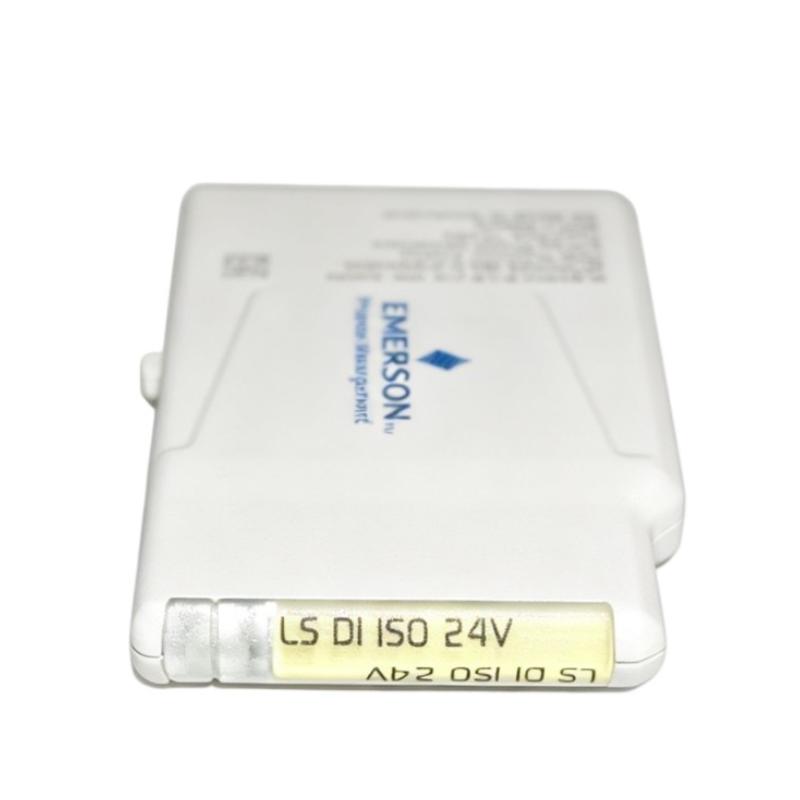

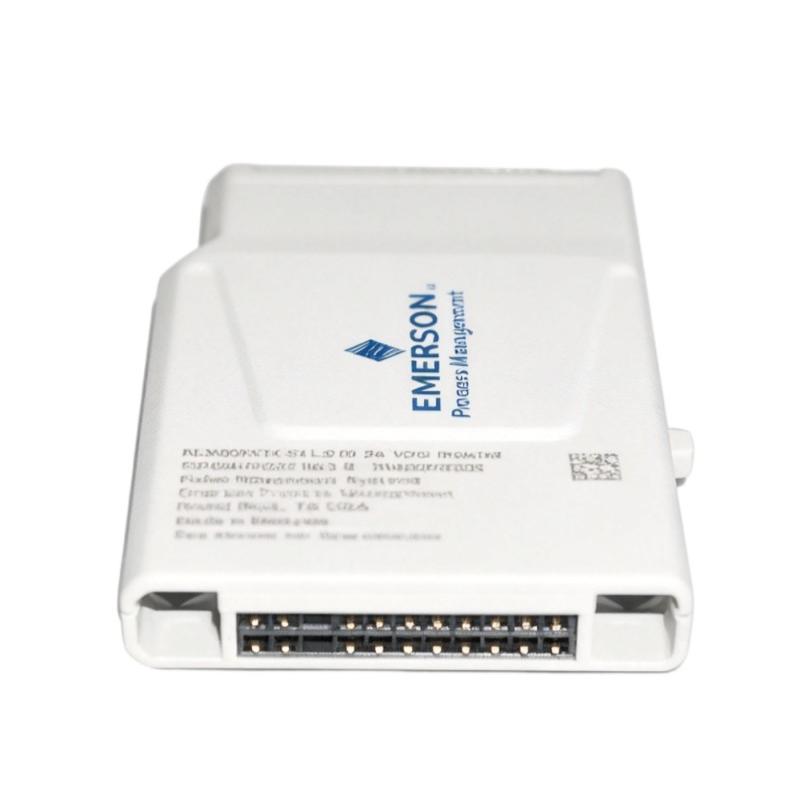

The Emerson KL3005X1-LS1 DeltaV Isolated Digital Input CHARM is a digital input interface module used in Emerson DeltaV CHARMs-based I/O systems for collecting ON/OFF status signals from field devices.
In process automation systems, many field conditions are represented through discrete signals, such as valve position feedback, motor running status, equipment alarms, limit switches, and protective device states. The KL3005X1-LS1 receives these field signals and transfers the status information into the DeltaV control system for monitoring, sequence control, and operational decisions.
As part of the DeltaV CHARMs I/O architecture, this module provides an isolated digital input interface, allowing field devices to be connected while maintaining separation between the field signal circuit and the control system. This arrangement is useful in industrial environments where electrical noise, different grounding conditions, or long-distance field wiring may affect signal quality.
Unlike digital output CHARMs that send commands to field equipment, the KL3005X1-LS1 focuses on signal acquisition. It does not operate actuators directly but provides the controller with the status information required for automation logic.
For maintenance engineers, this module is commonly checked when field status indications are missing, device feedback is incorrect, or digital input points appear unavailable. Troubleshooting should include the CHARM module, field wiring, connected devices, power conditions, and DeltaV configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KL3005X1-LS1 |
| Product Family | DeltaV CHARMs |
| Product Type | Isolated Digital Input CHARM |
| Main Function | Digital input signal acquisition |
| Signal Type | Isolated Discrete Input |
| System Role | DeltaV I/O Interface Module |
| Application | Industrial Automation / Process Control |
| Installation Type | DeltaV CHARMs I/O System |
| Dimensions | 121 × 157 × 30 mm |
| Weight | 0.8 kg |
Product Features
The Emerson KL3005X1-LS1 DeltaV Isolated Digital Input CHARM provides a modular interface for collecting discrete field signals within DeltaV systems.
Key characteristics include:
- Emerson DeltaV CHARMs isolated digital input module
- Model KL3005X1-LS1
- Receives ON/OFF field status signals
- Provides electrical isolation between field circuits and system hardware
- Supports DeltaV modular I/O architecture
- Suitable for equipment status monitoring
- Used with switches, alarms, and discrete field devices
- Supports process automation and industrial control applications
The module should be configured according to the connected field device type and the required DeltaV control strategy.
Working Principle
The KL3005X1-LS1 operates by receiving discrete signals from field devices and converting them into usable status information for the DeltaV control system.
A typical signal path can be represented as:
Field Device → KL3005X1-LS1 Digital Input CHARM → DeltaV Controller → Control Logic
When a connected field device changes state, such as a switch opening or closing, the input CHARM detects the electrical condition and transfers the corresponding status information to the DeltaV controller.
The module is mainly responsible for:
- Monitoring digital field signals
- Detecting device status changes
- Providing isolated signal input
- Transmitting status information to control logic
- Supporting equipment monitoring functions
The isolation function helps separate field wiring conditions from the internal control system, which is useful in industrial environments where electrical disturbances may occur.
Role in a DeltaV Control System Architecture
The Emerson KL3005X1-LS1 belongs to the field signal acquisition layer of a DeltaV automation system.
A simplified architecture can be viewed as:
Field Devices → Digital Input CHARM → DeltaV Controller → Operator / Process Control System
The module acts as the connection point between physical equipment status and the digital control logic running in the DeltaV system.
In practical applications, digital inputs are often used for confirmation signals. For example, a controller may issue a valve command and then use a digital input signal to verify whether the valve has reached the expected position.
Industrial Applications
The Emerson KL3005X1-LS1 DeltaV Isolated Digital Input CHARM is used in industrial environments requiring discrete signal monitoring.
| Application | Typical Use |
|---|---|
| Oil and Gas Facilities | Monitoring equipment status and alarms |
| Chemical Plants | Collecting process device feedback |
| Power Generation | Monitoring auxiliary equipment conditions |
| Water Treatment Systems | Detecting pump and valve states |
| Manufacturing Lines | Tracking machine operating status |
| Pharmaceutical Plants | Monitoring process equipment signals |
| Process Industries | Collecting discrete field information |
The actual use depends on the connected devices and the DeltaV application configuration.
Installation and Maintenance
Installation of the KL3005X1-LS1 requires verification of the field signal type and DeltaV CHARMs configuration.
Recommended maintenance procedures include:
- Confirm the correct input CHARM model
- Verify field device signal compatibility
- Check terminal wiring
- Inspect field cable condition
- Confirm grounding and isolation conditions
- Review DeltaV input configuration
- Check module status information
- Test field device response
- Record replacement details
When a digital input signal is missing, engineers should check the complete signal path from the field device to the controller database.
Related Components
The KL3005X1-LS1 works together with various DeltaV and field-level components.
| Component | Function |
|---|---|
| DeltaV Controller | Processes input information and executes logic |
| DeltaV CHARMs Baseplate | Provides CHARM installation structure |
| Digital Output CHARMs | Sends commands to field devices |
| Field Switches | Provide discrete status signals |
| Sensors and Transmitters | Provide equipment condition information |
| Terminal Blocks | Connect field wiring |
| Power Supply Components | Support system operation |
| Engineering Workstation | Configures and diagnoses the system |
The digital input CHARM is part of the complete field monitoring chain within the DeltaV architecture.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KL3005X1-LS1 | Isolated Digital Input CHARM | Discrete field signal monitoring |
| Emerson DeltaV Digital Input CHARMs | Input Interface Modules | Equipment status collection |
| Emerson DeltaV Digital Output CHARMs | Output Interface Modules | Field actuator control |
| Emerson DeltaV Analog CHARMs | Analog Input/Output Modules | Continuous signal processing |
| Emerson DeltaV CHARMs Series | Modular I/O Hardware | Flexible system configuration |
Model selection should be based on the field signal type, device requirements, and installed DeltaV CHARMs architecture.
Key Advantages
- Emerson DeltaV isolated digital input module.
- Supports discrete field signal acquisition.
- Provides electrical isolation for field connections.
- Integrates with DeltaV CHARMs I/O systems.
- Suitable for equipment monitoring applications.
- Supports modular process control configurations.
Technical FAQs
What type of signals can the KL3005X1-LS1 monitor?
The module is used for discrete ON/OFF signals from field devices such as switches, alarms, and equipment status contacts.
Why is isolation useful for digital input applications?
Isolation helps separate field circuits from the control system, reducing the influence of electrical differences and disturbances between connected equipment.
What should be checked if a field status signal is not displayed in DeltaV?
Engineers should verify the field device condition, wiring continuity, input configuration, CHARM status, and controller communication.
Can the KL3005X1-LS1 be used to control a field device?
No. This module is designed for signal acquisition. Output control functions require an appropriate DeltaV digital output module.
