Product Overview

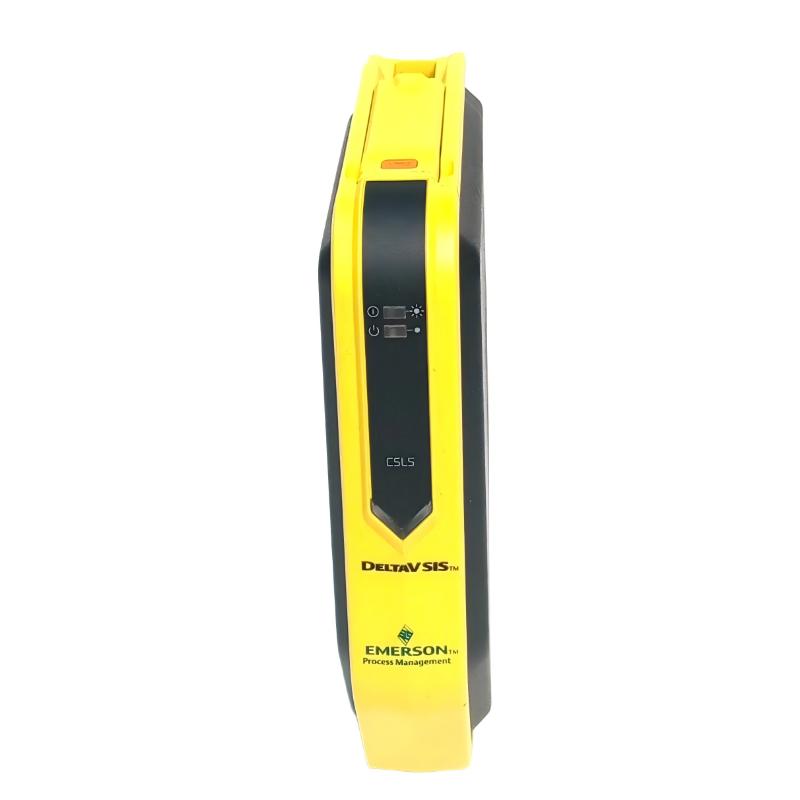

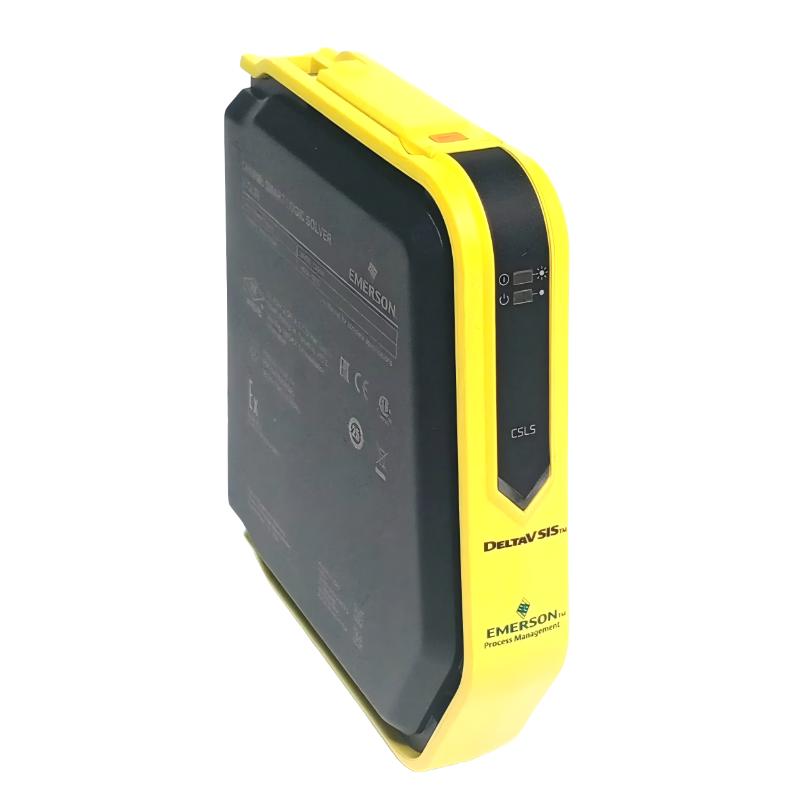

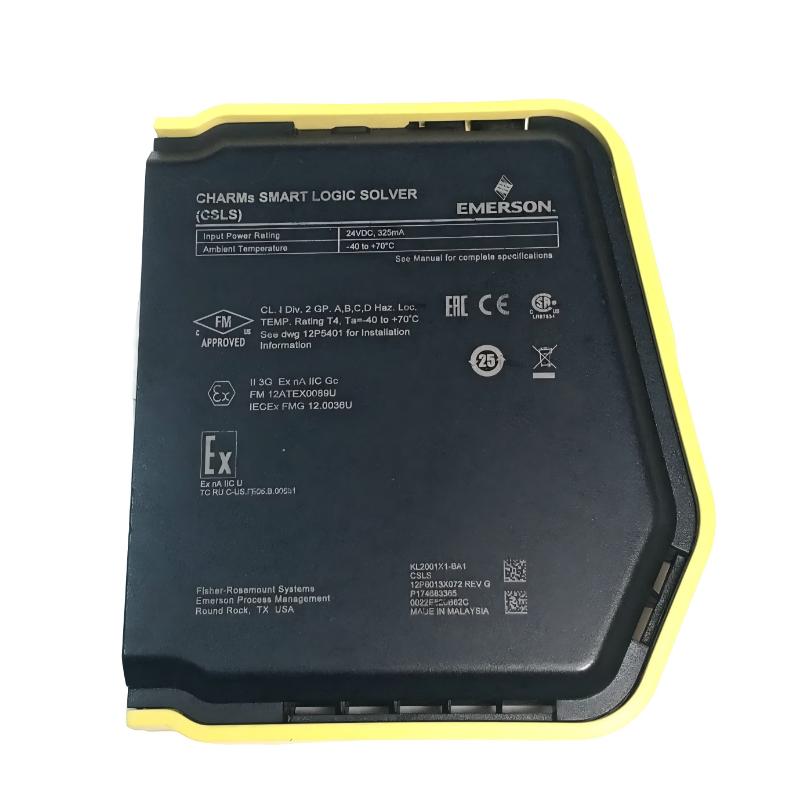

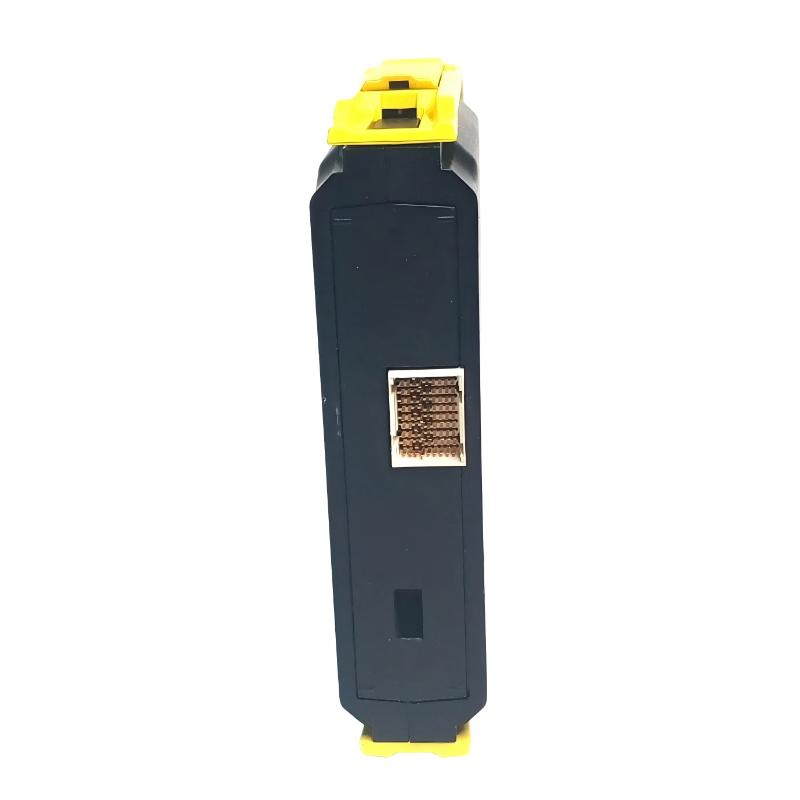

The Emerson KL2001X1-BA1 DeltaV CHARMs Smart Logic Solver is a specialized safety and logic processing module used within Emerson DeltaV SIS (Safety Instrumented System) architectures. It provides dedicated logic execution capabilities for safety-related applications where independent monitoring, decision-making, and protective actions are required.
In industrial process plants, safety systems continuously monitor critical conditions such as pressure limits, temperature deviations, equipment status, and emergency shutdown requirements. The Smart Logic Solver processes safety-related inputs and executes configured logic to initiate appropriate protective responses when predefined conditions occur.
Unlike standard DeltaV control modules that are mainly responsible for routine process regulation, the KL2001X1-BA1 is associated with safety logic execution. It operates within the CHARMs-based safety system architecture, working together with intelligent I/O components, safety field devices, and engineering tools.
For engineers maintaining DeltaV SIS installations, this module is a key component when checking safety loop operation, logic execution status, and protective function availability. Troubleshooting should include connected CHARMs modules, field wiring, configuration data, power conditions, and system diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KL2001X1-BA1 |
| Product Family | DeltaV CHARMs |
| Product Type | Smart Logic Solver |
| Main Function | Safety logic processing |
| System Role | Safety Instrumented System Processing Module |
| Application | Industrial Safety Control |
| Installation Type | DeltaV SIS Hardware Installation |
| Dimensions | 103 × 20 × 99 mm |
| Weight | 0.36 kg |
Product Features
The Emerson KL2001X1-BA1 DeltaV CHARMs Smart Logic Solver is used for safety-related processing tasks within DeltaV SIS environments.
Key characteristics include:
- Emerson DeltaV CHARMs Smart Logic Solver
- Model KL2001X1-BA1
- Executes configured safety logic applications
- Supports DeltaV SIS architectures
- Works with CHARMs-based safety I/O systems
- Used for protective process functions
- Supports safety loop monitoring and execution
- Suitable for critical industrial automation applications
The module should be installed as part of a properly configured DeltaV SIS system, with safety logic, field connections, and system diagnostics verified during commissioning.
Working Principle
The KL2001X1-BA1 operates as the logic execution element within a DeltaV CHARMs safety architecture.
A simplified safety control path can be represented as:
Safety Field Devices → CHARMs I/O → Smart Logic Solver → Safety Output Action → Process Protection
During operation, safety-related signals from field devices are collected through compatible CHARMs I/O components. The Smart Logic Solver evaluates these signals according to the configured safety application and determines whether protective actions are required.
Typical functions include:
- Processing safety input conditions
- Executing configured shutdown or protection logic
- Managing safety-related decisions
- Communicating system status information
- Supporting continuous safety function monitoring
The module focuses on safety decision processing rather than standard process control regulation. Normal process optimization and safety protection functions are usually separated to maintain system independence.
Role in a DeltaV Safety Instrumented System
The Emerson KL2001X1-BA1 belongs to the safety logic processing layer of a DeltaV SIS architecture.
A simplified structure can be viewed as:
Safety Sensors → CHARMs Safety I/O → Smart Logic Solver → Final Control Elements
The Smart Logic Solver receives safety-related information, applies configured logic, and controls the required safety response.
In safety applications, this separation is important because safety functions must respond independently from routine process control operations. The module therefore works alongside, rather than replacing, standard DeltaV process controllers.
Industrial Applications
The Emerson KL2001X1-BA1 DeltaV CHARMs Smart Logic Solver is applied in industries where safety instrumented functions are required.
| Application | Typical Use |
|---|---|
| Oil and Gas Facilities | Emergency shutdown and safety logic |
| Chemical Plants | Process protection functions |
| Refining Systems | Safety interlock processing |
| Power Generation | Equipment protection systems |
| Pharmaceutical Production | Safety-related automation |
| Industrial Processing | Critical condition monitoring |
| Energy Facilities | Protective control applications |
The specific safety function depends on the plant design, risk assessment, and configured SIS application.
Installation and Maintenance
Installation of the KL2001X1-BA1 requires careful verification because it is part of a safety-related control system.
Recommended maintenance procedures include:
- Confirm the correct Smart Logic Solver model
- Verify SIS system configuration
- Check CHARMs hardware arrangement
- Review safety application settings
- Inspect module installation condition
- Verify power supply status
- Check connected I/O modules
- Review system diagnostics
- Confirm safety function operation after maintenance
Any replacement activity should follow the established SIS maintenance procedure and include functional verification before returning the system to service.
Related Components
The KL2001X1-BA1 works together with other DeltaV SIS and CHARMs system components.
| Component | Function |
|---|---|
| DeltaV CHARMs I/O Modules | Interface with safety field signals |
| Safety Sensors | Monitor critical process conditions |
| Final Control Elements | Execute protective actions |
| DeltaV SIS Engineering Tools | Configure safety applications |
| DeltaV Controllers | Support overall automation functions |
| Power Supply Components | Provide system operating power |
| Field Wiring Components | Connect safety devices |
The Smart Logic Solver is one part of the complete safety loop and must operate together with field devices and output elements.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KL2001X1-BA1 | DeltaV CHARMs Smart Logic Solver | Safety logic execution |
| Emerson DeltaV CHARMs Series | Safety I/O Hardware | Modular SIS configuration |
| Emerson DeltaV SIS Components | Safety System Hardware | Safety instrumented applications |
| Emerson DeltaV I/O Modules | Process Interface Hardware | Field signal processing |
| Emerson DeltaV Controller Modules | Control Processing Hardware | Standard process control |
Model selection should be based on the required safety architecture, installed DeltaV SIS configuration, and application requirements.
Key Advantages
- Emerson DeltaV CHARMs Smart Logic Solver.
- Supports safety logic execution within DeltaV SIS.
- Integrates with CHARMs-based safety architectures.
- Suitable for critical process protection applications.
- Supports modular safety system configurations.
- Used in industrial safety automation projects.
Technical FAQs
What is the primary function of the KL2001X1-BA1 in a DeltaV SIS system?
The KL2001X1-BA1 executes configured safety logic and processes safety-related conditions to support protective actions within the DeltaV SIS architecture.
How does a Smart Logic Solver differ from a standard DeltaV controller?
A standard controller mainly manages routine process operations, while a Smart Logic Solver focuses on safety-related decision processing and protective functions.
What should be verified after replacing a KL2001X1-BA1 module?
Engineers should confirm module installation, system configuration, safety logic availability, diagnostics status, and correct operation of the related safety loop.
Why is the Smart Logic Solver important in safety applications?
Safety systems require dedicated processing for protective functions. The Smart Logic Solver provides the logic execution required for responding to abnormal process conditions.
