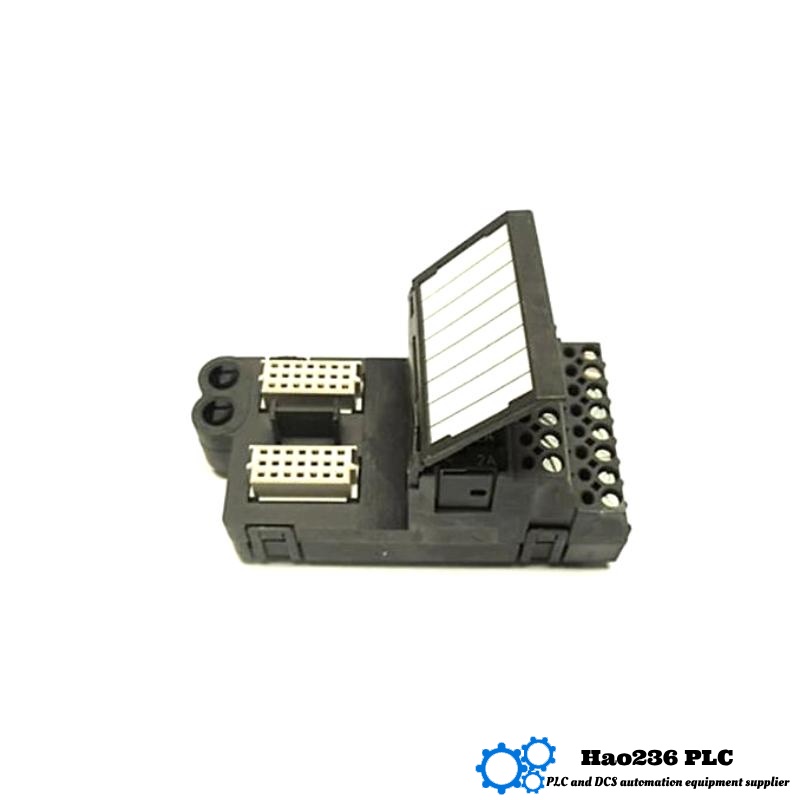

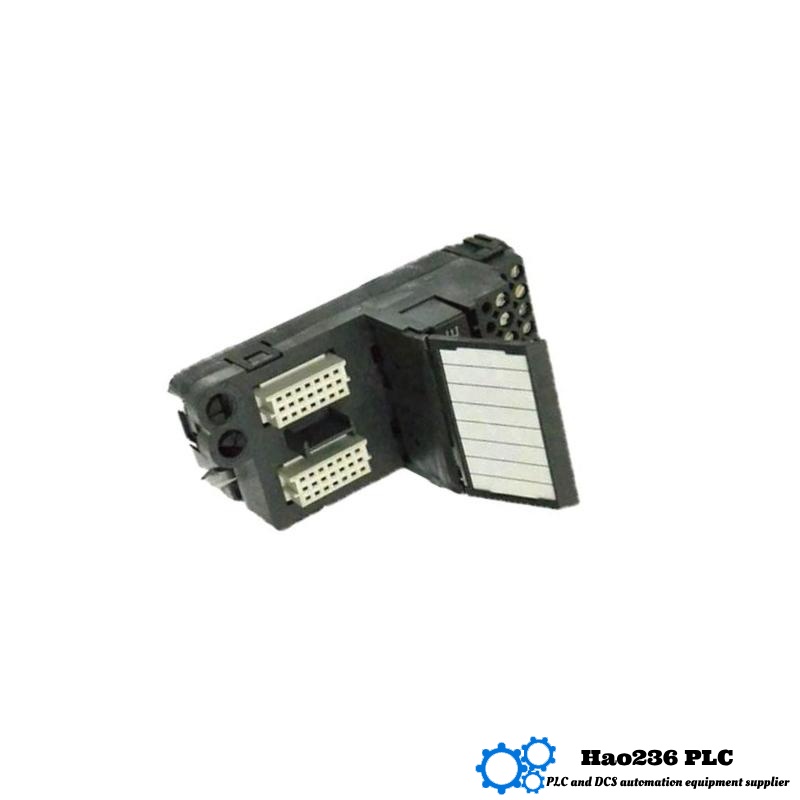

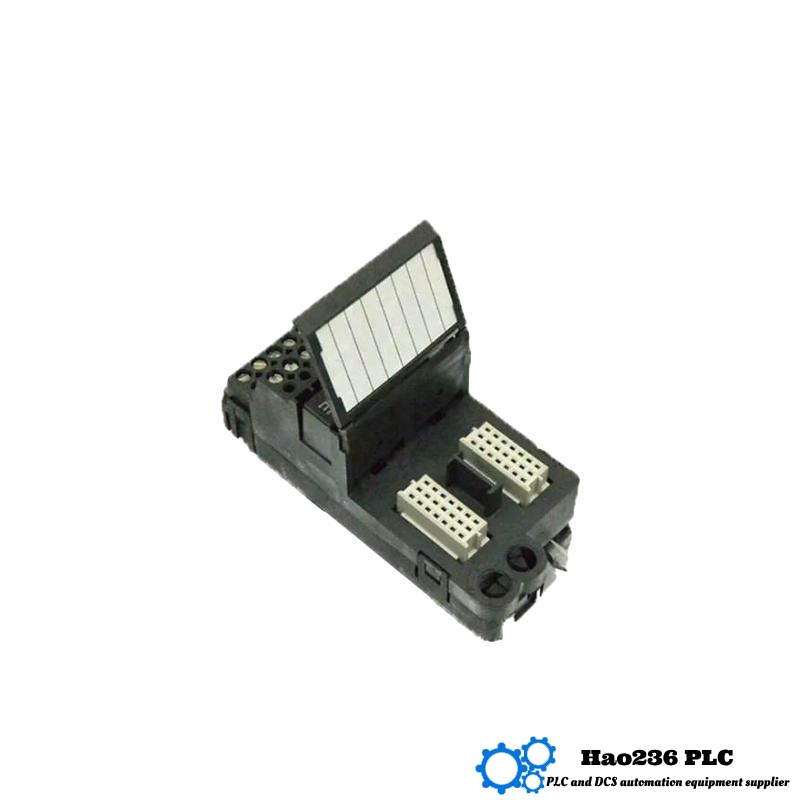

Emerson KJ4006X1-BG1 16-Channel Terminal Block
Product Introduction
The Emerson KJ4006X1-BG1 is a 16-channel terminal block designed for reliable and efficient field wiring within DeltaV distributed control systems. As a crucial component for signal termination, it simplifies wiring tasks by providing clear labeling, durable connections, and compatibility with a wide range of I/O modules. Engineered with high-quality materials, this terminal block supports various signal types including analog, digital, and discrete signals.
With compact construction and user-friendly layout, the KJ4006X1-BG1 enhances the organization of wiring panels and helps streamline commissioning and maintenance processes. It is specifically tailored to fit seamlessly within DeltaV enclosures, ensuring reliable performance in demanding industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | KJ4006X1-BG1 |
| Dimensions | 150 × 100 × 40 mm |
| Weight | 0.23 kg |
| Number of Channels | 16 |
| Signal Type Supported | Analog, Digital, Discrete |
| Voltage Rating | 30 V DC (typical signal level) |
| Current Rating | 2 A per channel |
| Connection Type | Screw clamp terminals |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | –40 to 85 °C |
| Wire Size Supported | 22–12 AWG |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Compatible Systems | Emerson DeltaV Systems |
Product Applications
The Emerson KJ4006X1-BG1 is widely used in the following industries and systems:
-
Chemical Processing Plants: For precise signal wiring in hazardous environments.
-
Oil & Gas Facilities: Supports critical control signals in upstream and downstream operations.
-
Power Generation: Connects various I/O signals from turbines, transformers, and switchgear.
-
Water Treatment Plants: Enables clear signal management for pumps, valves, and flow control devices.
-
Pharmaceutical Manufacturing: Supports validated control systems for batch and continuous processes.
-
Food and Beverage Production: Facilitates clean, organized I/O signal wiring.
-
Mining and Metals Processing: Withstands rugged conditions and ensures reliable signal transmission.
Product Advantages
-
High-Density Wiring Solution: Supports 16 independent channels in a single, compact module.
-
Ease of Installation: Clearly marked terminals and screw clamp connections enable quick and error-free wiring.
-
Durable and Reliable: Industrial-grade components ensure long-lasting performance even in harsh environments.
-
DeltaV Integration: Designed to work flawlessly with Emerson’s DeltaV I/O modules and systems.
-
Flexible Mounting Options: Can be installed on standard DIN rails or directly mounted to panels for easy access.
-
Safe Operation: Excellent insulation resistance and electrical ratings reduce the risk of short circuits or signal loss.
-
Simplified Maintenance: Grouped terminals allow for faster troubleshooting and maintenance operations.
-
Compact Footprint: Saves valuable control cabinet space without sacrificing functionality.
Brand Information
-
Brand: Emerson
-
Series: DeltaV
Emerson’s DeltaV series is a globally trusted platform for process automation, offering integrated hardware and software designed to enhance productivity, system uptime, and operational safety. The KJ4006X1-BG1 terminal block complements the DeltaV system’s vision of simplification and reliability.
Recommended Related Models from DeltaV Series
| Model Number | Type | Channels | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| KJ4006X1-BG2 | Terminal Block | 32 | 170 × 100 × 45 | 0.27 | Double the channels for high-density wiring |
| KJ4006X1-BG3 | Terminal Block w/ Shield | 16 | 150 × 100 × 40 | 0.24 | Shielded connections for sensitive signals |
| KJ4006X1-BG4 | Terminal Block, Redundant | 16 | 160 × 100 × 45 | 0.26 | Dual wiring paths for redundancy |
| KJ4006X1-BG5 | Terminal Block, Fused | 16 | 150 × 110 × 45 | 0.28 | Individual fuses per channel |
| KJ4006X1-BG6 | Terminal Block, Compact | 8 | 120 × 80 × 35 | 0.19 | Compact version for small enclosures |
Recommended Popular Emerson Models (Other DeltaV Series)
| Model Number | Type | Key Features | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|---|
| KJ4001X1-BA2 | Analog Input Module | 8 AI channels, HART enabled | 150 × 100 × 30 | 0.32 | Precise measurement in process control |
| KJ4002X1-BB1 | Digital Input Module | 16 DI channels, 24 V DC | 150 × 100 × 30 | 0.30 | High-speed digital signal acquisition |
| KJ4003X1-BB1 | Digital Output Module | 16 DO channels, 24 V relay | 150 × 100 × 30 | 0.33 | Discrete control functions |
| KJ4004X1-BB1 | Analog Output Module | 8 AO channels, 4–20 mA | 150 × 100 × 30 | 0.34 | Process feedback and actuation |
| KJ4005X1-BE1 | I/O Carrier Module | Mounts 4 I/O modules | 130 × 100 × 30 | 0.25 | Backbone for I/O connectivity |
FAQ (Q&A)
Q1: What is the maximum voltage supported by the KJ4006X1-BG1 terminal block?
A1: It supports signal levels up to 30 V DC for each channel.
Q2: How many channels does the KJ4006X1-BG1 provide?
A2: It supports 16 individual channels, each with a dedicated terminal pair.
Q3: Can this terminal block be mounted on a DIN rail?
A3: Yes, it is designed for both DIN rail and panel mounting.
Q4: What type of connections does it use?
A4: It uses screw clamp terminals that accept wire sizes from 22 to 12 AWG.
Q5: Is it compatible with all DeltaV I/O modules?
A5: Yes, it is fully compatible with Emerson DeltaV standard I/O modules.
Q6: What is the insulation resistance of this module?
A6: It offers at least 100 MΩ at 500 V DC, ensuring high safety.
Q7: Can it be used in outdoor installations?
A7: It should be housed in weatherproof enclosures for outdoor use.
Q8: Does the terminal block support analog and digital signals?
A8: Yes, it is compatible with both analog and digital signals.
Q9: How is maintenance performed?
A9: Periodic checks of terminal tightness and visual inspections are sufficient for maintenance.
Q10: What happens if a wire is disconnected accidentally?
A10: Signal loss may occur, but the DeltaV system can quickly identify and alert the user to any disconnection.
