Product Overview

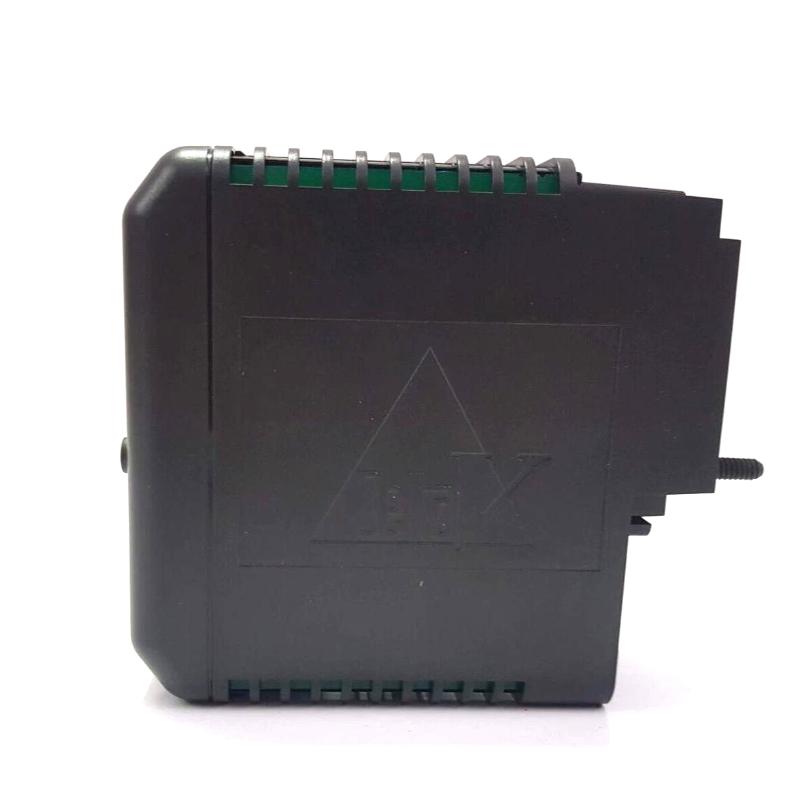

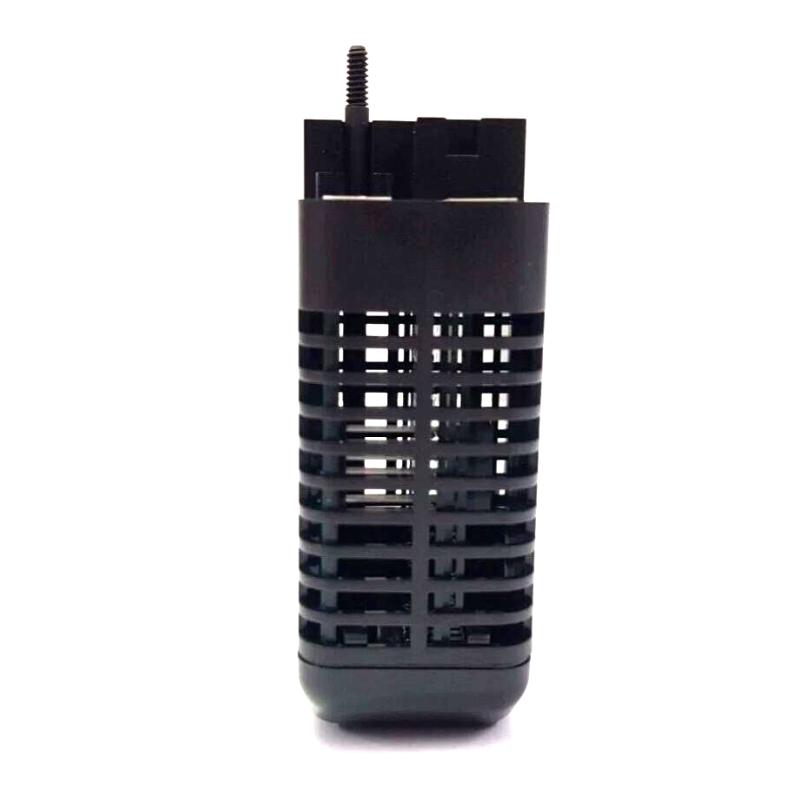

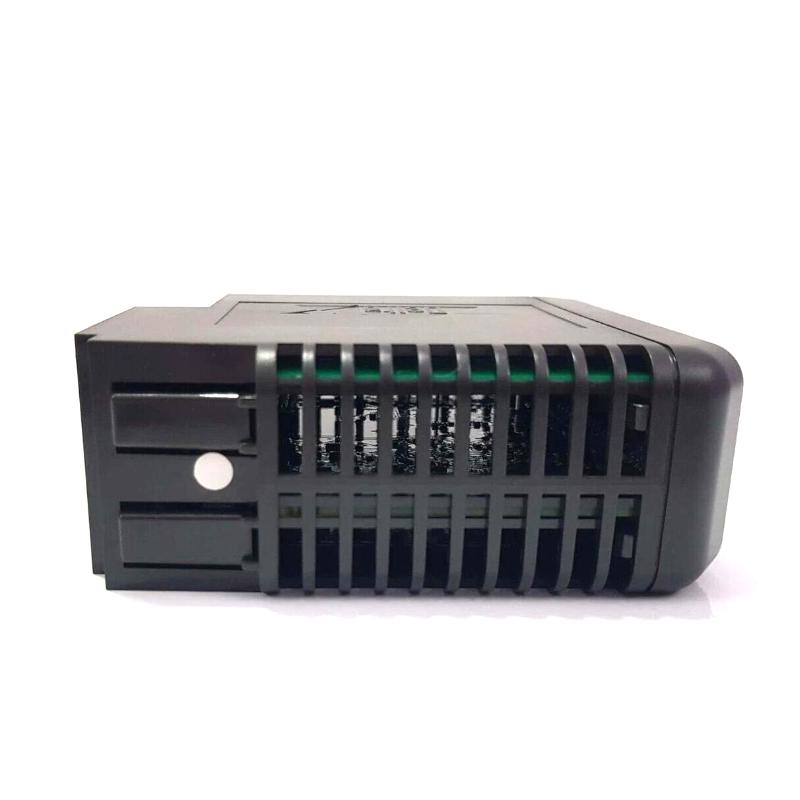

The Emerson KJ3201X1-BJ1 DeltaV Discrete Output Card 8-Channel 24 VDC High Side is a digital output interface module used in Emerson DeltaV distributed control system (DCS) architectures. It provides eight discrete output channels for transmitting control commands from the DeltaV controller to field devices that operate through 24 VDC switching signals.
Unlike analog output modules that provide continuously variable control signals, the KJ3201X1-BJ1 performs binary switching operations. It converts control logic generated by the DeltaV system into high-side 24 VDC output signals used to operate external devices such as solenoid valves, relays, indicators, and other on/off actuators.
The module works as an interface between the digital control strategy and physical field equipment. By providing multiple output channels within a single card, it allows engineers to efficiently manage discrete control points while maintaining a structured DeltaV I/O architecture.
The KJ3201X1-BJ1 is commonly applied in industrial process automation systems where reliable equipment switching, actuator control, and operational sequencing are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3201X1-BJ1 |
| Product Family | DeltaV |
| Product Type | Discrete Output Card |
| Channel Configuration | 8-Channel |
| Output Type | 24 VDC High Side Output |
| Function | Digital Control Signal Output |
| Application | Distributed Control System (DCS) |
| System Role | Field Device Control Interface |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
Product Features
The Emerson KJ3201X1-BJ1 provides multi-channel discrete control capability for DeltaV systems.
Key characteristics include:
- Emerson DeltaV Discrete Output Card
- Model KJ3201X1-BJ1
- Provides 8-channel digital output capability
- Supports 24 VDC high-side switching
- Designed for discrete field device control
- Integrates with DeltaV controller systems
- Suitable for relay, valve, and actuator applications
- Supports equipment start/stop operations
- Provides reliable command transmission from control logic
- Suitable for industrial process automation
- Supports DeltaV system expansion and replacement projects
- Designed for continuous industrial operation
The eight-channel configuration allows multiple field devices to be controlled through one output interface, helping simplify cabinet design and system organization.
Working Principle
The Emerson KJ3201X1-BJ1 operates as a switching interface between DeltaV control logic and external field equipment.
A simplified control path is:
DeltaV Controller → KJ3201X1-BJ1 Output Card → 24 VDC High Side Output → Field Device
During operation, the DeltaV controller sends digital commands based on programmed control strategies. The output card receives these commands and switches the corresponding 24 VDC channels to control connected devices.
Typical output operations include:
- Opening or closing solenoid valves
- Activating relay circuits
- Starting auxiliary equipment
- Controlling indicator devices
- Executing equipment enable/disable commands
The high-side output configuration provides the positive-side switching function required by compatible 24 VDC field devices, allowing the control system to directly manage external loads through configured output channels.
Role in a DeltaV Control Architecture
The KJ3201X1-BJ1 belongs to the field output interface layer within an Emerson DeltaV control architecture.
A typical structure can be represented as:
Operator Station / Control Strategy → DeltaV Controller → Discrete Output Card → Field Actuator
Within this architecture:
- Control strategies determine equipment operation.
- DeltaV controllers execute application logic.
- The output card converts digital commands into electrical switching signals.
- Field devices perform physical actions.
The module provides the connection between software-based control decisions and real-world equipment operation.
Industrial Applications
The Emerson KJ3201X1-BJ1 is suitable for applications requiring multiple discrete control outputs.
| Application | Typical Use |
|---|---|
| Oil and Gas | Valve and auxiliary equipment control |
| Chemical Processing | Process actuator switching |
| Power Generation | Equipment control commands |
| Refining Systems | Discrete field operation |
| Manufacturing Plants | Machine sequence control |
| Water Treatment | Pump and valve operation |
| Process Automation | Digital output management |
| Industrial Utilities | On/off device control |
The actual application depends on the DeltaV system configuration and connected field devices.
Installation and Maintenance
Installation of the KJ3201X1-BJ1 should follow DeltaV system design requirements and field device specifications.
Recommended practices include:
- Confirm module model compatibility.
- Verify output channel assignment.
- Check 24 VDC power supply conditions.
- Confirm field device wiring.
- Inspect terminal connections.
- Verify controller communication.
- Check output diagnostics.
- Test individual output channels.
- Confirm actuator response.
- Backup DeltaV configuration before maintenance.
During troubleshooting, engineers should inspect the complete output circuit, including controller logic, module status, power supply, wiring, and connected field equipment.
Related Components
The KJ3201X1-BJ1 operates together with various Emerson DeltaV system components.
| Component | Function |
|---|---|
| DeltaV Controller | Executes control programs |
| DeltaV I/O Carrier | Provides module installation support |
| Digital Input Card | Receives field status signals |
| Analog Input Module | Collects process measurements |
| Relay Interface | Provides additional switching isolation |
| Solenoid Valve | Executes pneumatic control actions |
| Motor Starter | Controls motor operation |
| Engineering Station | System configuration and diagnostics |
These components form a complete digital control and monitoring system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KJ3201X1-BJ1 | DeltaV Discrete Output Card | 24 VDC digital device control |
| Emerson KJ3101X1-BA1 | DeltaV Discrete Output Module | Digital field output applications |
| Emerson KJ3201X1-BJ1 Digital Input Version | Discrete Input Card | Field status monitoring |
| Emerson KJ3006X1-BA1 | Multifunction I/O Card | Mixed signal integration |
| Emerson KJ3102X032 | Analog Input Module | Process measurement acquisition |
| Emerson DeltaV M-Series I/O Hardware | Control System Components | Industrial automation |
Model selection should be based on output type, field device requirements, channel quantity, and existing DeltaV system configuration.
Key Advantages
- Emerson DeltaV discrete output card
- Model KJ3201X1-BJ1
- Provides 8-channel digital output control
- Supports 24 VDC high-side switching
- Integrates with DeltaV DCS platforms
- Suitable for actuator and relay control
- Supports industrial sequence operations
- Simplifies multi-device output management
- Suitable for process automation applications
- Supports DeltaV maintenance and expansion projects
Technical FAQs
What is the purpose of the 8-channel configuration in the KJ3201X1-BJ1?
The 8-channel design allows a single output card to control multiple discrete field devices, reducing the number of separate output modules required in a DeltaV installation.
What type of field devices can be controlled by the KJ3201X1-BJ1?
The module is commonly used for 24 VDC devices such as solenoid valves, relay interfaces, status indicators, and other equipment requiring binary switching control.
What does high-side output mean in this module?
High-side output means the card switches the positive side of the 24 VDC supply to the connected load, providing the required voltage output for compatible field devices.
What should be checked if an output channel does not activate the connected device?
Engineers should verify DeltaV logic commands, module diagnostics, 24 VDC supply conditions, channel configuration, field wiring, and the electrical condition of the connected device.
