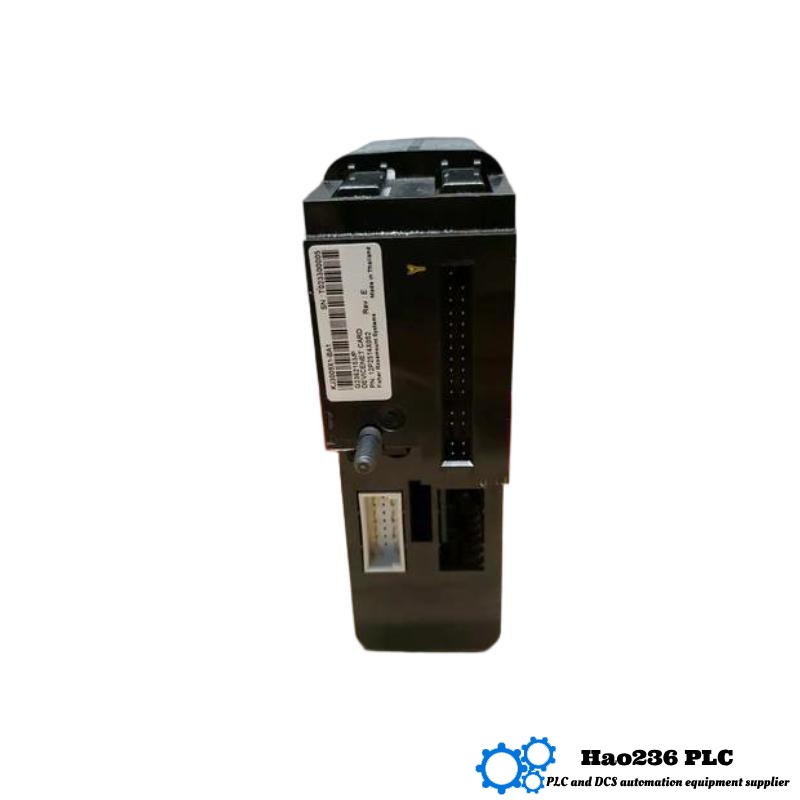

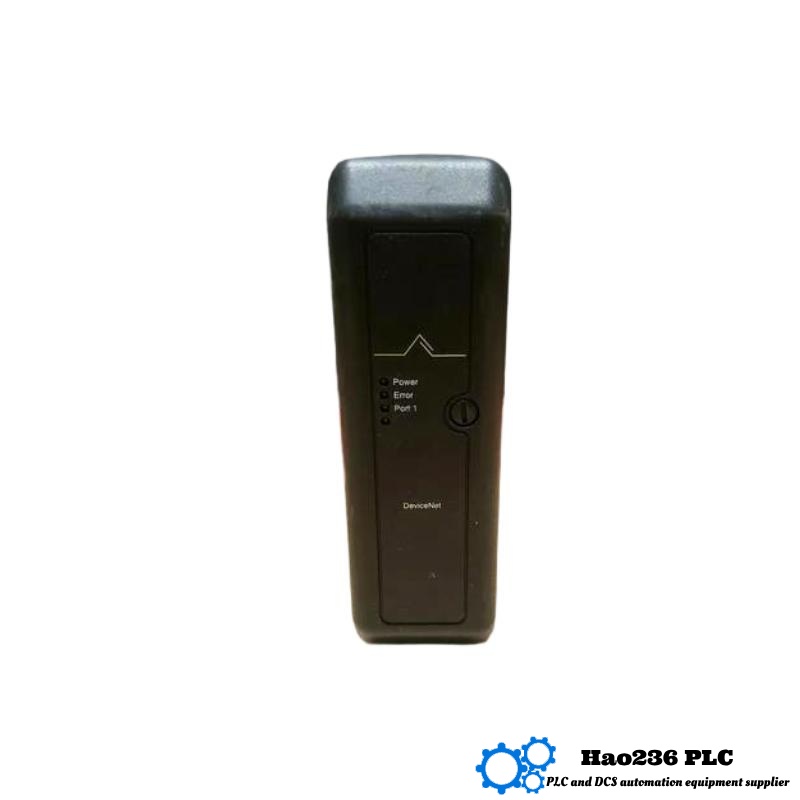

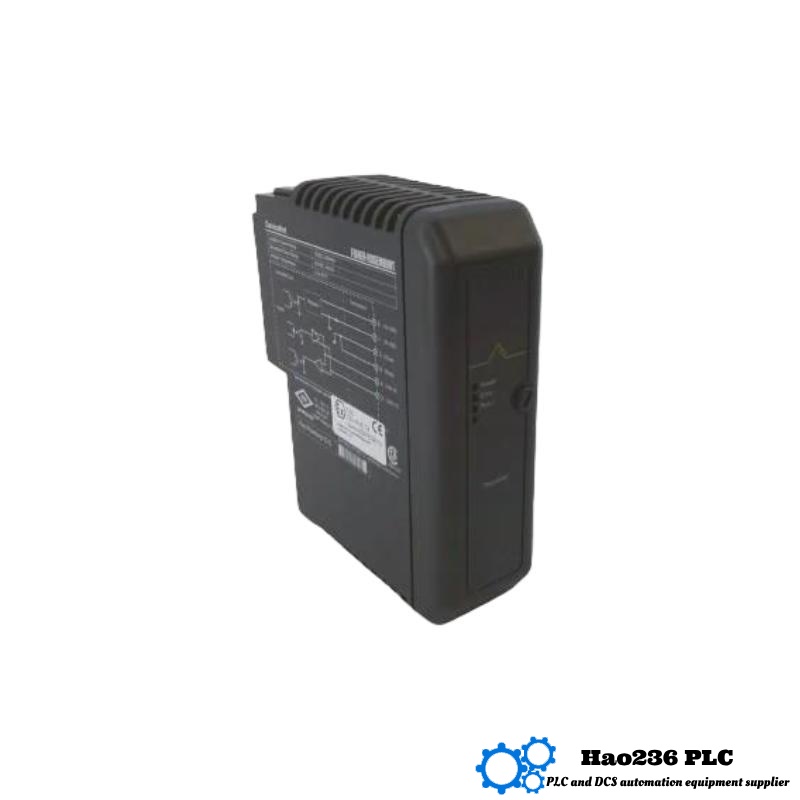

Emerson KJ3009X1-BA1 Input Module
Product Overview
The Emerson KJ3009X1-BA1 is a high-quality analog input module designed for use with Emerson’s DeltaV distributed control system. This module is engineered to provide precise analog signal acquisition and conversion for a variety of industrial applications. It plays a critical role in measuring physical parameters such as temperature, pressure, flow, and level from sensors and transmitting this data to the DeltaV control system for further processing and analysis.
The KJ3009X1-BA1 module is part of the DeltaV series, a well-known and widely used system for process automation and control. This module ensures smooth data acquisition and high performance in environments where real-time monitoring and precise data are crucial for system optimization.
Key Specifications
| Parameter | Value |
|---|---|
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.181 kg |
| Input Channels | 8 analog inputs |
| Input Type | Voltage (0-10V, ±10V), Current (4-20mA) |
| Signal Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Input Impedance | > 1 MΩ |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Rack or Panel Mountable |
| Operating Voltage | 24 VDC |
| Protection Rating | IP20 |
Product Features
-
Versatile Input Types: The KJ3009X1-BA1 supports multiple input types, including voltage (0-10V, ±10V) and current (4-20mA), offering flexibility for various sensor types and signal conditioning needs.
-
High Signal Resolution: With a 16-bit resolution, the module provides precise signal acquisition, ensuring accurate and reliable data transmission to the DeltaV system for analysis.
-
Compact and Robust Design: Measuring 107 × 41 × 105 mm and weighing just 0.181 kg, the module is compact and can be easily integrated into tight spaces within a control system setup, while also ensuring durability in industrial environments.
-
Wide Operating Temperature Range: The module operates within a broad temperature range of -20°C to +60°C, making it suitable for use in a variety of industrial environments, from extreme heat to cold conditions.
-
Seamless Integration with DeltaV Systems: Designed specifically for the DeltaV series, the KJ3009X1-BA1 integrates smoothly with other Emerson components, ensuring a cohesive and efficient control system.
Applications
The Emerson KJ3009X1-BA1 input module is commonly used in a wide range of industrial applications, including:
-
Process Automation: The module is essential in capturing and transmitting real-time data from analog sensors, which is used for automated control of various industrial processes.
-
Power Generation: It is used to monitor key process variables such as temperature, pressure, and flow in power generation plants, ensuring safe and efficient operations.
-
Oil and Gas Industry: The module plays a crucial role in the oil and gas sector by enabling precise measurement of critical parameters for system monitoring and control.
-
Chemical Manufacturing: The KJ3009X1-BA1 is used for monitoring chemical processes where precise data acquisition is necessary for maintaining optimal operating conditions and ensuring product quality.
-
Water Treatment Plants: In water treatment systems, this module helps in measuring various parameters such as water flow, level, and pressure, ensuring effective water management.
Advantages
-
High Precision and Accuracy: With a 16-bit resolution and an accuracy of ±0.1% of full scale, the module ensures precise data acquisition, making it ideal for critical applications where accuracy is essential.
-
Flexible Input Options: It can handle a variety of input types, including both voltage and current signals, allowing it to be used with a wide range of sensors and instruments.
-
Compact and Space-Saving: The module’s compact size (107 × 41 × 105 mm) and low weight (0.181 kg) make it easy to install in tight spaces, without compromising on functionality or reliability.
-
Wide Temperature Range: Operating in temperatures from -20°C to +60°C, the KJ3009X1-BA1 is built to withstand diverse industrial environments, from freezing cold to intense heat.
-
Easy Integration with DeltaV Systems: This module is specifically designed for use with Emerson’s DeltaV distributed control system, ensuring smooth installation and seamless communication with other control components.
Brand and Series
-
Brand: Emerson
-
Series: DeltaV
Recommended Products from the Same Series or Related Models
| Model | Parameters | Description |
|---|---|---|
| KJ3009X1-BA2 | 107 × 41 × 105 mm, 0.181 kg | Similar module with enhanced signal filtering capabilities for noisy environments. |
| KJ3009X1-BA3 | 107 × 41 × 105 mm, 0.181 kg | A version with increased number of input channels for more complex systems. |
| KJ4000X1-BA1 | 107 × 41 × 105 mm, 0.181 kg | Provides additional diagnostic features and extended communication options. |
| KJ3009X1-BA4 | 107 × 41 × 105 mm, 0.181 kg | Features expanded support for higher voltage inputs, suitable for heavy-duty applications. |
| KJ4000X1-BA2 | 107 × 41 × 105 mm, 0.181 kg | A high-precision version designed for critical measurement systems in the pharmaceutical industry. |
Other Popular Emerson Models
| Model | Parameters | Description |
|---|---|---|
| KJ4000X1-AB1 | 150 × 50 × 120 mm, 0.5 kg | High-end controller with advanced diagnostics for industrial automation. |
| KJ3009X1-BB1 | 107 × 41 × 105 mm, 0.181 kg | Analog output module for real-time process control in automation systems. |
| KJ5009X1-AA1 | 150 × 50 × 150 mm, 0.7 kg | A powerful signal conditioning module designed for high-voltage input processing. |
| KJ5000X1-AB1 | 200 × 60 × 180 mm, 1.0 kg | Distributed I/O module ideal for large-scale industrial systems in manufacturing. |
| KJ4009X1-AB1 | 150 × 50 × 120 mm, 0.45 kg | Used in critical control applications, providing high-speed data transmission. |
Frequently Asked Questions (FAQ)
-
What types of input signals can the KJ3009X1-BA1 module accept?
-
The module accepts both voltage (0-10V, ±10V) and current (4-20mA) input signals.
-
-
What is the accuracy of the KJ3009X1-BA1 input module?
-
The module has an accuracy of ±0.1% of full scale.
-
-
How many input channels does the KJ3009X1-BA1 module have?
-
The KJ3009X1-BA1 has 8 analog input channels.
-
-
What is the weight of the KJ3009X1-BA1 module?
-
The module weighs 0.181 kg.
-
-
What is the temperature range for the KJ3009X1-BA1?
-
The operating temperature range is from -20°C to +60°C.
-
-
What is the signal resolution of the KJ3009X1-BA1?
-
The module offers a 16-bit signal resolution.
-
-
How does the KJ3009X1-BA1 module integrate with the DeltaV system?
-
The module is designed specifically for seamless integration with the DeltaV distributed control system, allowing for easy installation and efficient communication.
-
-
Can the KJ3009X1-BA1 handle high-voltage inputs?
-
No, the module is designed for voltage and current inputs with a range of 0-10V, ±10V, and 4-20mA.
-
-
Is the KJ3009X1-BA1 suitable for hazardous environments?
-
While it is not specifically rated for hazardous environments, the module is built to operate in a wide range of industrial conditions and is well-suited for typical industrial settings.
-
-
Can this module be used in power generation plants?
-
Yes, the KJ3009X1-BA1 is ideal for use in power generation plants to monitor parameters like temperature, pressure, and flow in real-time.
