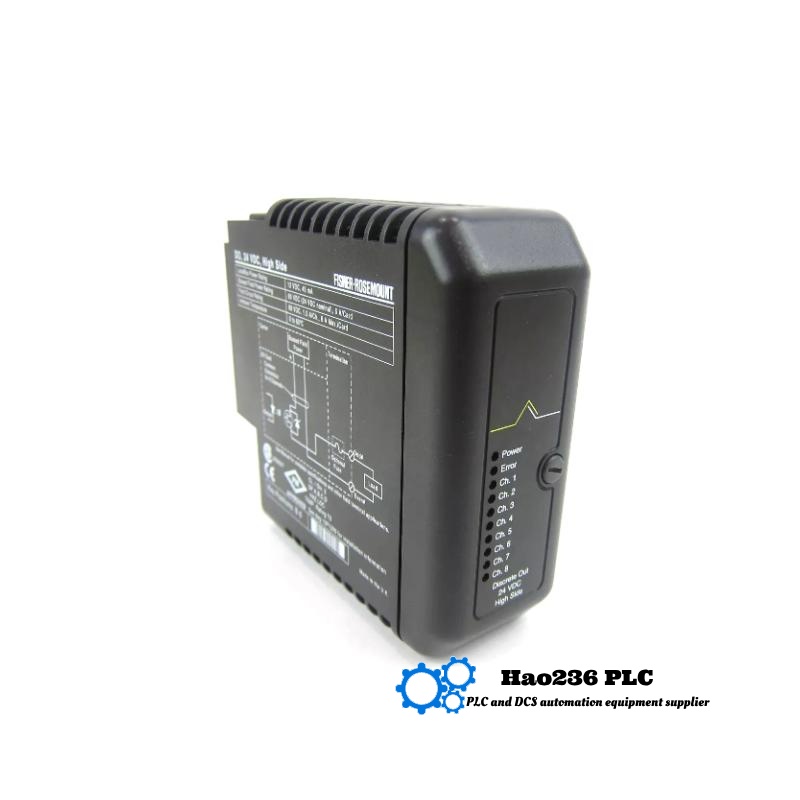

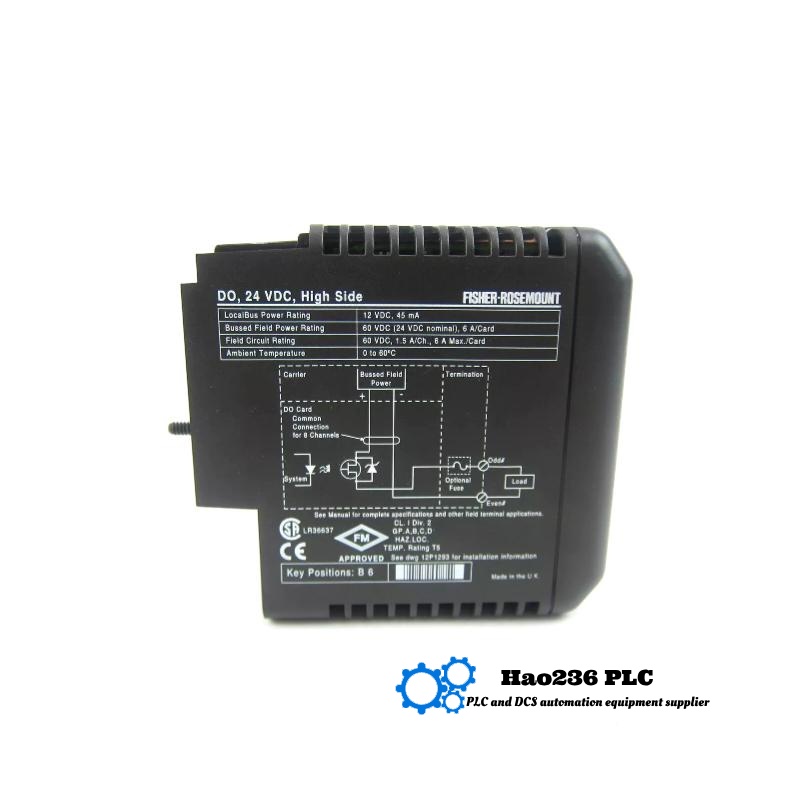

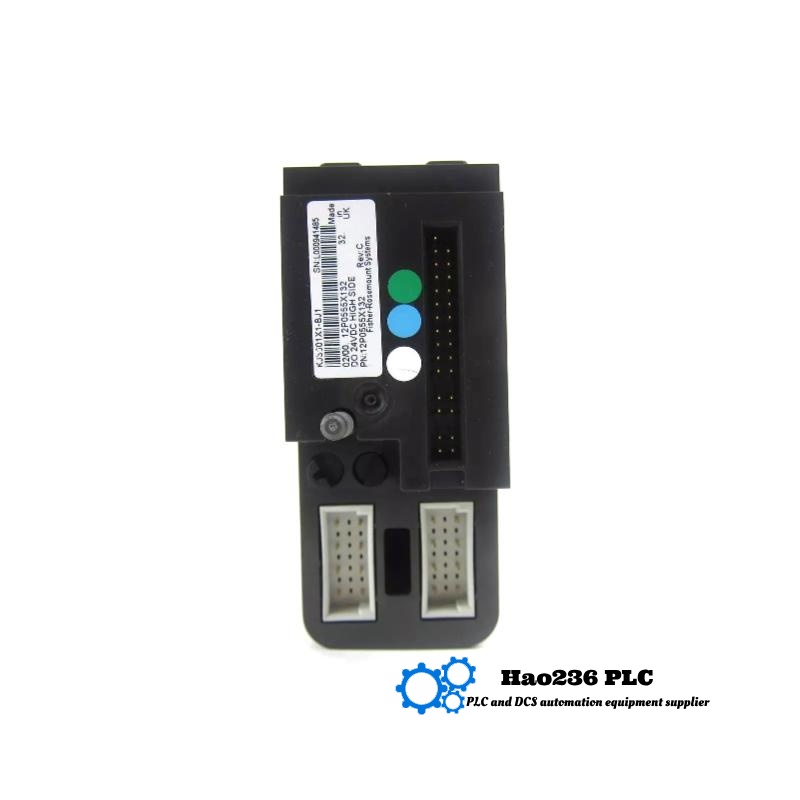

Emerson KJ3001X1-BJ1 Digital Output Module
Product Overview
The Emerson KJ3001X1-BJ1 is an 8-channel digital output module designed for the DeltaV distributed control system (DCS). It provides high-side switching for 24 VDC outputs, delivering reliable discrete control for various industrial applications. The module is engineered for robust performance, featuring comprehensive diagnostics, high output current capacity, and seamless integration within the DeltaV architecture.
Applications
The KJ3001X1-BJ1 module is suitable for a wide range of industries, including:
-
Oil and Gas: Control of valves, pumps, and actuators in exploration and refining processes.
-
Chemical Processing: Management of batch processes, mixers, and safety interlocks.
-
Pharmaceuticals: Automation of production lines, ensuring compliance with regulatory standards.
-
Power Generation: Control of turbine operations, switchgear, and auxiliary systems.
-
Water and Wastewater Management: Operation of pumps, gates, and treatment processes.
Advantages
-
High Output Capacity: Each channel supports up to 1.5 A, with a total module capacity of 6 A, accommodating a variety of load requirements.
-
Comprehensive Diagnostics: Built-in diagnostics provide real-time status and fault detection, enhancing system reliability.
-
Robust Design: Engineered to withstand harsh industrial environments, ensuring longevity and consistent performance.
-
Seamless Integration: Designed for compatibility with the DeltaV system, facilitating easy installation and configuration.
-
Compact Form Factor: The module’s dimensions allow for efficient use of cabinet space, supporting high-density installations.
Brand
Emerson is a global leader in automation solutions, providing innovative technologies to enhance process control and operational efficiency. The DeltaV series represents Emerson’s commitment to delivering scalable and flexible control systems tailored to the needs of various industries.
DeltaV Series
The DeltaV series is Emerson’s flagship distributed control system, offering a comprehensive suite of hardware and software solutions for process automation. It emphasizes ease of use, scalability, and integration, enabling users to optimize their operations and achieve superior performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3001X1-BJ1 |
| Output Channels | 8 |
| Output Type | Digital, High-Side Switching |
| Output Voltage | 24 VDC |
| Output Current | 1.5 A per channel, 6 A total |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | 5 W |
| Isolation Voltage | 1500 V RMS |
| Operating Temperature | –30°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Shock | 10g, ½ sinewave, 11 ms |
| Vibration | 1 mm peak-to-peak, 2-13.2 Hz; 0.7g, 13.2-150 Hz |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.67 kg |
| Mounting | DIN Rail or Panel Mount |
| Housing Material | Polycarbonate |
| Diagnostics | Channel and module status LEDs, fault detection |
Recommended Models from the DeltaV Series
| Model | Description | Output Type | Channels | Voltage | Current per Channel |
|---|---|---|---|---|---|
| KJ3001X1-BG1 | Digital Output Module, Isolated | Digital, Isolated | 8 | 24 VDC | 1.5 A |
| KJ3001X1-BK1 | Digital Output Module, High-Side | Digital, High-Side | 8 | 120/230 VAC | 1.0 A |
| KJ3001X1-CB1 | Digital Output Module, High-Side | Digital, High-Side | 32 | 24 VDC | 0.5 A |
| KJ3002X1-BA1 | Analog Input Module, HART Enabled | Analog Input | 8 | 4-20 mA | N/A |
| KJ3002X1-BB1 | Analog Output Module | Analog Output | 8 | 4-20 mA | N/A |
Popular Emerson Models
| Model | Description | Type | Channels | Voltage | Current per Channel |
|---|---|---|---|---|---|
| KJ3001X1-BA1 | Digital Input Module, Isolated | Digital Input | 8 | 24 VDC | N/A |
| KJ3001X1-BB1 | Digital Input Module, Dry Contact | Digital Input | 8 | 24 VDC | N/A |
| KJ3001X1-CA1 | Digital Input Module, Dry Contact | Digital Input | 32 | 24 VDC | N/A |
| KJ3002X1-BC1 | Analog Input Module | Analog Input | 8 | 4-20 mA | N/A |
| KJ3002X1-BE1 | Analog Output Module, HART Enabled | Analog Output | 8 | 4-20 mA | N/A |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the KJ3001X1-BJ1 module?
A1: It serves as an 8-channel digital output module, providing high-side switching for 24 VDC outputs in control systems.
Q2: Can the KJ3001X1-BJ1 handle inductive loads?
A2: Yes, but appropriate suppression devices should be used to protect the module from voltage spikes.
Q3: Is the module hot-swappable?
A3: Yes, it can be replaced without shutting down the system, minimizing downtime.
Q4: What diagnostics are available on the module?
A4: The module features channel and module status LEDs, along with fault detection capabilities.
Q5: How does the module integrate with the DeltaV system?
A5: It seamlessly integrates via the DeltaV backplane, allowing for straightforward configuration and operation.
Q6: What is the isolation voltage of the module?
A6: The module provides 1500 V RMS isolation between channels and system components.
Q7: Can the module operate in extreme temperatures?
A7: Yes, it operates within a temperature range of –30°C to 60°C.
Q8: What is the maximum current per channel?
A8: Each channel can handle up to 1.5 A, with a total module capacity of 6 A.
Q9: Is the module suitable for safety-critical applications?
A9: While it offers robust performance, suitability for safety-critical applications depends on system requirements and certifications.
Q10: What maintenance is required for the module?
A10: Regular inspections for physical damage and ensuring secure connections are recommended; however, the module is designed for low maintenance.
