Product Overview

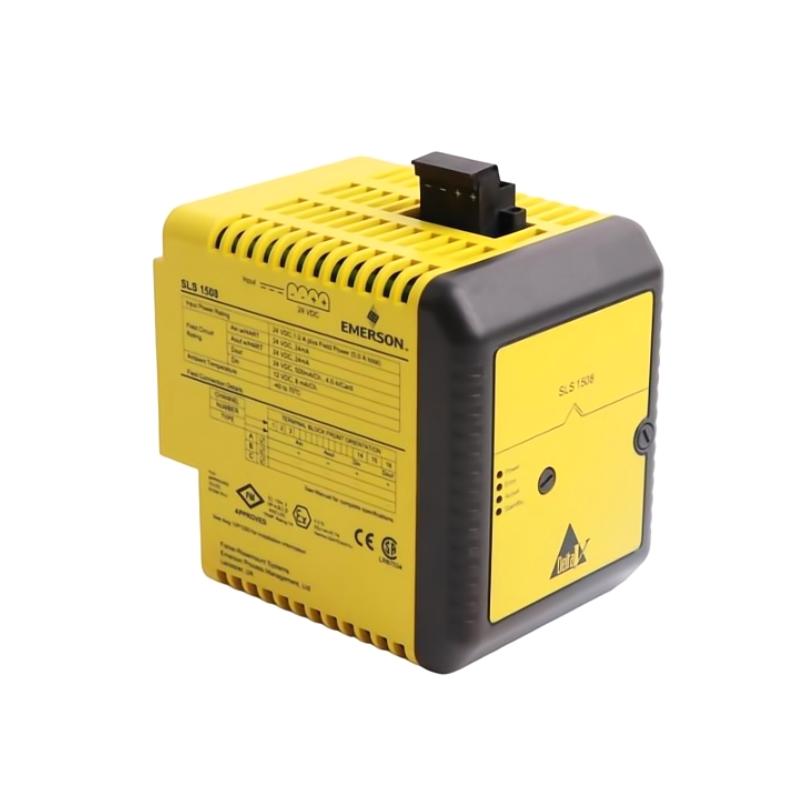

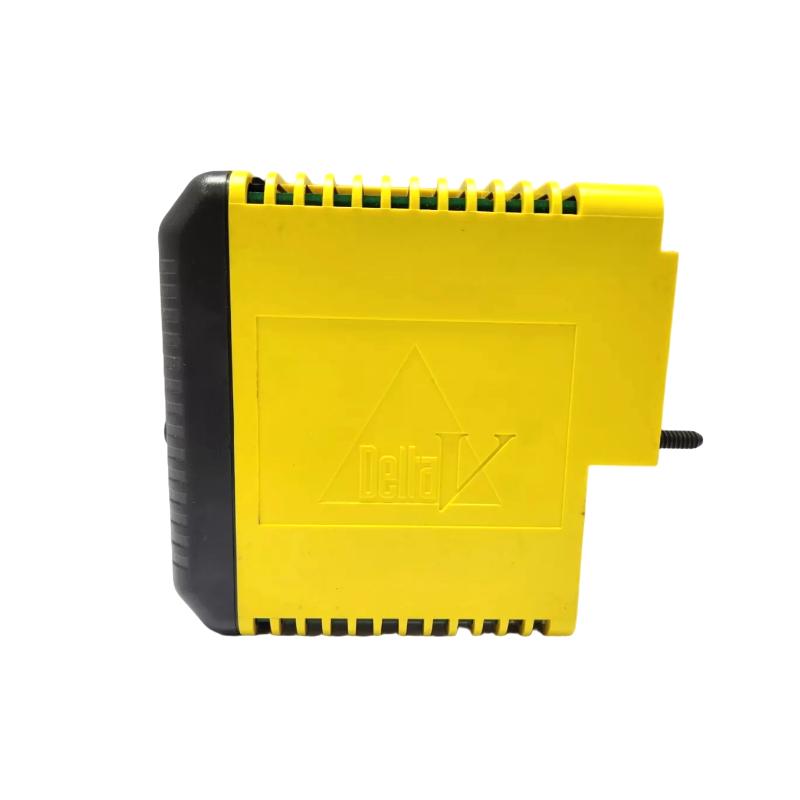

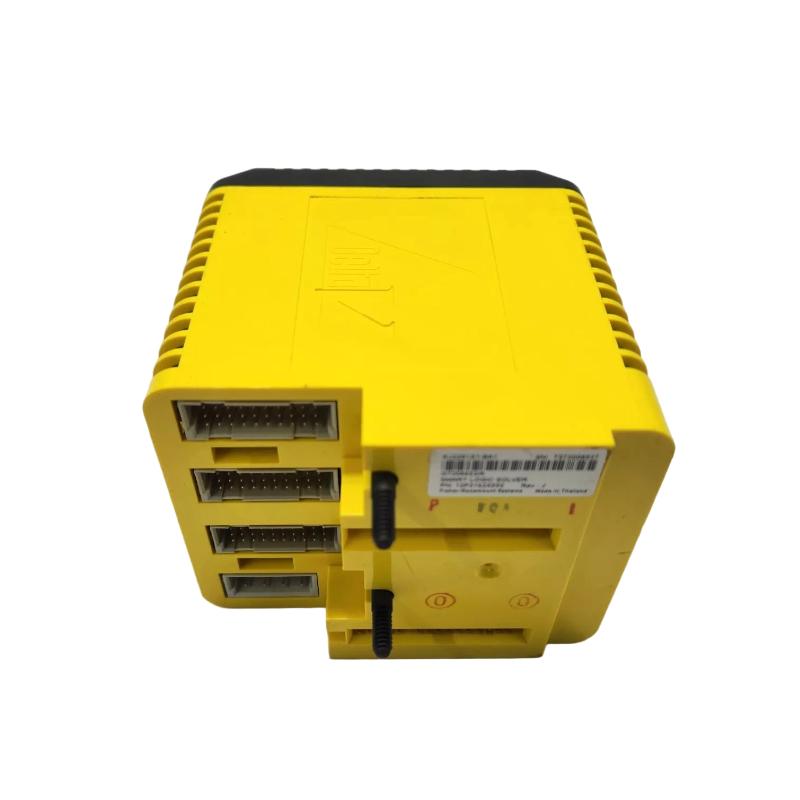

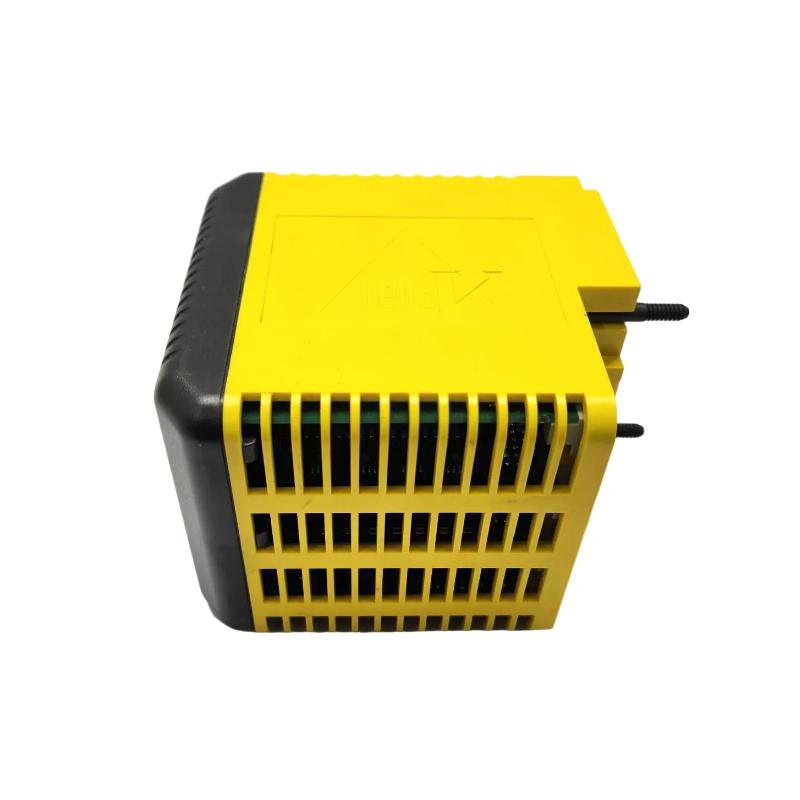

The Emerson KJ2201X1-BA1 (Part Number: 12P3162X092) is an Intelligent Logic Solver designed for the Emerson DeltaV™ Safety Instrumented System (DeltaV SIS). As the core processing module of a Safety Instrumented System (SIS), the logic solver executes safety control strategies, continuously monitors process conditions, and initiates safety actions whenever hazardous operating conditions are detected. It is intended for applications requiring high system availability and functional safety, including emergency shutdown (ESD), burner management, fire and gas protection, and critical process interlocking.

Unlike a conventional PLC or standard DCS controller, the KJ2201X1-BA1 is specifically engineered for safety-related applications. It executes certified safety logic independently while exchanging information with the DeltaV control system, allowing both process control and safety protection to coexist within an integrated automation architecture. The module supports SIL-capable safety applications when installed and configured as part of a certified DeltaV SIS system.

Measuring 83.8 × 105.5 × 110 mm and weighing approximately 1.2 kg, the logic solver provides a compact solution for safety cabinets while delivering the processing performance required for continuous industrial operation.

Typical industries include oil and gas, petrochemical, chemical processing, LNG terminals, power generation, pharmaceutical manufacturing, offshore production platforms, water treatment, and other high-risk process industries.

Technical Specifications

*Power requirements depend on the installed DeltaV SIS architecture.

Function and Working Principle

The KJ2201X1-BA1 Intelligent Logic Solver continuously receives information from safety field devices, executes certified safety logic, and generates output commands to place the process in a safe state whenever hazardous conditions occur.

Typical safety architecture:

Safety Sensors

↓

Safety I/O Modules

↓

KJ2201X1-BA1 Intelligent Logic Solver

↓

Safety Output Modules

↓

Emergency Shutdown Devices

↓

Industrial Process

During operation, the module performs the following functions:

• Executes certified safety logic
• Monitors process variables
• Detects abnormal operating conditions
• Processes safety interlocks
• Initiates emergency shutdown sequences
• Coordinates safety communications
• Supports diagnostic monitoring
• Records safety events
• Improves plant operational integrity
• Helps minimize process risks

Unlike standard automation controllers, the logic solver is dedicated to executing safety functions that protect personnel, equipment, and the environment.

Role in Industrial Control Systems

Within a DeltaV SIS architecture, the KJ2201X1-BA1 acts as the central safety processor responsible for executing Safety Instrumented Functions (SIFs).

Typical system architecture:

Field Instruments

↓

Safety I/O

↓

KJ2201X1-BA1 Logic Solver

↓

Final Control Elements

↓

Emergency Shutdown

↓

Protected Industrial Process

The logic solver operates independently of the basic process control functions while exchanging status information with the DeltaV DCS to provide integrated plant operation and diagnostics.

Key responsibilities include:

• Safety logic processing
• Process risk mitigation
• Safety interlock execution
• Emergency shutdown management
• Diagnostic supervision
• Event logging
• Communication with safety I/O
• High system availability

Industrial Applications

Oil and Gas Production

Typical applications include:

• Emergency shutdown systems
• Wellhead protection
• Pipeline safety
• Compressor protection
• Offshore platforms
• Gas processing facilities

Petrochemical and Chemical Plants

The module supports safety systems used for:

• Reactor protection
• Pressure relief logic
• Process shutdown
• Hazardous chemical handling
• Tank farm safety
• Utility protection

Power Generation

Applications include:

• Turbine protection
• Boiler safety
• Burner management
• Auxiliary plant shutdown
• Fuel system protection
• Generator support systems

Pharmaceutical Manufacturing

Safety functions include:

• Process interlocking
• Utility protection
• Environmental monitoring
• Batch process safety
• Clean utility systems
• Equipment shutdown

Water and Wastewater Treatment

Typical uses include:

• Chemical dosing safety
• Pump protection
• Treatment process shutdown
• Storage tank monitoring
• Utility protection
• Critical infrastructure safety

LNG and Refining Facilities

The logic solver is widely deployed in:

• Fire and gas systems
• Emergency isolation
• Compressor shutdown
• Cryogenic process protection
• Loading terminals
• Hazardous area safety systems

Installation and System Integration

Before installing the KJ2201X1-BA1, engineers should verify:

• DeltaV SIS compatibility
• Hardware revision
• Safety application requirements
• Cabinet installation space
• 24 VDC system power
• Communication architecture
• Safety I/O configuration
• Grounding
• Environmental conditions
• Engineering database configuration

Recommended Installation Procedure

1. Isolate system power.
2. Verify the DeltaV SIS hardware configuration.
3. Install the module in the designated chassis.
4. Connect system power and communication interfaces.
5. Verify grounding.
6. Configure the logic solver within the DeltaV engineering software.
7. Download the validated safety application.
8. Perform diagnostic verification.
9. Test all Safety Instrumented Functions (SIFs).
10. Validate emergency shutdown operation.
11. Complete commissioning according to site safety procedures.

System Integration Considerations

Successful integration requires careful engineering of the complete safety architecture.

Safety Integrity

The logic solver should only be used within an appropriately engineered and validated Safety Instrumented System.

Controller Compatibility

Verify compatibility with the installed DeltaV SIS hardware revision before installation.

Communication

Reliable communication with safety I/O modules is essential for deterministic safety operation.

Environmental Protection

Install the module in a suitable industrial enclosure while maintaining the environmental conditions specified for the DeltaV SIS platform.

Functional Testing

All safety logic should undergo verification and validation before being placed into operational service.

Compatible System Components

Maintenance and Troubleshooting

Routine preventive maintenance contributes to long-term system availability.

Recommended inspections include:

• Module installation
• Cabinet cleanliness
• Power supply
• Communication status
• Diagnostic indicators
• Safety event logs
• Controller diagnostics
• Wiring integrity
• Grounding
• Environmental conditions

Logic Solver Communication Fault

Check:

• Power supply
• Communication network
• Hardware configuration
• DeltaV diagnostics
• System compatibility

Safety Logic Download Failure

Verify:

• Engineering database
• Controller status
• Software version
• Communication integrity
• Configuration validation

Diagnostic Alarm

Inspect:

• Module status
• Hardware diagnostics
• Safety I/O communication
• Event logs
• System power
• Environmental conditions

Recommended Alternative Models

Selection of an alternative should always consider safety certification requirements, controller compatibility, installed hardware revision, and the validated safety lifecycle.

Key Advantages

• Designed for Emerson DeltaV SIS
• Dedicated Safety Instrumented System logic processing
• Supports critical process protection
• Compact dimensions of 83.8 × 105.5 × 110 mm
• Approximate weight of 1.2 kg
• High system reliability
• Integrated diagnostics
• Supports emergency shutdown applications
• Suitable for continuous industrial operation
• Modular installation
• Simplifies safety system integration
• Suitable for SIL-capable safety architectures when deployed within certified DeltaV SIS systems

Technical FAQs

What is the Emerson KJ2201X1-BA1?

The KJ2201X1-BA1 (12P3162X092) is an Intelligent Logic Solver designed for Emerson DeltaV Safety Instrumented Systems.

What is its primary function?

Its primary function is to execute certified safety logic, monitor safety conditions, and initiate protective actions when hazardous situations occur.

What are the module dimensions?

The unit measures 83.8 × 105.5 × 110 mm.

What is the approximate weight?

The module weighs approximately 1.2 kg.

Which automation platform uses this module?

It is designed for compatible Emerson DeltaV SIS safety systems.

Is it a standard PLC?

No. It is a dedicated safety logic solver engineered specifically for Safety Instrumented Systems rather than general-purpose process control.

Which industries commonly use this module?

Oil and gas, petrochemical, chemical processing, LNG, power generation, pharmaceutical manufacturing, water treatment, and other critical process industries.

What should engineers verify before installation?

Engineers should verify DeltaV SIS compatibility, hardware revision, safety application requirements, communication architecture, engineering configuration, power supply, and environmental conditions.

Why is a logic solver important?

A logic solver forms the core of a Safety Instrumented System by executing safety functions that protect personnel, equipment, and the environment from hazardous process conditions.

How is long-term reliability maintained?

Regular diagnostics, proof testing, preventive maintenance, configuration management, and validation of safety functions help ensure reliable long-term operation throughout the system lifecycle.

Conclusion

The Emerson KJ2201X1-BA1 (12P3162X092) Intelligent Logic Solver is a high-performance safety controller developed for the Emerson DeltaV SIS platform. With compact dimensions of 83.8 × 105.5 × 110 mm and a weight of approximately 1.2 kg, it delivers reliable safety logic execution for mission-critical industrial processes.

When integrated with compatible DeltaV SIS controllers, safety I/O modules, engineering workstations, operator stations, industrial communication networks, and certified field devices, the KJ2201X1-BA1 provides dependable execution of Safety Instrumented Functions, supports emergency shutdown strategies, and enhances the overall safety, availability, and operational integrity of modern industrial automation systems.
