Product Overview

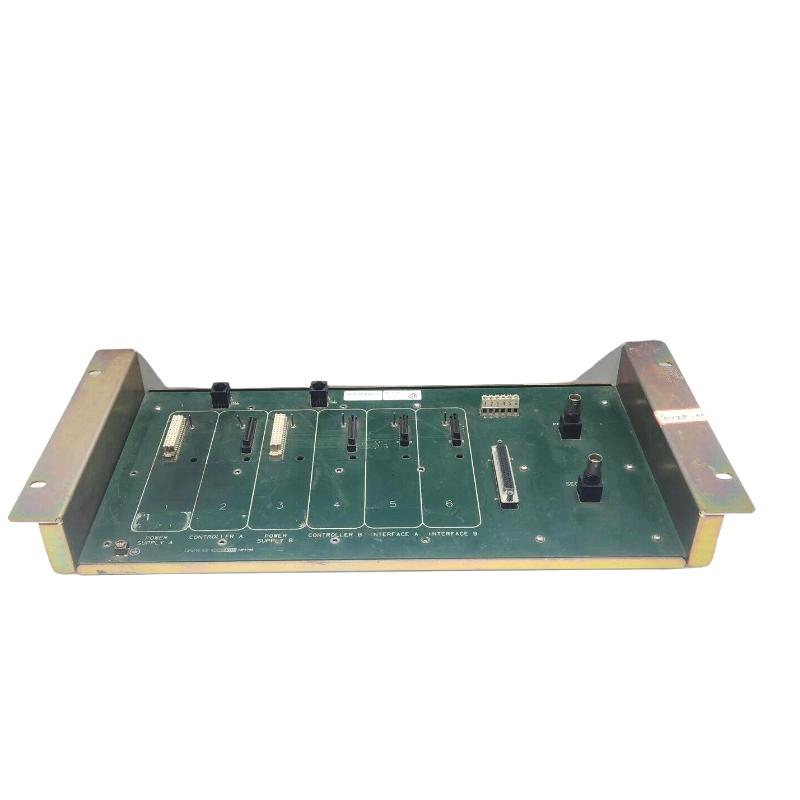

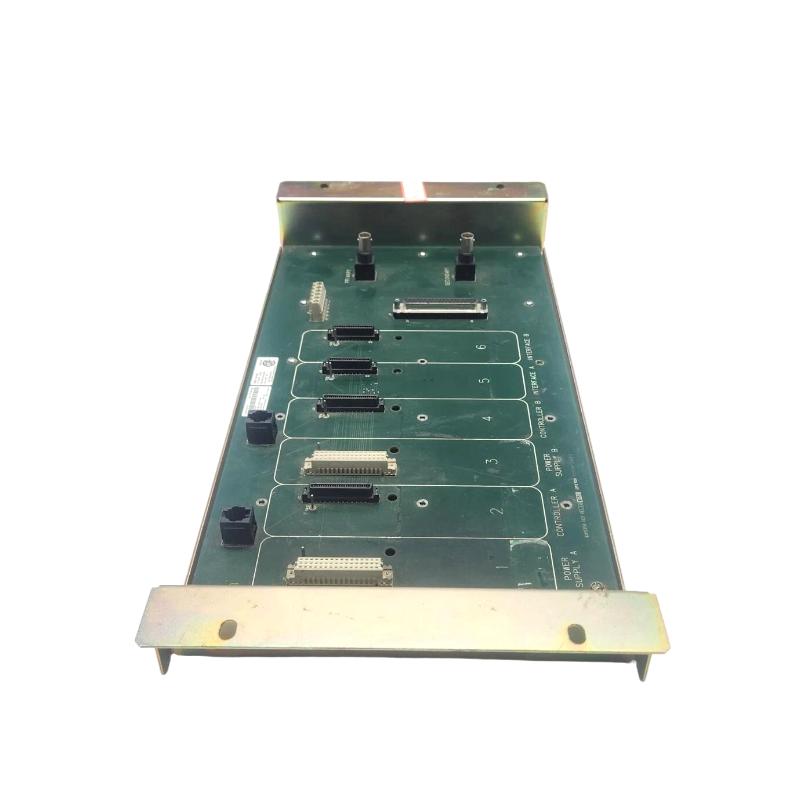

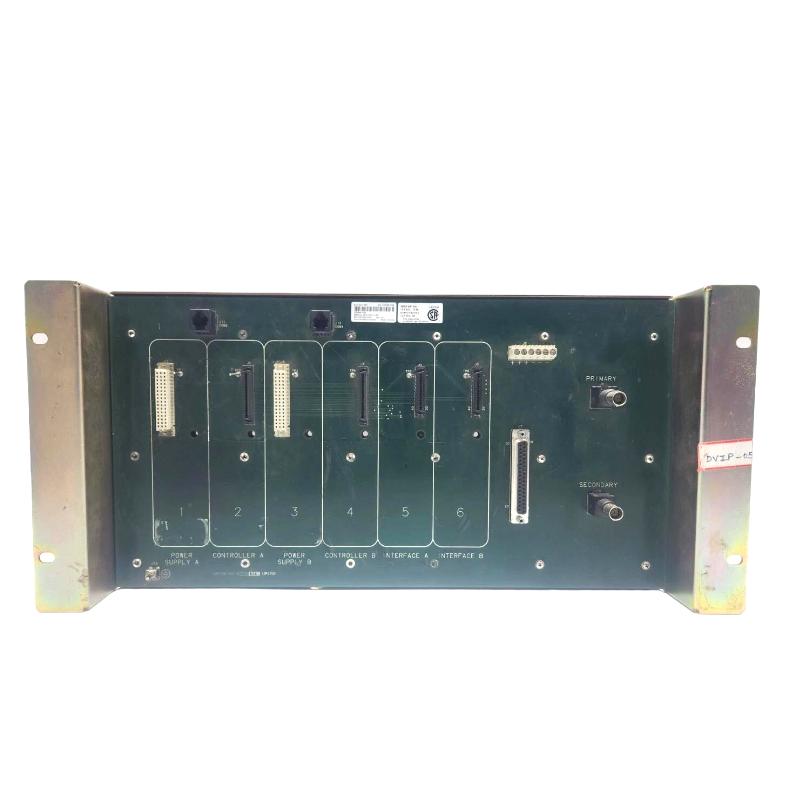

The Emerson KJ2101X1-CA1 PROVOX I/O Interface Module is an interface component associated with Emerson PROVOX control systems. Its primary role is to provide the connection between the control-system architecture and the corresponding I/O subsystem, allowing control information to be exchanged between the system electronics and connected process signals.
Unlike a controller, the KJ2101X1-CA1 does not serve as the primary location for executing the overall process-control strategy. Instead, it works at the I/O interface layer, supporting the communication and signal path between the control system and field-facing I/O hardware.
A simplified architecture is:
Field Devices → I/O Hardware → KJ2101X1-CA1 → PROVOX Control System
This makes the module relevant to PROVOX system integration, cabinet maintenance, I/O expansion, and replacement applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ2101X1-CA1 |
| Product Family | PROVOX |
| Product Type | I/O Interface Module |
| Main Function | I/O System Interface |
| Application | Industrial Process Control |
| Dimensions | 110 × 75 × 30 mm |
| Weight | 0.363 kg |
Main Features
The KJ2101X1-CA1 operates at the interface between the PROVOX control architecture and the associated I/O system.
- Emerson PROVOX I/O Interface Module
- Provides an interface for PROVOX I/O architecture
- Supports communication between control-system hardware and I/O
- Suitable for industrial process-control applications
- Useful in PROVOX system integration
- Applicable to system maintenance and replacement
- Supports organized I/O system architecture
- Compact module construction
- Suitable for control-system cabinet installation
- Dimensions of 110 × 75 × 30 mm
- Weight of 0.363 kg
Working Principle
The KJ2101X1-CA1 functions as an interface within the signal path between the PROVOX control system and its I/O hardware.
The general operating path can be represented as:
Field Signal → I/O Hardware → I/O Interface → Control System
When field devices generate process information, the associated I/O hardware handles the field-facing signal. The interface module then provides the appropriate connection between that I/O section and the wider PROVOX control architecture.
In the opposite direction, control information generated by the control system can travel through the corresponding interface and I/O path toward field equipment.
The module therefore helps maintain a structured separation between the control-processing layer and the field I/O layer.
Role in a PROVOX Control System
The KJ2101X1-CA1 belongs to the I/O interface layer rather than the primary control-processing layer.
A simplified PROVOX architecture can be viewed as:
Controller → I/O Interface → I/O Hardware → Field Devices
Each section has a different responsibility:
| System Layer | Main Function |
|---|---|
| Controller | Executes configured control functions |
| I/O Interface | Connects control architecture with I/O |
| I/O Hardware | Handles field signals |
| Field Devices | Measure or affect process conditions |
| Communication Infrastructure | Transfers system information |
This arrangement allows the I/O interface to serve as an intermediate connection point between the control system and process-facing hardware.
I/O Signal Integration
The interface module becomes particularly important when a PROVOX system contains multiple I/O channels and associated field devices.
Typical field equipment can include:
- Pressure transmitters
- Temperature transmitters
- Flow instruments
- Level transmitters
- Limit switches
- Solenoid valves
- Control valves
- Motor-control equipment
- Equipment-status contacts
The actual signal type and I/O configuration depend on the connected PROVOX hardware.
During system design or maintenance, engineers should therefore evaluate the KJ2101X1-CA1 together with the associated I/O modules, carriers, wiring, and controller configuration.
Industrial Applications
The KJ2101X1-CA1 can be used in industrial facilities where PROVOX control-system infrastructure remains in service.
| Application | Typical Role |
|---|---|
| Oil & Gas | PROVOX I/O system integration |
| Chemical Processing | Process signal interfacing |
| Refining | Control-system I/O connection |
| Power Generation | Process-control hardware interface |
| Petrochemical Plants | Field signal integration |
| Water Treatment | Control-system I/O connectivity |
| Industrial Utilities | Equipment signal interfacing |
| Process Manufacturing | I/O architecture support |
| Legacy System Maintenance | Interface module replacement |
| Plant Upgrades | PROVOX system integration |
Its application is especially relevant in facilities maintaining existing PROVOX-based control infrastructure.
System Integration
The KJ2101X1-CA1 should be considered as part of a complete PROVOX I/O architecture.
A representative arrangement is:
Field Instrument → PROVOX I/O → KJ2101X1-CA1 → Control System
Associated equipment may include:
- PROVOX controllers
- I/O modules
- I/O carriers
- Terminal blocks
- Power supplies
- Communication interfaces
- Engineering equipment
- Operator stations
- Process transmitters
- Control valves
Correct integration depends on the exact PROVOX system configuration and the I/O hardware connected to the interface.
Installation and Maintenance
Before replacing the KJ2101X1-CA1, identify the complete I/O path and document the existing connections.
Recommended checks include:
- Confirm the complete KJ2101X1-CA1 model.
- Identify the associated PROVOX I/O hardware.
- Verify module connections.
- Check I/O wiring.
- Inspect connectors and terminals.
- Verify the associated power supply.
- Check controller-to-I/O communication.
- Review system diagnostics.
- Confirm field signal operation after replacement.
If an I/O point stops communicating, the fault should not automatically be attributed to the interface module. Field wiring, I/O hardware, power, controller configuration, and communication paths should also be checked.
After installation, verify the affected I/O channels and confirm that both input monitoring and output operation are functioning as expected.
Related Components
| Component | Function |
|---|---|
| PROVOX Controller | Executes control functions |
| PROVOX I/O Module | Interfaces with field signals |
| I/O Carrier | Provides module interconnection |
| Power Supply | Provides system power |
| Terminal Block | Provides wiring termination |
| Communication Interface | Transfers control-system data |
| Process Transmitter | Measures process conditions |
| Control Valve | Performs final process control |
| Engineering Station | System configuration and maintenance |
| Operator Station | Process monitoring |
The KJ2101X1-CA1 operates between the control-system electronics and the associated I/O architecture.
Recommended Related Models
| Model | Product Type | Main Function | Typical Application |
|---|---|---|---|
| Emerson KJ2101X1-CA1 | PROVOX I/O Interface Module | I/O system interface | PROVOX control systems |
| Emerson KJ2005X1-MQ2 | MQ Controller | Control processing | DeltaV DCS |
| Emerson KJ2005X1-BA2 | MX Controller | Control strategy execution | DeltaV DCS |
| Emerson KJ1611X1-BE1 | Network Switch Module | Network connectivity | Industrial control network |
| Emerson KJ1502X1-BC2 | Power Supply Module | System power | DeltaV infrastructure |
| Emerson KJ2003X1-PW1 | Redundant SLS Terminal Block | System interconnection | Redundant control architecture |
For PROVOX applications, the actual compatible I/O modules and system components should be selected according to the existing control-system architecture.
Key Advantages
- Emerson PROVOX I/O interface component
- Connects control-system and I/O layers
- Supports structured I/O architecture
- Suitable for industrial process-control systems
- Useful for legacy PROVOX installations
- Applicable to system maintenance and replacement
- Helps organize the signal path between I/O and control hardware
- Compact module construction
- Suitable for control cabinets
- Dimensions of 110 × 75 × 30 mm
- Weight of 0.363 kg
Technical FAQs
What is the Emerson KJ2101X1-CA1 used for?
The KJ2101X1-CA1 is a PROVOX I/O Interface Module used to connect the control-system architecture with the associated I/O hardware and signal path.
Is the KJ2101X1-CA1 a PROVOX controller?
No. It is an I/O Interface Module rather than the primary controller. Its function is centered on I/O-system interfacing, while the controller handles the configured control functions.
What equipment works with the KJ2101X1-CA1?
It should be considered together with the associated PROVOX controller, I/O modules, carriers, terminal connections, power supply, and field devices. Compatibility depends on the specific PROVOX system configuration.
What should be checked when troubleshooting this I/O interface?
Check the module connections, associated I/O hardware, power supply, field wiring, controller communication, and system configuration. A loss of I/O communication can originate from several points in the signal path rather than from the interface module alone.
