Product Overview

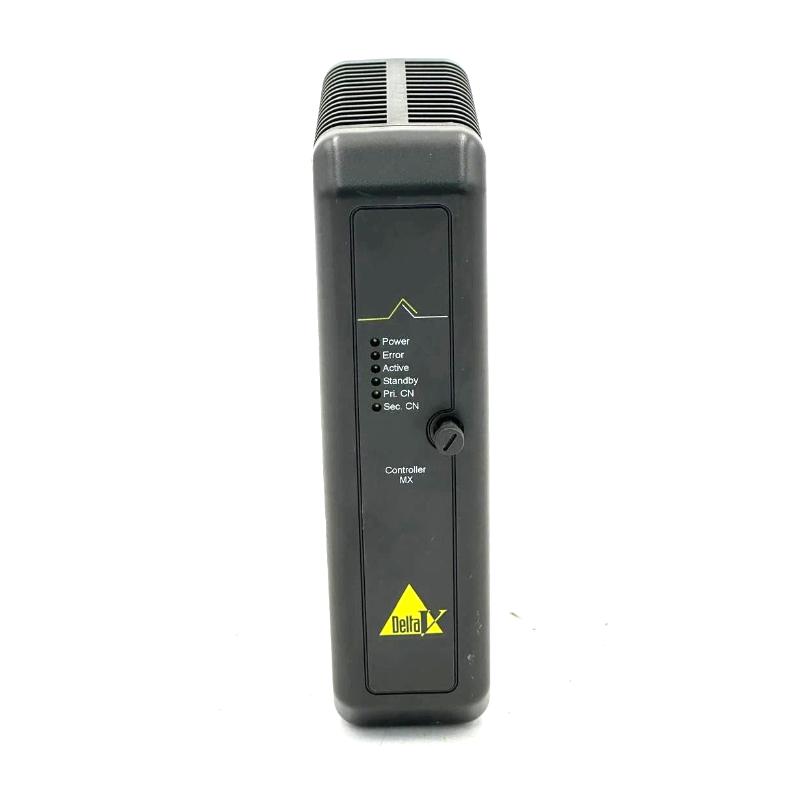

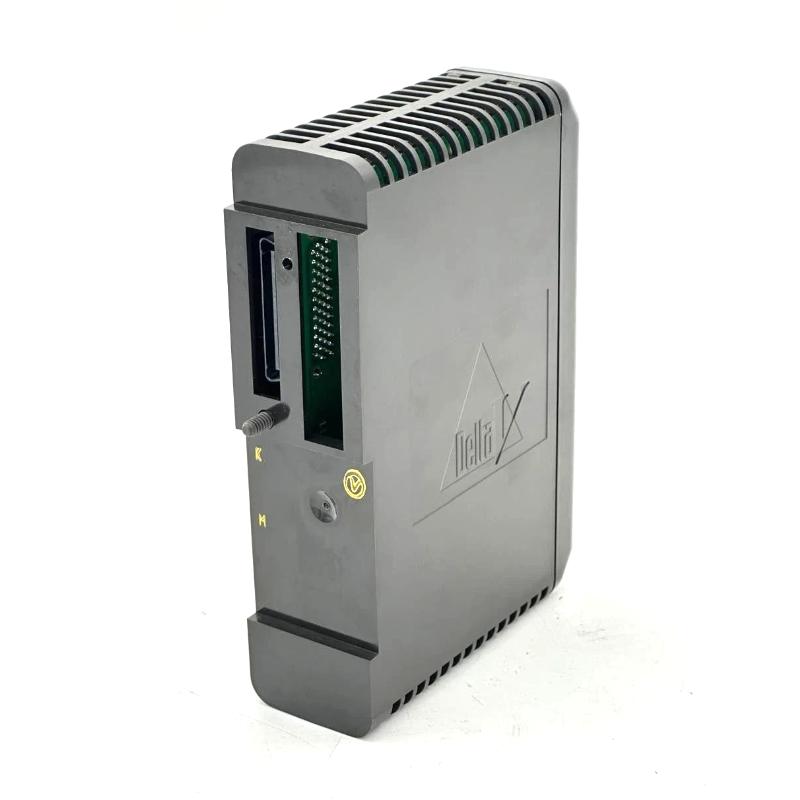

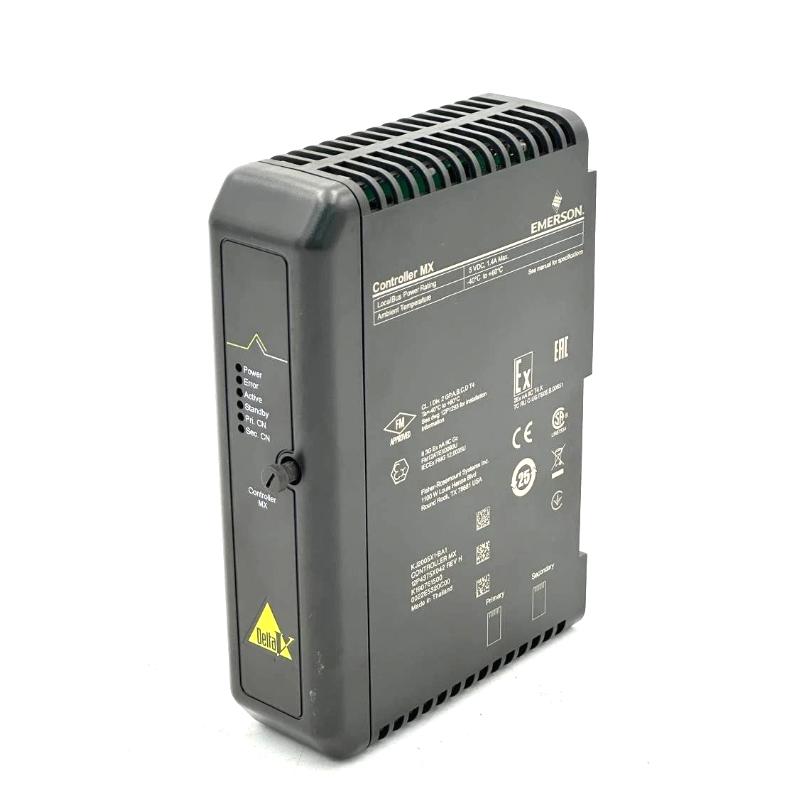

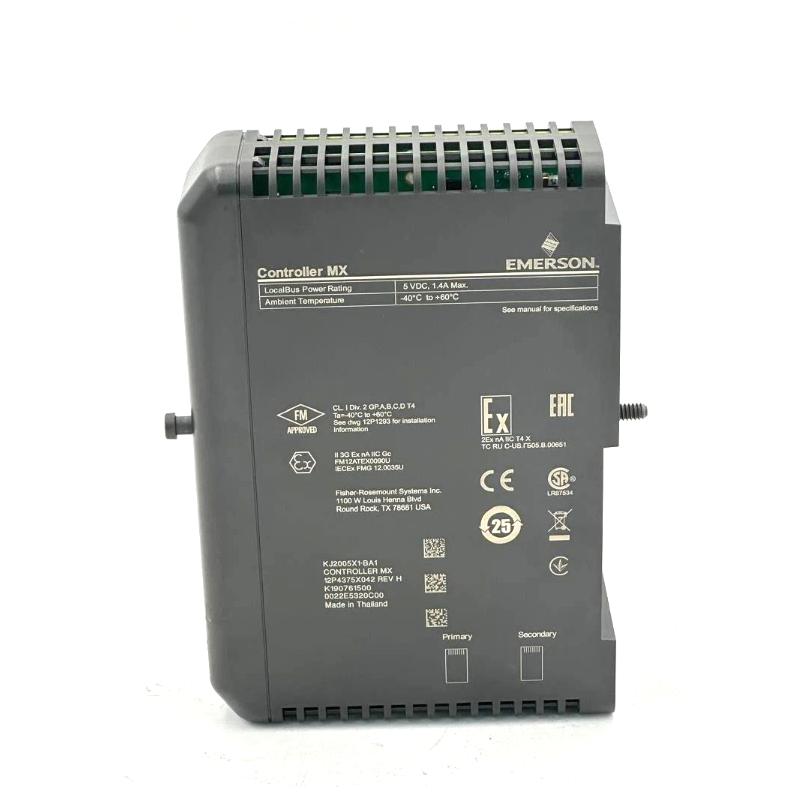

The Emerson KJ2005X1-BA1 12P4375X042-233C MX Controller is a controller used within the Emerson DeltaV distributed control system. It serves as a central processing element for executing configured control strategies and coordinating data exchange with the associated I/O and communication infrastructure.

Unlike a terminal block, power supply, or network switch, the MX Controller performs the actual control-system processing. It receives process information through the DeltaV I/O architecture, executes the configured application logic, and produces control actions for the process.

A simplified architecture is:

Field Instruments → DeltaV I/O → KJ2005X1-BA1 MX Controller → Control Outputs / Networked Devices

This makes the controller one of the core processing components in a DeltaV control system.

Technical Specifications

Main Features

The KJ2005X1-BA1 functions at the control-processing level of a DeltaV system.

• Emerson DeltaV MX Controller
• Designed for distributed process-control applications
• Executes configured control strategies
• Processes information received from the I/O system
• Coordinates control actions with connected devices
• Works as part of a distributed control architecture
• Supports integration with DeltaV I/O infrastructure
• Suitable for process-control cabinets
• Compact controller construction
• Useful for system expansion and controller replacement
• Dimensions of 139.1 × 41.8 × 160.6 mm
• Weight of 0.272 kg

Working Principle

The KJ2005X1-BA1 operates as the processing center between the DeltaV I/O layer and the control strategy.

The basic signal path can be represented as:

Process Measurement → I/O System → MX Controller → Control Decision → Output

Field instruments first provide process information such as temperature, pressure, flow, level, or equipment status. The DeltaV I/O system transfers these signals into the controller’s control environment.

The MX Controller then executes the configured control strategy. Depending on the application, this can include regulatory control, logic, sequencing, interlocking, alarming, and other process-control functions.

After processing the current process conditions, the controller generates the appropriate control actions. These actions are passed through the corresponding output and communication infrastructure to equipment such as control valves, motor systems, and other process devices.

The controller continuously repeats this process during normal operation, allowing the plant control strategy to respond to changing process conditions.

Role in a DeltaV Control Architecture

The KJ2005X1-BA1 occupies the control-processing layer of the DeltaV architecture.

A simplified structure is:

Power Supply → Controller → I/O → Field Equipment

with the communication infrastructure connecting the various system components:

MX Controller ↔ DeltaV Network ↔ Engineering / Operator Systems

Each layer has a different responsibility:

This architecture allows control functions to be distributed across the plant rather than relying on a single centralized PLC.

Control Strategy Execution

One of the primary functions of the MX Controller is to execute the configured DeltaV control strategy.

Depending on the application, the controller can participate in tasks such as:

• Process-variable monitoring
• Regulatory control
• Sequential operations
• Equipment interlocking
• Alarm-related processing
• Control output calculation
• Equipment status handling
• Communication with other DeltaV components

For example, in a temperature-control loop, a transmitter provides the measured temperature through the I/O system. The controller compares the process condition with the configured control requirements and calculates the appropriate control response.

The resulting command can then be sent to a control valve or other final control element.

Industrial Applications

The KJ2005X1-BA1 is suitable for process industries that use DeltaV distributed control architectures.

The controller is especially relevant where multiple process areas need distributed control while remaining integrated within a common DeltaV environment.

System Integration

The MX Controller normally works together with several other DeltaV components.

A representative architecture is:

Field Transmitters / Sensors → I/O → KJ2005X1-BA1 → Control Outputs

with:

KJ2005X1-BA1 ↔ DeltaV Network ↔ Operator / Engineering Stations

Related hardware can include:

• DeltaV I/O modules
• I/O carriers
• Power supply modules
• Network switches
• Terminal blocks
• Engineering stations
• Operator stations
• Control valves
• Motor-control equipment
• Process transmitters

The controller therefore should not be selected independently of the I/O and network architecture. The complete system configuration determines how the controller exchanges process data and communicates with the rest of the plant automation system.

Installation and Maintenance

Before installing or replacing the KJ2005X1-BA1, the existing DeltaV configuration should be documented.

Recommended checks include:

• Confirm the complete KJ2005X1-BA1 model.
• Verify the identification number 12P4375X042-233C.
• Check the applicable DeltaV system configuration.
• Back up the controller configuration and application data.
• Verify associated I/O components.
• Inspect controller connectors and mounting points.
• Check network connections.
• Verify power supply connections.
• Review system diagnostics after installation.

For controller replacement, configuration compatibility is particularly important. A physically compatible controller should still be checked against the system’s software, firmware, I/O, and network configuration before commissioning.

After installation, verify controller startup, communication, I/O availability, control execution, and system diagnostics before returning the affected process area to normal operation.

Related Components

The KJ2005X1-BA1 forms the processing core of this group, while the other components provide power, I/O, networking, operator access, or final process control.

Recommended Related Models

The correct related component depends on whether the requirement concerns controller processing, power, networking, I/O interfacing, or system wiring.

Key Advantages

• Emerson DeltaV MX Controller
• Provides control-strategy processing
• Serves as a core component of the DeltaV control architecture
• Coordinates process information and control actions
• Integrates with DeltaV I/O infrastructure
• Suitable for distributed process-control applications
• Supports process and equipment control
• Can work with DeltaV networking and operator systems
• Compact controller format
• Suitable for industrial control-system cabinets
• Dimensions of 139.1 × 41.8 × 160.6 mm
• Weight of 0.272 kg

Technical FAQs

What is the Emerson KJ2005X1-BA1 used for?

The KJ2005X1-BA1 is an Emerson DeltaV MX Controller used to execute configured control strategies and coordinate process-control functions within a DeltaV distributed control system.

What is the relationship between the MX Controller and DeltaV I/O?

DeltaV I/O modules acquire signals from field devices and make process information available to the control system. The MX Controller processes that information according to the configured control strategy and generates the required control actions.

What should be preserved when replacing a KJ2005X1-BA1?

The existing controller configuration, application data, associated I/O configuration, network settings, and relevant system information should be documented or backed up before replacement. Compatibility should be confirmed before commissioning the new controller.

Can the KJ2005X1-BA1 operate as a standalone PLC?

The KJ2005X1-BA1 is intended for the Emerson DeltaV distributed control architecture, rather than general-purpose standalone PLC operation. Its functions depend on the associated DeltaV controllers, I/O, network, configuration, and engineering environment.
