Product Overview

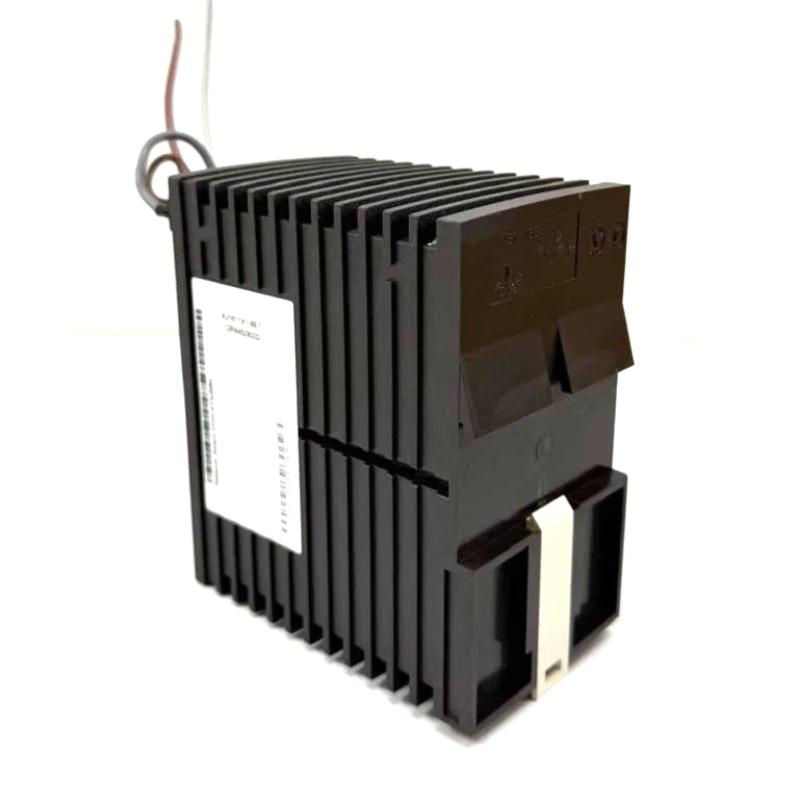

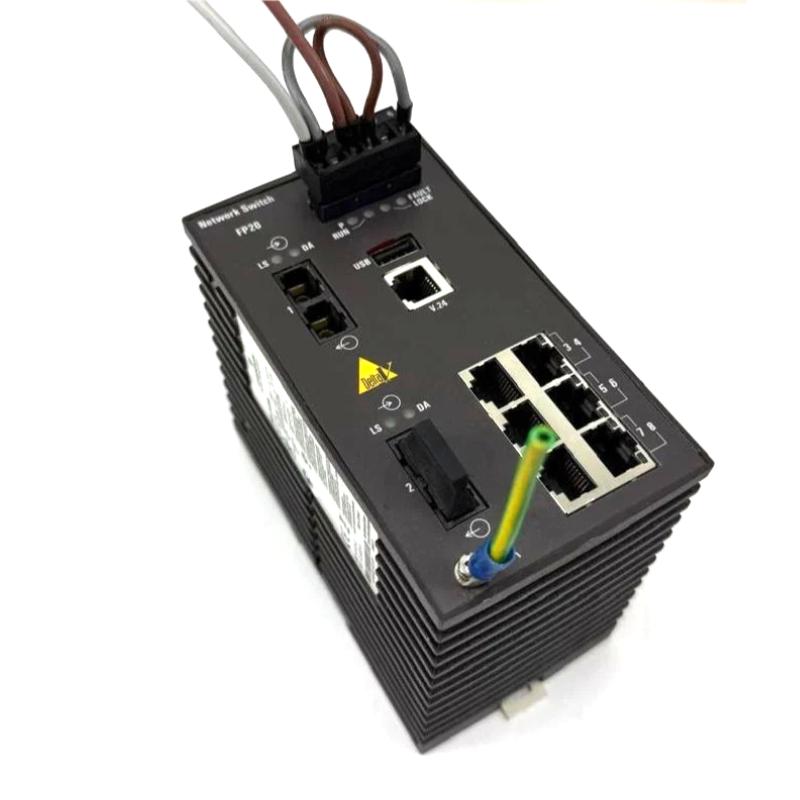

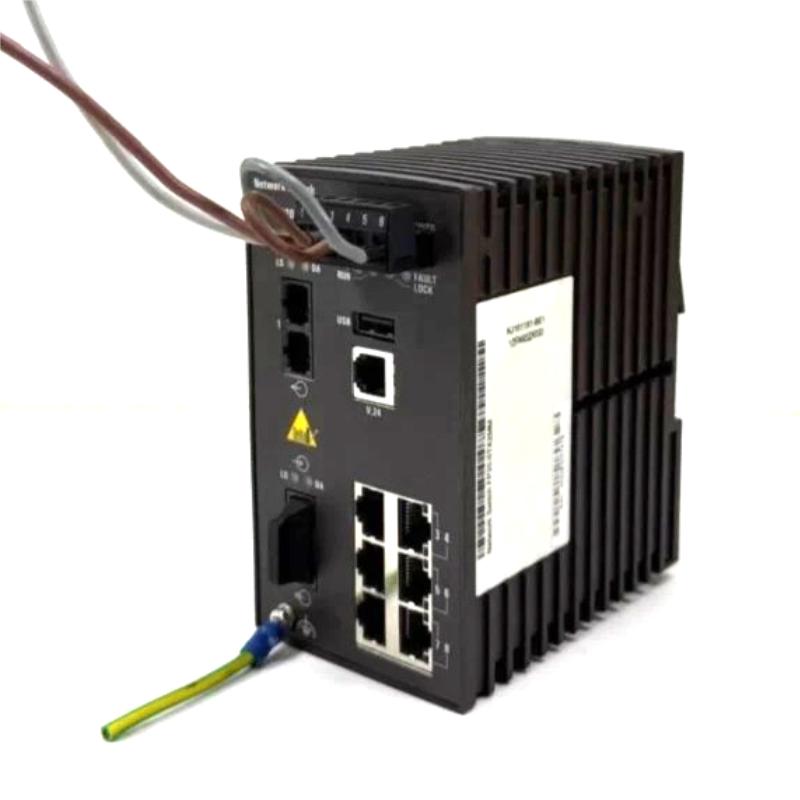

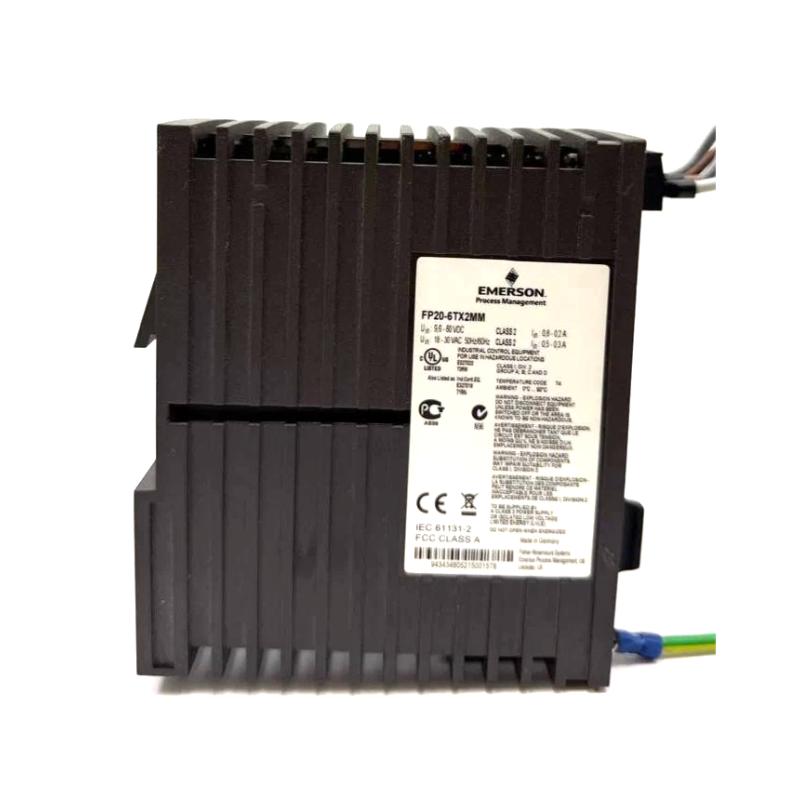

The Emerson KJ1611X1-BE1 Network Switch Module is a network communication component used within industrial automation and DeltaV-related control architectures. Its primary role is to provide network connectivity between compatible automation devices, allowing control-system components to exchange data across the industrial network.

Unlike a controller, the KJ1611X1-BE1 does not primarily execute process-control logic. It operates at the communication layer, helping establish the network path between controllers, I/O-related equipment, workstations, and other connected system devices.

A simplified architecture can be represented as:

Controller / I/O → Network Switch → Control Network → Other Automation Devices

This type of network component is particularly useful when multiple control-system devices need structured network connectivity within an industrial cabinet or automation network.

Technical Specifications

Main Features

The KJ1611X1-BE1 focuses on the communication side of an industrial control system.

• Emerson network switch module
• Intended for industrial automation networking
• Supports communication between connected automation devices
• Suitable for control-system network architectures
• Can be used within DeltaV-related system infrastructure
• Helps organize multiple network connections
• Suitable for control cabinets and automation installations
• Supports system-level device connectivity
• Useful for network expansion and replacement applications
• Dimensions of 140 × 100 × 40 mm
• Weight of 0.68 kg

Working Principle

The KJ1611X1-BE1 works at the network layer rather than the control-logic layer.

A typical communication path is:

Automation Device A → KJ1611X1-BE1 → Network → Automation Device B

When a connected device sends network data, the switch receives the communication traffic and directs it toward the appropriate network connection.

This allows several automation devices to communicate through a common network infrastructure instead of requiring direct point-to-point connections between every device.

In a control system, this can support communication between equipment such as controllers, I/O interfaces, engineering stations, operator stations, and other compatible network devices.

The actual network topology and supported communication characteristics should be confirmed against the specific system configuration before installation.

Role in a DeltaV Control Architecture

The KJ1611X1-BE1 belongs to the communication infrastructure rather than the control-processing layer.

A simplified DeltaV architecture can be viewed as:

Power Supply → Controller → I/O → Field Equipment

with networking connecting the different control-system elements:

Controller ↔ Network Infrastructure ↔ Workstation / I/O / Other Devices

The network switch helps establish the communication paths required by the system.

This separation is useful during troubleshooting. A controller may be functioning correctly from a logic perspective while still experiencing communication problems caused by network connections, switch configuration, cabling, or another network component.

Therefore, network hardware should be considered an independent layer of the overall control architecture.

Network Integration

When installing a network switch module, the overall network topology should be established before connecting field and control devices.

Possible system components include:

• DeltaV controllers
• I/O interfaces
• Engineering workstations
• Operator stations
• Network devices
• Industrial PCs
• Communication gateways
• Diagnostic equipment

A simplified structure may look like:

Controller 1
↕
KJ1611X1-BE1
↕
Controller 2 / I/O / Workstation / Network Device

For larger installations, network segmentation and redundancy requirements should be evaluated as part of the overall control-system design.

The switch should also be matched with the appropriate cabling, connectors, network addressing, and communication configuration.

Industrial Applications

The KJ1611X1-BE1 can be used in industrial automation systems where multiple control-system devices require network connectivity.

Installation and Maintenance

Before installing or replacing the KJ1611X1-BE1, verify the network architecture and the devices connected to the switch.

Recommended checks include:

• Confirm the complete KJ1611X1-BE1 model.
• Verify the applicable DeltaV system configuration.
• Identify all connected network devices.
• Check network cables and connectors.
• Inspect switch connections.
• Verify network addressing where applicable.
• Check communication status of connected devices.
• Review system diagnostics.
• Confirm the network topology after replacement.

If communication is lost after installing a replacement switch, troubleshooting should include the switch, network cables, connectors, connected devices, and network configuration rather than replacing the switch repeatedly.

For critical control systems, network changes should be performed according to the plant’s approved maintenance procedure.

Related Components

The KJ1611X1-BE1 functions as part of this communication infrastructure rather than replacing the controller or I/O hardware.

Recommended Related Models

The appropriate communication component depends on the DeltaV architecture, network topology, connected devices, and required communication interfaces.

Key Advantages

• Emerson industrial network switch module
• Suitable for DeltaV-related control architectures
• Provides network connectivity between automation devices
• Supports structured control-system networking
• Useful for system expansion
• Suitable for network maintenance and replacement
• Separates communication functions from PLC/control processing
• Compact industrial module format
• Suitable for automation control cabinets
• Dimensions of 140 × 100 × 40 mm
• Weight of 0.68 kg

Technical FAQs

What is the Emerson KJ1611X1-BE1 used for?

The KJ1611X1-BE1 is a network switch module used to connect compatible automation devices within an industrial control network. It handles network connectivity rather than executing process-control logic.

Is the KJ1611X1-BE1 a DeltaV controller?

No. The KJ1611X1-BE1 serves as a communication component. DeltaV controllers execute control strategies, while the network switch supports communication between connected system devices.

What devices can be connected through the network infrastructure?

Depending on the system architecture, connected equipment can include controllers, I/O-related equipment, engineering stations, operator stations, communication gateways, and other compatible network devices.

What should be checked if devices cannot communicate after replacing the switch?

Check the KJ1611X1-BE1 connections, network cables, connectors, connected devices, network configuration, and system diagnostics. A communication failure can originate anywhere along the network path, so the complete communication chain should be inspected.
