Product Overview

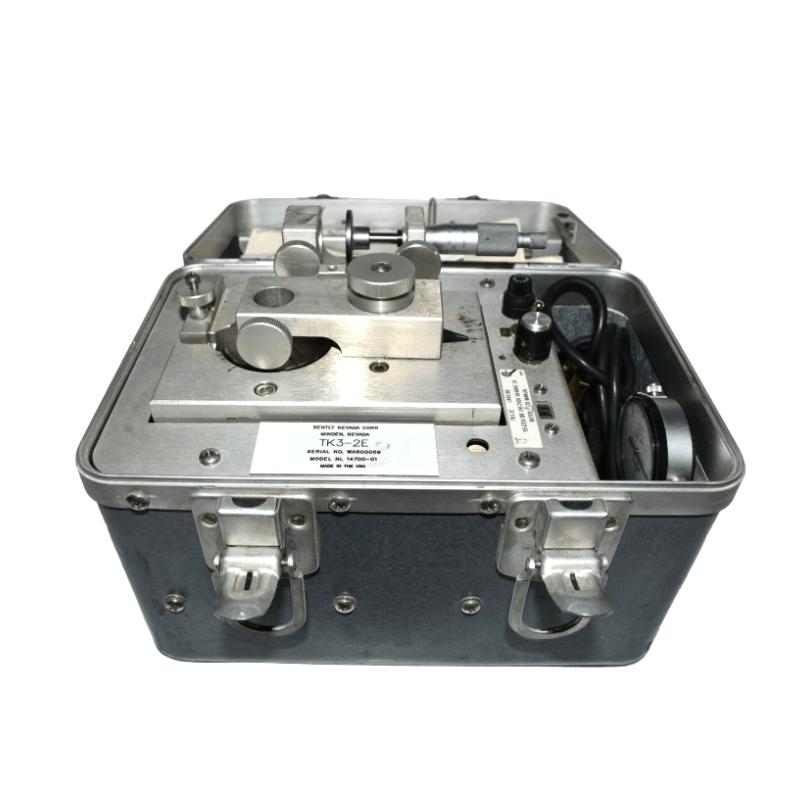

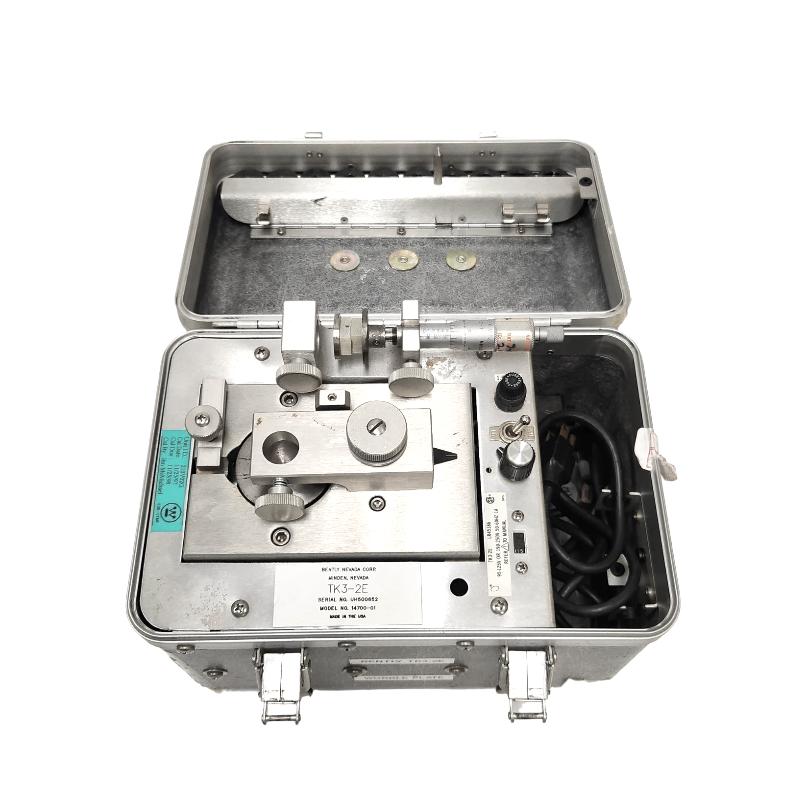

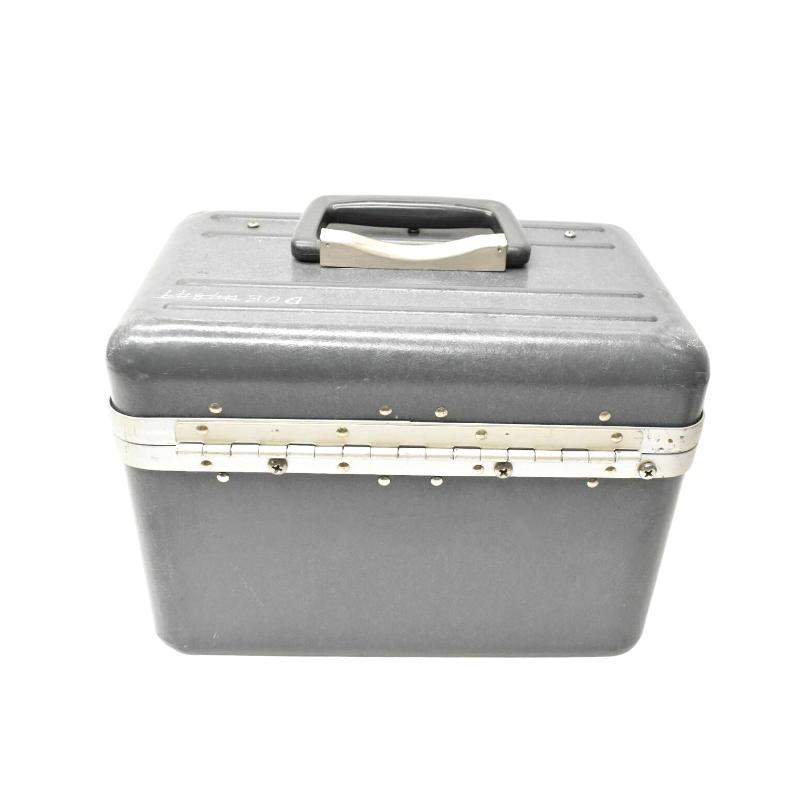

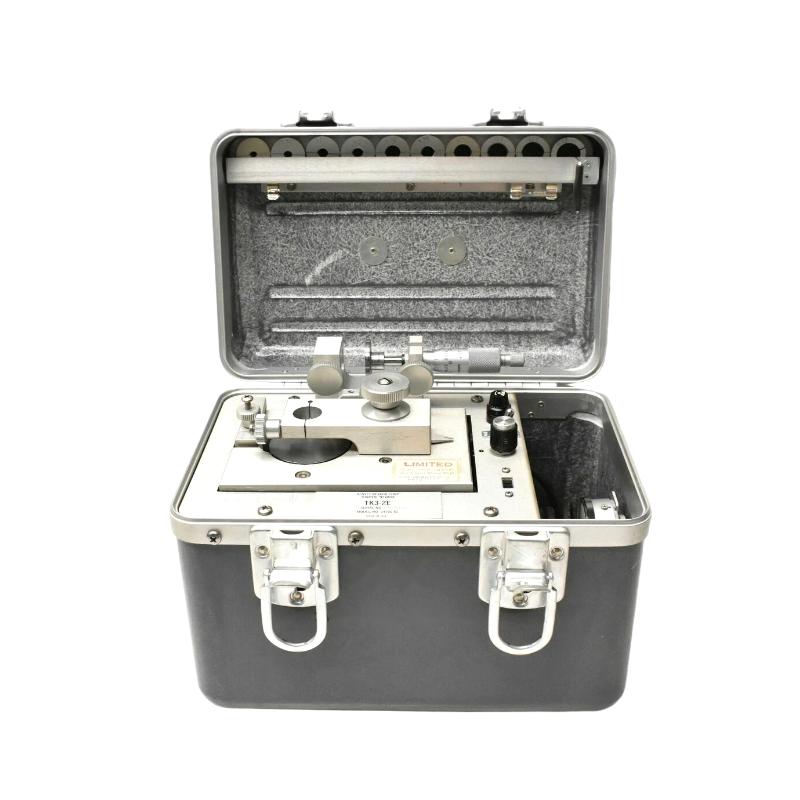

The Bently Nevada TK3-2E 14700-01 Calibration Instrument is a dedicated calibration and verification instrument associated with vibration monitoring equipment. It is used in maintenance and test environments where technicians need to check the response and operating condition of compatible vibration-monitoring components.
In a rotating-equipment monitoring system, instruments such as proximity probes, signal conditioners, and vibration monitoring channels need to be checked periodically. A calibration instrument gives maintenance personnel a controlled way to verify measurement behavior without relying entirely on the operating machine.
The TK3-2E is particularly useful during commissioning, preventive maintenance, troubleshooting, and bench testing. For example, when a vibration monitoring channel shows an unexpected reading, a technician can use the appropriate calibration equipment to determine whether the problem is related to the sensor, signal path, monitoring electronics, or the measurement setup.
It is therefore better viewed as a test and calibration tool for condition-monitoring systems, rather than as a permanent component installed in the normal vibration signal chain.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | TK3-2E 14700-01 |
| Product Type | Calibration Instrument |
| Series / Family | TK3-2E |
| Main Function | Calibration and Verification of Compatible Monitoring Equipment |
| System Role | Test and Calibration Equipment |
| Application | Vibration Monitoring and Machinery Maintenance |
| Typical Use | Sensor and Monitoring-System Verification |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
Product Features
The TK3-2E 14700-01 is intended for maintenance and calibration work involving machinery vibration-monitoring systems.
Key characteristics include:
- Bently Nevada calibration instrument format
- Intended for vibration-monitoring system verification
- Suitable for maintenance and commissioning activities
- Useful for troubleshooting measurement channels
- Can be used in controlled test environments
- Supports verification work on compatible monitoring equipment
- Suitable for field-service and workshop applications
- Dimensions of 195 × 299 × 248 mm
- Stated weight of 5.22 kg
The exact calibration procedure should be determined by the equipment being tested and the applicable maintenance procedure. Compatibility between the calibration instrument and the specific sensor or monitoring channel should be confirmed before use.
Working Principle
A practical calibration setup can be viewed as:
Calibration Instrument → Monitoring Component → Measurement / Verification
Instead of waiting for a rotating machine to generate an actual operating condition, a calibration instrument allows technicians to introduce a controlled test condition to the equipment being evaluated.
For example, during maintenance of a machinery protection system, a technician may need to determine whether an abnormal vibration indication originates from the proximity probe or from the downstream monitoring electronics. A controlled calibration procedure can help separate the sensor-side issue from the signal-processing side.
This is especially useful when working on systems that cannot easily be tested under normal machine operating conditions. The calibration instrument becomes a reference point for checking the measurement chain before the equipment is returned to service.
Industrial Applications
The TK3-2E 14700-01 is applicable to maintenance and testing activities associated with rotating machinery and vibration-monitoring systems.
| Application | Typical Use |
|---|---|
| Machinery Maintenance | Verification of vibration-monitoring channels |
| Turbomachinery Service | Checking monitoring equipment |
| Compressor Maintenance | Sensor and measurement-system testing |
| Pump Systems | Condition-monitoring verification |
| Power Generation | Maintenance of machinery protection systems |
| Industrial Rotating Equipment | Calibration and troubleshooting |
| Workshop Testing | Bench verification of compatible equipment |
| Commissioning | Checking monitoring-system installation |
The actual use depends on the specific Bently Nevada monitoring equipment and calibration procedure involved.
Compatible System Components
The TK3-2E 14700-01 is generally used alongside vibration-monitoring equipment rather than functioning as a standalone permanent control-system module.
| Component | Function |
|---|---|
| TK3-2E 14700-01 | Provides calibration and verification capability |
| Proximity Probe | Detects shaft position or movement |
| Probe Extension Cable | Connects the probe to associated electronics |
| Proximity Sensor Interface | Processes the probe signal |
| Vibration Monitoring Module | Receives and evaluates vibration-related signals |
| Machinery Protection System | Provides monitoring and protective functions |
| Monitoring Rack | Houses compatible monitoring electronics |
| Test Cables / Accessories | Connect calibration equipment to the test setup |
When troubleshooting a vibration channel, the complete signal path should be considered. A calibration result can be useful for determining whether the problem lies in the sensor, cabling, monitoring electronics, or configuration.
Installation and Maintenance
Unlike a permanently mounted monitoring module, the TK3-2E 14700-01 is normally handled as test equipment. Proper storage, transportation, connection, and calibration practices are therefore important.
Recommended checks include:
- Confirm the complete TK3-2E 14700-01 part number.
- Verify that the instrument is suitable for the equipment being tested.
- Inspect test cables and connectors before use.
- Check for physical damage to the instrument.
- Confirm the required test setup before connecting equipment.
- Follow the applicable calibration procedure.
- Avoid applying test conditions outside the intended equipment range.
- Keep connection points clean and secure.
- Record calibration or verification results where required.
- Store the instrument in an appropriate environment after use.
- Inspect accessories before subsequent testing.
- Verify the monitored equipment after calibration is complete.
When investigating an abnormal vibration reading, it is useful to compare the calibration result with the actual machine signal. This can help distinguish an instrumentation problem from a genuine change in machine condition.
Recommended Related Models
For the TK3-2E 14700-01, related equipment should be selected according to the vibration-monitoring application and the type of sensor or monitoring channel being tested.
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Bently Nevada TK3-2E 14700-01 | Calibration Instrument | Monitoring-system verification | Machinery maintenance |
| Bently Nevada 7200 Series Proximity Probes | Proximity Probe | Shaft displacement measurement | Rotating machinery |
| Bently Nevada Proximity Sensor Systems | Sensor System | Converts shaft movement into an electrical signal | Vibration monitoring |
| Bently Nevada Monitoring Modules | Monitoring Hardware | Signal measurement and protection | Machinery protection |
| Bently Nevada Extension Cables | Sensor Cable | Connects probes to monitoring electronics | Proximity measurement |
| Bently Nevada Machinery Protection Systems | Monitoring System | Machinery condition and protection monitoring | Industrial rotating equipment |
When selecting associated equipment, verify sensor type, signal requirements, cable configuration, monitoring hardware, and the intended calibration procedure rather than relying on product family names alone.
Key Advantages
- Dedicated calibration and verification equipment
- Intended for vibration-monitoring applications
- Useful for maintenance and troubleshooting
- Suitable for commissioning and test work
- Helps isolate problems within a vibration measurement chain
- Applicable to rotating-machinery monitoring systems
- Suitable for workshop and service applications
- Dimensions of 195 × 299 × 248 mm
- Stated weight of 5.22 kg
Technical FAQs
What is the Bently Nevada TK3-2E 14700-01 primarily used for?
The TK3-2E 14700-01 is used as calibration and verification equipment for compatible vibration-monitoring applications. It is intended to help maintenance personnel check measurement equipment under controlled test conditions.
Can the TK3-2E be used to troubleshoot a suspected proximity-probe problem?
It can be part of a structured troubleshooting process when the calibration procedure and equipment under test are compatible. The test can help determine whether an abnormal measurement originates from the probe, cabling, monitoring electronics, or another part of the signal chain.
Is the TK3-2E installed permanently in a machinery protection rack?
No. It is calibration and test equipment rather than a normal permanent monitoring module. It is typically brought into the measurement setup when testing, calibration, commissioning, or maintenance work is required.
What should be checked before using the TK3-2E 14700-01?
The exact equipment being tested, required calibration procedure, connection method, accessories, and test conditions should be verified first. The instrument should also be inspected for physical damage and checked to ensure that the test setup is appropriate for the monitoring equipment.
