Product Overview

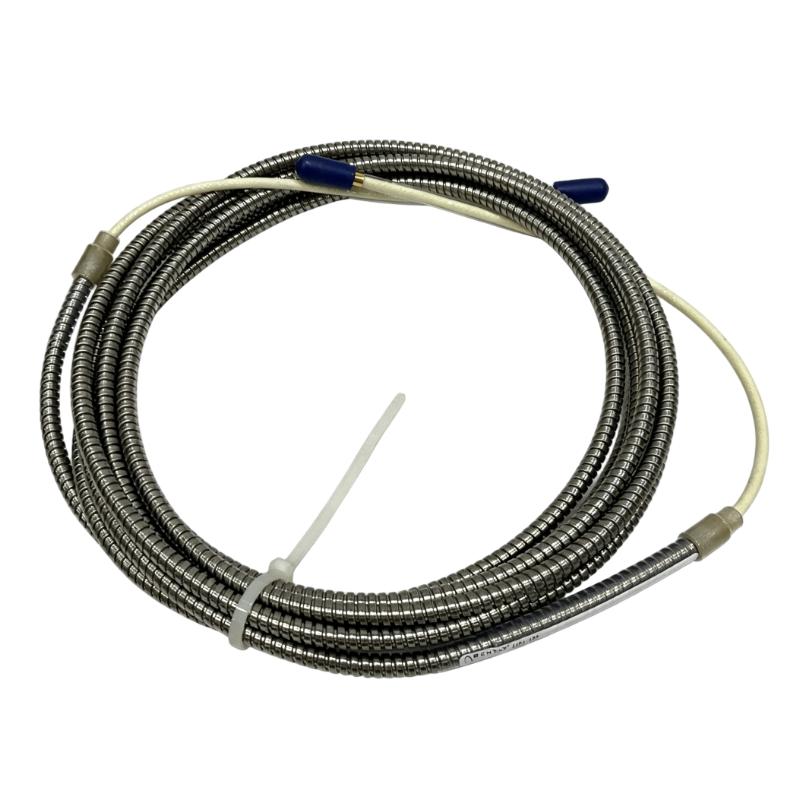

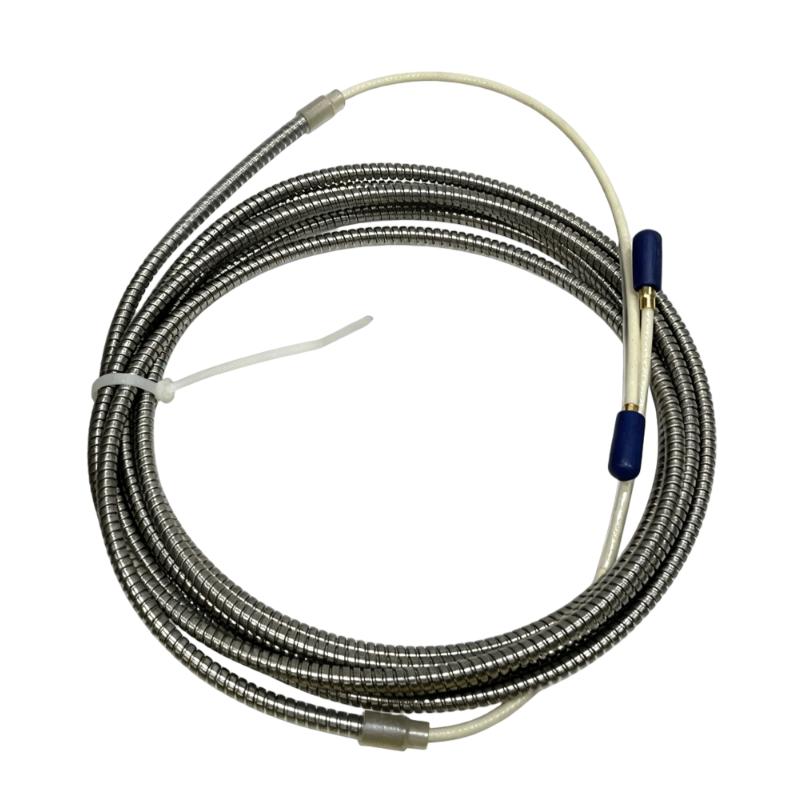

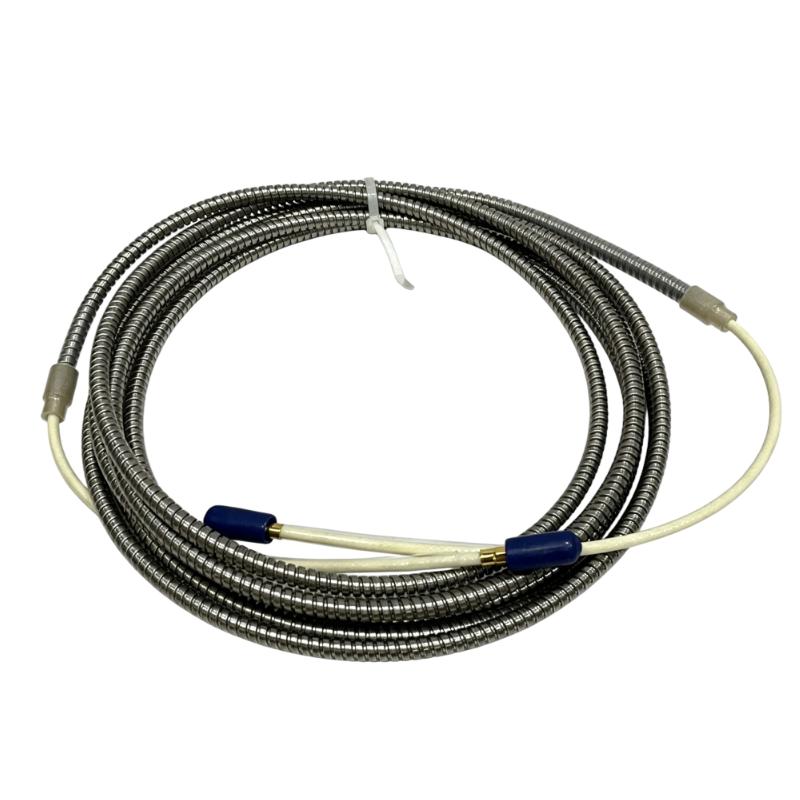

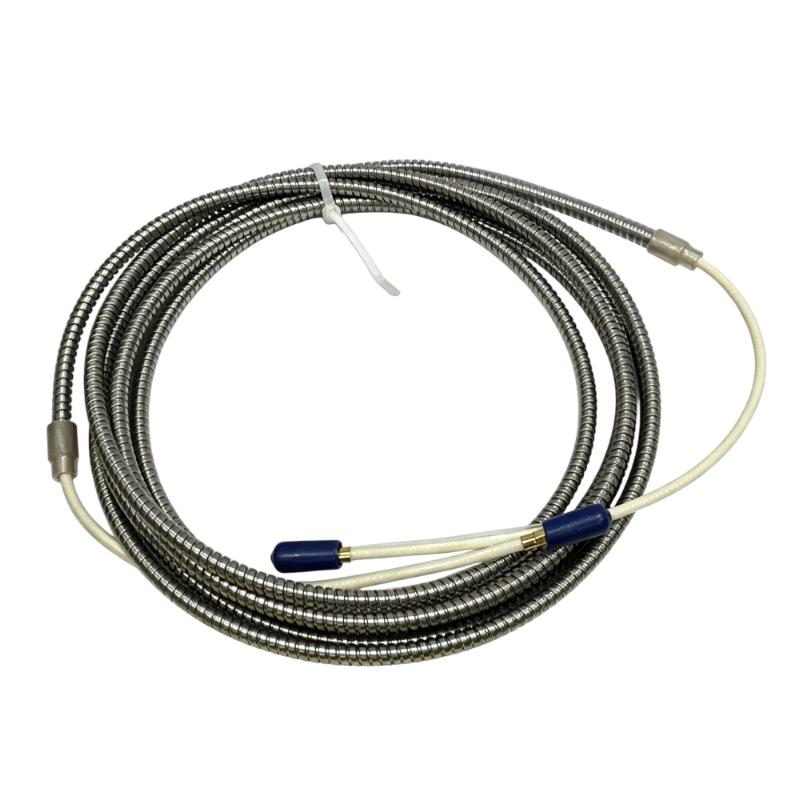

The Bently Nevada 4454-156 Thermocouple Heat Sensor Extension Cable is a cable assembly used to extend the electrical connection between a compatible thermocouple heat sensor and its associated monitoring or interface equipment. It forms part of the sensor signal path while remaining a passive connection component.
In machinery monitoring installations, thermocouple sensors may be positioned close to bearings, housings, process equipment, or other locations where temperature needs to be observed. The extension cable allows the sensor connection to reach equipment located at a more suitable termination or monitoring point.
The cable can be relevant to industrial machinery where temperature information is used alongside vibration, speed, position, or other condition-monitoring signals. A properly maintained connection helps preserve continuity between the temperature-sensing point and the downstream monitoring circuit.
During maintenance, the 4454-156 should be evaluated as part of the complete thermocouple circuit. Connector condition, cable routing, sensor compatibility, and the associated monitoring input should be checked together when troubleshooting abnormal temperature readings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 4454-156 |
| Product Family | Bently Nevada Machinery Monitoring Components |
| Product Type | Thermocouple Heat Sensor Extension Cable |
| Primary Function | Thermocouple sensor signal extension |
| System Role | Temperature-sensor electrical interconnection |
| Typical Application | Machinery temperature and condition monitoring |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
Product Features
- Thermocouple heat sensor extension cable for compatible Bently Nevada installations.
- Extends the electrical connection between a thermocouple sensor and associated equipment.
- Forms part of the temperature measurement signal path.
- Suitable for machinery condition-monitoring applications involving temperature measurement.
- Supports sensor-to-monitor connection where additional cable reach is required.
- Passive cable assembly with no independent measurement or control function.
- Suitable for maintenance and replacement of compatible sensor wiring.
- Requires verification of connector and system compatibility before installation.
Working Principle
The 4454-156 provides a conductive path between the thermocouple heat sensor and the corresponding monitoring or interface equipment. The temperature sensor generates a thermocouple signal, and the extension cable carries that signal toward the downstream input.
Thermocouple Heat Sensor → 4454-156 Extension Cable → Monitoring / Interface Equipment → Temperature Monitoring System
The cable does not measure temperature or interpret the sensor signal. Its purpose is to preserve the electrical connection between the sensing point and the receiving equipment.
Because thermocouple circuits depend on correct electrical connections, an open conductor, damaged connector, incorrect wiring, or poor termination can produce an abnormal or missing temperature indication. The extension cable should therefore be checked together with the sensor and monitoring input when investigating measurement problems.
Role in a Bently Nevada Temperature Monitoring Architecture
The 4454-156 occupies the sensor interconnection layer of a temperature-monitoring arrangement. It links the field-mounted thermocouple heat sensor with the equipment responsible for receiving and processing the temperature signal.
Machine / Heat Source → Thermocouple Sensor → 4454-156 Extension Cable → Monitoring Input → Temperature Monitoring / Alarm System
| System Element | Function |
|---|---|
| Machine / Heat Source | Produces the temperature condition being monitored |
| Thermocouple Heat Sensor | Detects the temperature-related condition |
| 4454-156 | Extends the sensor electrical connection |
| Monitoring Input | Receives the thermocouple signal |
| Temperature Monitoring | Processes and displays temperature information |
| Alarm / Protection System | Provides configured response to abnormal conditions |
The cable is part of the measurement path, so its electrical continuity and connection quality should be considered when diagnosing temperature-monitoring faults.
Industrial Applications
| Application | Typical Use |
|---|---|
| Turbine Temperature Monitoring | Extending thermocouple sensor connections |
| Compressor Monitoring | Temperature sensing around machinery components |
| Pump Monitoring | Sensor-to-monitor temperature signal routing |
| Generator Systems | Connecting temperature sensors to monitoring equipment |
| Bearing Temperature Monitoring | Extending sensor wiring from machinery |
| Industrial Machinery | Temperature condition monitoring connections |
| Machinery Protection Systems | Sensor signal routing for temperature alarms |
| Plant Maintenance | Replacement of damaged sensor extension cables |
Installation and Maintenance
- Verify the complete 4454-156 part number before installation or replacement.
- Confirm compatibility with the installed thermocouple heat sensor and receiving equipment.
- Isolate the relevant equipment according to the applicable maintenance procedure.
- Identify both cable endpoints and document the existing connection arrangement.
- Inspect the cable jacket, connectors, and termination points for visible damage.
- Check the thermocouple wiring arrangement before disconnecting the existing cable.
- Route the extension cable away from crushing points, excessive bending, abrasion, and mechanical movement.
- Avoid unnecessary exposure to electrical interference and sources of excessive heat where practical.
- Verify that both cable ends are correctly connected and fully seated.
- Check the temperature signal after installation and compare it with expected operating conditions.
- If the temperature indication is unstable or missing, inspect the sensor, cable, connectors, and monitoring input as a complete circuit.
- After replacement, perform a functional temperature-monitoring test before returning the machinery to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Bently Nevada Thermocouple Sensor | Detects temperature at the monitored location |
| 4454-156 Extension Cable | Extends the thermocouple electrical connection |
| Sensor Connector Assembly | Provides the sensor-side cable interface |
| Monitoring Input Channel | Receives the temperature signal |
| Temperature Monitoring Module | Processes and displays temperature information |
| Machinery Monitoring System | Combines temperature and other condition data |
| Alarm System | Indicates configured abnormal temperature |
| Machinery Protection System | Provides protective response where configured |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 4454-156 | Thermocouple Heat Sensor Extension Cable | Temperature sensor signal extension |
| Bently Nevada Thermocouple Sensors | Temperature Sensor | Machinery temperature measurement |
| Bently Nevada Temperature Monitoring Components | Temperature Monitoring Equipment | Temperature condition monitoring |
| Bently Nevada 2300 Series | Machinery Monitoring System | Condition monitoring |
| Bently Nevada 3300 XL Series | Machinery Monitoring System | Continuous machinery monitoring |
| Bently Nevada 3500 Series | Machinery Protection System | Critical machinery protection |
| Bently Nevada Sensor Extension Cables | Sensor Cable Assembly | Field sensor interconnection |
| Bently Nevada Monitoring Accessories | Monitoring Accessories | Sensor installation and maintenance |
Key Advantages
- Extends the electrical connection of a compatible thermocouple heat sensor.
- Supports temperature-signal routing between machinery and monitoring equipment.
- Forms part of the complete thermocouple measurement circuit.
- Suitable for industrial machinery temperature-monitoring installations.
- Useful when sensor and monitoring equipment are physically separated.
- Supports replacement and maintenance of existing Bently Nevada sensor wiring.
Technical FAQs
Why is the extension cable considered part of the thermocouple measurement circuit?
The cable carries the electrical signal generated by the thermocouple toward the monitoring input. Its conductors and connections therefore form part of the complete measurement path, and wiring problems can affect the resulting temperature indication.
What should be checked if the temperature reading becomes unstable after cable replacement?
Check the sensor connection, both cable terminations, cable routing, and the monitoring input. The thermocouple circuit should be treated as a complete path rather than assuming that an unstable reading originates from the sensor alone.
Can any generic extension cable be substituted for the 4454-156?
Substitution should not be based only on physical fit or cable length. The thermocouple type, conductor arrangement, connector configuration, and compatibility with the installed monitoring system should be verified before using an alternative cable.
How can cable routing affect a thermocouple monitoring installation?
Mechanical stress, abrasion, excessive heat exposure, and electrical interference can affect the condition of the cable and its connections. Appropriate routing and support help preserve the continuity of the temperature-sensor circuit during machine operation.
