Product Overview

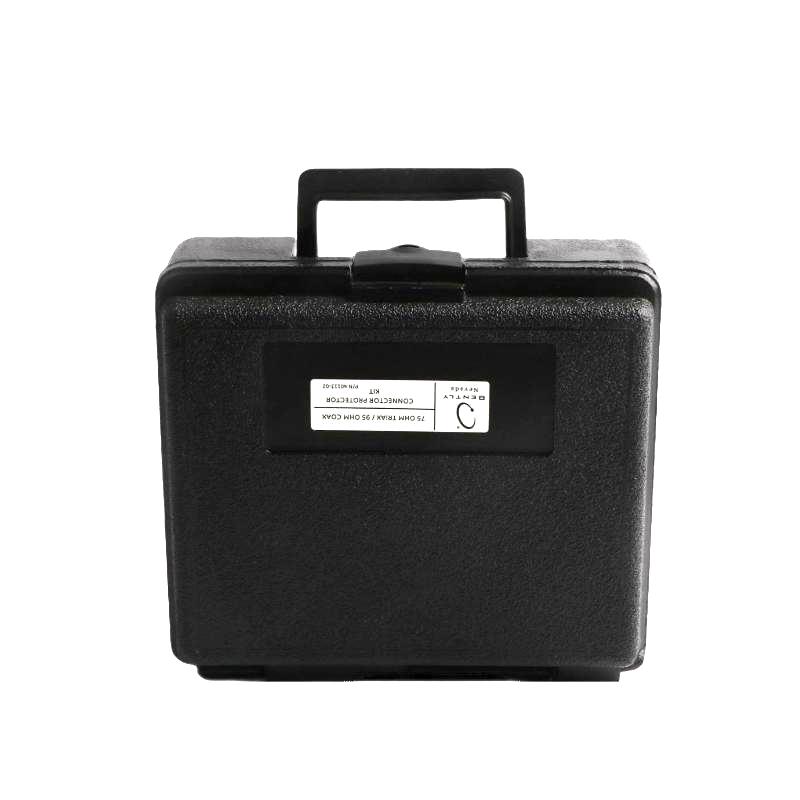

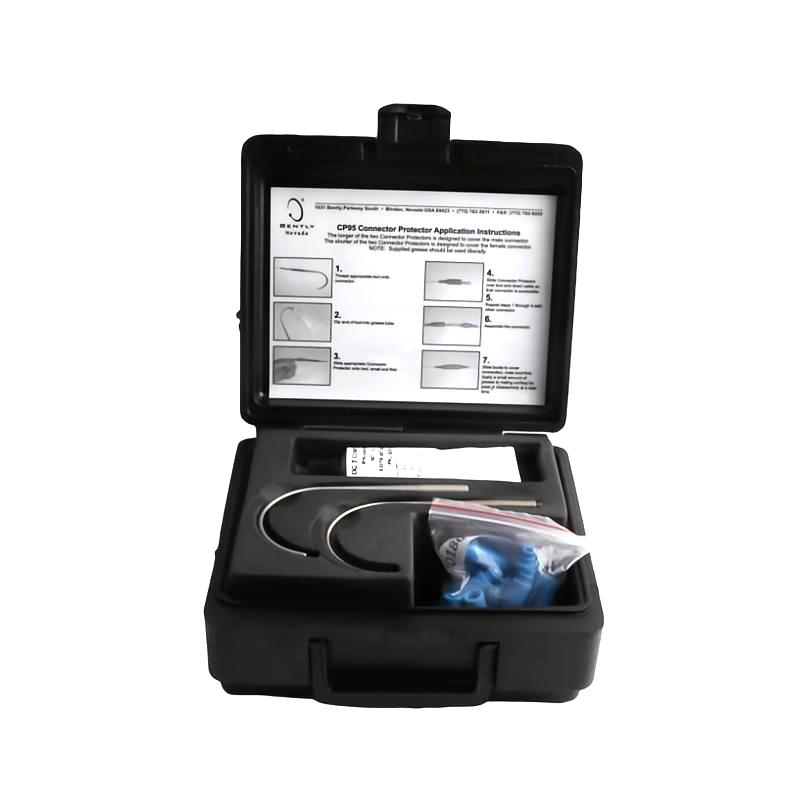

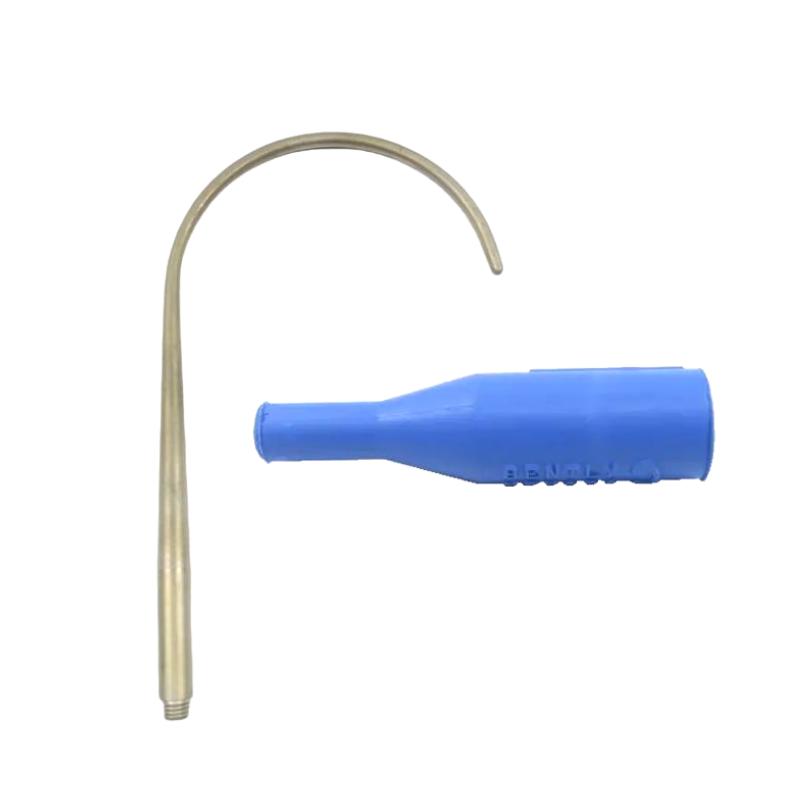

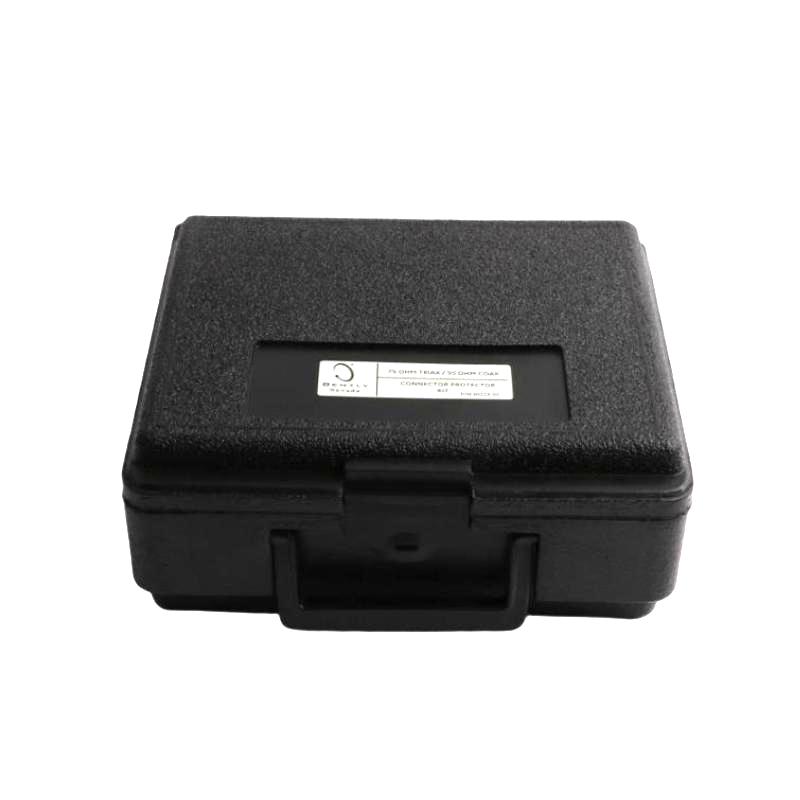

The Bently Nevada 40113-02 Connector Protector Kit is a protective accessory used to safeguard connector interfaces within machinery monitoring and instrumentation installations. It helps protect exposed or vulnerable connector areas from mechanical contact, contamination, and other installation-related stresses.
Connector protection is particularly relevant in rotating machinery applications where sensor cables and electrical interfaces may be routed near equipment subject to vibration, movement, or routine maintenance activity. A suitable protector helps reduce the likelihood of accidental connector damage during operation or servicing.
The 40113-02 can be used as part of a broader Bently Nevada monitoring installation where maintaining the physical condition of sensor and signal connections is important. It is a passive accessory and does not perform measurement, signal conditioning, or machinery protection functions.
During maintenance, the kit can be inspected when connector damage, cable strain, contamination, or repeated service activity is observed around the monitoring connection. Correct installation should maintain adequate protection without placing unnecessary stress on the connector or cable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 40113-02 |
| Product Family | Bently Nevada Machinery Monitoring Accessories |
| Product Type | Connector Protector Kit |
| Primary Function | Protection of connector and cable interface |
| System Role | Connector protection accessory |
| Application | Machinery monitoring and instrumentation systems |
| Dimensions | 245 × 125 × 25 mm |
| Weight | 0.726 kg |
Product Features
- Connector protector kit for Bently Nevada monitoring installations
- Helps protect vulnerable connector interfaces from physical damage
- Supports protection of sensor and signal connections
- Suitable for machinery instrumentation environments
- Useful where connectors are exposed to routine maintenance activity
- Passive accessory with no measurement or signal-processing function
- Can help maintain the physical condition of monitoring-system connections
- Suitable for replacement and maintenance applications
Working Principle
The 40113-02 works through mechanical protection rather than electrical signal processing. Once installed around the applicable connector interface, it helps shield the connection from accidental impact, mechanical interference, and other environmental or handling stresses.
Sensor / Cable → Connector Interface → 40113-02 Protector → Monitoring Equipment
The protector does not alter the measurement signal. Its function is to preserve the physical condition of the connector and its associated cable connection so that the electrical path remains properly connected during normal equipment operation.
A damaged or poorly positioned protector may leave the connector exposed or introduce mechanical stress into the cable connection. For this reason, the protector should be treated as part of the installation hardware surrounding the monitoring connection.
Role in a Bently Nevada Machinery Monitoring Architecture
The 40113-02 occupies the mechanical protection layer around the signal-connection interface. It supports the physical integrity of the connection between field instrumentation and the downstream monitoring equipment.
Machine Sensor → Sensor Cable → Connector Interface → 40113-02 Protector → Monitoring Electronics → Monitoring System
| System Element | Function |
|---|---|
| Machine Sensor | Detects the monitored machine condition |
| Sensor Cable | Transfers the measurement signal |
| Connector Interface | Provides the electrical connection |
| 40113-02 | Protects the connector and associated interface |
| Monitoring Electronics | Conditions or processes the sensor signal |
| Machinery Monitoring System | Evaluates machine-condition information |
| Alarm / Protection System | Provides configured response to abnormal conditions |
The connector protector therefore supports the physical infrastructure of the monitoring channel while leaving sensing and signal processing to the associated equipment.
Industrial Applications
| Application | Typical Use |
|---|---|
| Turbine Monitoring | Protection of sensor connector interfaces |
| Compressor Monitoring | Cable and connector protection |
| Pump Condition Monitoring | Safeguarding field sensor connections |
| Motor Vibration Monitoring | Protection around monitoring cable interfaces |
| Generator Monitoring | Connector protection in machinery instrumentation |
| Industrial Machinery | Mechanical protection of signal connections |
| Maintenance Installations | Protection during repeated service activities |
| Machinery Protection Systems | Supporting physical integrity of monitoring paths |
Installation and Maintenance
- Verify that the 40113-02 is intended for the connector arrangement being serviced.
- Isolate the relevant machinery and follow applicable maintenance procedures before working on the connector area.
- Inspect the protector kit for cracks, deformation, or other physical damage.
- Check the connector and cable before installing the protector.
- Remove contamination from the connection area using an appropriate maintenance procedure.
- Position the protector so that the connector is adequately shielded.
- Ensure that installation does not place excessive bending or pulling force on the connected cable.
- Verify that the protector is securely positioned and cannot interfere with nearby equipment.
- Check cable routing after installation to ensure that movement or vibration does not transfer excessive load to the connector.
- Inspect the protected connection during scheduled machinery maintenance.
- Replace the protector if physical damage prevents it from maintaining the intended protective arrangement.
- After maintenance, verify the connector condition and confirm normal operation of the complete monitoring channel.
Compatible System Components
| Component | Function |
|---|---|
| Bently Nevada Monitoring Sensor | Detects vibration or other machine-condition signals |
| Sensor Cable | Transfers measurement signals to monitoring equipment |
| Connector Assembly | Provides the electrical signal interface |
| Proximity Probe | Provides non-contact shaft measurement |
| Accelerometer | Detects machine vibration |
| Signal Conditioner | Processes the sensor signal |
| Machinery Monitoring Module | Receives and evaluates monitoring information |
| Cable Mounting Hardware | Supports and protects instrumentation wiring |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 40113-02 | Connector Protector Kit | Connector and cable protection |
| Bently Nevada 3300 XL Series | Proximity Monitoring System | Shaft vibration and position monitoring |
| Bently Nevada 3500 Series | Machinery Protection System | Critical machinery protection |
| Bently Nevada 2300 Series | Machinery Monitoring System | Compact machinery monitoring |
| Bently Nevada 330400 Series | Accelerometer | Machinery vibration measurement |
| Bently Nevada 7200 Series | Proximity Monitoring System | Rotating machinery monitoring |
| Bently Nevada Sensor Accessories | Sensor Installation Accessories | Field sensor installation and protection |
Key Advantages
- Protects connector interfaces used in machinery monitoring installations.
- Helps reduce mechanical exposure of sensor and signal connections.
- Supports better cable and connector protection around rotating equipment.
- Useful for installations subject to vibration and routine maintenance activity.
- Passive design does not interfere with the monitoring signal.
- Suitable for maintenance and replacement of compatible connector protection arrangements.
Technical FAQs
Where should the 40113-02 be used in a monitoring installation?
It is used around the applicable connector interface as a mechanical protection accessory. The exact installation position depends on the connector and cable arrangement of the monitoring system.
Can the connector protector improve the electrical quality of a sensor signal?
It does not condition or amplify the signal. Its contribution is mechanical: protecting the connector and cable interface can help prevent physical connection problems that might otherwise interrupt the signal path.
What should be checked if a protected connector still shows intermittent communication or measurement?
Inspect the connector seating, cable condition, termination, and protector installation. The associated sensor and monitoring electronics should also be checked because intermittent behavior is not necessarily caused by the protector itself.
When should the 40113-02 be replaced?
Replacement should be considered when the protector is cracked, deformed, loose, or otherwise unable to maintain the intended protection of the connector interface. The connector and cable should also be inspected at the same time.
