Product Overview — Bently Nevada 3500/94‑145988‑01
Product Introduction

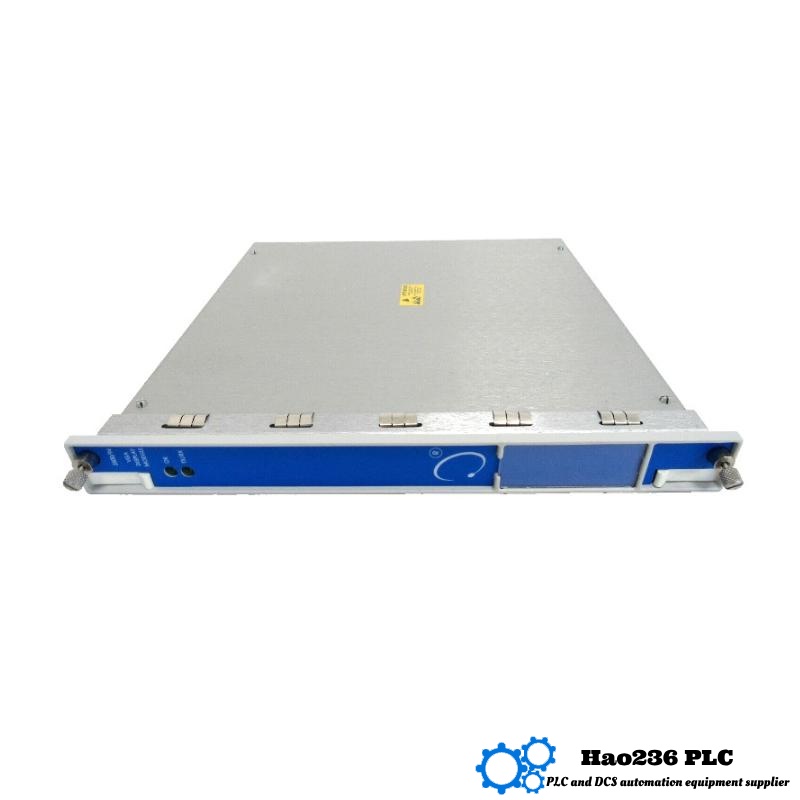

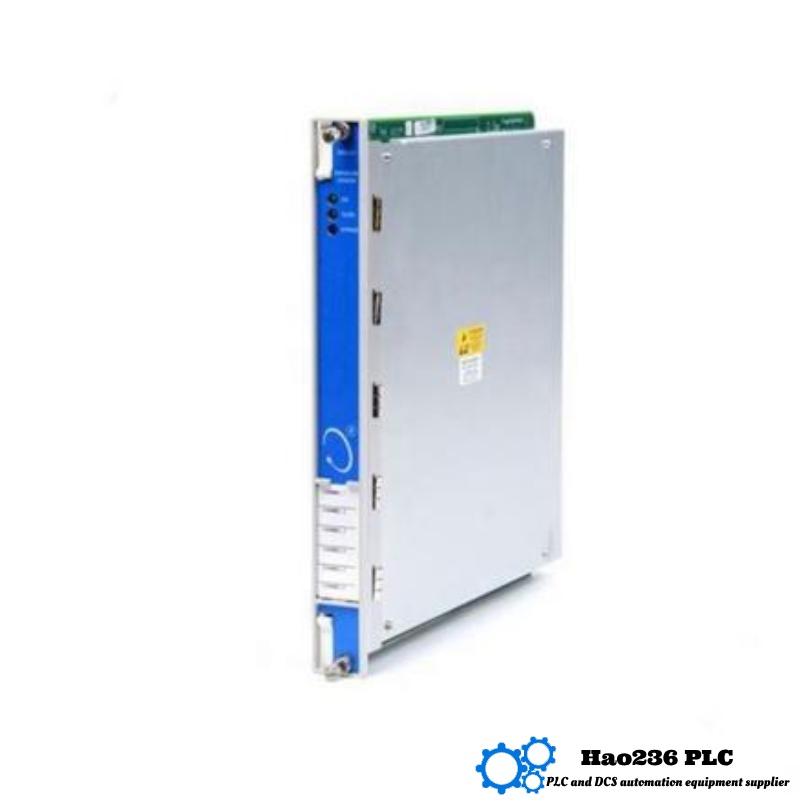

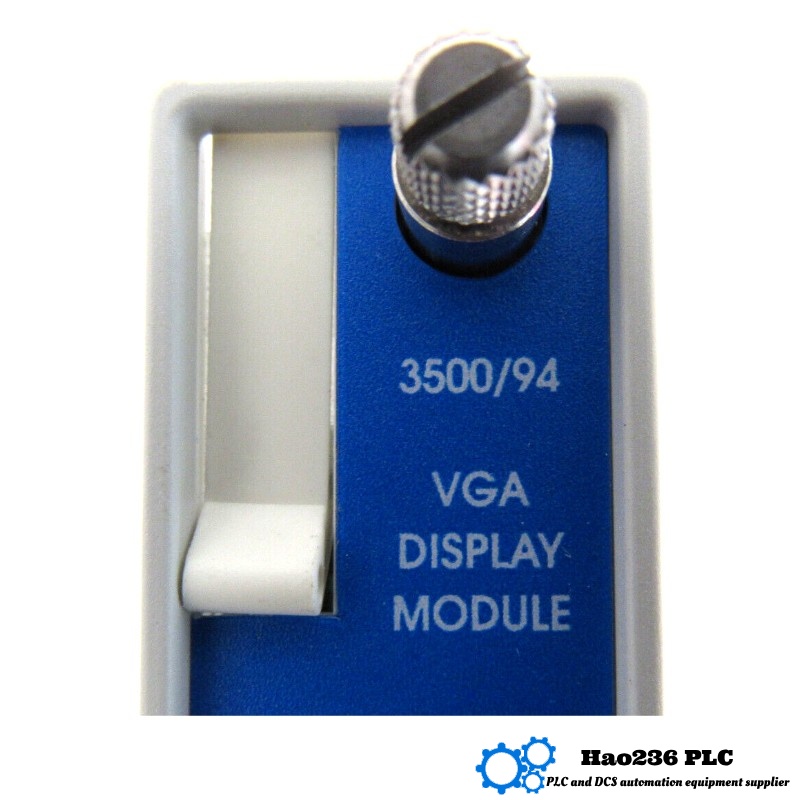

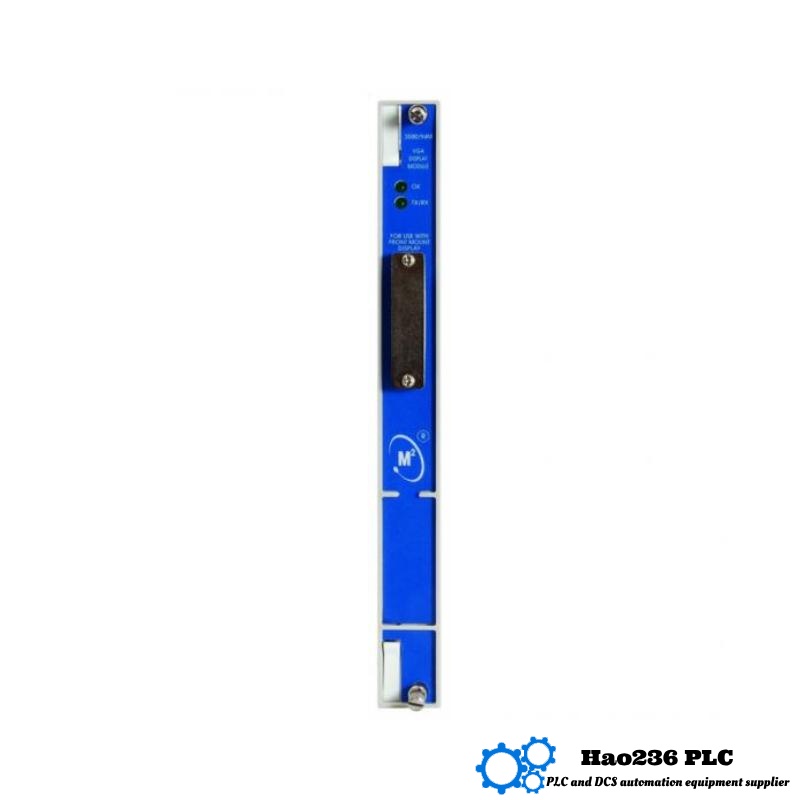

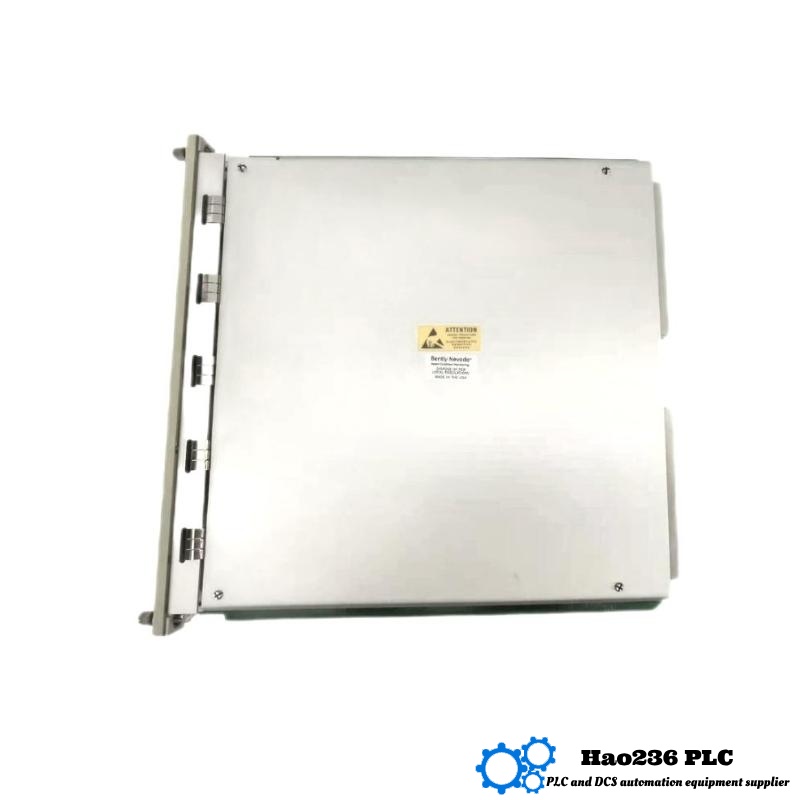

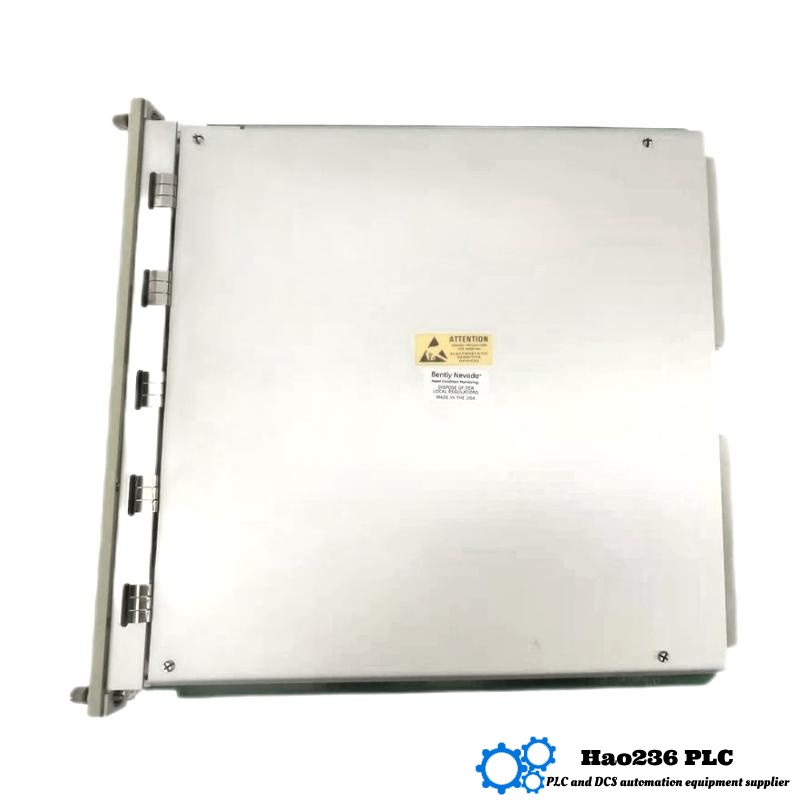

The 3500/94‑145988‑01 is a VGA display module from the Bently Nevada 3500 Machinery Protection System. It is designed to provide local visualization of the machine condition, alarm and system event data, module / channel values, and rack‑view (in 3300 style / API‑670 style) for operators near the machinery or in a control room. It includes the display module with I/O card, supports touch screen operation, custom display pages, and can be installed at a distance from the 3500 rack using standard cabling.
Its role is to give clear, real‑time visibility of protection system status, allowing quicker diagnosis, monitoring, and response.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Model | 3500/94‑145988‑01 |
| Brand | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Function | VGA Display Module with touch screen and I/O interface |
| Display Type | Standard color VGA monitor; touch screen capable |
| Display Content | System event list, alarm event list, all module and channel data, rack view (3300 style / API‑670 style), current alarms, nine custom display options |
| Power Supply | 24 V DC |
| Power Consumption | Max ≈ 4.6 watts |
| Operating Temperature | Approximately ‑20°C to +65°C |
| Storage Temperature | Approximately ‑40°C to +85°C |
| Humidity | Up to 95% non‑condensing |
| Mounting Distance from Rack | Up to about 8 meters (≈ 25 feet) with standard cabling |
| Dimensions (H × W × D) | 24.3 cm × 4.6 cm × 15.5 cm |
| Weight | 0.55 kg |
Applications
The 3500/94‑145988‑01 is used in places where local visibility of machine protection system information is important. Typical applications include:
-
Power generation plants, for turbine, generator, bearing, rotor health monitoring
-
Oil & gas facilities (onshore/offshore), compressors, pumps, rotating equipment
-
Petrochemical / Chemical plants, for monitoring reactors, heat exchangers, critical rotating machines
-
Steel, mining, manufacturing industries with heavy machinery, fans, blowers, motors etc.
-
Utilities, water treatment, or other industrial automation sites where safety and early fault detection are essential
Advantages
-
High Clarity Display: VGA resolution and color display plus optional touch screen make reading data quick and intuitive
-
Custom Display Pages: Up to nine custom pages, allowing operators to tailor what they view (e.g. 1X vibration, gap values, channel summaries, etc.)
-
Rack‑View in 3300 / API‑670 Style: Makes it easier for those familiar with API‑670 / 3300 layout to orient themselves
-
Distance Flexibility: Display can be located some meters away from the rack (≈8 m) with standard cable; reduces clutter around the rack
-
Moderate Power Draw: At ~4.6 W, it does not add large heat or power load, aiding in efficiency and reliability
-
Solid Build & Components: Designed for industrial environment, including temperature and humidity tolerance
-
Ease of Configuration: Compatible with 3500 Rack Configuration Software; built‑in I/O card simplifies integration
Brand & Series
-
Brand: Bently Nevada
-
Series: 3500 Machinery Protection System
-
Module Type: Display / Visualization Module (VGA Display with I/O Card)
Related / Similar Models in the Same Series
Here are five related or same‑series models, with specifications to compare:
| Model | Application / Purpose | Display / Features | Dimensions / Weight | Key Distinctions |
|---|---|---|---|---|
| 3500/94‑147663‑01 | Display + I/O module variant | VGA display + I/O, supports custom screens and proximity / vibration data | ~24.1×24.4×24.2 cm (module) / ~0.73 kg (display) + I/O card weight | Includes I/O; more integration at display location |
| 3500/94M‑05‑00‑00 | Larger display screen option | 15‑inch screen version, touch optional | Larger panel, heavier (~several kg) | Best for control room visibility |
| 3500/94M‑00‑00‑00 | Basic display module with minimal extras | VGA display, fewer options | Similar size, similar or slightly less weight | Lower cost, fewer features |
| 3500/94M‑02‑00‑CN | Certified / rugged / hazard‑area capable version | VGA display, possibly certified for hazardous area, rugged build | Similar size; weight may vary with protective features | For safety rated zones or harsh environments |
| 3500/94 + 147663‑01 | Combined display + I/O package | Display + I/O card, same display features | Combined weight higher than display alone | Package solution with both display and I/O included |
Popular Models from the Same Brand (Bently Nevada)
Here are five widely used modules or devices from Bently Nevada, useful for comparison or complementing this display module:
| Model | Application / Purpose | Dimensions / Weight | Key Features |
|---|---|---|---|
| 3500/22M 138607‑01 | Transient Data Interface (TDI) module | ~0.5 kg; module size moderate | Captures transient (impact, shock) data for diagnostics |
| 3500/33 149986‑01 | Relay Output Module (16 channels) | ~0.43 kg; slim rack module | Drives alarms or shutdown actions via relay outputs |
| 3500/40 135489‑04 | Proximitor / Displacement Monitor | ~0.5 kg | Measures shaft position, proximity sensors |
| 3500/92 136180‑01 | Communication Gateway Module | ~0.3‑0.5 kg depending on version | Interfaces 3500 rack with external networks / fieldbus |
| 3500/60 | Temperature Monitor Module | ~0.9‑1.0 kg depending on number of channels | Monitors RTDs / thermocouples; used for bearing, enclosure temperatures |
FAQs (10 Questions & Answers)
-
Q: What display distance from the 3500 rack is supported?
A: Up to about 8 meters (≈25 feet) using standard VGA cable with the 145988‑01 module. -
Q: What is the power consumption of this display module?
A: Maximum around 4.6 watts under normal display configuration. -
Q: What are the operating and storage temperature ranges?
A: Operating roughly ‑20°C to +65°C; storage about ‑40°C to +85°C. -
Q: What is the weight of the module?
A: Approximately 0.55 kg. -
Q: How many custom display screens can the user configure?
A: Up to nine custom display pages are supported. -
Q: What kinds of information does this module display by default?
A: System event list, alarm event list, all module & channel data, rack view (in 3300 style / API‑670 style), current alarms, etc. -
Q: Is the module touch screen capable?
A: Yes, this module supports a touch screen display. -
Q: How robust is the module in terms of industrial environment?
A: It can handle up to 95% non‑condensing humidity; designed for industrial usage; tolerates vibration, temperature variability, etc. -
Q: What voltage power input is required?
A: The module requires 24 V DC. -
Q: What are the dimensions of the module for installation planning?
A: Dimensions are about 24.3 cm × 4.6 cm × 15.5 cm; this is useful for panel cut‑outs or rack space allocation.
