Product Overview: 3500/94 145988-01 + 147663-01
Product Name: 3500/94 145988-01 + 147663-01
Specifications
| Parameter | Details |
|---|---|
| Dimensions (L × W × H) | 140 mm × 65 mm × 35 mm |
| Weight | 0.5 kg |
| Power Supply | 24 V DC ±10% |
| Power Consumption | 4.6 W maximum |
| Display Type | VGA color touchscreen |
| Resolution | 640 × 480 pixels |
| Communication Interface | VGA interface |
| Mounting Distance | Up to 8 meters (25 feet) from rack using standard cabling |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 95%, non-condensing |
| Rack Compatibility | Compatible with API-670 standard |
| Configuration | Configurable via 3500 Rack Configuration Software |
Product Description

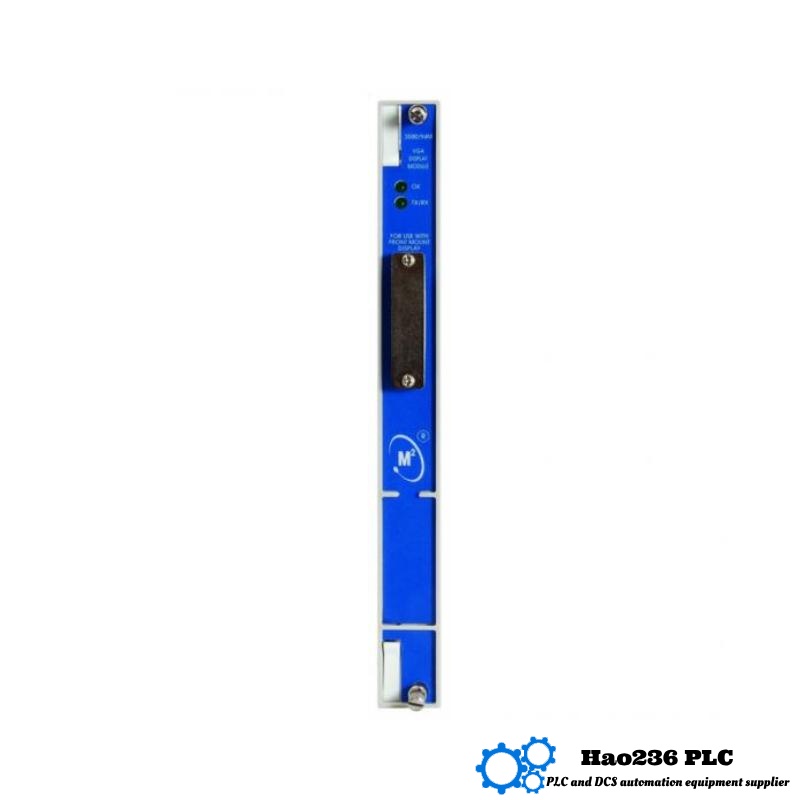

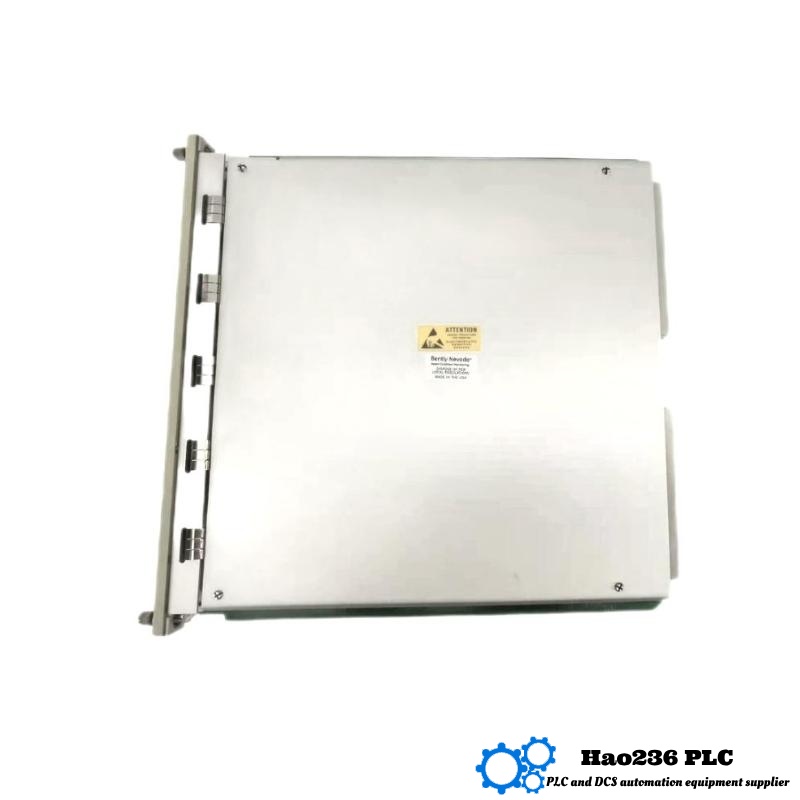

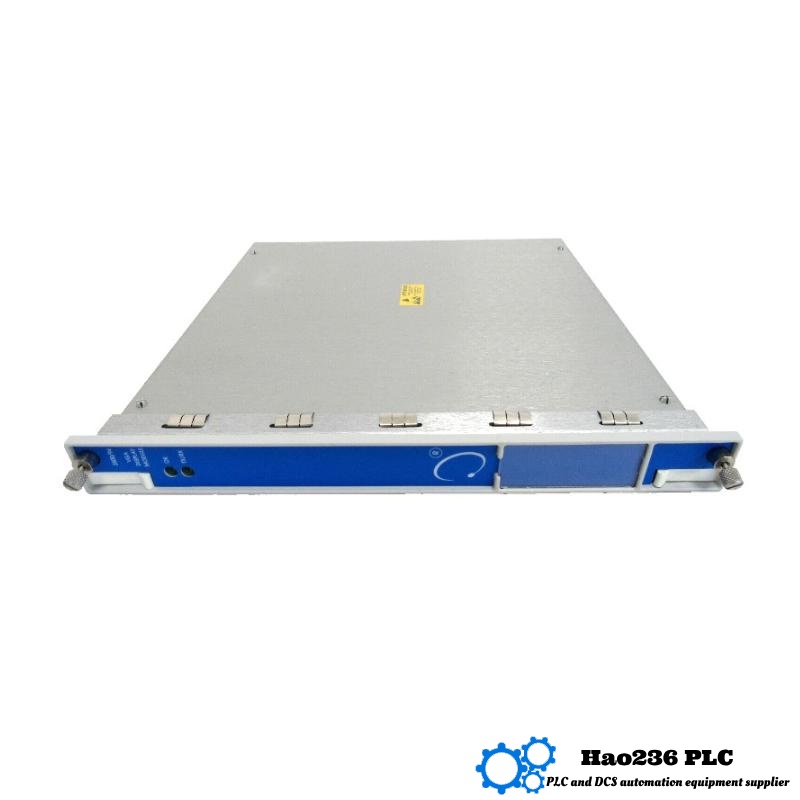

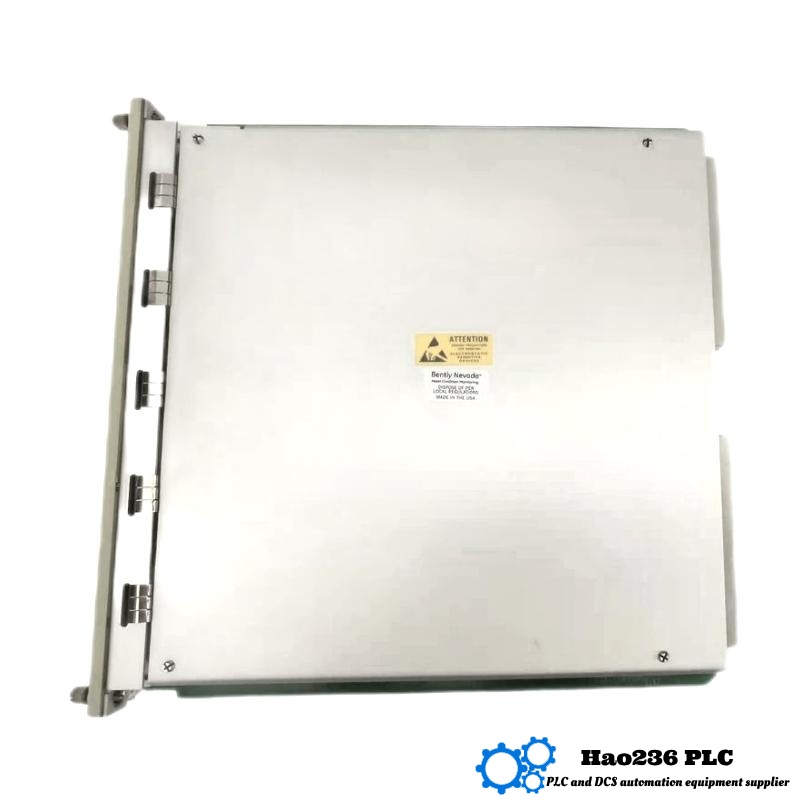

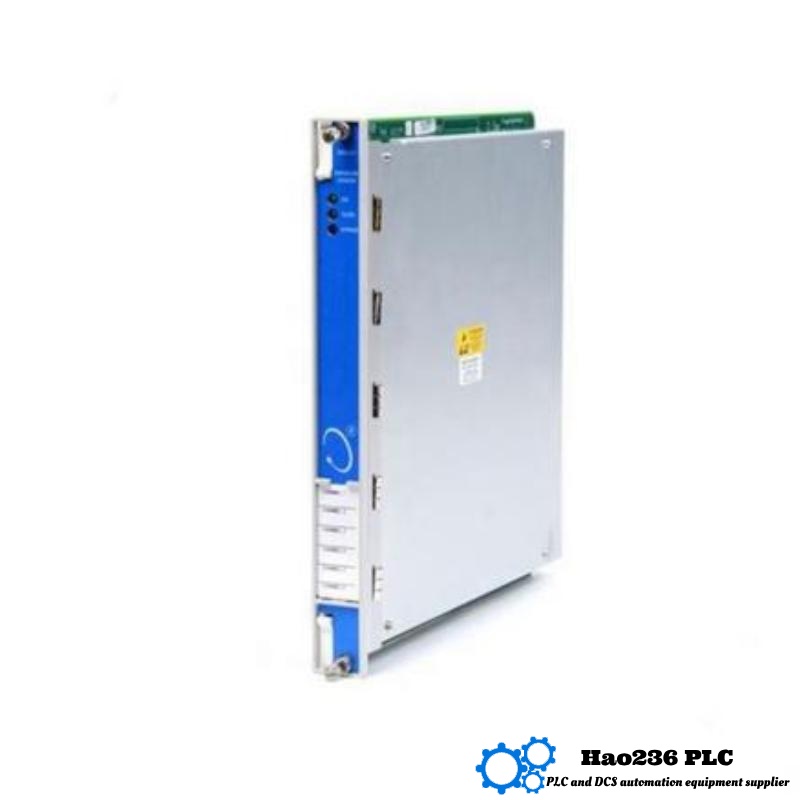

The 3500/94 145988-01 + 147663-01 module comprises two components: the 3500/94 145988-01 VGA Display Module and the 147663-01 I/O Module. Together, they form a robust interface for real-time data visualization in the Bently Nevada 3500 machinery protection system.
-

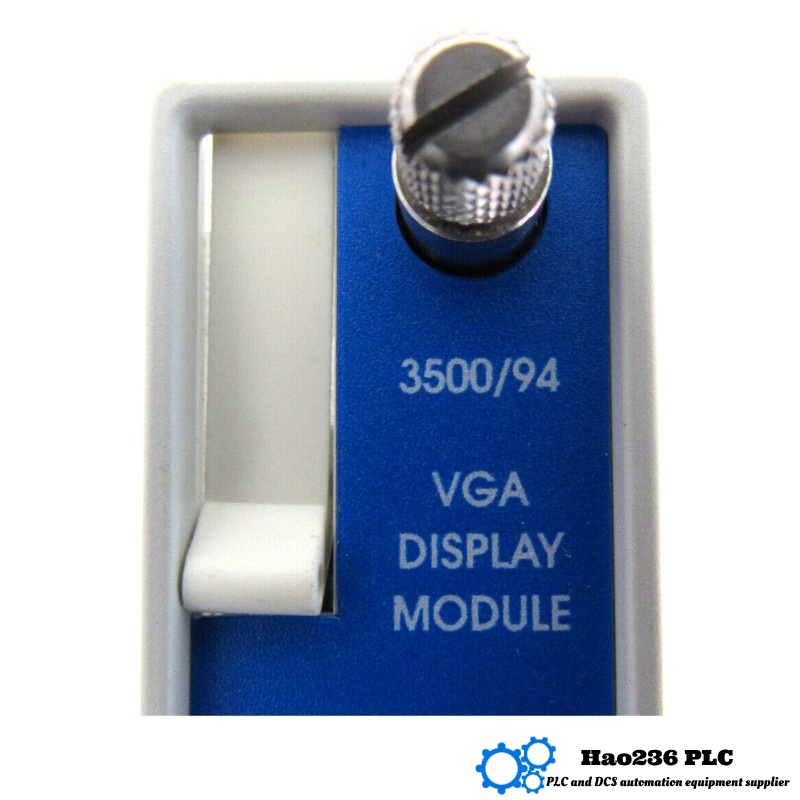

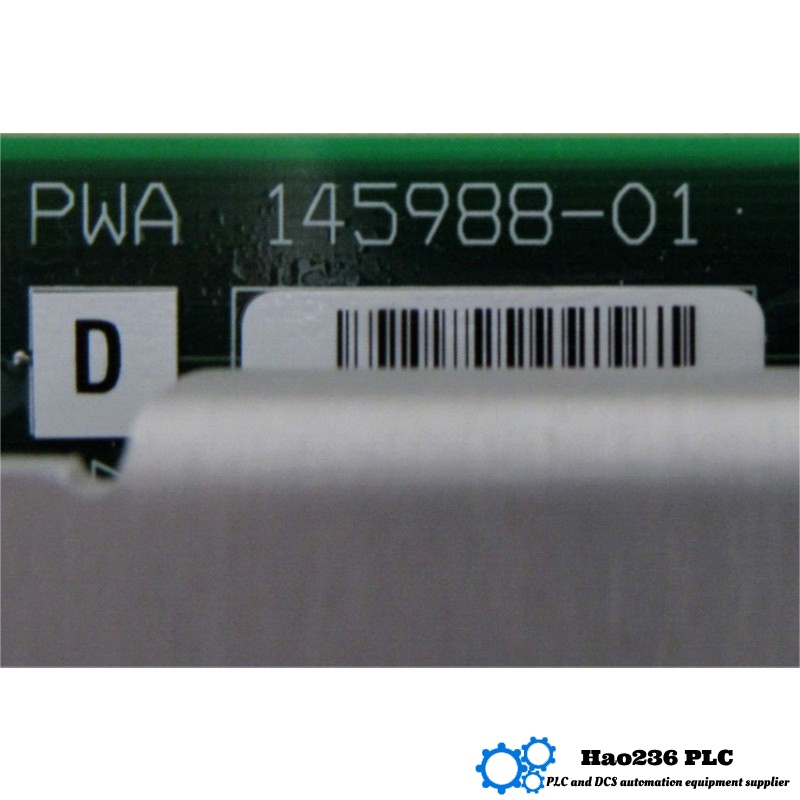

3500/94 145988-01 VGA Display Module: This module utilizes a standard color VGA monitor equipped with touchscreen technology to display critical system data, including system events, alarm events, module and channel data, and alarm status. It supports up to nine customizable display options and is configurable via the 3500 Rack Configuration Software.
-
147663-01 I/O Module: This module provides the necessary input/output connectivity for the VGA Display Module, ensuring seamless communication between the display and the monitoring system.
Designed for industrial environments, the system offers high-resolution visualization, user-friendly interaction, and reliable performance, making it ideal for monitoring and protecting industrial machinery.
Applications
The 3500/94 145988-01 + 147663-01 module is suitable for various industrial applications, including:
-
Power Generation: Monitoring turbines, generators, and other critical equipment.
-
Oil & Gas: Protecting pumps, compressors, and other machinery in upstream and downstream operations.
-
Chemical Processing: Ensuring the safety and efficiency of reactors, mixers, and other equipment.
-
Metallurgy: Monitoring equipment in steel mills and other metal processing facilities.
-
Water Treatment: Protecting pumps, valves, and other critical infrastructure in water treatment plants.
Its robust design and comprehensive monitoring capabilities make it a versatile choice for industries requiring real-time equipment protection and performance monitoring.
Advantages
-
High-Resolution Display: Provides clear and detailed visualization of system data.
-
Touchscreen Interface: Facilitates intuitive interaction with the monitoring system.
-
Customizable Views: Supports up to nine user-defined display options for tailored monitoring.
-
Remote Mounting Capability: Allows the display to be positioned up to 8 meters from the rack, offering flexible installation options.
-
Robust Design: Built to withstand industrial environments with operating temperatures ranging from –30 °C to +65 °C.
-
Seamless Integration: Easily integrates with the Bently Nevada 3500 series monitoring system.
Brand and Series
-
Brand: Bently Nevada
-
Series: 3500 Series Machinery Protection System
Bently Nevada is a leading provider of machinery protection and condition monitoring systems, offering solutions that enhance the reliability and performance of industrial equipment.
Related Models
| Model | Description |
|---|---|
| 3500/94 145988-01 | VGA Display Module |
| 147663-01 | I/O Module for 3500/94 Display Module |
| 3500/92 136188-01 + 136180-01 | Communication Gateway Module for data transmission |
| 3500/30M | Vibration Monitoring Module |
| 3500/60M | Shaft Monitoring Module |
Popular Models from the Same Brand
| Model | Description |
|---|---|
| 3500/22 | Transient Data Interface Module |
| 3500/33 | Relay Output Module |
| 3500/40 | Discrete Input Module |
| 3500/42 | Discrete Output Module |
| 3500/53 | Proximity Transducer Module |
FAQ
Q1: What is the purpose of the 3500/94 145988-01 + 147663-01 module?
A1: The module serves as a real-time data visualization interface for the Bently Nevada 3500 machinery protection system, displaying critical system information on a VGA touchscreen monitor.
Q2: How many display options can be customized?
A2: Up to nine display options can be configured using the 3500 Rack Configuration Software.
Q3: What is the maximum distance the display can be mounted from the rack?
A3: The display can be mounted up to 8 meters (25 feet) from the rack using standard cabling.
Q4: What is the operating temperature range of the module?
A4: The module operates within a temperature range of –30 °C to +65 °C.
Q5: Is the module compatible with other Bently Nevada 3500 series components?
A5: Yes, the module is fully compatible with other components in the Bently Nevada 3500 series.
Q6: Can the module be configured remotely?
A6: Yes, configuration is done remotely using the 3500 Rack Configuration Software.
Q7: What type of display does the module use?
A7: The module uses a VGA color touchscreen display with a resolution of 640 × 480 pixels.
Q8: Is the module suitable for outdoor installations?
A8: Yes, provided the installation site falls within the specified operating temperature range and is protected from environmental extremes.
Q9: Does the module support alarm event displays?
A9: Yes, it displays alarm events, system events, and other critical data.
Q10: What industries commonly use this module?
A10: Industries such as power generation, oil & gas, chemical processing, metallurgy, and water treatment commonly use this module for machinery protection
