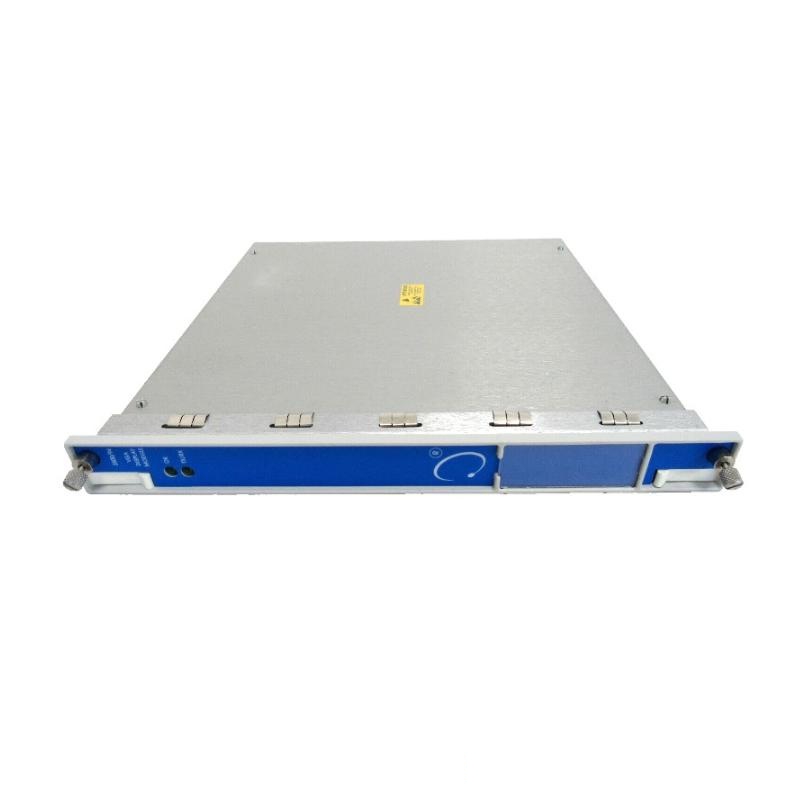

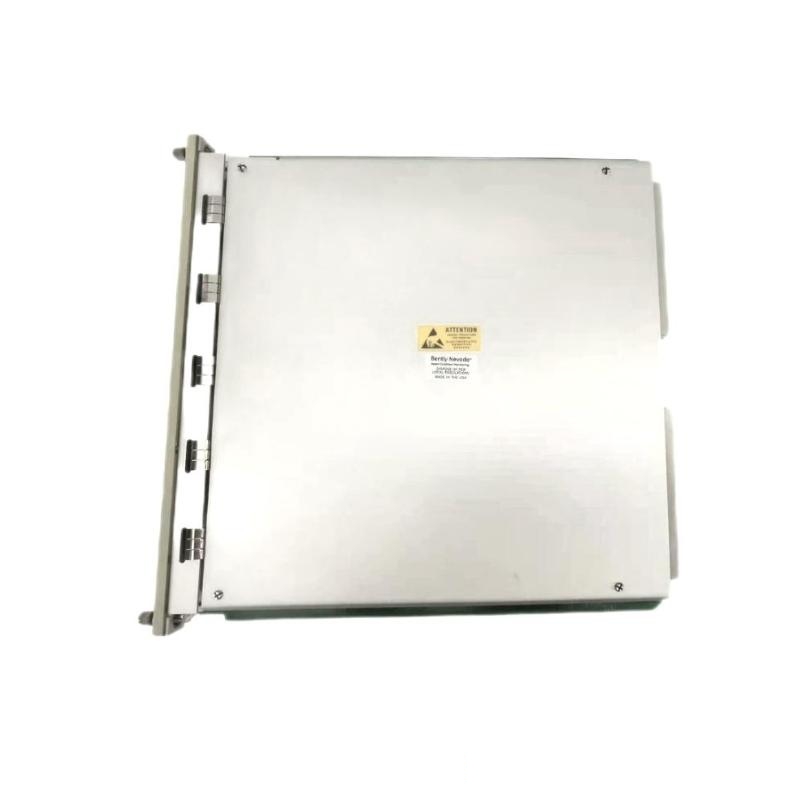

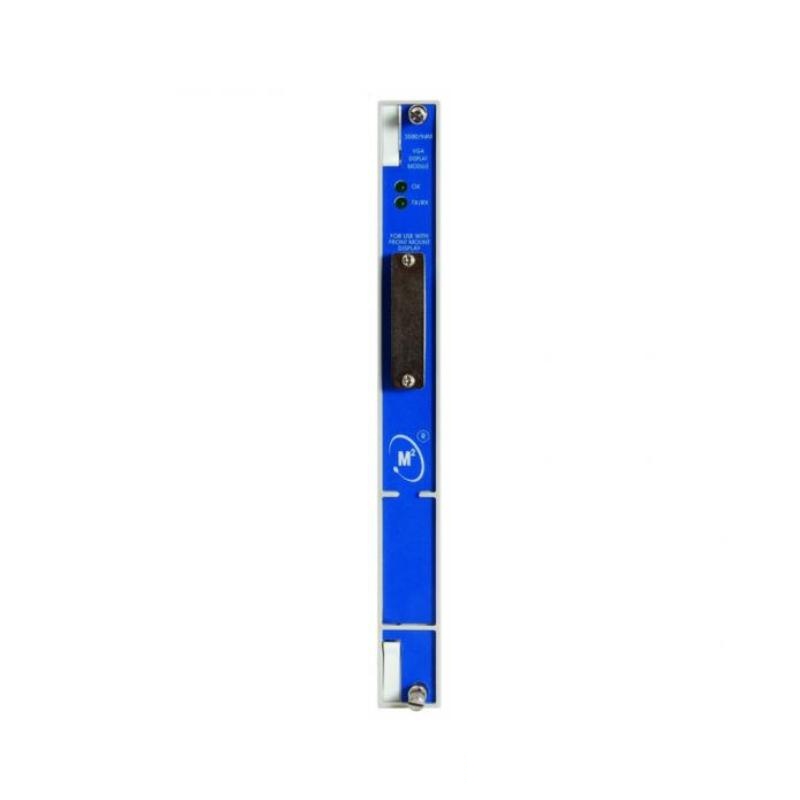

Bently Nevada 3500/94 145988-01 VGA Display Module
Product Introduction
The Bently Nevada 3500/94 (145988-01) is a high-resolution VGA display module designed specifically for integration with the 3500 Series Machinery Protection System. This display unit provides operators with real-time visual feedback and diagnostic information on machinery health and performance metrics.
Equipped with an advanced VGA interface, the 3500/94 delivers clear and crisp graphical representation of vibration data, system alarms, and operational status. This capability enhances situational awareness, allowing for timely and informed decisions to protect rotating equipment from damage or failure.
Built for rugged industrial environments, the 3500/94 module is a critical component in plant-wide condition monitoring strategies, offering reliable and accessible display functionality at the point of operation.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 3500/94 |
| Order Code | 145988-01 |
| Function | VGA Display Module |
| Display Type | VGA (Video Graphics Array) |
| Resolution | 640 × 480 pixels |
| Interface | Standard VGA connector |
| Compatible System | Bently Nevada 3500 Series |
| Mounting | Panel mount / Rack mount |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Requirements | Supplied via 3500 system rack |
| Dimensions (L × W × H) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.73 kg |
| Certification | CE, UL, CSA, RoHS |
Applications
The 3500/94 VGA Display Module is used extensively in environments where continuous machinery protection and condition monitoring are essential. Typical applications include:
-
Turbomachinery Monitoring: Real-time visualization of vibration data and alarm conditions on turbines, compressors, and generators.
-
Process Plants: Integration with 3500 Series for protection and monitoring of critical rotating equipment.
-
Power Generation: Displaying key machinery health parameters in power plants, ensuring operational safety and reliability.
-
Oil & Gas: Monitoring pump, motor, and compressor conditions to prevent costly unscheduled downtime.
-
Manufacturing Facilities: Centralized machinery health overview with easy operator access to real-time status.
Advantages
-
High-Resolution Visualization: Provides clear graphical display of critical machine parameters for quick operator interpretation.
-
Seamless Integration: Designed for plug-and-play compatibility with the Bently Nevada 3500 system.
-
Robust and Reliable: Engineered for harsh industrial environments with wide temperature tolerance.
-
Compact Design: Slim and space-saving module allowing easy installation in control panels.
-
Enhanced Operational Safety: Facilitates proactive monitoring and timely intervention to avoid equipment failures.
Brand Overview
Bently Nevada, is a leading global provider of machinery protection and condition monitoring solutions. With decades of innovation in vibration sensing and diagnostic systems, Bently Nevada’s 3500 Series is renowned for its precision, reliability, and robustness in protecting critical rotating machinery worldwide. The 3500/94 VGA Display Module complements this heritage by delivering real-time, high-quality visual information that enhances operator awareness and plant safety.
Related Models (Same Series or Category)
| Model | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 3500/92 | Digital Display Module | Numeric status display | 241 × 24 × 241 | 0.70 kg |
| 3500/93 | Operator Interface Module | Text and LED display | 241 × 24 × 241 | 0.72 kg |
| 3500/95 | Color Display Module | Color graphical interface | 241 × 30 × 241 | 0.75 kg |
| 3500/96 | Remote Display Module | Remote visualization | 300 × 40 × 260 | 0.80 kg |
| 3500/90 | Basic Display Module | Simple numeric output | 230 × 20 × 240 | 0.68 kg |
Popular Models (Same Brand)
| Model | Description | Dimensions (mm) |
|---|---|---|
| 3500/93-03-02-00-00 | Vibration sensor, tri-axial, standard sensitivity | 75 x 60 x 40 |
| 3500/93-05-00-02-00 | Vibration sensor, axial, high-frequency response | 75 x 60 x 40 |
| 3500/93-06-01-02-00 | Vibration sensor, radial, with integrated accelerometer | 75 x 60 x 40 |
| 3500/93-04-01-00-00 | Vibration sensor, single-axis, high-sensitivity | 75 x 60 x 40 |
| 3500/93-07-02-01-00 | Vibration sensor, dual-axis, extended temperature range | 75 x 60 x 40 |
FAQ (Q&A)
Q1: What is the main function of the 3500/94 module?
A1: It serves as a VGA display module providing graphical visualization for the Bently Nevada 3500 machinery protection system.
Q2: Is the display compatible with all 3500 series modules?
A2: Yes, it is designed to integrate seamlessly with the 3500 series system.
Q3: What is the resolution of the VGA display?
A3: The display resolution is 640 × 480 pixels.
Q4: Can the module be mounted in standard racks?
A4: Yes, it supports panel or rack mounting configurations.
Q5: What are the environmental conditions it supports?
A5: Operating temperature range is -20°C to +70°C, with storage up to -40°C to +85°C.
Q6: How much power does the module consume?
A6: Power is supplied through the 3500 system rack; specific consumption depends on system configuration.
Q7: Is the module certified for industrial use?
A7: Yes, it holds CE, UL, CSA, and RoHS certifications.
Q8: How heavy is the module?
A8: It weighs approximately 0.73 kg.
Q9: Does the module support color display?
A9: The 3500/94 is a VGA grayscale display module; color modules are available in other models.
Q10: What is the physical size of the module?
A10: The dimensions are 241.3 × 24.4 × 241.8 mm.
