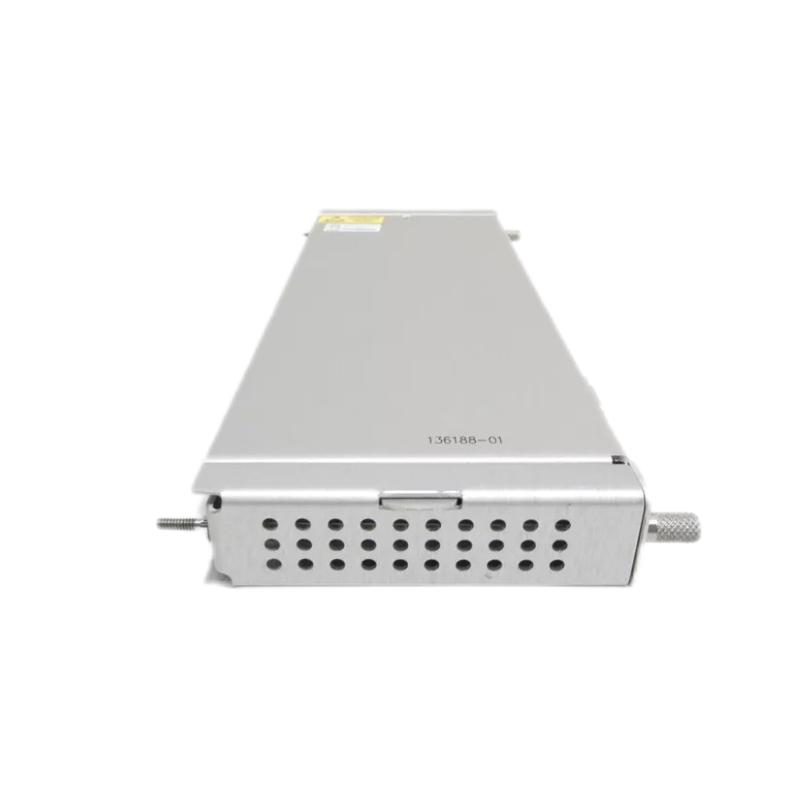

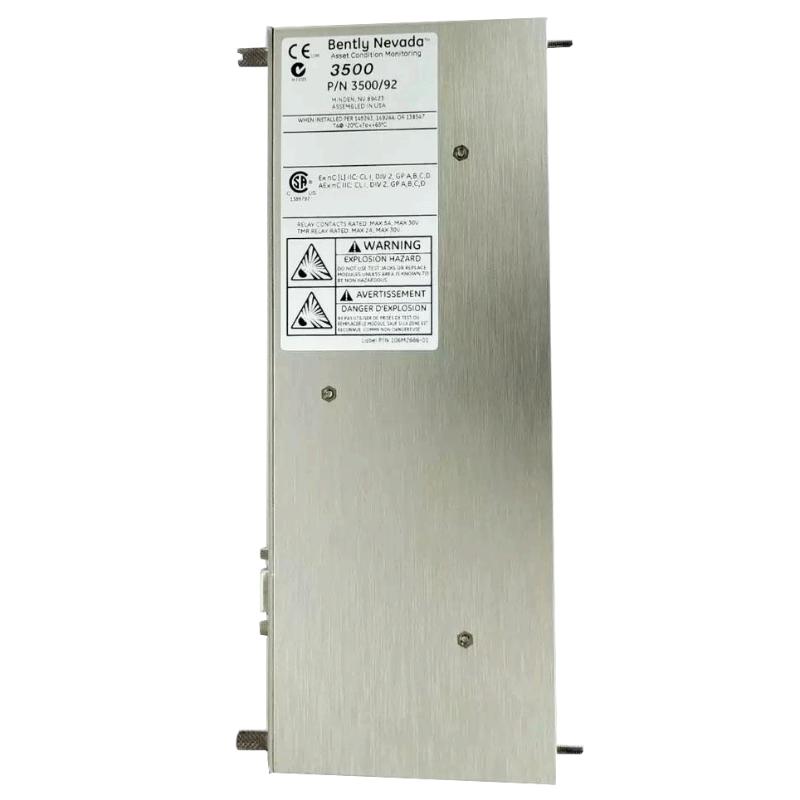

Bently Nevada 3500/92-03-01-00 Communication Gateway

1. Product Overview

The Bently Nevada 3500/92-03-01-00 is a communication gateway configuration in the 3500 Series machinery protection and condition monitoring platform. It is designed to transfer supported monitoring data and system status information from a compatible 3500 rack to external control systems, supervisory computers, and industrial data acquisition equipment.

In industrial facilities, critical rotating machinery such as steam turbines, gas turbines, compressors, pumps, and generators often operates continuously under demanding conditions. Operators need access to machinery monitoring information to review operating status, recognize abnormal conditions, and coordinate maintenance activities. A communication gateway helps connect the machinery monitoring system with the plant’s wider automation infrastructure.

The 3500/92 is primarily a communication and integration module. It does not independently measure vibration, shaft displacement, or temperature. Those measurements are provided by compatible sensors and monitoring modules installed in the rack. The gateway makes supported information available to external systems through the communication interfaces provided by the selected hardware configuration.

The 03 I/O option is associated with the Ethernet/RS232 configuration in the 3500/92 product family. The 01 option indicates low memory, while 00 denotes no additional agency approval option. The exact fitted hardware and ordering configuration should be checked before purchasing a replacement.

3.1 Electrical, Physical, and Environmental Specifications

The physical specifications above describe the main board and its associated I/O module. The shipping package may be larger and heavier, depending on the packaging and accessories supplied.

4. Product Introduction

The 3500/92-03-01-00 is designed for industrial environments where machinery monitoring information needs to be shared between a protection rack and external automation equipment.

A typical installation contains monitoring modules that receive signals from machinery sensors and process those signals into usable measurement values and status information. The communication gateway makes supported information available to other systems, allowing it to be viewed and used outside the rack.

The 03 configuration is particularly relevant where both Ethernet and RS232 communication are required. Ethernet provides a network connection for compatible data acquisition and supervisory applications, while RS232 supports serial communication with compatible equipment.

The module can support the integration of machinery monitoring information into a plant’s existing control architecture. The exact data available depends on the installed monitoring modules, gateway configuration, and the software or control system receiving the information.

The gateway is therefore best understood as a communication component within a larger machinery monitoring system, rather than as a standalone monitoring or protection device.

5. How the Product Works

5.1 Collecting Information from the Monitoring Rack

The gateway works alongside compatible modules installed in the 3500 rack. Depending on the system configuration, these modules may provide vibration, shaft-position, speed, temperature, and other machinery-related measurements.

The gateway accesses supported information from the rack rather than directly measuring every sensor input.

5.2 Preparing Data for Communication

The gateway makes supported values and status information available through its configured communication interfaces. These may include measurement values, module status, and alarm status information.

The information that can be transferred depends on the gateway configuration and the functions supported by the installed monitoring modules.

5.3 Transferring Data Through Ethernet or RS232

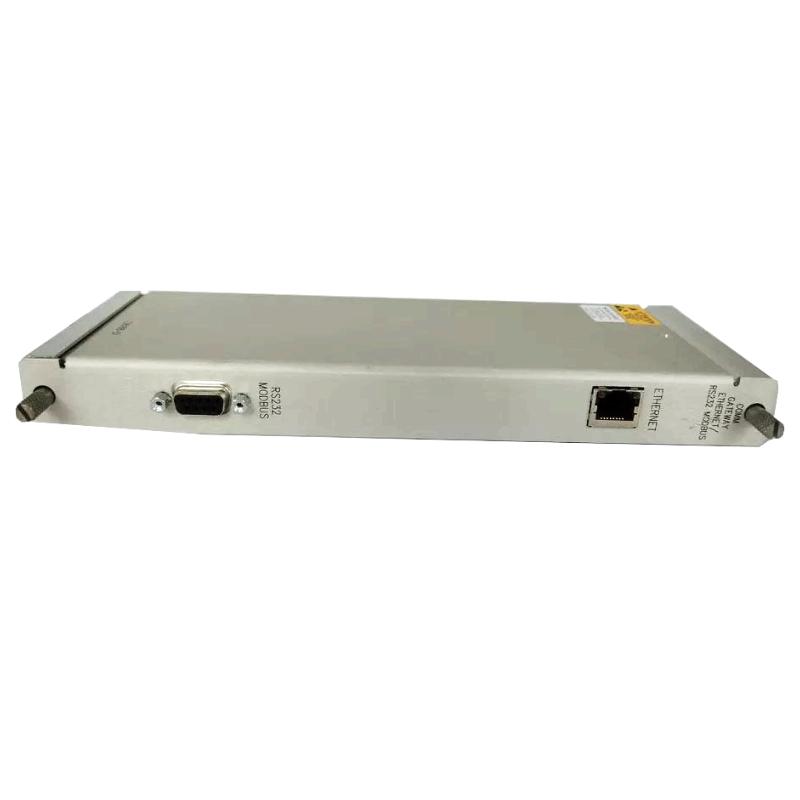

The Ethernet interface provides a connection over a compatible 10BASE-T network. The RS232 interface provides serial communication for compatible devices.

Supported communication protocols include Modbus/TCP for Ethernet applications, Modbus for serial communication, and the proprietary protocol used by compatible configuration and data acquisition software.

5.4 Connecting to External Systems

A compatible PLC, DCS, supervisory computer, or data acquisition system can retrieve the information it requires through the configured interface.

The external equipment must use the correct protocol settings and register mapping. If the data format or register addresses are configured incorrectly, the system may display incorrect values even when the physical connection is functioning.

5.5 Displaying Information for Operators

Once the data has been transferred and interpreted correctly, it can be presented through the external system’s displays and monitoring applications.

This helps operators review machinery conditions and alarm information alongside process variables and other plant data.

6. Product Applications

6.1 Steam Turbine Monitoring

Steam turbines are commonly used in power stations and industrial steam systems. Their operating condition may be affected by vibration, shaft displacement, bearing conditions, and changes in load.

When a compatible 3500 rack is installed, the 3500/92 can help make supported turbine monitoring information available to an external control or supervisory system.

This allows operators to review selected equipment information alongside other operating data, supporting routine monitoring and maintenance coordination.

6.2 Gas Turbine Monitoring

Gas turbines operate under demanding mechanical and thermal conditions. Monitoring information is important when reviewing equipment status and investigating unusual operating conditions.

The gateway can provide a communication path between a compatible monitoring rack and external equipment. This helps make supported values and status information available to operators and maintenance personnel.

6.3 Compressor Systems

Compressors are widely used in petrochemical plants, gas processing facilities, refineries, and other industrial operations.

A compatible monitoring system may collect vibration, shaft-position, speed, and other machinery data. The gateway can transfer supported information to a control or supervisory system, allowing it to be reviewed alongside process variables such as pressure, temperature, and flow.

6.4 Pumps and Rotating Equipment

Large pumps are important in fluid transfer, circulation, cooling, and other industrial processes.

When suitable monitoring equipment is installed, the gateway can help make relevant machinery data available to external systems. This can assist with routine status review and provide additional information when maintenance teams investigate an abnormal condition.

6.5 Power Generation Facilities

Power generation facilities contain turbines, generators, pumps, and other critical rotating equipment.

The 3500/92 can help integrate supported machinery monitoring information into a centralized supervisory environment. This can make equipment status easier to review across different operating areas.

6.6 Oil and Gas Processing

Oil and gas facilities often rely on machinery that must operate consistently over long periods. Access to monitoring data can be important when reviewing equipment status or coordinating maintenance.

The gateway can support data integration where the existing monitoring rack and external control system are configured to communicate through its Ethernet or serial interfaces.

6.7 Petrochemical and Chemical Plants

Large process plants may contain multiple machinery protection racks distributed across different units.

The 3500/92 can help transfer selected information to compatible control systems, allowing machinery data to be included in wider operational displays and monitoring applications.

6.8 Centralized Machinery Monitoring

Where several compatible racks are installed, communication gateways can help make monitoring information available to a common supervisory environment.

This may support centralized review of equipment values, status information, and alarms. The scope of the available information depends on the installed hardware and system configuration.

7. Product Advantages

7.1 Ethernet and Serial Communication Options

The 03 configuration combines Ethernet and RS232 interfaces, making it suitable for installations that require these particular communication methods.

The available interfaces provide flexibility when integrating a compatible machinery monitoring rack with external automation or data acquisition equipment.

7.2 Supports Industrial Data Integration

The gateway can make supported monitoring values and status information available to external systems.

This allows machinery monitoring data to be incorporated into an existing control-room or supervisory environment, helping operators access relevant information without relying solely on the rack’s local interface.

7.3 Supports Multiple Communication Protocols

The 3500/92 family supports Modbus communication and the proprietary protocol used by compatible system configuration and data acquisition software.

This helps accommodate different integration requirements, provided that the installed hardware and external equipment support the required protocol.

7.4 Fits a Modular Monitoring Platform

The gateway is part of a modular system in which monitoring, communication, power supply, and relay functions are handled by different modules.

This arrangement allows the communication function to be incorporated into a compatible rack without requiring every monitoring module to provide its own external interface.

7.5 Improves Access to Machinery Information

The gateway can make selected values and status information available to external systems. This helps operators and maintenance personnel review machinery information alongside process conditions and other operational data.

7.6 Supports Maintenance Investigation

Monitoring information collected through the gateway can help maintenance teams compare machinery indications with operating history and process conditions.

The gateway does not independently diagnose mechanical faults, but the data it transfers may support further technical investigation.

7.7 Compact Rack-Based Installation

The main board and rear I/O module are designed for installation in compatible rack positions.

Their defined dimensions and installation arrangement make it possible to plan the required rack space and wiring access before installation.

7.8 Provides a Defined Communication Function

The gateway performs a specialized role in the monitoring architecture. Keeping communication separate from measurement and relay functions can simplify system planning and maintenance.

This distinction is useful when identifying the correct spare part or diagnosing a problem in the communication path.

8. Five Related Models in the Same Series or Functional Group

The following models are related to the 3500/92 because they form part of the wider 3500 machinery monitoring platform or provide complementary system functions.

Dimensions and weights are approximate reference values for the module family. Exact values can vary by revision and configuration, so they should be checked before engineering or purchasing decisions.

8.1 3500/22M Transient Data Interface

The 3500/22M is related to data access and interface functions in the 3500 platform. It may be relevant when reviewing how monitoring information is accessed or collected.

Its role differs from the 3500/92 communication gateway, so it should not be treated as a direct replacement without checking the required system function.

8.2 3500/25 Enhanced Keyphasor Module

The 3500/25 processes Keyphasor signals used for speed and phase-related measurements. These signals can support the analysis of rotating machinery behavior.

It performs a measurement-support function rather than the external communication function provided by the gateway.

8.3 3500/32M Four-Channel Relay Module

The 3500/32M provides relay outputs for compatible system configurations. These outputs can be used in alarm or control arrangements designed around the monitoring system.

Its purpose differs from the 3500/92, which transfers supported monitoring information to external systems.

8.4 3500/40M Proximitor Monitor

The 3500/40M monitors supported proximity-probe signals and may be used for shaft-position and related monitoring applications.

It can provide measurement information that becomes available to external systems through a compatible communication arrangement.

8.5 3500/42M Proximitor/Seismic Monitor

The 3500/42M supports selected vibration and position monitoring functions.

It may be useful when reviewing or expanding the measurement side of a compatible 3500 rack, but it does not perform the same function as the 3500/92 gateway.

9. Five Other Bently Nevada Models for Comparison

These models cover other common functions in the wider machinery monitoring product range. They may be useful when planning a spare-parts inventory or reviewing the equipment installed alongside the communication gateway.

The figures in this comparison table are indicative rather than guaranteed specifications for every hardware revision. Verify the exact part number and applicable technical documentation before using these figures for cabinet design, transport calculations, or replacement planning.

10. Comparison of the 3500/92 With Other Module Types

This distinction is important when purchasing spare modules. A product may belong to the same series but still be unsuitable as a replacement because its function, interfaces, and configuration requirements are different.

11. Model Number and Ordering Information

The model number 3500/92-03-01-00 identifies the communication gateway and its selected configuration options.

This configuration is intended for applications requiring the Ethernet/RS232 I/O option and low-memory configuration.

Before ordering, confirm the complete model number and the associated I/O module part number. Also verify compatibility with the existing rack, firmware, communication settings, and connected control system.

12. Installation and Maintenance Recommendations

12.1 Confirm the Hardware Configuration

Check the model number and I/O module identification before installation. Confirm that the main module and rear I/O module match the intended configuration.

12.2 Verify Communication Settings

For Ethernet communication, check the network configuration and supported protocol settings. For RS232 communication, confirm the serial settings and the wiring arrangement.

The gateway and the connected device must use compatible communication parameters.

12.3 Inspect the Cables and Connections

Check the Ethernet cable, RJ45 connector, serial wiring, and associated connections for damage or loose fittings.

In an industrial environment, cable routing and electrical interference should also be considered when troubleshooting communication problems.

12.4 Confirm Rack Compatibility

Verify the rack model, available front slot, rear I/O space, and wiring clearance before installation.

The main module and I/O module have different physical depths, so both must be considered during installation planning.

12.5 Test the Data Transfer

After installation, confirm that the external system can access the intended data and that the values are interpreted correctly.

Check measurement units, register mapping, status indications, and alarm information rather than relying only on a successful connection test.

12.6 Keep Configuration Records

Record the complete model number, I/O module part number, communication settings, firmware information, and any relevant configuration changes.

These records can make later replacement and troubleshooting work more straightforward.

13. Purchasing Checklist

For critical machinery, a replacement should be selected according to its technical configuration rather than visual appearance alone. The communication interfaces and I/O module are especially important because they determine how the gateway connects to external equipment.

14. Overall Product Assessment

The Bently Nevada 3500/92-03-01-00 is a communication gateway intended to connect supported machinery monitoring information with compatible industrial automation and supervisory systems.

Its main value lies in making monitoring values and status information available outside the rack. In a correctly configured installation, this can support centralized equipment monitoring, maintenance investigation, and integration with the plant’s existing automation infrastructure.

The 03 configuration provides Ethernet and RS232 communication capabilities. This can be useful where the installation requires network-based data access together with a compatible serial interface. The exact supported functions depend on the installed I/O hardware and system configuration.

The main module has nominal dimensions of 241 × 24.4 × 242 mm and weighs 0.82 kg. The associated rear I/O module measures approximately 241 × 24.4 × 99.1 mm and weighs 0.44 kg. The combined component weight is approximately 1.26 kg, excluding packaging and accessories.

The related models listed above provide complementary data-interface, measurement, relay, temperature-monitoring, and power-supply functions. They can be relevant when reviewing a complete machinery monitoring installation, but they are not direct substitutes for the 3500/92 communication gateway.

Final recommendation: Before purchasing the 3500/92-03-01-00, confirm the exact model designation, the installed Ethernet/RS232 I/O module, and the communication requirements of the connected control system. Matching these details is the most important step toward a reliable installation.
