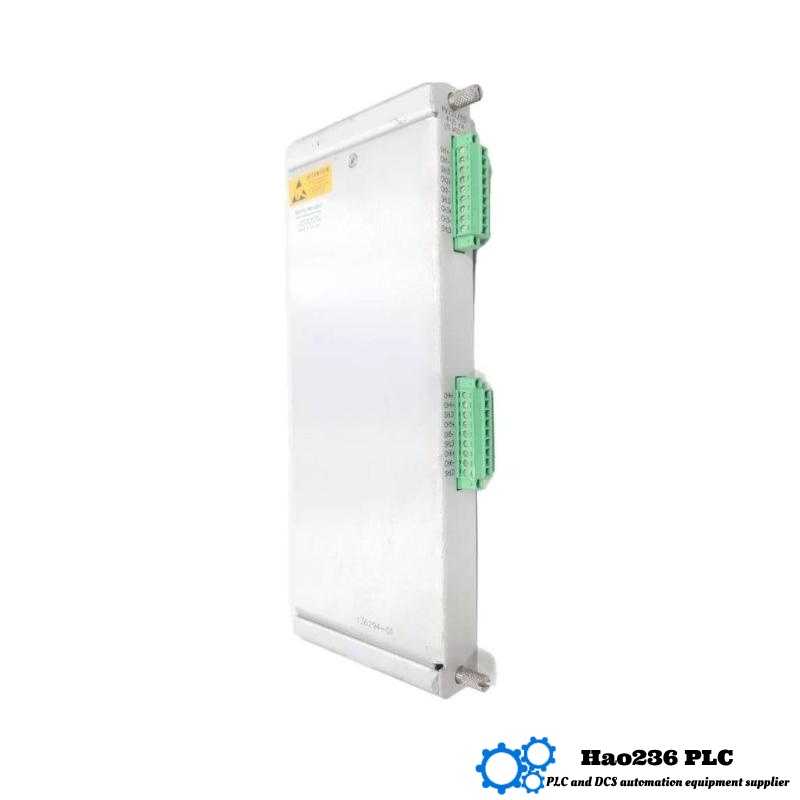

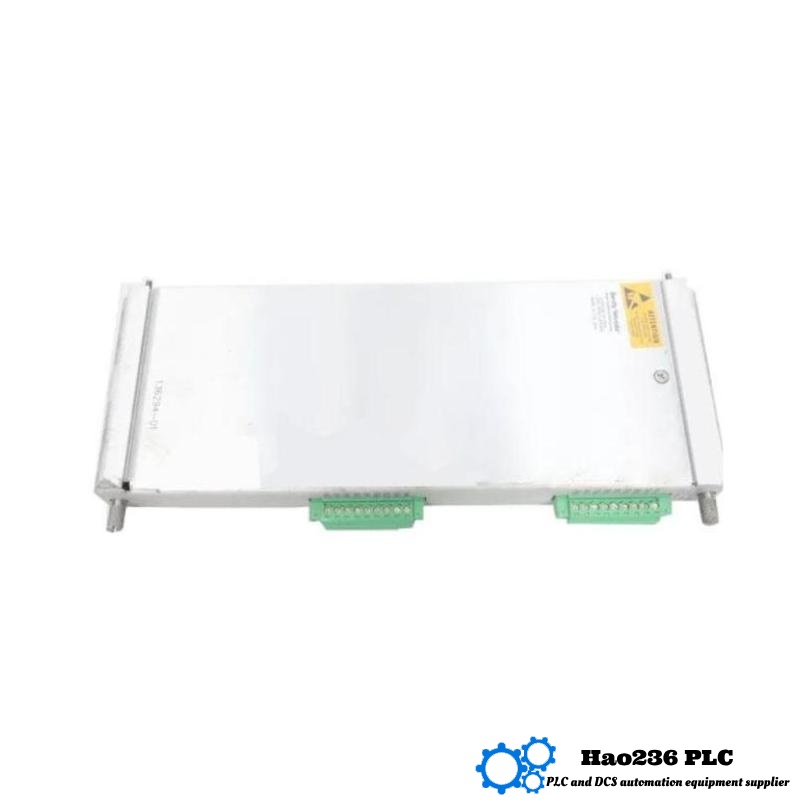

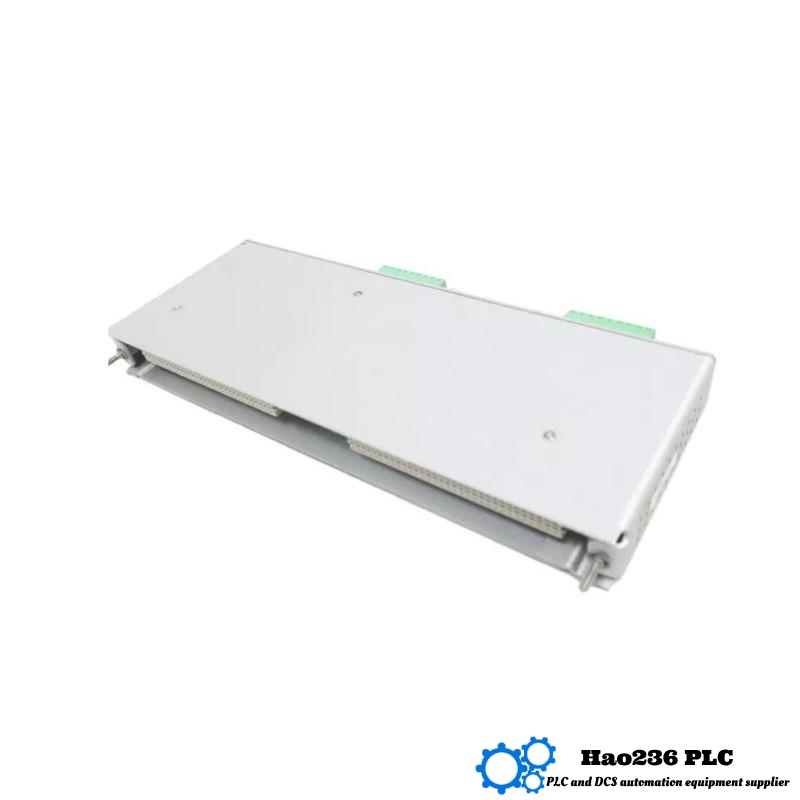

Bently Nevada 3500/62-03-00 136294-01 Process Variable Monitor
Product Introduction
The Bently Nevada 3500/62-03-00 136294-01 is a high-performance process variable monitoring module designed for use within the renowned 3500 Series Machinery Protection System. This versatile module accepts analog process signals and integrates them seamlessly into the condition monitoring system, allowing critical parameters such as pressure, flow, temperature, and other process variables to be included in asset diagnostics and protection strategies.
Engineered for reliability and accuracy, the 3500/62-03-00 provides scalable, rack-based integration for facilities requiring consolidated monitoring of both vibration and process parameters. It enhances situational awareness, helps avoid unplanned downtime, and supports predictive maintenance programs across industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/62-03-00 |
| Part Number | 136294-01 |
| Series | Bently Nevada 3500 Series |
| Product Type | Process Variable Monitor (I/O Module) |
| Dimensions (L x W x H) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.2 kg |
| Input Channels | 4 analog channels |
| Input Types | 4–20 mA, 1–5 V, 0–10 V, configurable |
| Isolation | Galvanic isolation between channels |
| Accuracy | ±0.1% of full scale |
| Alarm Outputs | OK, Alert, Danger |
| Mounting | 3500 Rack-based |
| Communication | Compatible with System 1 software |
| Certifications | CE, ATEX, CSA, IECEx, RoHS |
| Operating Temperature | -30°C to +65°C |
Product Applications
-
Process Equipment Monitoring: Integrate pressure, temperature, and level readings for pumps, compressors, and turbines.
-
Control Loop Diagnostics: Monitor process loops in real time to detect instability or failures.
-
Thermal Process Monitoring: Track variables from heat exchangers, reactors, and furnaces.
-
Environmental Monitoring: Collect data from ambient condition sensors for predictive analytics.
-
Shutdown Protection Systems: Feed process input into alarm logic to enhance safety system accuracy.
Product Advantages
-
Multi-Input Flexibility: Supports multiple analog signal ranges with per-channel configurability.
-
Compact Design: High channel density with minimal rack space consumption.
-
Precise and Reliable: High-accuracy input conversion with galvanic isolation ensures clean, consistent data.
-
Alarm Integration: Built-in thresholds enable integration into plant safety and trip systems.
-
Full System Compatibility: Seamlessly integrates into the 3500 platform and System 1 for central monitoring.
Brand
This module belongs to the 3500 Series by Bently Nevada. The series is known for delivering world-class protection and condition monitoring for rotating machinery and related assets. The 3500/62-03-00 expands the capability of the 3500 system beyond vibration into process monitoring, bringing comprehensive plant-wide insights.
Related Models in the 3500 Series
| Model | Function | Dimensions (mm) | Weight (kg) | Description |
|---|---|---|---|---|
| 3500/60 | Temperature Monitor | 241.3 x 24.4 x 99.1 | 0.22 | Monitors thermocouple and RTD inputs |
| 3500/42M | Velocity Monitor | 241.3 x 24.4 x 99.1 | 0.24 | Measures casing vibration or velocity |
| 3500/40M | Proximitor Monitor | 241.3 x 24.4 x 99.1 | 0.23 | Shaft vibration and axial position monitoring |
| 3500/32M | Relay Output Module | 241.3 x 24.4 x 99.1 | 0.25 | Configurable relay outputs for system response |
| 3500/22M | Communication Interface | 241.3 x 24.4 x 99.1 | 0.27 | Transmits data to System 1 via Ethernet |
Popular Bently Nevada Models
| Model Number | Channels | Input Type | Function | Typical Application |
|---|---|---|---|---|
| 3500/91-01-01-00 | 1 channel | Magnetic pickup | Speed and phase detection | Single speed monitoring |
| 3500/91-01-01-01 | 1 channel | Proximity probe | Speed and phase detection | Single channel redundant sensing |
| 3500/91-01-01-02 | 2 channels | Magnetic pickup | Dual speed and phase detection | Redundant speed and phase monitoring |
| 3500/91-01-02-00 | 2 channels | Proximity probe | Dual input speed detection | High reliability turbine monitoring |
| 3500/91-01-02-01 | 2 channels | Mixed inputs | Speed and phase measurement | Complex machinery speed monitoring |
FAQ (Q&A Format)
Q1: What input signal types does the 3500/62-03-00 support?
A1: It supports configurable analog signals including 4–20 mA, 1–5 V, and 0–10 V.
Q2: How many input channels are available?
A2: This module offers 4 fully isolated analog input channels.
Q3: Can I use mixed signal types on one module?
A3: Yes, each channel can be configured independently for different signal types.
Q4: Is this module hot-swappable?
A4: No, all modules should be inserted or removed with power turned off.
Q5: Is System 1 software required for operation?
A5: Not required, but System 1 provides enhanced data visualization and trending.
Q6: Does this module support alarm outputs?
A6: Yes, it supports OK, Alert, and Danger alarms configurable per channel.
Q7: What kind of isolation does the module provide?
A7: It offers galvanic isolation between all input channels and the system bus.
Q8: Can it be used for safety shutdown logic?
A8: Yes, it can trigger shutdowns when configured with relay modules.
Q9: What environment certifications does it have?
A9: Certified for CE, CSA, ATEX, IECEx, and RoHS standards.
Q10: What is the power source for this module?
A10: It receives power directly from the 3500 system rack power supply.
