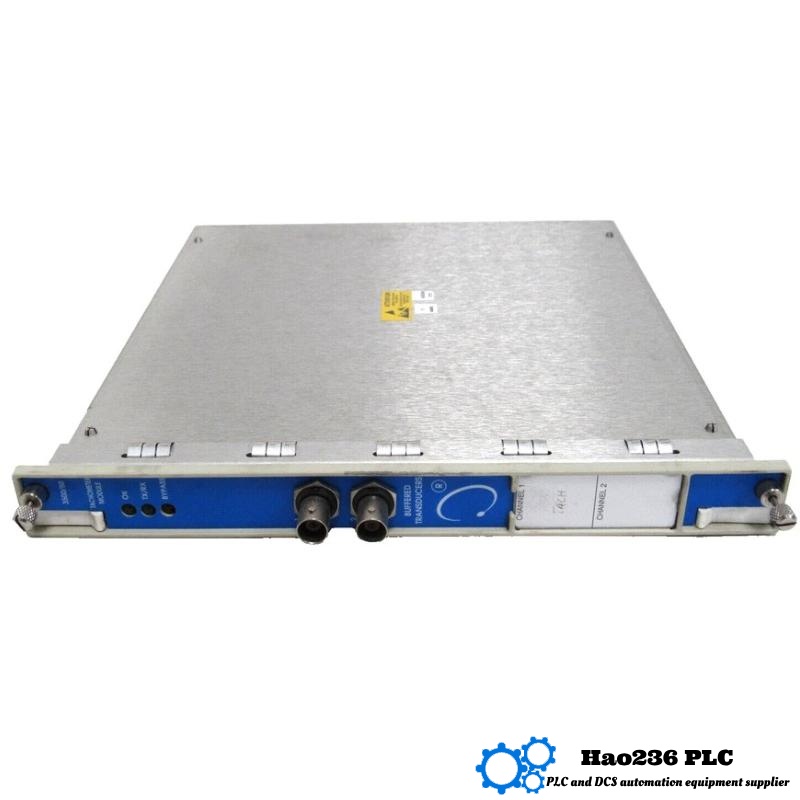

- 3500/53 133388-01+133396-01
- Tachometer Module Position Monitor Module
- USA
- 241.3 mm x 24.4 mm x 241.8 mm
- 0.82kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 52
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
📘 Product Overview
Model: 3500/53 (133388-01 + 133396-01)
Brand: Bently Nevada
Series: 3500 Series Machinery Protection and Condition Monitoring System
Description: The Bently Nevada 3500/53 overspeed detection system is designed to monitor and protect critical rotating machinery by detecting overspeed conditions. It comprises two modules: the 133388-01 electronic overspeed detection module and the 133396-01 input/output module. Together, they provide a reliable and fast-response system that meets the requirements of American Petroleum Institute (API) Standards 670 and 612 for overspeed protection.
📏 Technical Specifications
| Parameter | Details |
|---|---|
| Model | 3500/53 (133388-01 + 133396-01) |
| Input Signal Type | Proximity probes or magnetic pickups |
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ |
| Power Consumption | 8.0 W (typical) |
| Transducer Power Supply | -24 Vdc, 40 mA maximum |
| Output Type | 4-20 mA recorder output (proportional to module full-scale range) |
| Relay Outputs | SPDT (Single Pole Double Throw) for trip functions |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.82 kg |
| Certifications | API 670 and 612 compliant |
🛠 Applications
-
Overspeed Protection: Monitors rotational speed to detect overspeed conditions, preventing potential mechanical damage.
-
Critical Machinery Monitoring: Used in turbines, compressors, and other essential rotating equipment to ensure safe operation.
-
Industrial Automation Systems: Integrates with existing monitoring systems to provide comprehensive machinery protection.
💡 Advantages
-
High Reliability: Designed to operate continuously in demanding industrial environments.
-
Fast Response Time: Quickly detects overspeed conditions to initiate protective actions.
-
Redundant Configuration: Supports 2-out-of-2 or 2-out-of-3 voting systems for enhanced reliability.
-
Easy Integration: Compatible with Bently Nevada 3500 series racks and modules.
-
Compliant with Industry Standards: Meets API 670 and 612 standards for overspeed protection.
🔁 Related Models from the Same Series
| Model | Description |
|---|---|
| 3500/50 | Speed monitoring module for rotating machinery |
| 3500/51 | Vibration monitoring module |
| 3500/52 | Displacement monitoring module |
| 3500/54 | Temperature monitoring module |
| 3500/55 | Pressure monitoring module |
🔝 Popular Models from the Same Brand
| Model | Description |
|---|---|
| 3500/22M | Shaft displacement monitoring module |
| 3500/42M | Position monitoring module |
| 3500/33 | Vibration monitoring module |
| 3500/34 | Vibration monitoring module |
| 3500/60 | Temperature monitoring module |
❓ Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 3500/53 system?
A1: The 3500/53 system is designed to detect overspeed conditions in rotating machinery, providing protection against potential mechanical failures.
Q2: How does the system detect overspeed conditions?
A2: It receives input signals from proximity probes or magnetic pickups, which monitor the rotational speed of the machinery.
Q3: What is the power consumption of the system?
A3: The system typically consumes 8.0 W of power.
Q4: What is the operating temperature range?
A4: The system operates within a temperature range of -30°C to +65°C.
Q5: What certifications does the system have?
A5: The system complies with API 670 and 612 standards for overspeed protection.
Q6: Can the system be integrated with existing monitoring systems?
A6: Yes, the system is compatible with Bently Nevada 3500 series racks and modules, allowing for easy integration.
Q7: What is the weight of the system?
A7: The system weighs approximately 0.82 kg.
Q8: What is the humidity tolerance of the system?
A8: The system can operate in environments with up to 95% non-condensing humidity.
Q9: How is the system mounted?
A9: The system is designed to be installed into a standard 3500 series rack slot.
Q10: What is the output type of the system?
A10: The system provides a 4-20 mA recorder output, proportional to the module’s full-scale range.
