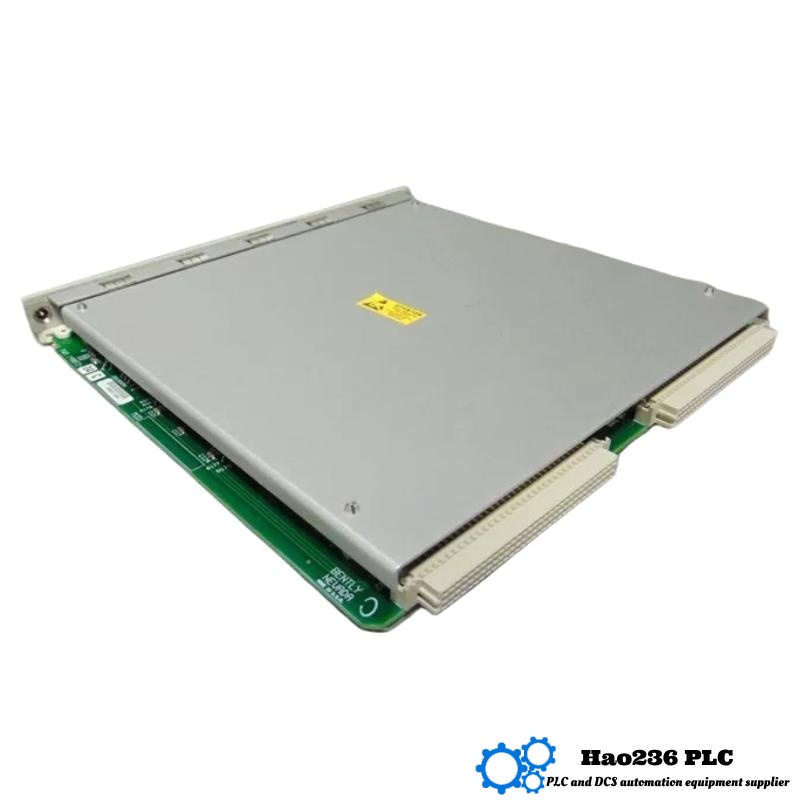

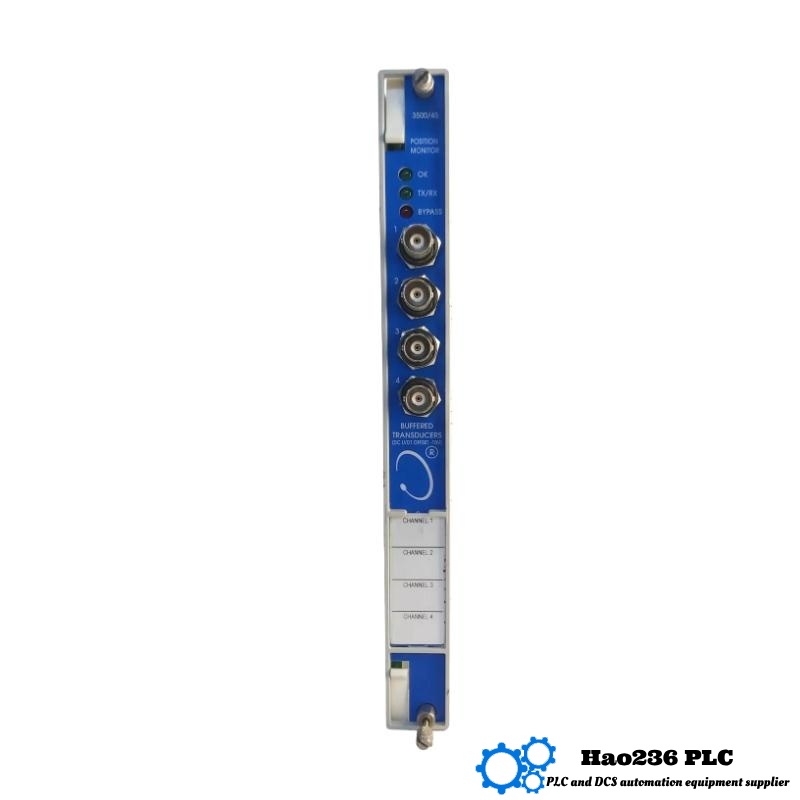

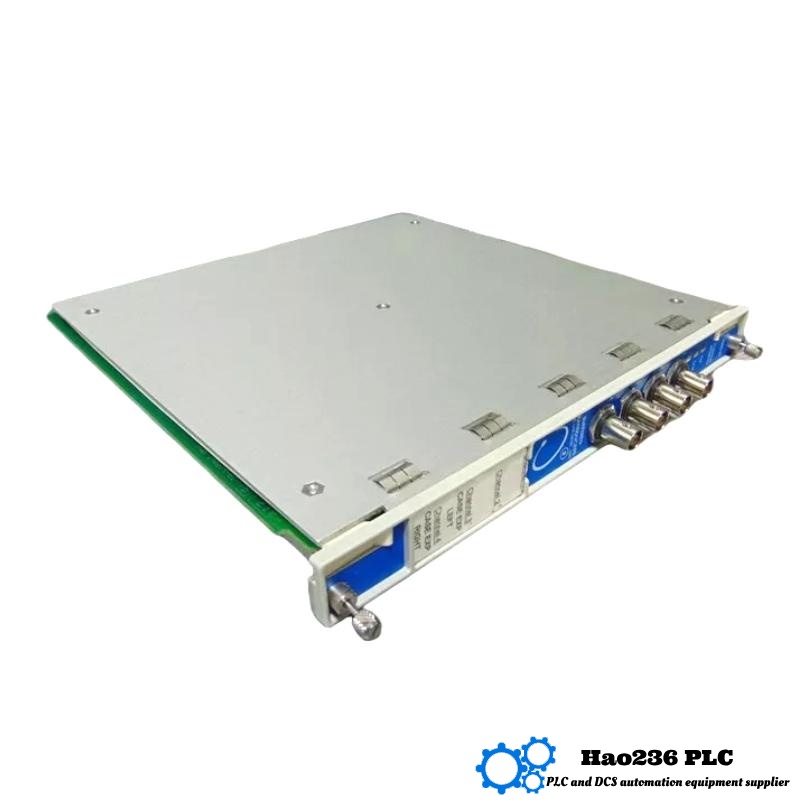

📘 Product Introduction: Bently Nevada 3500/45 140072-02 + 140072-04
The Bently Nevada 3500/45 Position Monitor, combining components 140072-02 and 140072-04, is a four-channel machinery monitoring module designed to observe and protect rotating assets by measuring positional parameters. It is an integral part of the 3500 Series Machinery Protection System and is designed to interface with sensors such as proximity probes, Linear Variable Differential Transformers (LVDTs), rotary potentiometers, and other position-sensitive transducers.
This module provides real-time, continuous monitoring of various positional variables, including shaft axial position, valve position, differential expansion, and case expansion. It is ideally suited for critical machines where mechanical positioning, expansion, or displacement must be tightly controlled to ensure optimal performance and reliability.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3500/45 140072-02 + 140072-04 |
| Number of Channels | 4 channels (independent) |
| Input Types Supported | Proximity probes, AC/DC LVDTs, rotary potentiometers, RPT sensors |
| Output Signal | Buffered signal output, OK/alarm relays (via relay modules) |
| Measurement Functions | Shaft axial position, differential expansion, case expansion, valve position |
| Power Consumption | ≤ 6 W |
| Sampling Rate | Configurable per channel |
| Alarm Thresholds | Programmable alert and danger setpoints |
| Alarm Types | OK, Alert, Danger |
| Signal Processing | Filtering, scaling, 1X/NX tracking (for dynamic measurements) |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 95% non-condensing |
| Mounting Method | Rack-mounted in 3500 Series backplane |
| Dimensions (L x W x H) | 241.3 mm x 24.4 mm x 99.1 mm (9.5 in x 0.96 in x 3.9 in) |
| Weight | 0.20 kg |
🧰 Product Applications
-
Steam and Gas Turbines: Monitoring shaft axial position and differential expansion to prevent rubs and mechanical failures.
-
Large Compressors: Measuring case expansion and internal movement for protection against misalignment or thermal stress.
-
Pumps and Fans: Tracking thrust movement in shafts to ensure balance and prevent bearing damage.
-
Hydraulic Systems: Monitoring valve stem position to ensure correct valve actuation and flow regulation.
-
Nuclear and Thermal Power Plants: Critical machinery where small positional changes can lead to large performance deviations.
✅ Product Advantages
-
Multi-Sensor Compatibility: Accepts proximity probes, LVDTs (both AC and DC), and potentiometers for versatile deployments.
-
Four Independent Channels: Each channel can be configured independently, supporting different sensor types and measurement objectives.
-
High Accuracy Signal Conditioning: Built-in filters, scaling, and tracking ensure precise and noise-immune measurements.
-
Programmable Alarming: User-defined alert and danger levels enable customized protection strategies.
-
Seamless Rack Integration: Installs into the 3500 Series rack with automatic recognition and configuration validation.
-
Real-Time Monitoring: Offers continuous, live feedback and data logging capabilities, ideal for condition-based maintenance programs.
-
Compact Design: Takes up minimal rack space, allowing more modules in a single system.
-
Proven Reliability: Designed for use in harsh industrial environments with wide temperature and humidity tolerances.
🏷 Brand and Series
-
Brand: Bently Nevada
-
Product Series: 3500 Series Machinery Protection System
The 3500 Series is a globally recognized, field-proven platform for continuous monitoring and protection of rotating machinery, offering modular expansion and integration capabilities across a wide range of applications.
🔁 Related Models from the Same Series
| Model | Description | Inputs | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 3500/42M | Proximitor & Seismic Monitor | Proximity + Vibration | 4 | 241.3 x 24.13 x 228.6 | 0.75 |
| 3500/44M | TMR Vibration Monitor | Triple Redundant Vibration Input | 4 | 241.3 x 24.13 x 228.6 | 0.76 |
| 3500/46M | Hydrodynamic Monitoring Module | Pressure, Temperature, Vibration | 4 | 241.3 x 24.13 x 228.6 | 0.74 |
| 3500/40M | Proximitor Monitor | Proximity Displacement | 4 | 241.3 x 24.13 x 228.6 | 0.73 |
| 3500/25 | Keyphasor Module | Keyphasor® Input | 2 | 241.3 x 24.13 x 228.6 | 0.72 |
🔝 Popular Models from the Same Brand
| Model | Description | Inputs | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 3500/60 | Temperature Monitoring Module | RTD, Thermocouple | 6 | 241.3 x 24.13 x 228.6 | 0.74 |
| 3500/22M | Communication Gateway Module | Ethernet, Serial | N/A | 241.3 x 24.13 x 228.6 | 0.80 |
| 3500/93 | LCD Display Interface Module | Display Only | N/A | 241.3 x 24.13 x 228.6 | 0.78 |
| 3300 XL Proximitor | Proximity Transducer System | Proximity Probe | N/A | 76.2 x 19.05 x 50.8 | 0.35 |
| 1900/65A | Standalone Vibration Monitor | Acceleration / Velocity | 2 | 120 x 90 x 60 | 0.65 |
❓ Product FAQ – 10 Questions & Answers (Q&A)
Q1: What does the 3500/45 module monitor?
A1: It monitors position-based parameters such as axial shaft position, differential expansion, case expansion, and valve position.
Q2: What types of sensors are supported?
A2: Proximity probes, AC/DC LVDTs, and potentiometer-based position sensors.
Q3: Can all four channels be configured differently?
A3: Yes, each of the four channels can be independently configured for different sensors and functions.
Q4: Is the 3500/45 compatible with older Bently Nevada systems?
A4: It is designed for integration into the 3500 Series rack system but is not backward-compatible with earlier series like the 3300 without significant modification.
Q5: What happens if the measured value exceeds the alarm setpoint?
A5: The module will generate an alert or danger signal depending on the threshold breached, which can activate relays or shutdown protocols.
Q6: How is the module installed?
A6: It is installed in the 3500 rack, occupying one full-height front slot with its corresponding I/O module.
Q7: What are the module’s environmental tolerances?
A7: It operates between –30°C to +65°C and can be stored between –40°C to +85°C with up to 95% non-condensing humidity.
Q8: Does the module provide buffered outputs?
A8: Yes, it offers buffered output for signal routing to external monitoring equipment or analyzers.
Q9: Is this module hot-swappable?
A9: No, power should be removed before inserting or removing modules from the rack.
Q10: Can this module be used in marine or offshore environments?
A10: Yes, provided it is housed in an appropriately rated enclosure that meets environmental and safety standards for such conditions.
