- Bently Nevada

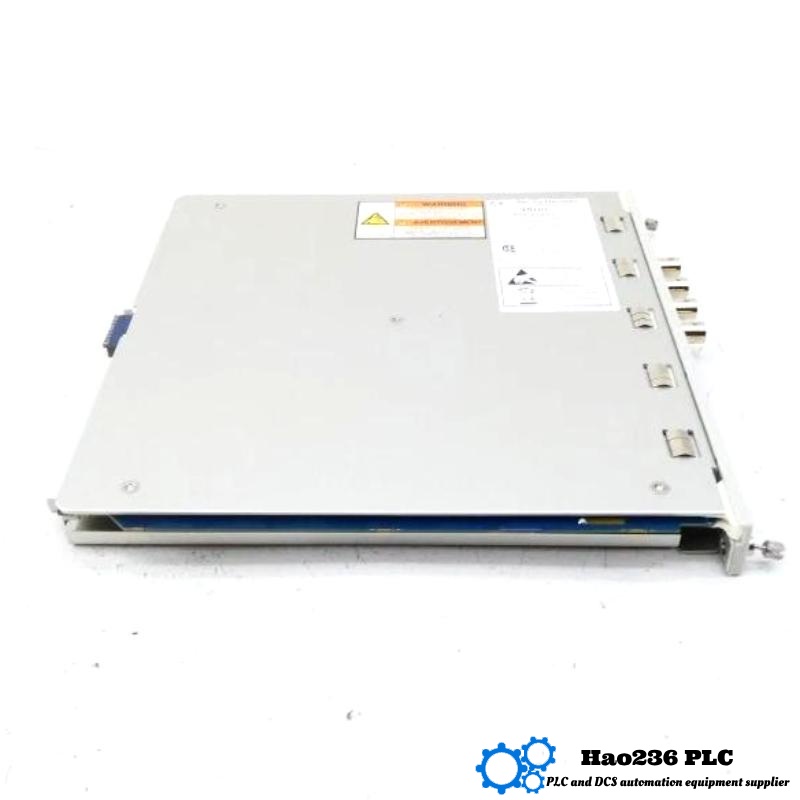

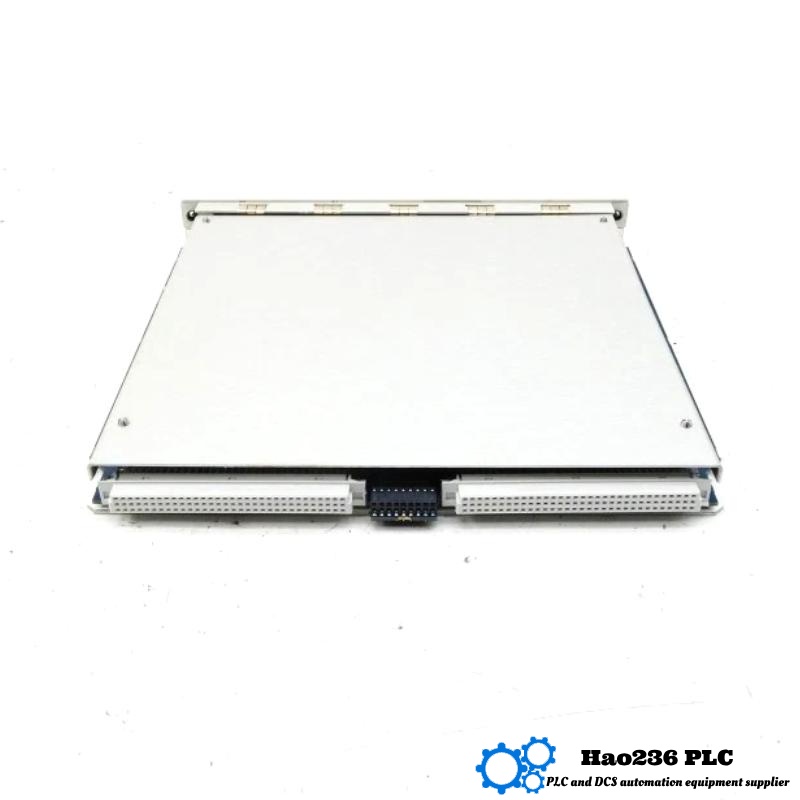

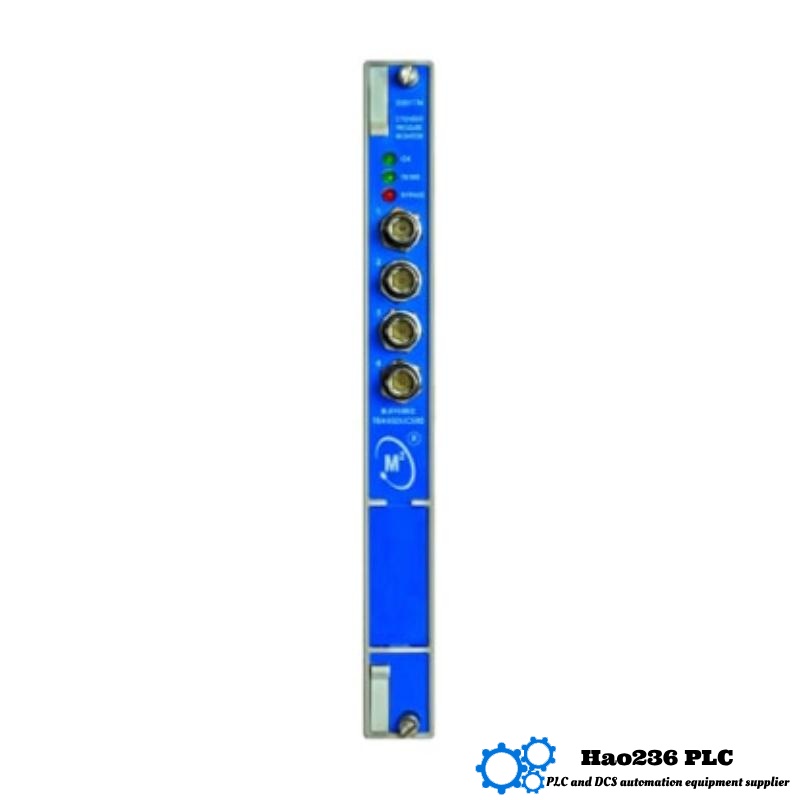

- 3500/44 176449-03
- Aeroderivitive GT Vibration Monitor
- USA
- 241.3 mm x 24.4 mm x 241.8 mm
- 0.91kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 58
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
📘 Product Overview
The Bently Nevada 3500/44M-01-00 176449-03 is a high-performance, four-channel vibration monitoring module designed for aeroderivative gas turbines. Part of the renowned 3500 Series, this module offers advanced diagnostics and protection for critical machinery in industries such as power generation, oil & gas, and heavy manufacturing.
🛠️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/44M-01-00 (176449-03) |
| Input Channels | 4 |
| Frequency Range | 0.5 Hz to 12 kHz |
| Dynamic Range | 0–2000 µm peak-to-peak (vibration), 0–20 mm (position) |
| Power Supply | 18–30 VDC (dual redundant) |
| Operating Temperature | -30°C to +65°C |
| Dimensions (HxWxD) | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.91 kg |
| Mounting | 3500 Series rack-compatible |
| Communication Protocols | RS-485 Modbus, Ethernet/IP (via 3500/92 gateway) |
| Certifications | ATEX, IECEx, SIL 2 |
🔍 Product Description
The 3500/44M-01-00 176449-03 module is engineered to provide continuous, real-time monitoring of critical machinery parameters. Utilizing inputs from eddy current probes, it measures radial vibration, axial position, and speed. The module’s advanced signal processing capabilities enable early detection of mechanical issues such as unbalance, misalignment, and bearing wear.
Designed to meet API 670 standards, the module features dual redundant power inputs and automatic sensor validation, ensuring operational reliability in demanding industrial environments. Its modular architecture allows for scalable configurations, making it suitable for complex machinery trains.
🏭 Applications
-
Aeroderivative Gas Turbines: Continuous monitoring of turbine health and performance.
-
Compressors and Pumps: Vibration and position monitoring to detect early signs of failure.
-
Power Generation Plants: Ensuring the reliability of critical rotating equipment.
-
Oil & Gas Industry: Monitoring of machinery in hazardous environments.
-
Heavy Manufacturing: Protecting high-value machinery from unexpected downtime.
✅ Product Advantages
-
Advanced Diagnostics: Onboard FFT and time waveform analysis for in-depth fault detection.
-
Modular Design: Easily integrates into the 3500 Series rack system.
-
Flexible Communication: Supports multiple protocols for seamless system integration.
-
Safety Compliance: Certified for use in hazardous areas with SIL 2 certification.
-
Real-Time Monitoring: Provides immediate feedback on machinery health.
-
Scalable Configuration: Suitable for both simple and complex machinery setups.
-
Dual Redundant Power: Ensures continuous operation even during power supply issues.
-
Automatic Sensor Validation: Detects sensor faults to prevent false readings.
🔧 Brand and Series
-
Brand: Bently Nevada
-
Series: 3500 Series
🔁 Recommended Related Models
| Model | Channels | Frequency Range | Power Supply | Dimensions (HxWxD) | Weight | Key Features |
|---|---|---|---|---|---|---|
| 3500/44M-02-00 | 4 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg | Enhanced diagnostics, SIL 2 certified |
| 3500/44M-03-00 | 4 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg | Dual redundant power, ATEX certified |
| 3500/44M-04-00 | 4 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg | Ethernet/IP support, IECEx certified |
| 3500/44M-05-00 | 4 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg | Modbus support, SIL 2 certified |
| 3500/44M-06-00 | 4 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg | Automatic sensor validation, ATEX certified |
🔧 Recommended Popular Models (Same Brand)
| Model | Channels | Frequency Range | Power Supply | Dimensions (HxWxD) | Weight | Key Features |
|---|---|---|---|---|---|---|
| 3500/42M-01-00 | 2 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 99.1 mm | 0.91 kg | Vibration monitoring, SIL 2 certified |
| 3500/15-02 | 1 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 99.1 mm | 0.90 kg | Speed sensor input, ATEX certified |
| 3500/72 | 4 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 48.9 mm x 99.1 mm | 1.75 kg | Dynamic speed and position sensing |
| 3500/92 | 2 | 0.5 Hz to 12 kHz | 18–30 VDC | 241.3 mm x 24.4 mm x 99.1 mm | 0.95 kg | Dual channel vibration analyzer |
❓ Frequently Asked Questions (FAQ)
Q1: What type of machinery is the 3500/44M-01-00 best suited for?
A1: It is specifically designed for aeroderivative gas turbines and other high-speed rotating equipment where precise vibration monitoring is critical.
Q2: Can this module be integrated into existing 3500 Series systems?
A2: Yes, the module is fully compatible with 3500 Series racks and communicates via standard protocols for seamless integration.
Q3: What kind of sensors does it support?
A3: It supports eddy current probes for radial vibration and axial position sensors, as well as speed sensors.
Q4: Is the module certified for use in hazardous environments?
A4: Yes, it holds ATEX and IECEx certifications, allowing operation in potentially explosive atmospheres.
Q5: How does it ensure reliability and avoid false alarms?
A5: Through automatic sensor validation and dual redundant power supplies, it ensures continuous and accurate monitoring.
Q6: What is the operating temperature range?
A6: The module operates reliably between -30°C to +65°C.
Q7: Does it provide diagnostic data for predictive maintenance?
A7: Yes, it offers onboard FFT and time waveform data useful for advanced diagnostics and early fault detection.
Q8: What communication protocols are supported?
A8: The module supports RS-485 Modbus and Ethernet/IP communication via gateway devices.
Q9: How many channels does the module have?
A9: It has four vibration/position input channels.
Q10: What safety standards does it comply with?
A10: It complies with API 670 and SIL 2 safety standards for machinery protection.
