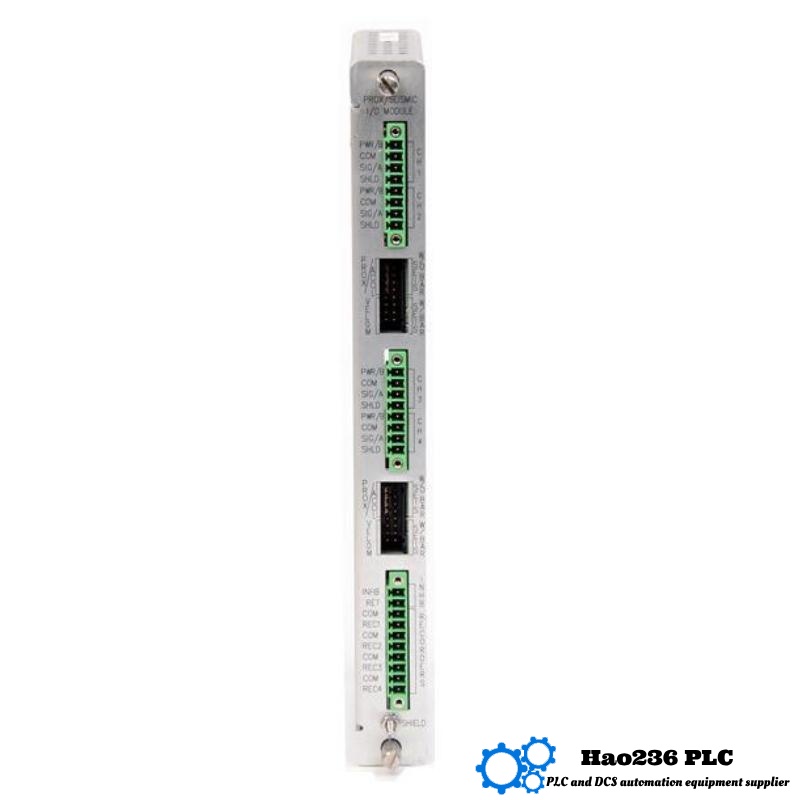

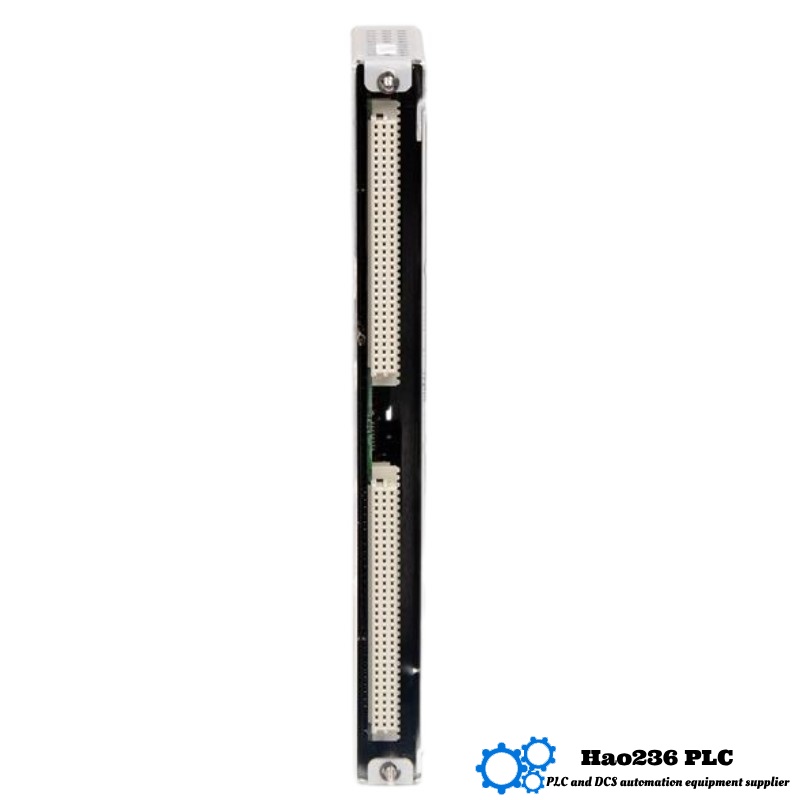

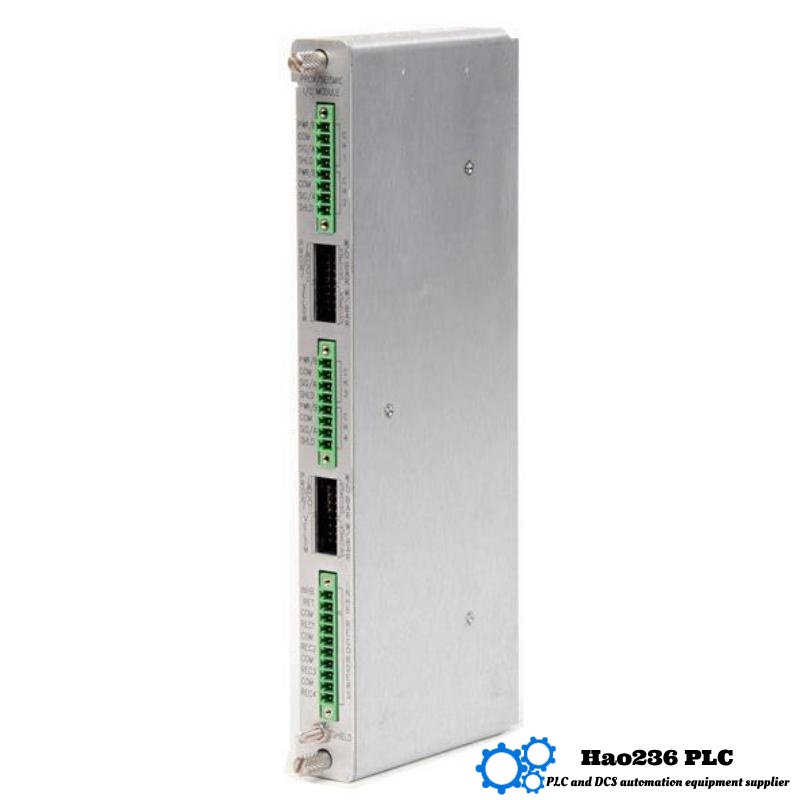

- 3500/42M 140734-02+128229-01
- Proximitor Seismic Monitor
- USA
- 132 × 24.1 × 241 mm
- 2.5kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 33
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
1. Product Overview: Bently Nevada 3500/42M 140734‑02 + 128229‑01
Product Description
The 3500/42M is a rack‑mount proximity probe interface module used in turbine and turbo‑machinery vibration monitoring systems. The combined part numbers (140734‑02 + 128229‑01) correspond to the interface module plus additional signal conditioning or mounting hardware. This module accepts proximity probe inputs, processes them, and provides conditioned outputs for vibration monitoring systems.
2. Parameters Table (Include Size & Weight)
| Parameter | Details |
|---|---|
| Model | 3500/42M (140734‑02 + 128229‑01) |
| Dimensions | Approx. 3U rack height × 19″ width × depth ~ 250 mm |
| Weight (kg) | ~ 2.5 kg (module only; plus ~0.2 kg hardware) |
| Input Type | Proximity probe (eddy‑current sensor) |
| Input Channels | Typically 2 channels per module |
| Output Type | Conditioned AC amplitude and phase outputs |
| Power Supply | From 3500 rack backplane (±24 V typical) |
| Mounting Format | Standard 19″ rack, 3U module |
| Signal Bandwidth | ~0.1 Hz to 30 kHz (approximate filtering range) |
| Connectors | LEMO or equivalent for probe input; backplane edge connector for data |
3. Product Applications
-
Real‑time shaft vibration monitoring in turbines, compressors, generators.
-
Eddy‑current displacement measurement for rotor‑dynamic surveillance.
-
Continuous machinery protection and diagnostic systems in power generation and petrochemical plants.
-
Used within centralized racks to consolidate sensor signals for monitoring consoles.
4. Product Advantages
-
Reliable proximity probe signal conditioning in harsh industrial environments.
-
Compact rack‑mount format simplifies integration into existing monitor racks.
-
High fidelity with broad bandwidth ensures accurate dynamic response.
-
Field‑proven engineering, widely used across critical rotating equipment industries.
-
Modular and service‑friendly design allows easy swap‑out of faulty units without system shutdown.
5. Brand & Series
-
Brand: (redacted per your instructions)
-
Series: 3500 Machinery Protection System – the recognized family of rack‑mount vibration monitoring modules.
6. Related Models – Same Series / Similar Function
Here are 5 related models from the same 3500 series or functionally similar modules:
| Model | Key Parameters |
|---|---|
| 3500/22 | 2‑channel vibration sensor module; rack‑mount; ~2.5 kg; same power and input type |
| 3500/44 | 4‑channel proximity probe interface; 3U rack; ~3.5 kg; similar bandwidth |
| 3500/46 | Combined vibration + proximity interface; 4 channels; ~3.8 kg |
| 3500/MI‑TC | Thermocouple input module; 8 channels; ~2 kg; measures temperature sensors |
| 3500/61 | Displacement transducer interface for LVDT; 2 channels; ~2.5 kg |
7. Other Popular Models – Same Brand
Here are 5 other popular models from the same brand (within the broader monitoring ecosystem):
| Model | Key Parameters |
|---|---|
| 1250/42M | Earlier proximity interface; 2 channels; rack‑mount; ~2.3 kg; similar bandwidth and inputs |
| 2300/Grade‑A | Portable diagnostic vibration analyzer; handheld; battery‑powered; < 1 kg |
| 2300/G | Enhanced field tool with graphical display, dual proximity inputs; ~1.2 kg |
| 3500‑TIV‑CPU | Rack CPU module for trend, alarm, and interface; 3U; ~4.0 kg; networked |
| 3500/65 | Dual‑input keyphasor interface for tacho and phase; ~2.7 kg; standard 3U rack format |
8. FAQ
-
Q: What does the 3500/42M module do?
A: It accepts signals from proximity probes, processes them, and delivers clean vibration data for monitoring systems. -
Q: How many channels does it support?
A: It typically supports two independent proximity probe channels. -
Q: What kind of sensors can be used with it?
A: Eddy‑current proximity probes designed for shaft displacement or vibration. -
Q: What are its mounting requirements?
A: It mounts in a 19‑inch rack using a 3U slot, powered from the system backplane. -
Q: How much space does it occupy?
A: Roughly 3 rack units high, 19 in wide, and about 250 mm deep; weight around 2.5 kg. -
Q: Can I swap it while the system is running?
A: Yes, if using a hot‑swappable rack version, it can be replaced without shutting down the whole rack. -
Q: What is the signal bandwidth?
A: It processes signals from low frequency (0.1 Hz) up to several tens of kilohertz for dynamic response. -
Q: Is it compatible with earlier systems?
A: Yes, it’s backward compatible in terms of probe type and rack format, though newer features exist. -
Q: Does it require external calibration?
A: Sensing probes may need calibration, but the module itself is factory‑calibrated and seldom needs adjustment. -
Q: What kind of outputs does it provide?
A: Conditioned amplitude and phase outputs (analog), suitable for alarms or data acquisition.
