Product Overview

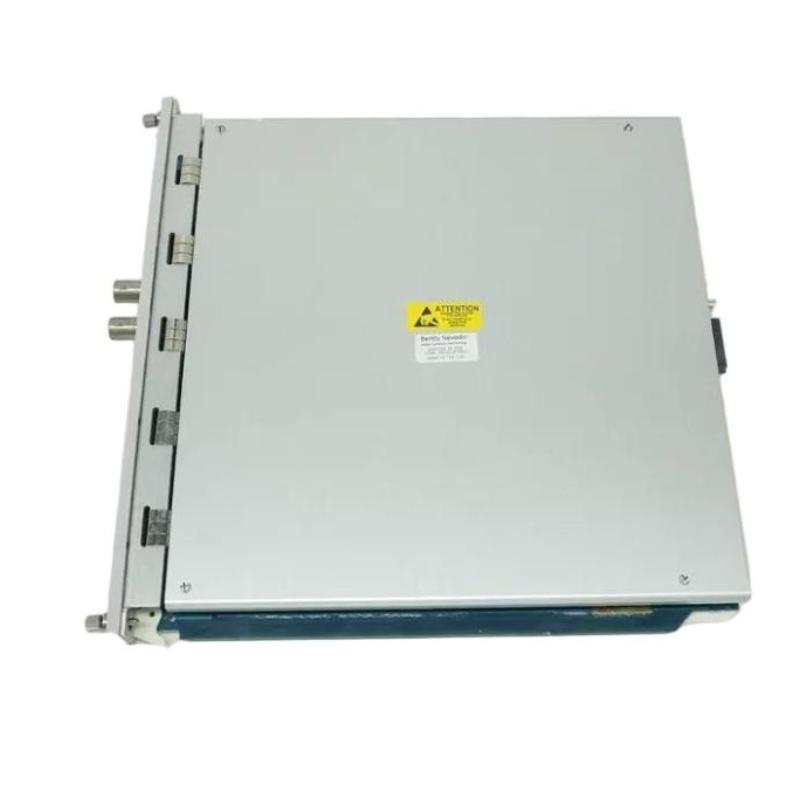

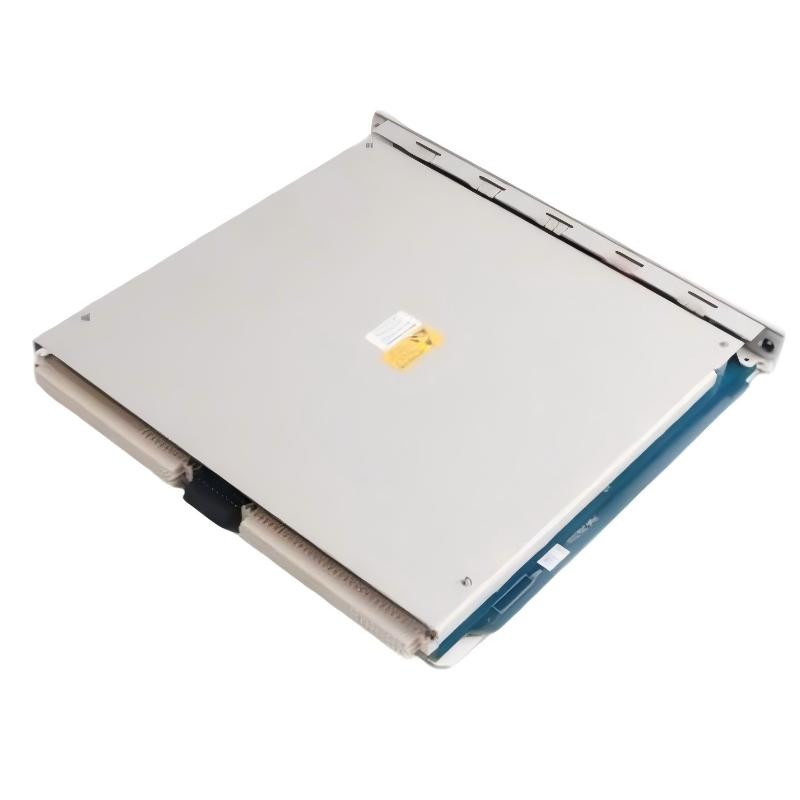

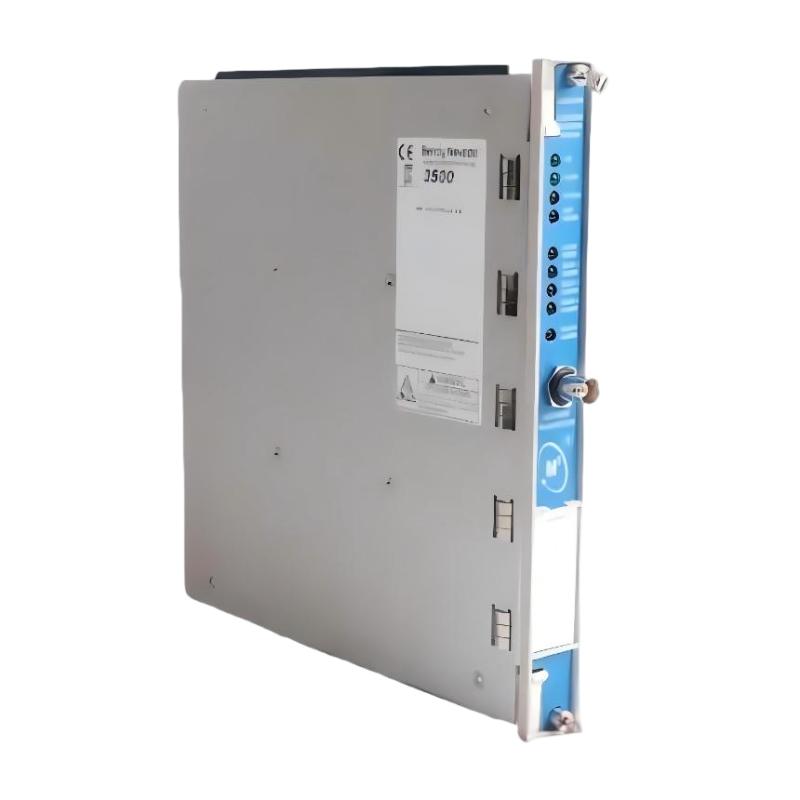

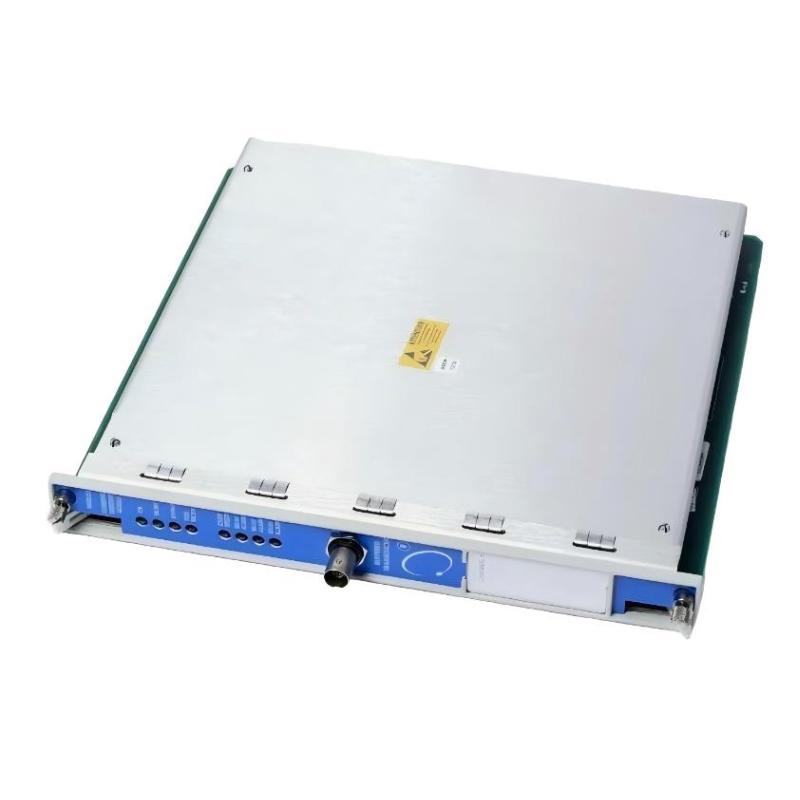

The Bently Nevada 3500/40M (176449-01) is a Proximitor Monitor designed to provide high-precision monitoring for vibration, displacement, and shaft position in critical machinery within the 3500 Machinery Protection System.
This module is essential for applications requiring reliable, real-time data on mechanical health. The 176449-01 Proximitor Monitor interfaces with proximity probes to measure and analyze equipment performance, ensuring early detection of potential failures and supporting predictive maintenance strategies.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/40M |
| Part Number | 176449-01 |
| Product Type | Proximitor Monitor |
| System Compatibility | 3500 Machinery Protection System |
| Measurement | Vibration, displacement, shaft position |
| Channels | Up to 4 channels |
| Input Type | Proximity probe signals |
| Signal Processing | Signal conditioning and analysis |
| Transducer Supply | -24 VDC |
| Output Impedance | 550 Ω |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Mounting | Rack-mounted |
| Operating Environment | Industrial continuous operation |
Core Functionality
The 176449-01 Proximitor Monitor serves as a vital component for monitoring mechanical health through the following key functions:
Main Functions:
- Monitors vibration and displacement in rotating machinery
- Processes signals from proximity probes for high-accuracy measurements
- Evaluates shaft position and overall equipment health
- Provides real-time data and alerts for early failure detection
- Supports predictive maintenance and condition-based monitoring
This makes it an ideal choice for continuous machinery health monitoring in various industries.
Industrial Applications
The Bently Nevada 3500/40M (176449-01) Proximitor Monitor is highly versatile and widely used across industries requiring precise monitoring of rotating equipment:
- Power Generation: Turbine and generator monitoring for vibration and shaft displacement
- Oil and Gas: Monitoring compressors, pumps, and pipelines for early fault detection
- Petrochemical: Ensuring safety and efficiency in high-risk environments
- Heavy Manufacturing: Providing continuous monitoring of industrial machinery such as motors and bearings
- Mining and Heavy Equipment: Vibration monitoring for mining machinery and large pumps
This module is particularly beneficial for industries looking to implement predictive maintenance to reduce downtime and prevent catastrophic equipment failures.
Installation and Integration
The 176449-01 Proximitor Monitor is designed for easy installation and integration within the 3500 Machinery Protection System:
Installation Features:
- Rack-mounted configuration for easy setup and serviceability
- Compatible with proximity probes for accurate data acquisition
- Direct communication with other 3500 system modules, ensuring seamless data flow
- Configurable monitoring parameters to meet specific operational requirements
Proper installation ensures reliable operation and continuous monitoring of equipment health.
System Compatibility
This Proximitor Monitor integrates smoothly with other 3500 system components, forming a complete machinery protection solution:
- 3500/05 system rack
- 3500/15 power supply module
- Proximity probes and extension cables
- Additional monitoring and I/O modules
Together, these components provide robust and scalable solutions for industrial machinery monitoring.
Alternative Models
| Configuration | Type | Key Feature | Application |
|---|---|---|---|
| 140734-01 | Proximitor Monitor | Signal processing | Standard applications |
| 125680-01 | I/O Module | Signal input | General monitoring |
| 126615-01 | External I/O | Easy access wiring | Maintenance systems |
| 3500/42M | Advanced monitor | Enhanced diagnostics | Complex machinery |
| 3500/45 | Position monitor | Precision measurement | Shaft displacement |
Key Advantages
- High-precision signal processing for vibration and displacement
- Ideal for continuous machinery monitoring in industrial settings
- Real-time data analysis for early fault detection
- Seamless integration with other 3500 system components
- Designed for reliable long-term operation in harsh environments
- Supports predictive maintenance and condition monitoring
Frequently Asked Questions
What does the 176449-01 Proximitor Monitor do?
It monitors vibration, displacement, and shaft position by processing signals from proximity probes, providing real-time data for early fault detection.
How does it integrate into the 3500 system?
It is a rack-mounted module that connects seamlessly with other components of the 3500 system, enabling efficient data flow and system-wide monitoring.
What industries can benefit from this module?
It is used in industries like power generation, oil and gas, manufacturing, and mining, where continuous machinery monitoring is critical for operational efficiency.
Conclusion
The Bently Nevada 3500/40M (176449-01) Proximitor Monitor is an essential component for precise and reliable machinery health monitoring. By processing signals from proximity probes, it provides valuable insights into the condition of critical rotating equipment, enabling predictive maintenance and early fault detection.
For industries looking to ensure machinery reliability and reduce downtime, this monitor offers a highly effective solution within the 3500 Machinery Protection System.
