Product Overview

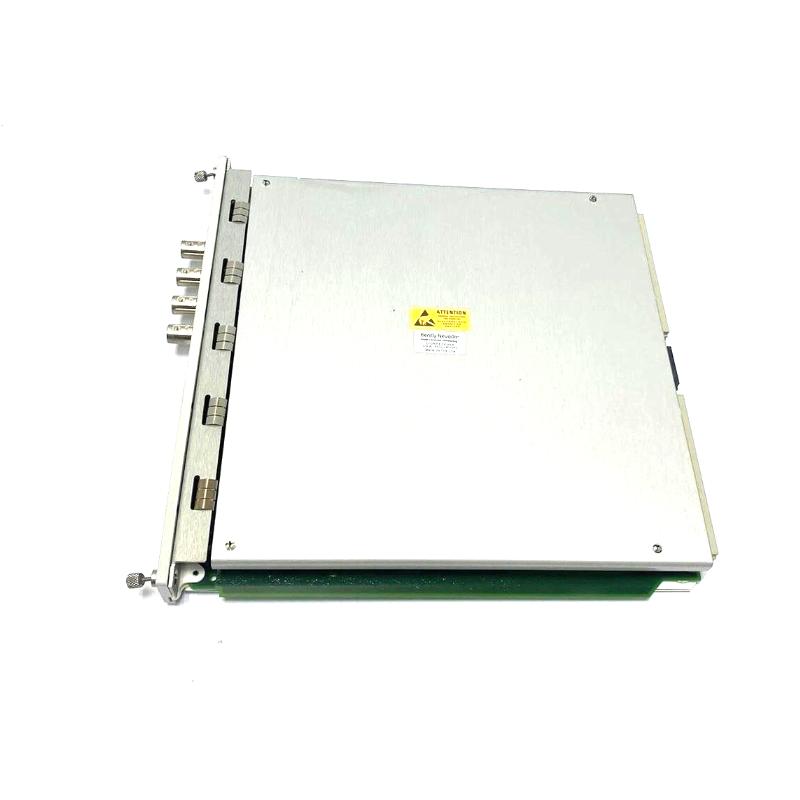

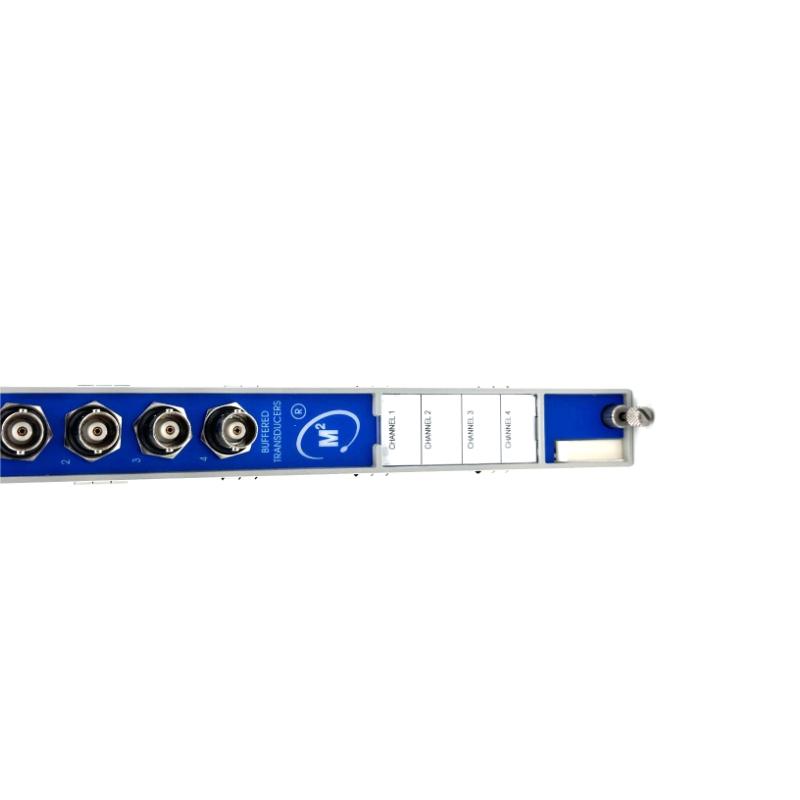

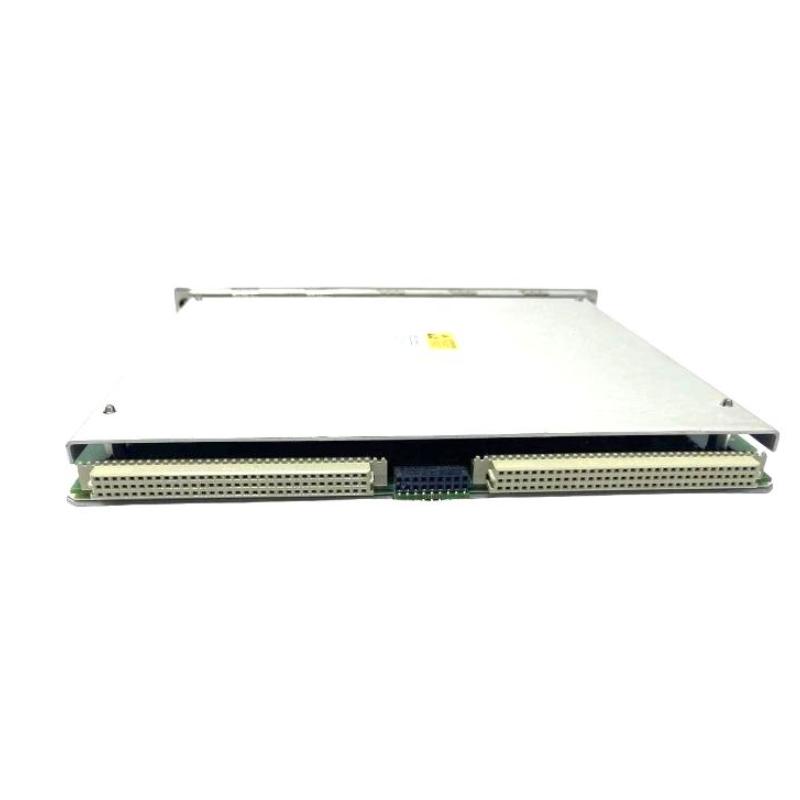

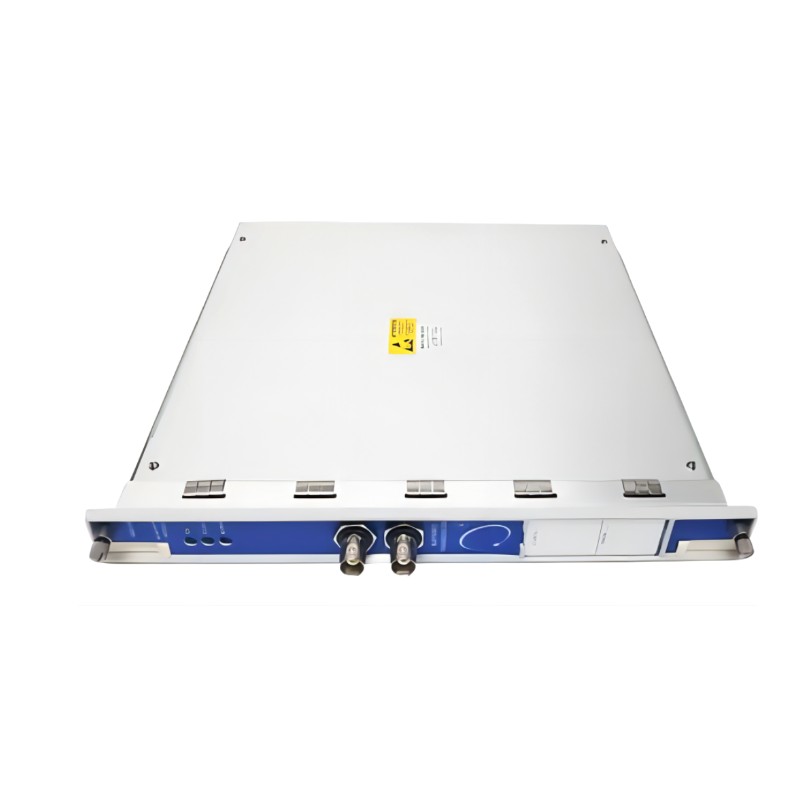

The Bently Nevada 3500/40M (143488-01) is a Close-Range Monitor Module designed for use within the 3500 Machinery Protection System. This module is specifically engineered to monitor close-range vibration and displacement in machinery, providing essential data for predictive maintenance and early fault detection.
By utilizing proximity probes and advanced signal processing, the 143488-01 module ensures accurate, real-time monitoring of machinery health, making it ideal for systems requiring high-precision vibration monitoring in tight spaces or close-range applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/40M |
| Part Number | 143488-01 |
| Product Type | Close-Range Monitor Module |
| System Compatibility | 3500 Machinery Protection System |
| Measurement | Vibration, displacement, shaft position |
| Channels | Up to 4 channels |
| Input Type | Proximity probe signals |
| Signal Processing | High-precision signal analysis |
| Transducer Supply | -24 VDC |
| Output Impedance | 550 Ω |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Mounting | Rack-mounted |
| Operating Environment | Industrial continuous operation |
Core Functionality
The 143488-01 Close-Range Monitor Module serves as a critical component in vibration and displacement monitoring systems within the 3500 Machinery Protection System.
Main Functions:
- Monitors close-range vibration and displacement of rotating machinery
- Interfaces with proximity probes for high-accuracy measurements
- Provides real-time data to the monitoring system for early fault detection
- Ensures continuous protection by evaluating mechanical movements and triggering alarms for abnormal conditions
By focusing on close-range measurements, it delivers highly accurate and localized monitoring for machinery under critical operation.
Application Areas
The 3500/40M Close-Range Monitor Module is widely used in industries where precise vibration and displacement monitoring is crucial, particularly in tight or confined spaces:
- Power generation plants: Monitoring turbines and generators
- Oil and gas: Vibration monitoring of pumps, compressors, and pipelines
- Petrochemical: Ensuring the safety and health of critical machinery
- Manufacturing: Detecting anomalies in industrial machinery
- Heavy machinery: Continuous monitoring of pumps, motors, and bearings
This module is especially valuable in situations where localized monitoring is required and space is limited.
Installation and Integration
The 143488-01 module is designed for integration within the 3500 rack system.
Installation Features:
- Rack-mounted configuration for easy installation and serviceability
- Direct signal processing for accurate vibration and displacement monitoring
- Proximity probe compatibility for high-fidelity data acquisition
- Configurable monitoring parameters for tailored application setups
The module ensures seamless integration with the existing 3500 system architecture, delivering enhanced reliability in industrial monitoring applications.
System Compatibility
This Close-Range Monitor Module integrates smoothly with the following components of the 3500 system:
- 3500/05 system rack
- 3500/15 power supply module
- Proximity probes and extension cables
- I/O modules for data input and output
- Other monitoring modules for comprehensive system monitoring
Alternative Models
| Configuration | Type | Key Feature | Application |
|---|---|---|---|
| 140734-01 | Proximitor Monitor | General vibration monitoring | Standard installations |
| 126615-01 | Proximitor I/O | External terminal I/O | Flexible installations |
| 143488-01 | Close-Range Monitor | High-precision close-range monitoring | Tight spaces |
| 3500/42M | Advanced monitor | Enhanced diagnostics | Complex machinery |
| 3500/45 | Position monitor | Precision shaft displacement | Axial measurements |
Key Advantages
- High-precision monitoring for vibration and displacement
- Ideal for tight or confined spaces requiring close-range monitoring
- Real-time data acquisition for early detection of mechanical issues
- Seamless integration with the 3500 Machinery Protection System
- Designed for continuous industrial operation with high reliability
- Compact rack-mounted design for easy installation and serviceability
Frequently Asked Questions
What does the 143488-01 module monitor?
It specifically monitors close-range vibration and displacement of rotating machinery, ensuring precise data for early fault detection.
Is it suitable for industrial environments?
Yes, it is designed for continuous operation in industrial settings, with a focus on high-precision monitoring.
Can this module work with proximity probes?
Yes, it is compatible with proximity probes, which are used to collect vibration and displacement data.
Conclusion
The Bently Nevada 3500/40M (143488-01) Close-Range Monitor Module is a specialized solution for high-precision monitoring of machinery in tight spaces or close-range applications. Offering real-time monitoring and integration with the 3500 Machinery Protection System, it ensures continuous machine health evaluation and early fault detection.
For industries requiring highly accurate vibration and displacement measurements, this module provides a dependable solution for protecting critical machinery and ensuring operational reliability.
