Product Overview

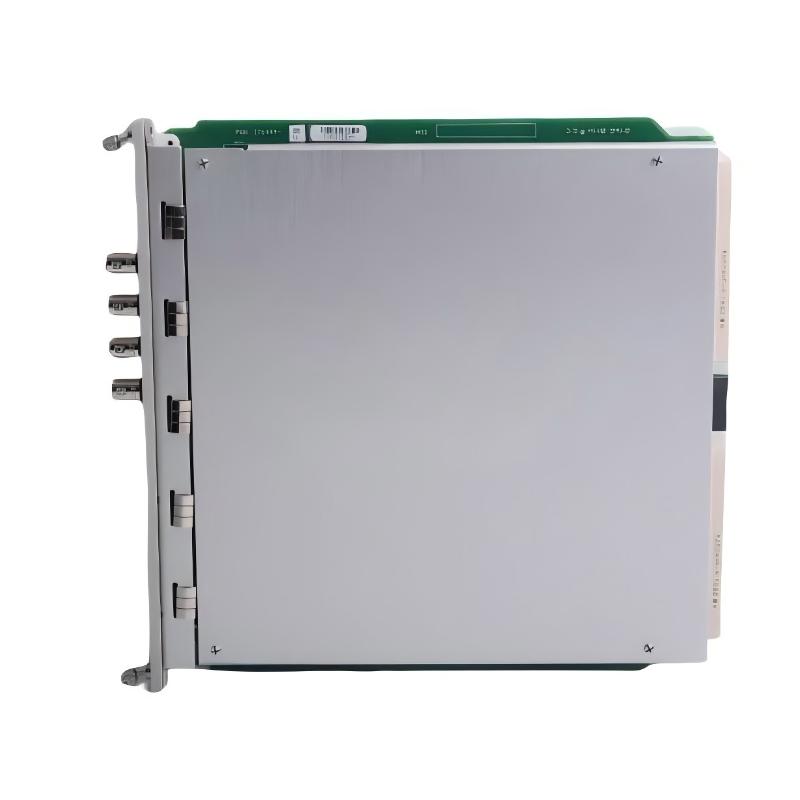

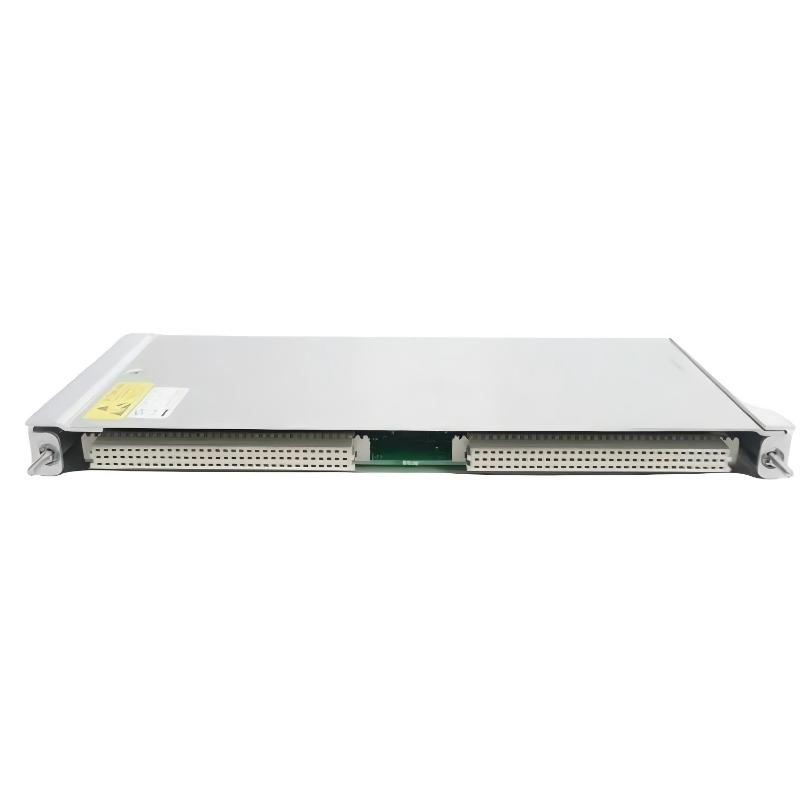

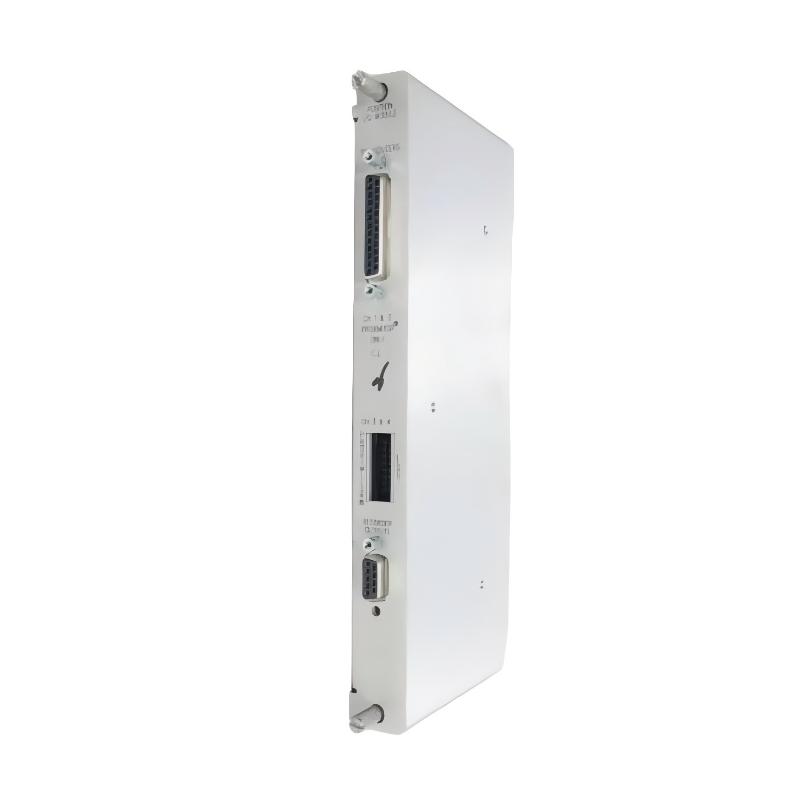

The Bently Nevada 3500/40M (140734-01 + 126615-01) is a comprehensive monitoring solution, combining a Proximitor Monitor (140734-01) with an I/O Module (126615-01), designed for the 3500 Machinery Protection System.
This combination allows for seamless signal acquisition and processing, offering high-precision monitoring of critical machinery parameters such as vibration, displacement, and shaft position. The external terminal design of the I/O module provides additional flexibility for easy wiring and maintenance, making it ideal for industrial applications requiring reliable and continuous operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/40M |
| Part Numbers | 140734-01 (Monitor) + 126615-01 (I/O Module) |
| Product Type | Proximitor Monitor + I/O Module |
| System Compatibility | 3500 Machinery Protection System |
| Channels | Up to 4 channels |
| Input Type | Proximity probe signals |
| Measurement | Vibration, displacement, shaft position |
| Signal Processing | Integrated monitoring and conditioning |
| Transducer Supply | -24 VDC |
| Output Impedance | 550 Ω |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Terminal Type | External terminals |
| Mounting | Rack-mounted |
| Operating Environment | Industrial continuous operation |
Integrated Functionality
This configuration combines both monitoring and signal acquisition capabilities, providing a complete solution within the 3500 Machinery Protection System.
System Components:
- 140734-01 Proximitor Monitor – Processes and evaluates the proximity probe signals
- 126615-01 I/O Module – Receives and conditions the input signals
How It Works:
- Proximity probes measure mechanical movement
- I/O module with external terminals collects and conditions the signals
- Monitor processes the data and evaluates machine health
- System generates alerts if parameters exceed predefined limits
This setup ensures reliable early fault detection and continuous monitoring of rotating machinery.
Advantages of External Terminal Design
The external terminal design provides several key operational benefits.
Key Benefits:
- Easy Wiring Access: Simplifies installation and system configuration
- Flexible Maintenance: Makes it easier to access and troubleshoot
- Reduced Downtime: Minimizes downtime during maintenance with quick adjustments
- Service-Friendly: Ideal for installations where frequent access is required
Industrial Applications
The Bently Nevada 3500/40M (140734-01 + 126615-01) is ideal for industrial environments where machinery reliability is critical:
- Power Generation: Ensures safe operation of turbines and generators
- Oil and Gas: Monitors compressors, pumps, and other critical equipment
- Petrochemical: Assists in the safe operation of reactors and mixers
- Heavy Manufacturing: Provides reliable machinery condition monitoring in factories
- Industrial Machinery: Continuous monitoring of key rotating equipment
It is especially beneficial for:
- Predictive maintenance applications
- Continuous operations where equipment must run without interruption
- Critical asset monitoring to prevent costly failures
Installation and Integration
This package is designed for seamless integration with the 3500 system architecture.
Installation Features:
- Rack-mounted design for easy installation and setup
- External terminal I/O module for quick wiring and flexible adjustments
- Direct module-to-module communication ensures seamless data flow
- Configurable parameters for fine-tuned monitoring capabilities
Proper installation ensures optimal performance and reliable operation.
System Compatibility
The 3500/40M modules work perfectly with other components within the 3500 system:
- 3500/05 system rack
- 3500/15 power supply module
- Proximity probes and extension cables
- Additional I/O and communication modules
The integration of these components offers a comprehensive machinery protection solution.
Alternative Models
| Configuration | Type | Key Feature | Application |
|---|---|---|---|
| 140734-01 + 125680-01 | Internal terminal I/O | Compact design | General installations |
| 140734-01 + 135489-04 | Intrinsic safety I/O | Hazardous zones | Explosion-proof environments |
| 3500/42M | Advanced monitor | Enhanced diagnostics | Complex machinery |
| 3500/45 | Position monitor | Precision measurement | Axial displacement systems |
| 3500/40M + 126615-01 | Standard setup | Easy service | Routine maintenance systems |
Key Advantages
- Complete monitoring solution combining signal processing and I/O functionality
- External terminals for easier access and maintenance
- High precision and reliability for critical applications
- Seamless integration with the 3500 system for scalable deployment
- Designed for continuous industrial operations in harsh environments
Frequently Asked Questions
What is included in the 140734-01 + 126615-01 package?
It includes a Proximitor Monitor (140734-01) and an I/O Module with external terminals (126615-01), both optimized for use in the 3500 system.
Why choose this configuration?
This combination simplifies installation, improves serviceability, and enhances signal acquisition and processing for reliable machinery monitoring.
Can I integrate it into an existing 3500 system?
Yes, this package is designed for seamless integration into existing 3500 system setups.
Conclusion
The Bently Nevada 3500/40M (140734-01 + 126615-01) Proximitor Monitor with I/O Module offers a complete, integrated solution for industrial machinery monitoring. Combining both signal processing and easy maintenance access, this system provides reliable performance and high precision for critical machinery applications.
For industries requiring continuous and efficient monitoring, this package delivers flexibility, reliability, and ease of use.
